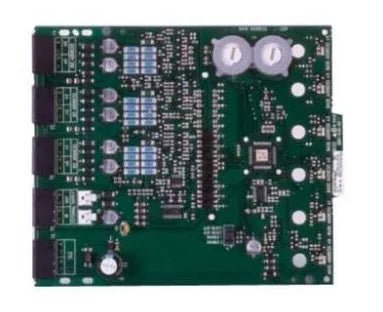

Farenhyt IDP-Zone-6 is an addressable zone interface module for use with Silent Knight IFP-series fire alarm control panels (FACPs)
The IDP-Zone-6 provides six zone inputs that allow a Silent Knight FACP to interface and monitor two-wire conventional smoke detectors.
This means you can retrofit an existing building and use existing conventional devices.
The inputs on the IDP-Zone-6 share a common FACP signaling line circuit (SLC) input, and the initiating device circuits share a common external power supply. Otherwise, each input on the module operates independently from the others.
If needed, you can disable a maximum of two unused inputs on the IDP-Zone-6 board. It transmits the status of a zone of two-wire detectors to the FACP.
Status conditions are reported as normal, open, or alarm. The IDP-Zone-6 supervises the zone of detectors and the connection of the external power supply.
All two-wire detectors being monitored must be UL compatible with the IDP-Zone-6.
