Edwards Signaling 877-G1 Audio Warning Device, Horn, Vib, Siren, 24VDC Sup, 0.16A, Adaptabel/877 Series

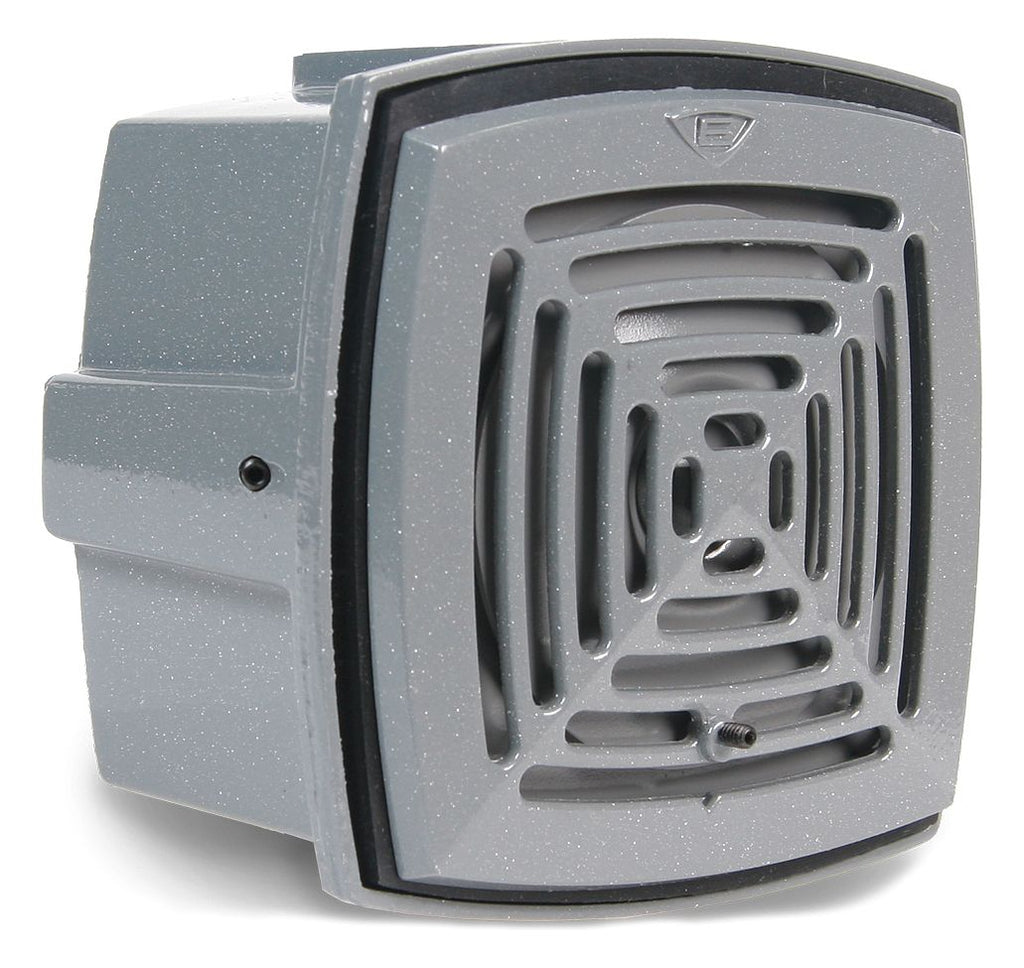

Edwards Signaling 870 Series heavy-duty vibrating horn for 24 V DC, rated for indoor and outdoor use. The 870 Series is a line of low-current, high-decibel vibrating horns with die-cast construction and corrosion-resistant finishes for industrial signaling; output is adjustable with a volume set screw.
Key Features
- 24 V DC vibrating horn, 0.16 A
- 111 dB at 1 m / 101 dB at 10 ft
- Rated for indoor and outdoor locations (876/877 models: NEMA Type 4X, 12 and 12K)
- Volume adjustment set screw (allen wrench supplied)
- Mounting options across the series: flush, panel, junction box, surface or 3/4 in. NPT conduit
- UL certified, FM Approved
Specifications
| Operating voltage |
24 V DC (-20% to +10% of nominal) |
| Current |
0.16 A (3.8 VA) |
| Sound output |
111 dB at 1 m / 101 dB at 10 ft (anechoic) |
| DC coil resistance |
24 ohms |
| Operating temperature |
-35 C to +66 C (-31 F to +150 F) for 876/877 models |
| Rated location |
Indoor & outdoor |
Documents & Downloads
FAQ
What voltage does the 877-G1 use?
24 V DC, from -20% to +10% of nominal, drawing 0.16 A.
How loud is it?
111 dB at 1 m and 101 dB at 10 ft (anechoic). Output can be turned down with the volume set screw.
Can it be installed outdoors?
Yes. The 876/877 models are rated NEMA Type 4X, 12 and 12K for indoor and outdoor use.
What is the operating temperature range?
-31 °F to +150 °F (-35 °C to +66 °C) for the 876/877 models.
