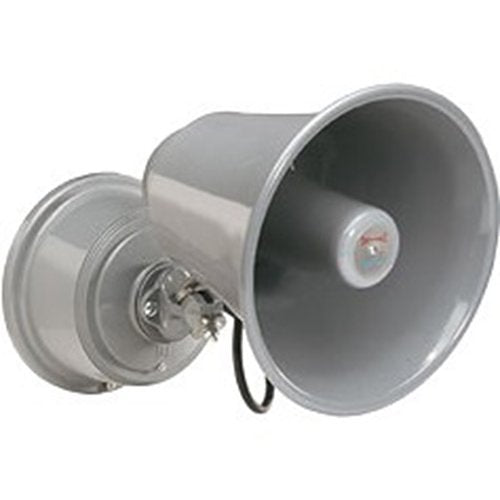

Edwards 5520D-AW is a low-current Duotronic signaling appliance that works as either a horn or a siren, selected with a tamper-proof internal switch. It is diode polarized, so it suits circuits that require electrical supervision of the field wiring, and it can also be used on unsupervised signaling circuits.
The horn tone is often used for timing, paging, and burglar or fire alarms, while the siren tone is suited to alarm and evacuation in high-noise areas. Typical settings include schools, factories, lumber yards, and commercial buildings.
Features
- Switchable horn or siren operation through an internal tamper-proof switch
- Diode polarized for supervised signaling circuits
- Adaptaplate lets the installer wire the plate first, then snap the horn onto it
- Mounts on walls, single-gang openings, 3-1/4 in (83 mm), 3-1/2 in (89 mm) and 4 in (102 mm) octagon boxes, and 4 in (102 mm) square boxes
- Can be weatherproofed by adding the 349 back box
Specifications
| Alarm type |
Audible |
| Signal |
Horn or siren (switchable) |
| Mounting |
Wall mount |
| Input voltage |
24 V DC |
