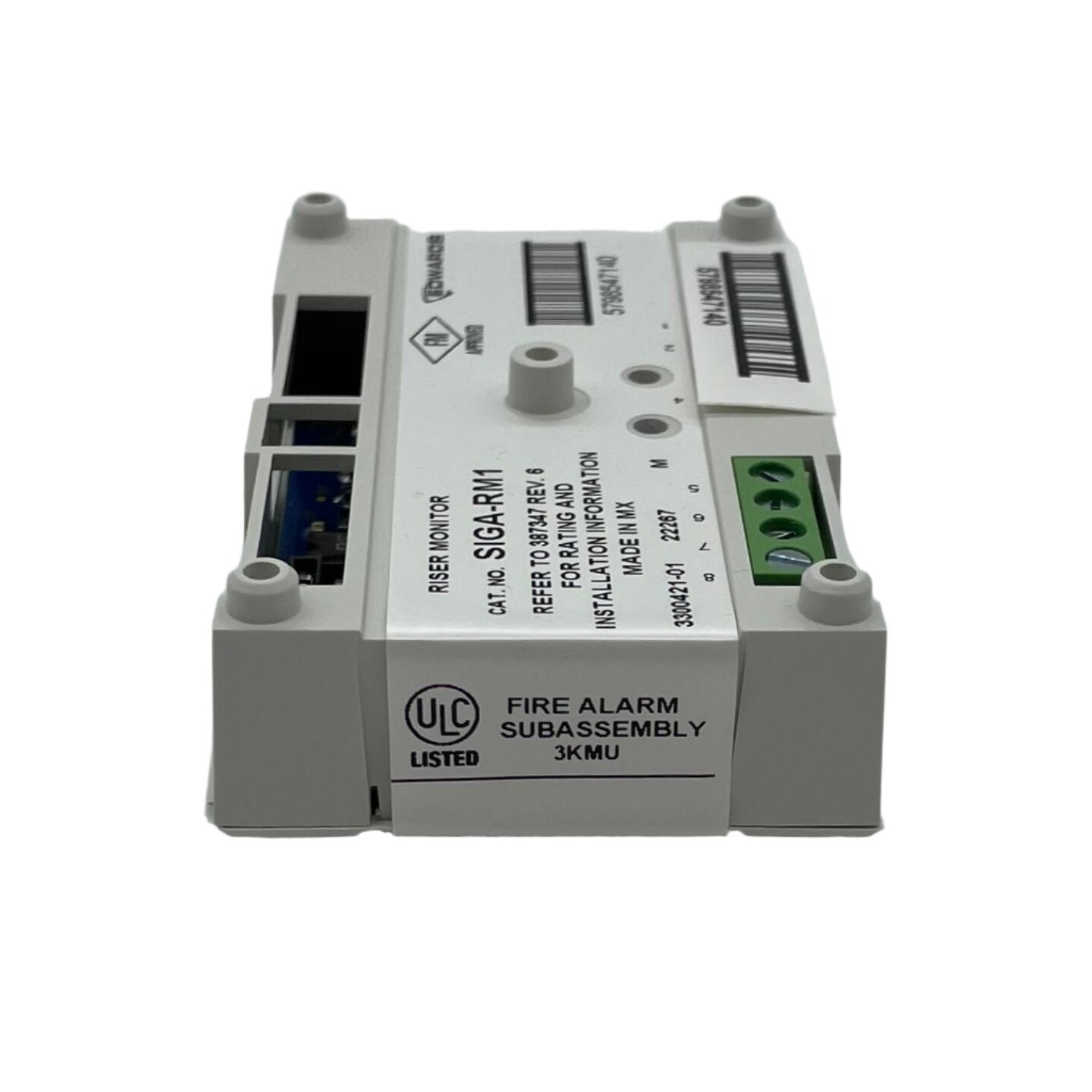

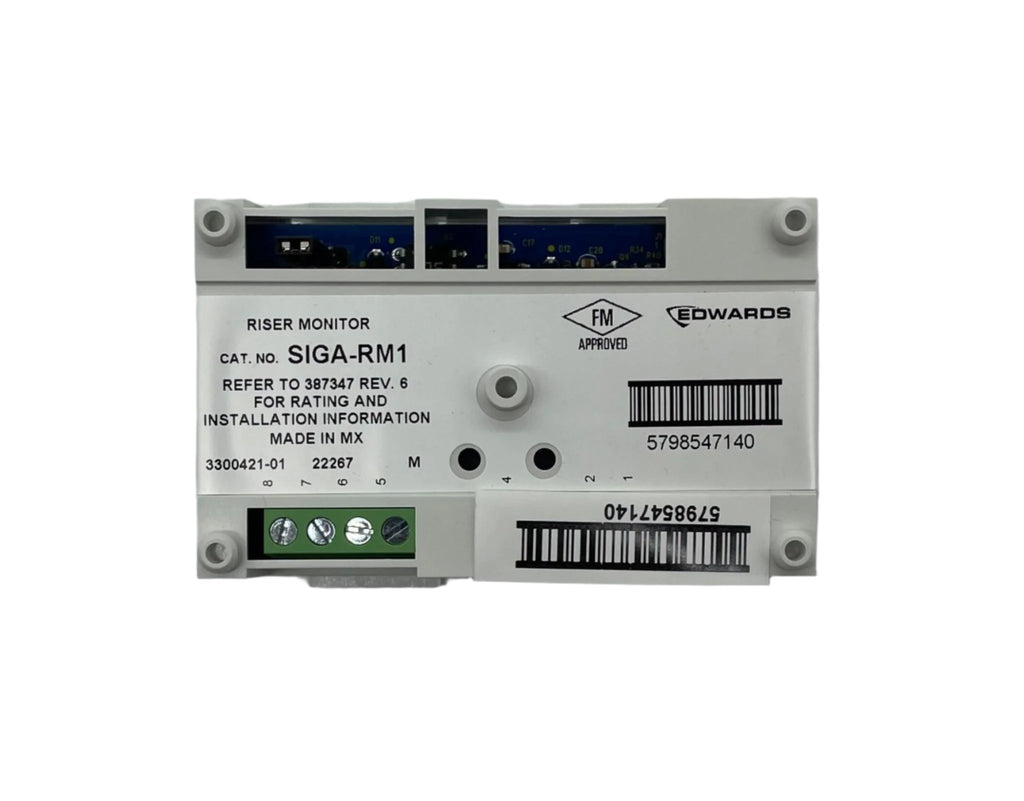

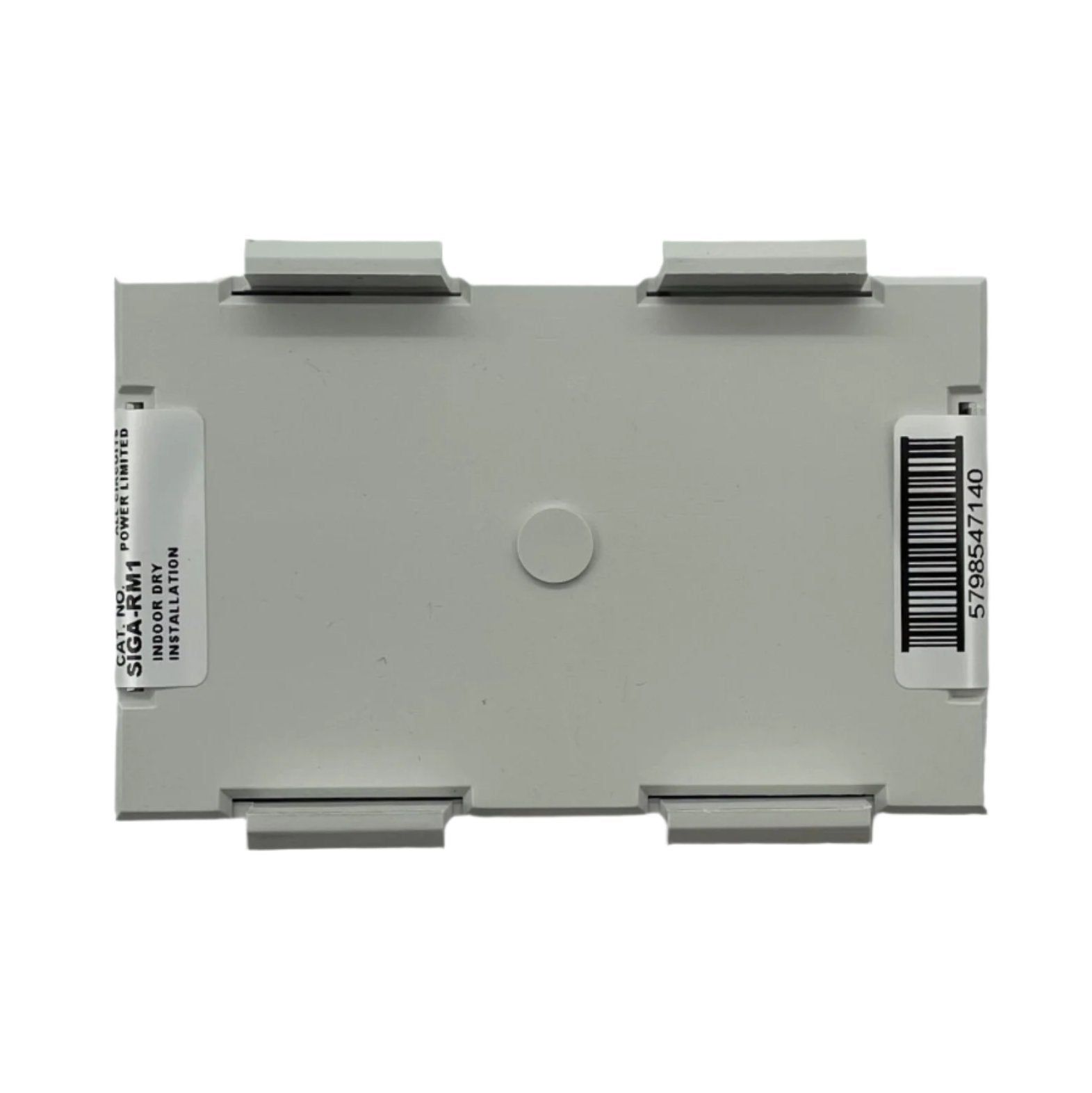

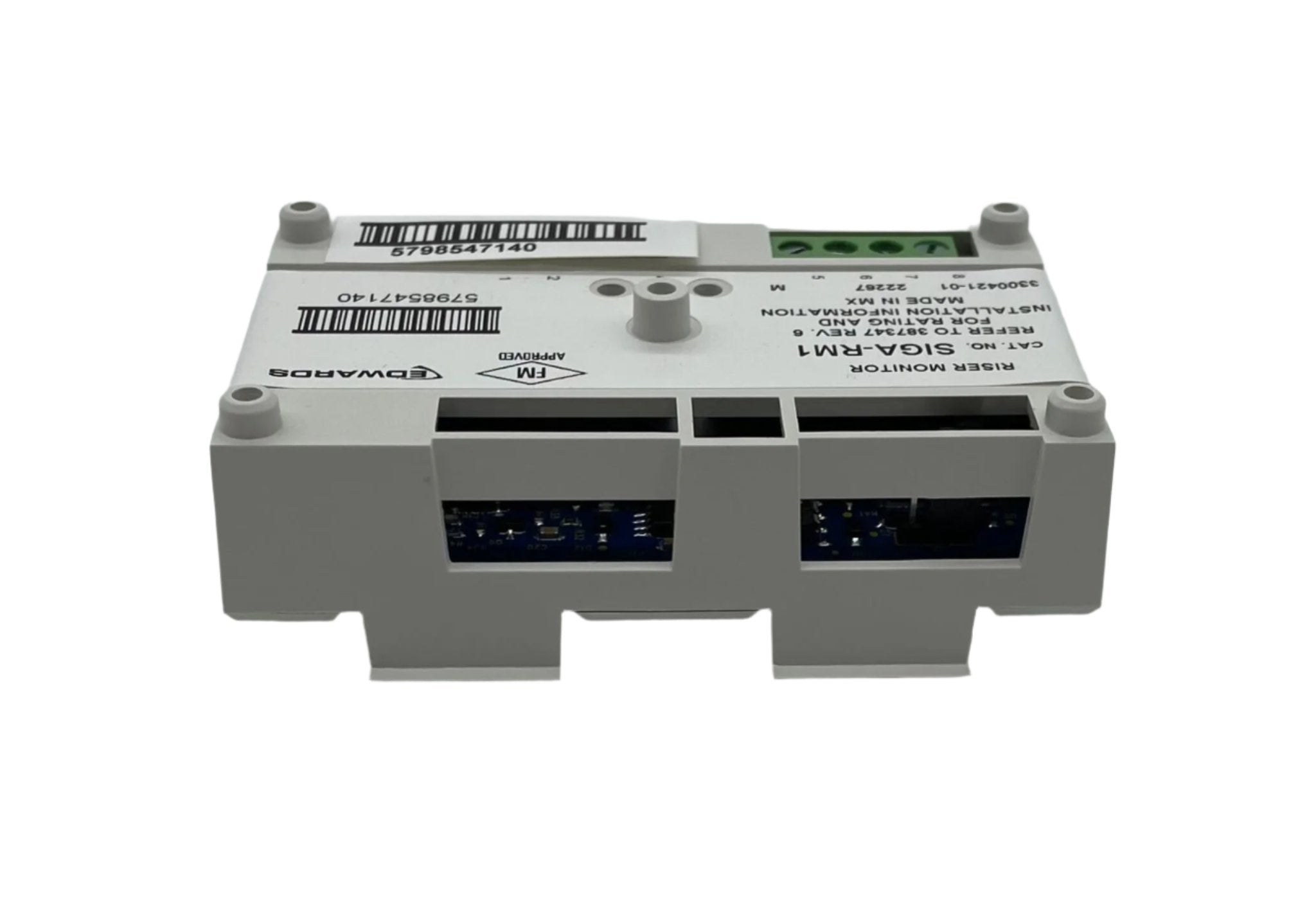

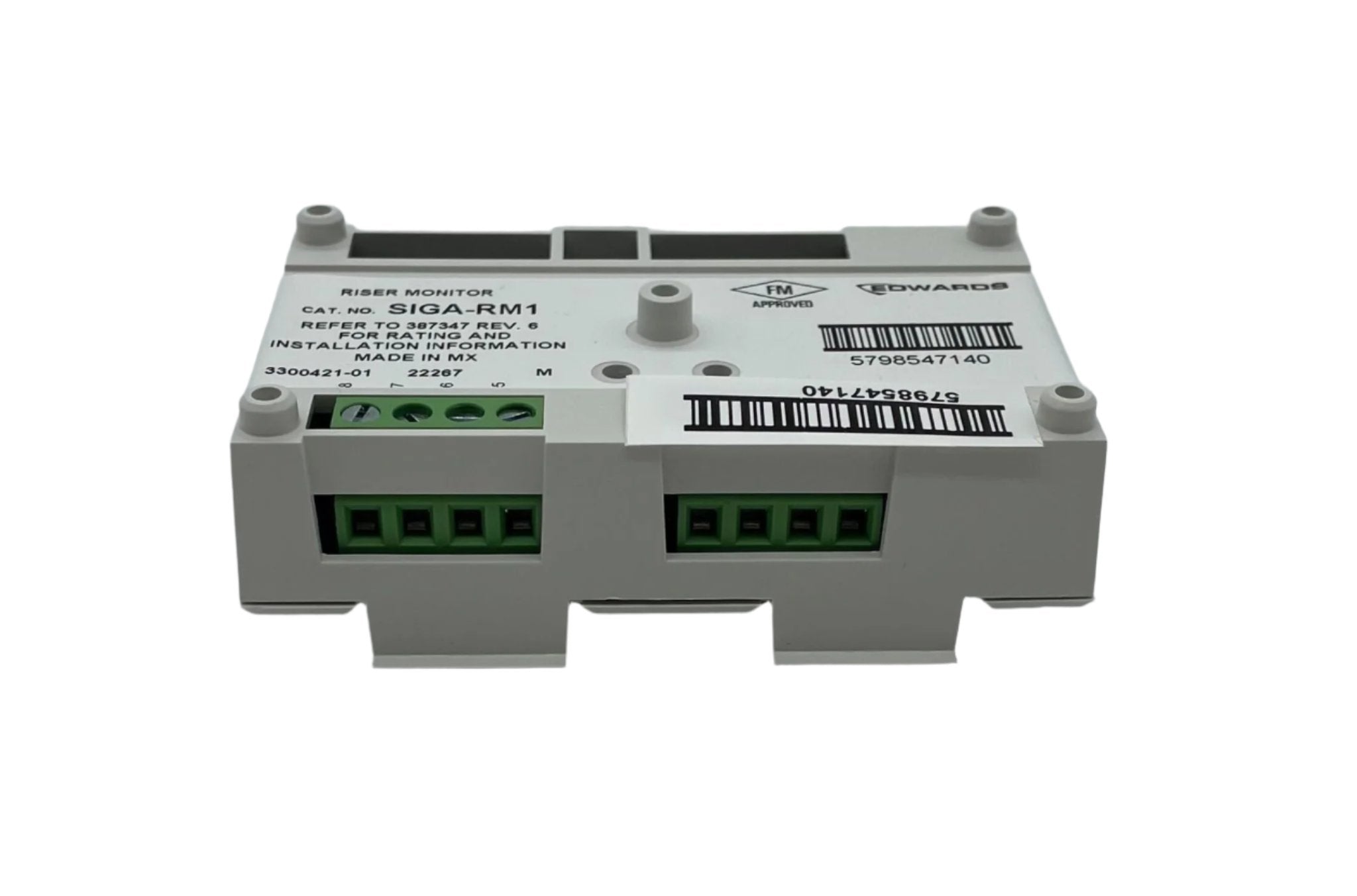

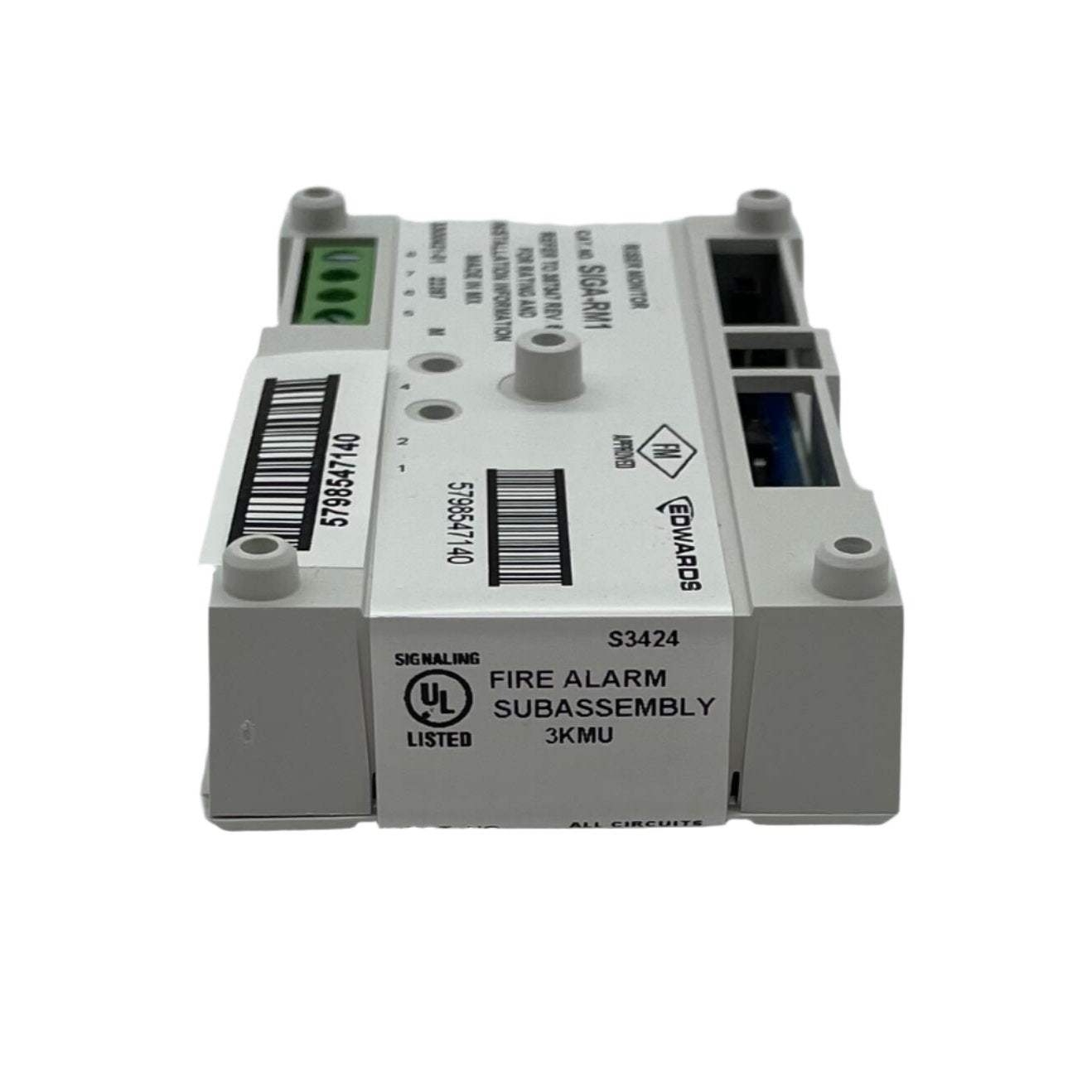

Edwards SIGA-RM1 — Signature Series intelligent addressable Riser Monitor Module, standard two-gang mount.
Audio and telephone risers carry no supervision of their own, so a fault on the riser would go unseen until the system was needed. This module watches riser voltage and reports a trouble to the panel when it falls below threshold. Its behaviour comes from a personality code downloaded by the loop controller: code 23 watches 70 Vac audio, 25 Vac audio or 12 and 24 Vdc risers, and code 24 watches telephone risers. A jumper selects the voltage group and is left out for telephone use.
- Trouble threshold approximately 25 percent of riser input
- Trouble delay selectable to 75 seconds, 15 seconds by default
- 200 µA standby and activated; operating voltage 15.2 to 19.95 Vdc
- Mounts to a 2-1/2" deep two-gang box; terminals take 12 to 18 AWG
- Uses one module address; works with EST3, EST3X and iO Series panels
- UL, ULC, MEA and CSFM certified
SIGA-MRM1 is the same module in plug-in UIO form. Do not substitute SIGA-MM1, which monitors a Class B dry-contact circuit rather than a riser.
Documents
FAQ
What risers can the SIGA-RM1 monitor?
12 VDC and 24 VDC power, 25 VAC and 70 VAC audio, and telephone risers (28 VDC maximum). The personality code selects riser or telephone monitoring.
When does it report a trouble?
The trouble threshold is approximately 25% of the riser input.
How is it mounted?

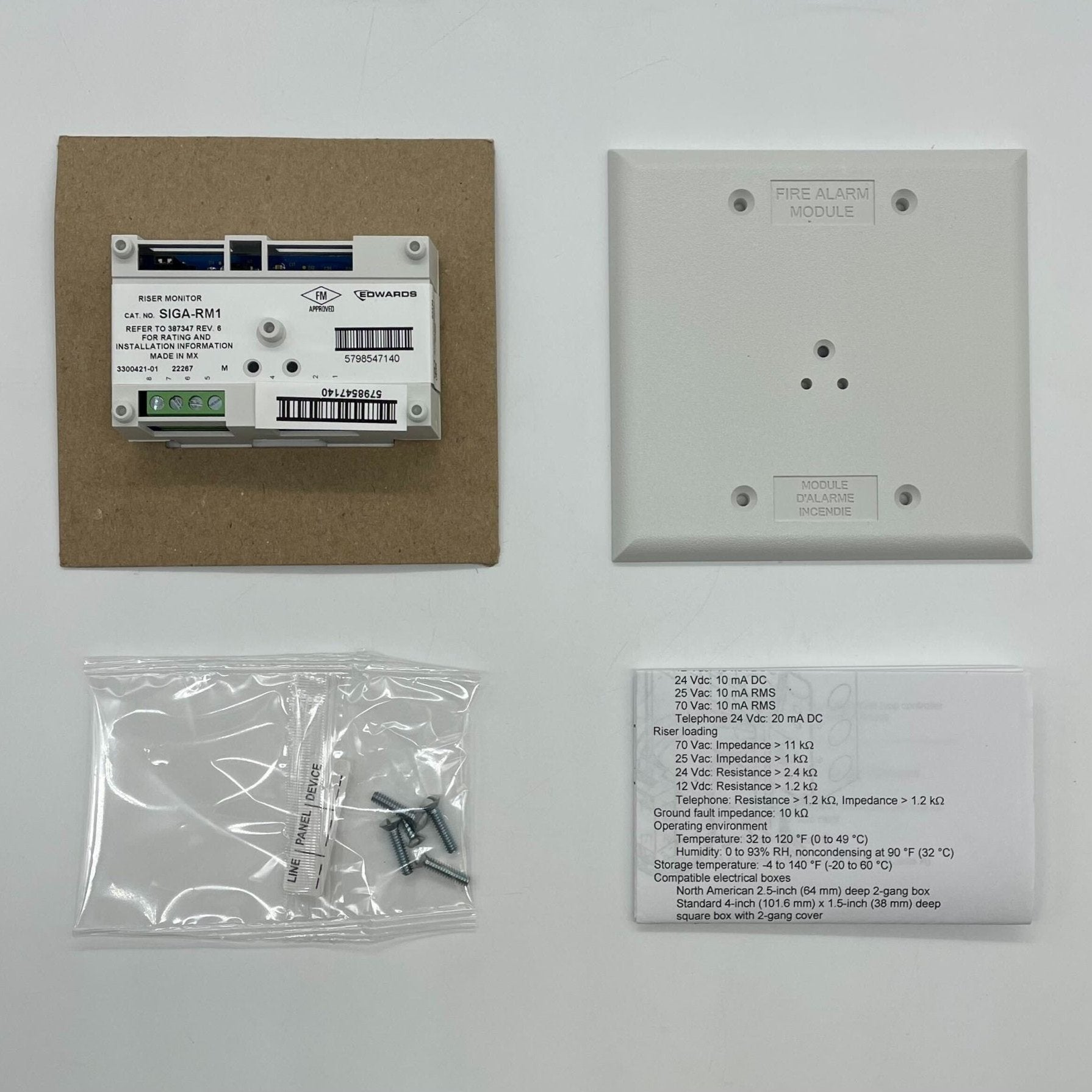

To a North American 2-1/2 in. deep 2-gang box, or a 1-1/2 in. deep 4 in. square box with 2-gang cover and SIGA-MP mounting plates. The SIGA-MRM1 is the plug-in version for UIO motherboards.
How much current does it draw?
200 µA standby and activated, at 15.2 to 19.95 VDC from the Signature loop.
