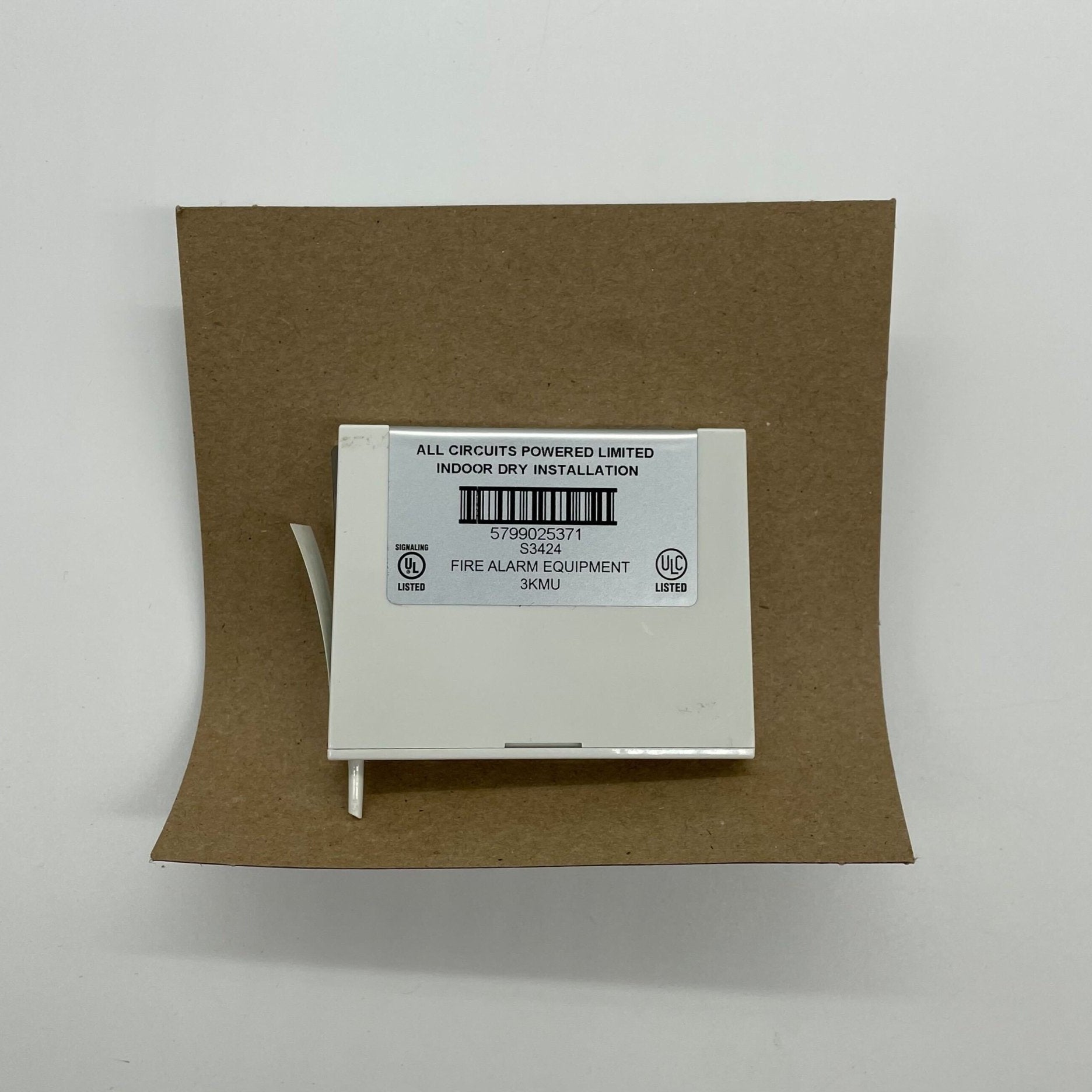

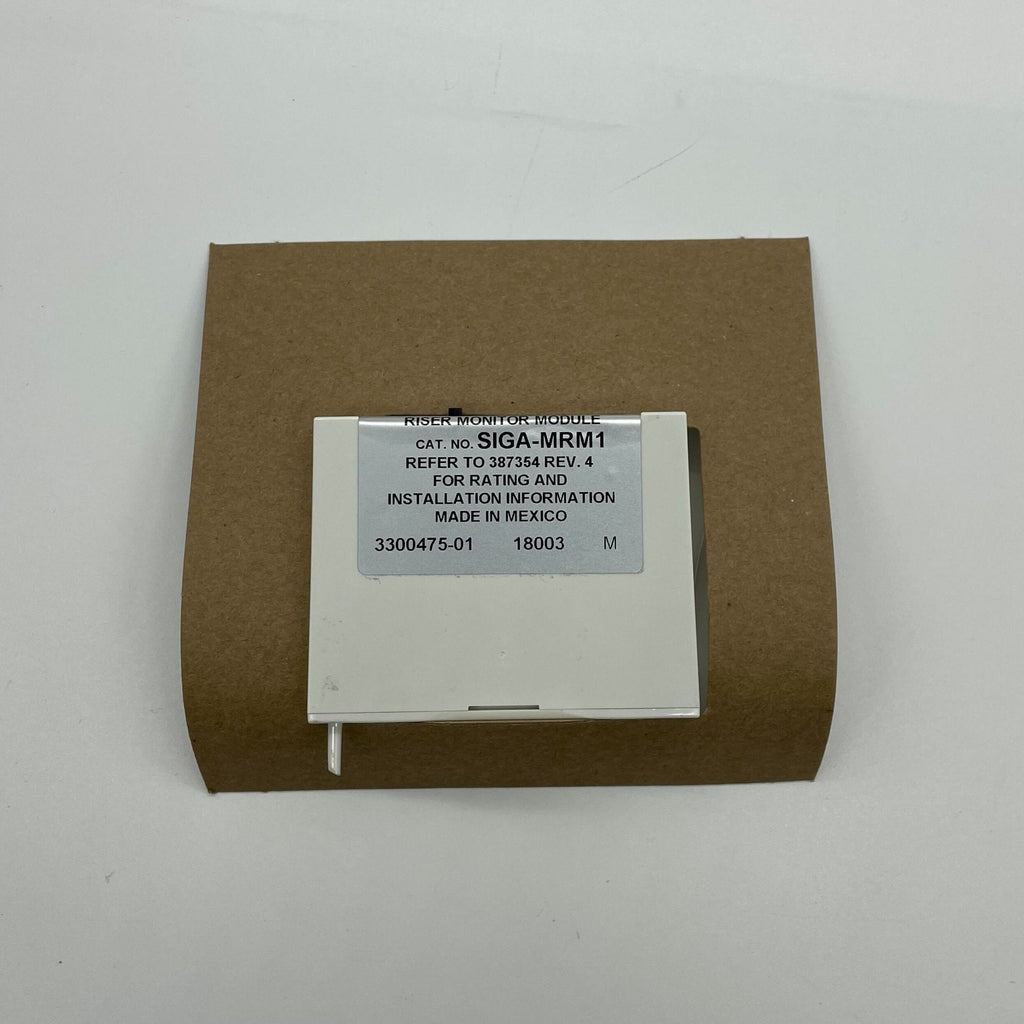

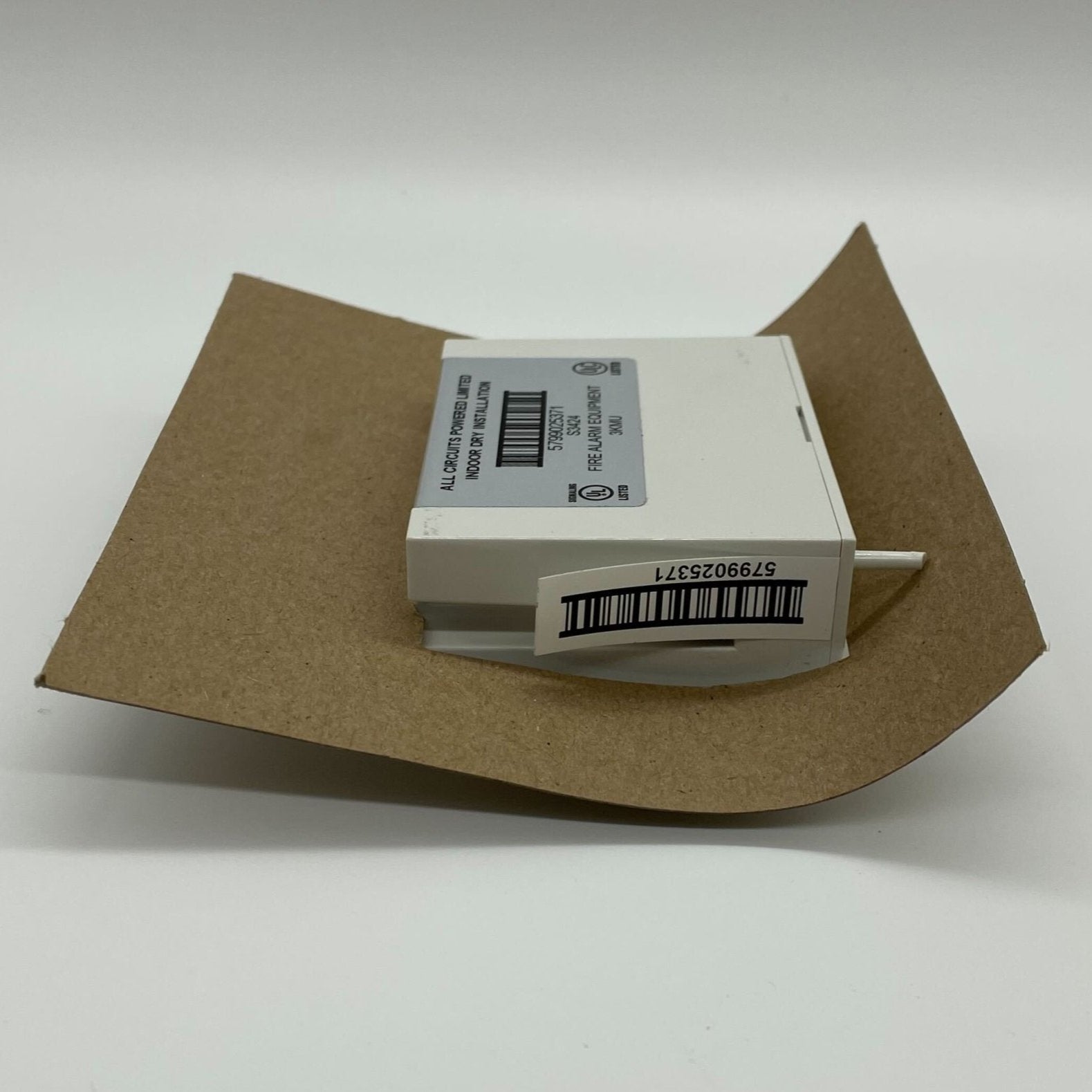

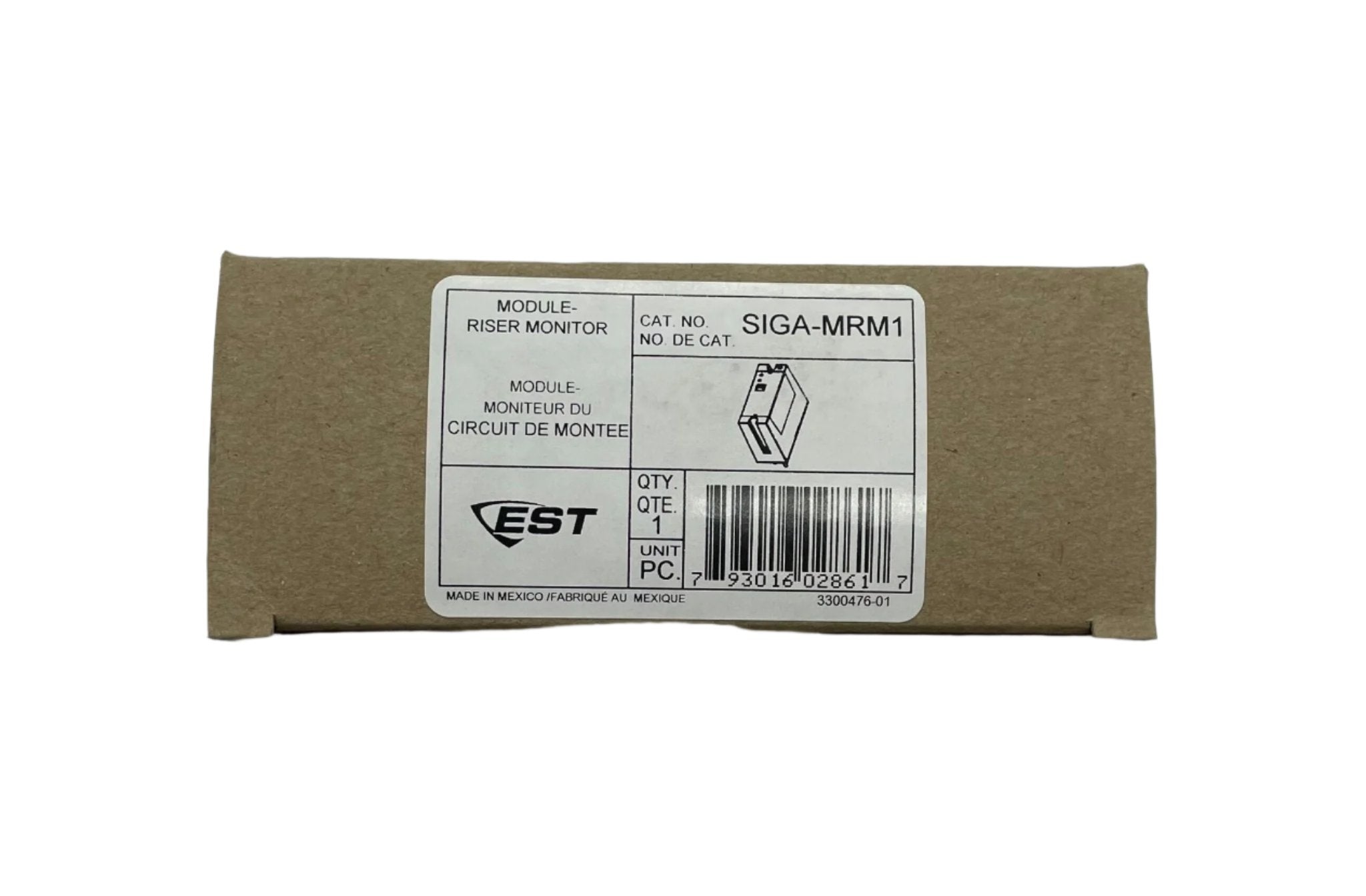

Edwards SIGA-MRM1 Riser Monitor Module - Uio Mount. Use For Monitoring Power, Audio, Or Telephone Riser

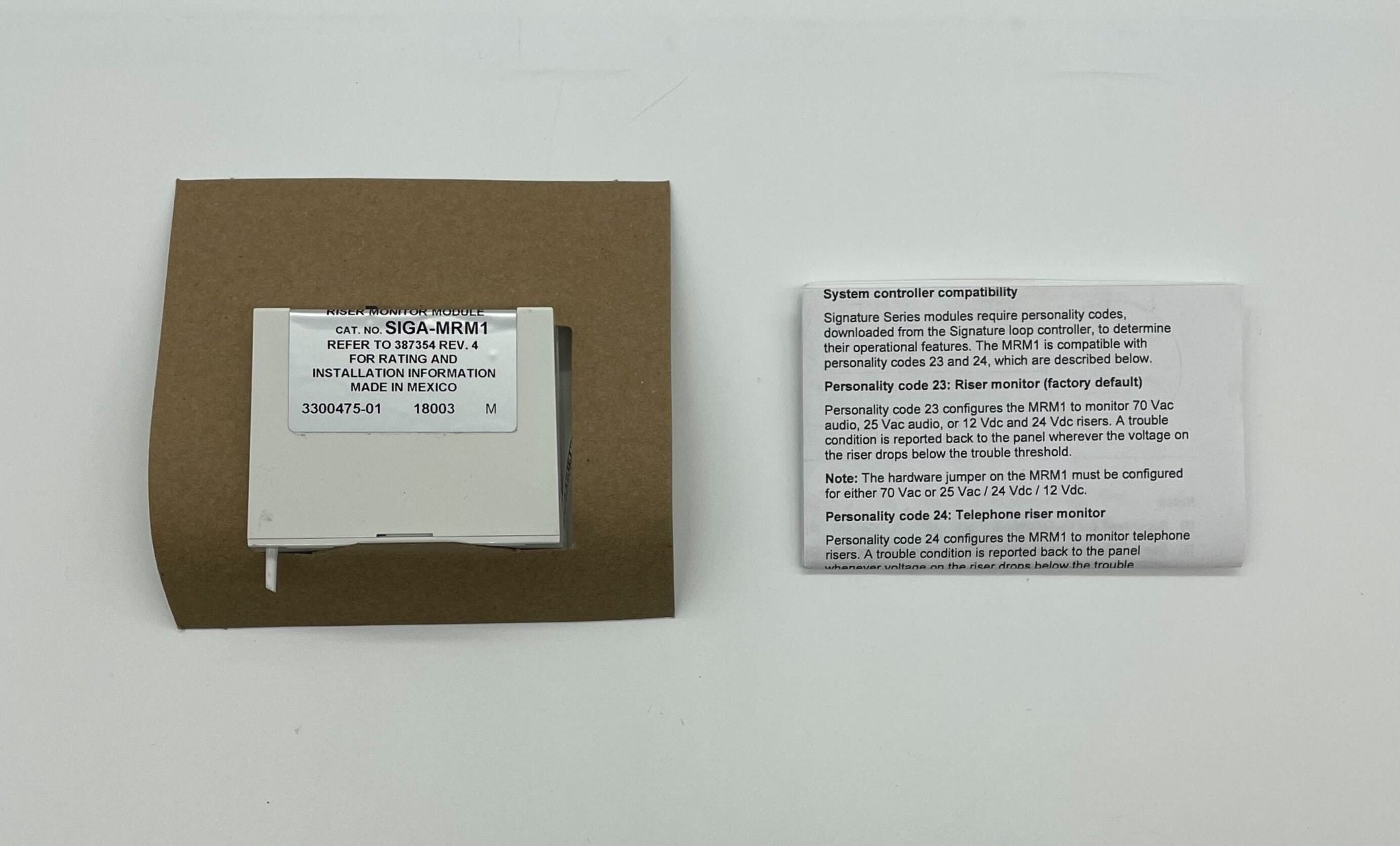

SIGA-RM1 and MRM1 Riser Monitor Modules are intelligent analog addressable devices that form part of EDWARDS's Signature line of products. The actual operation of the SIGA-RM1 and MRM1 is determined by the “personality code” selected by the installer, which is downloaded to the module from the Signature loop controller during system configuration. Depending on their assigned personality, Riser Monitor Modules may be used to monitor telephone risers or 70 Vac audio, 25 Vac audio, or 12 Vdc to 24 Vdc risers. Upon the loss of a signal, the fire alarm control panel indicates an alert status. The Riser Monitor Module requires one module address.
Key Features
- Adjustable time delay 0-75 seconds (default 15 seconds)
- Monitors audio power or telephone risers Reports a trouble condition when voltage on the riser drops below the trouble threshold
- Plug in (UIO) or standard 2-gang mount UIO versions allow quick installation where multiple modules are required. The 2-gang mount version is ideal for remote locations that require a single module
- Automatic device mapping Signature modules transmit information to the loop controller regarding their circuit locations with respect to other Signature devices on the wire loop
- Electronic addressing Programmable addresses are downloaded from the loop controller, a PC, or the SIGA-PRO Signature Program/Service Tool. There are no switches or dials to set
