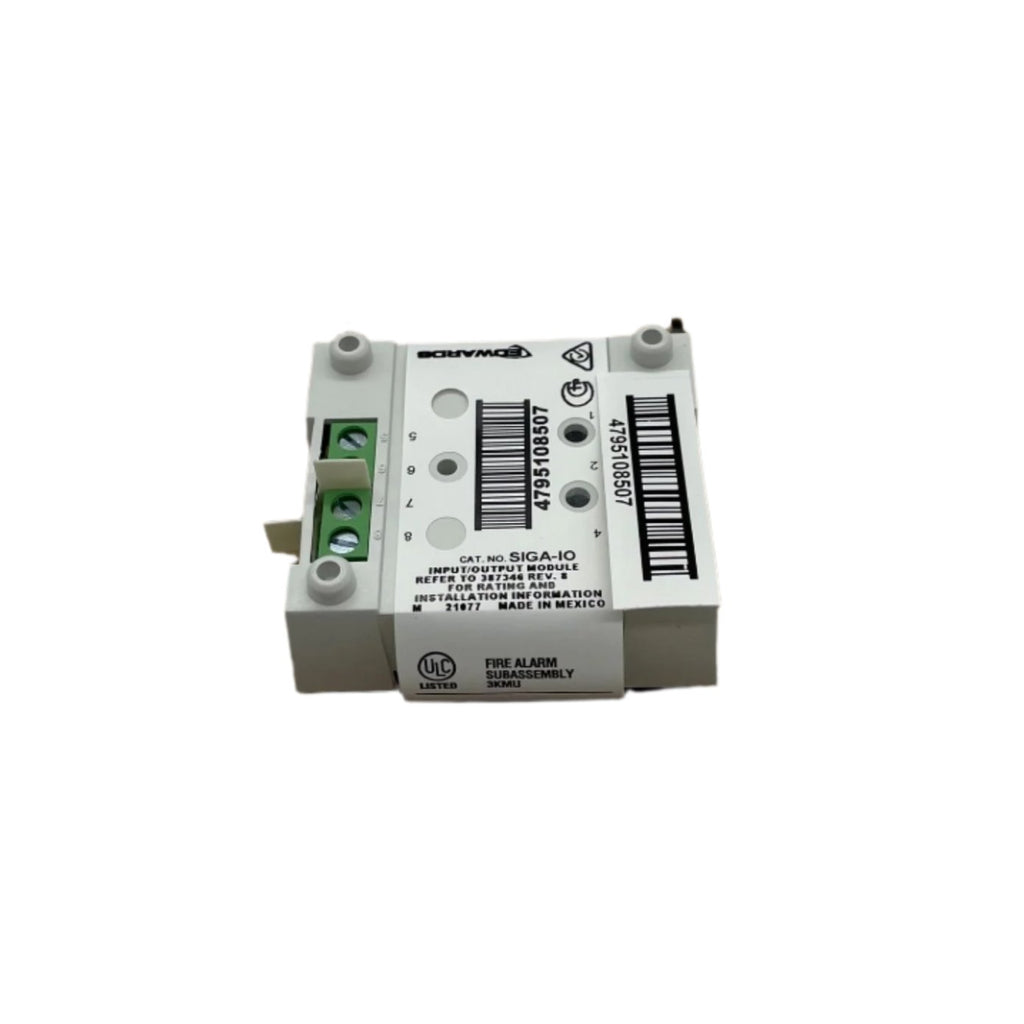

Edwards SIGA-IO — Signature Series addressable module with one supervised input and one dry-contact relay output, one-gang mount.
One module, ten jobs: the installer picks a personality code that the Signature loop controller downloads at configuration, and the same hardware becomes a relay output with monitor input, a latching alarm input, a delayed waterflow input, or a non-latching active input for fans, dampers and doors.
- One initiating device input and one Form A or Form B relay output; uses one module address
- Ten personality codes (31–40); response time 5–120 seconds
- Relay contacts, pilot duty: 2 A @ 24 VDC, 0.5 A @ 120 VAC
- IDC end-of-line: UL/ULC certified 47 kΩ; 50 Ω max loop resistance
- 250 µA standby, 430 µA activated; 15.2 to 19.95 VDC

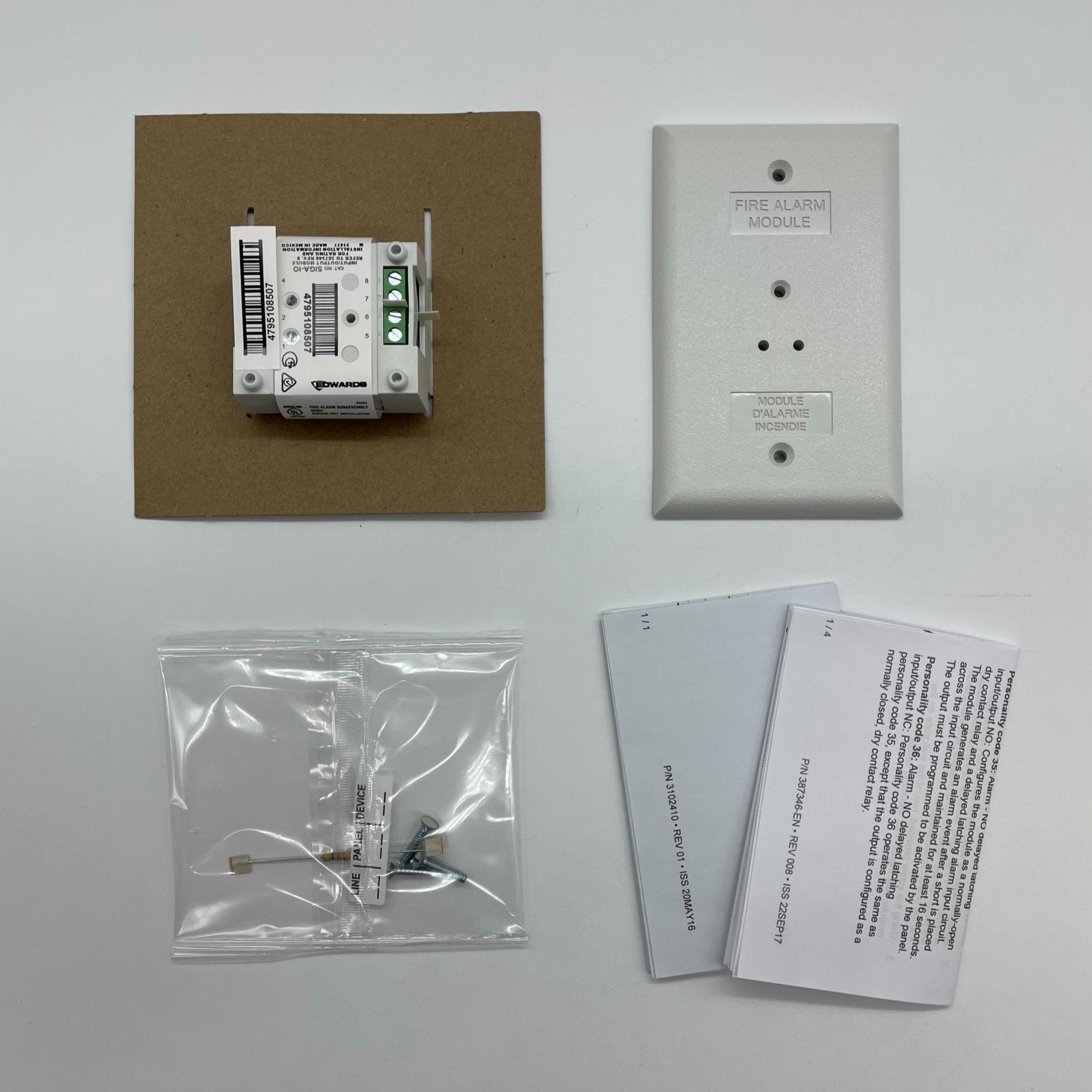

- Mounts to a 2-1/2" deep one-gang box or a SIGA-MP plate
The SIGA-IO does not plug into a UIO motherboard. If the drawings show a UIO2R or UIO6R position, order the SIGA-MIO instead — same function, plug-in form. Either way a Signature loop controller is required.
Documents
FAQ
Which panels support the SIGA-IO?
The SIGA-IO is part of the Edwards Signature Series and works with a Signature loop controller on EST3, EST3X and iO Series control panels.
What is the default personality code?
Personality code 31, a normally open relay output with a monitor input. Codes 31 to 40 are available and are downloaded from the loop controller.
What can the relay switch?
The Form A or Form B relay is rated, pilot duty, 2 A at 24 VDC or 0.5 A at 120 VAC. It is not rated for capacitive loads.
What box does it mount in?
A North American 2-1/2 in. deep one-gang box, or a 1-1/2 in. deep 4 in. square box with a one-gang cover and SIGA-MP mounting plate. For UIO2R or UIO6R motherboards, use the plug-in SIGA-MIO.
