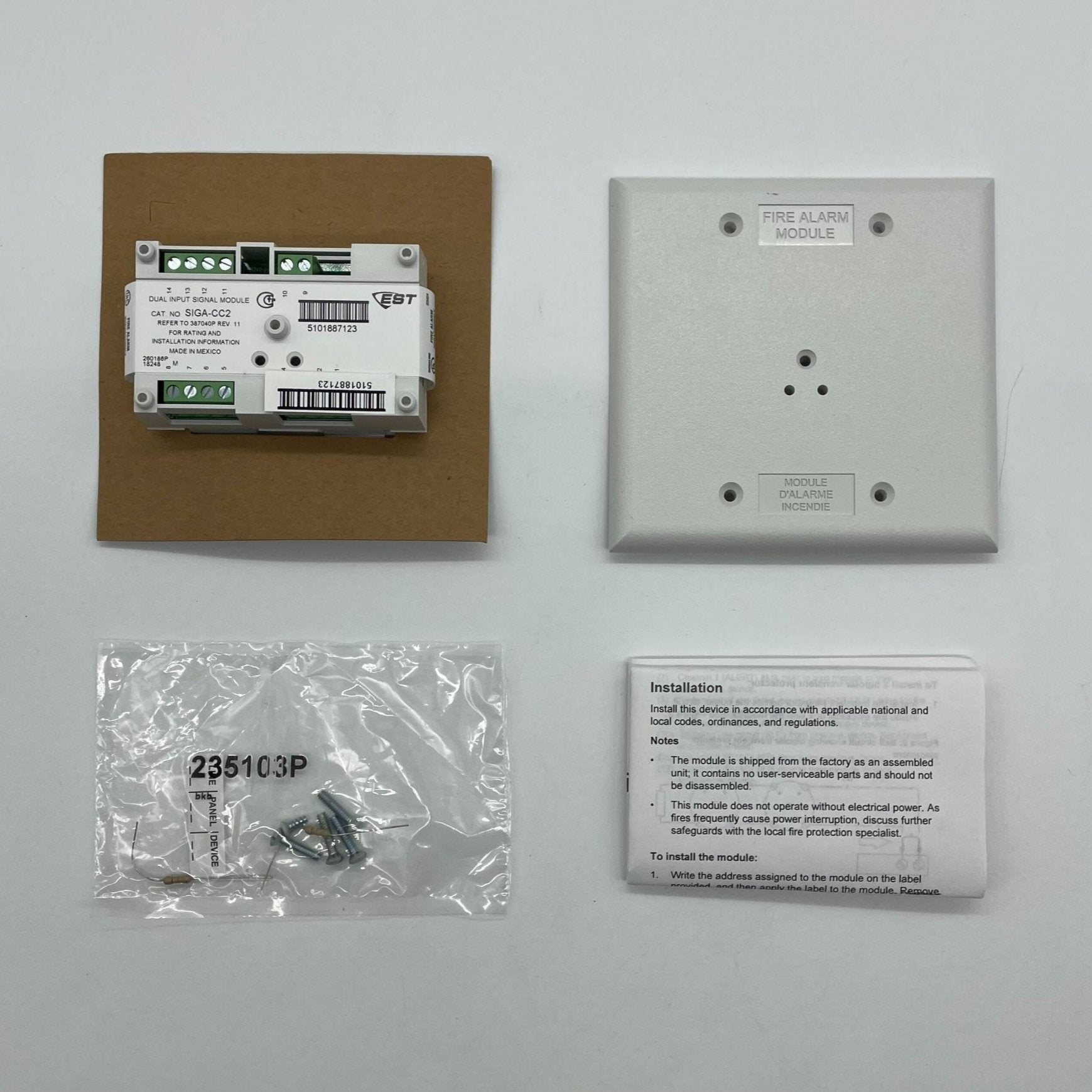

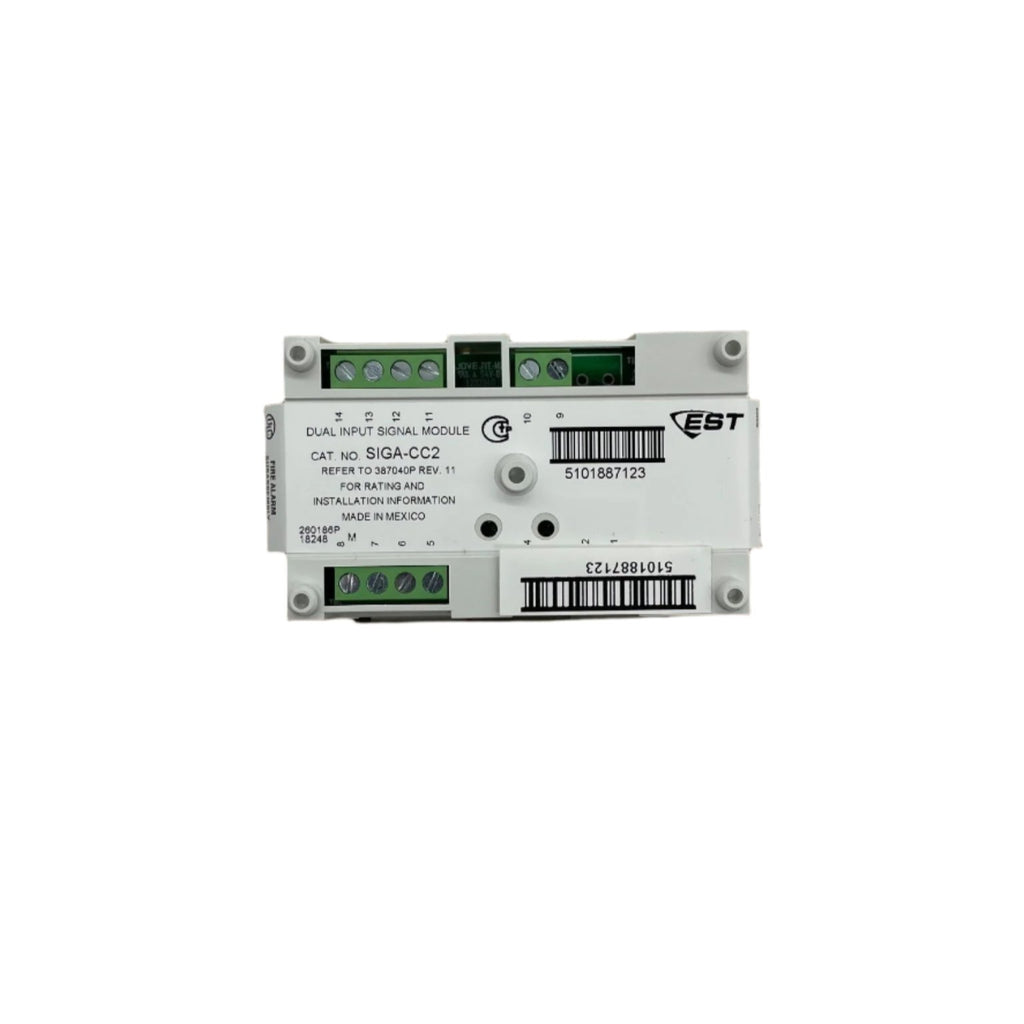

Edwards SIGA-CC2 is a dual input (riser) signal module for Edwards Signature Series systems, in a standard two-gang mount. On command from the Signature loop controller it connects one supervised Class B output circuit to either of two power inputs.
That makes it useful where a single speaker or signal circuit has to carry two different sources, for example separate alert and evacuation audio channels, or 24 VDC signal power. It takes two module addresses on the loop.
Features
- Selects between two riser inputs for one output circuit
- Output rating of 24 VDC at 2 A, 25 V audio at 50 W or 70 V audio at 35 W
- Supervised Class B output circuit
- Uses two module addresses
- Electronic addressing, with no switches or dials
- Automatic device mapping
- On-board microprocessor makes decisions at the module
- Twisted or shielded wire is not required
Specifications
| Compatibility |
Edwards Signature loop controllers |
| Loop operating voltage |
15.2 to 19.95 VDC (19 VDC nominal) |
| Output rating |
24 VDC: 2 A; 25 V audio: 50 W; 70 V audio: 35 W |
| Type code |
51 |
| Address requirements |
Two module addresses |
| Wire size |
12 to 18 AWG |
| Operating temperature |
32 to 120 F (0 to 49 C) |
| Storage temperature |
-4 to 140 F (-20 to 60 C) |
| Humidity |
0 to 93% RH |
| Construction |
High-impact engineering polymer |
| LEDs |
Green flashes when polled; red flashes when active |
| Mounting |
2-1/2 in. deep North American 2-gang box, or 1-1/2 in. deep 4-in. square box with 2-gang cover and SIGA-MP mounting plate |
| Approvals |
UL, ULC, CSFM, MEA, FM |
Specifications taken from the manufacturer data sheet E85001-0237 Signal Modules.
