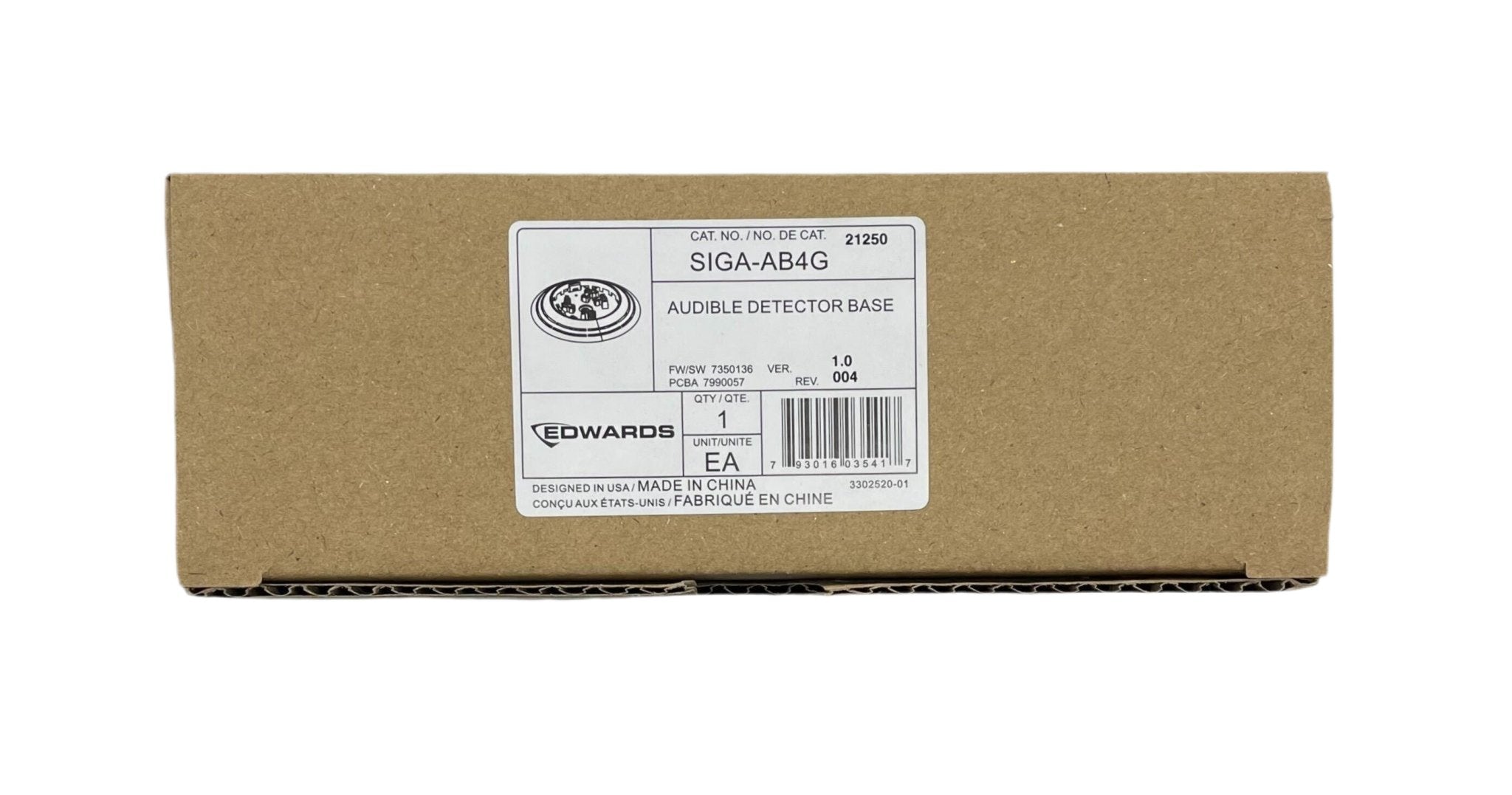

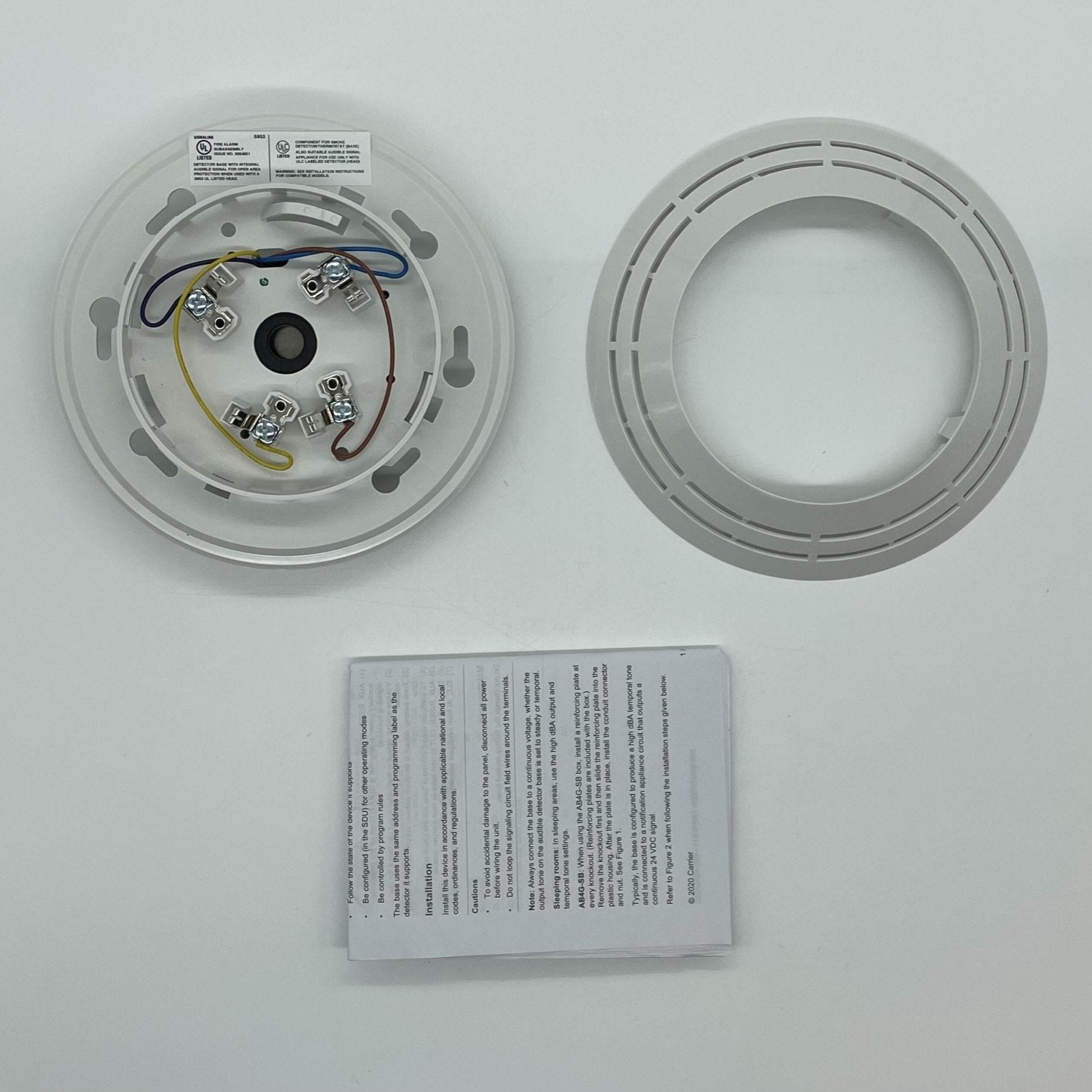

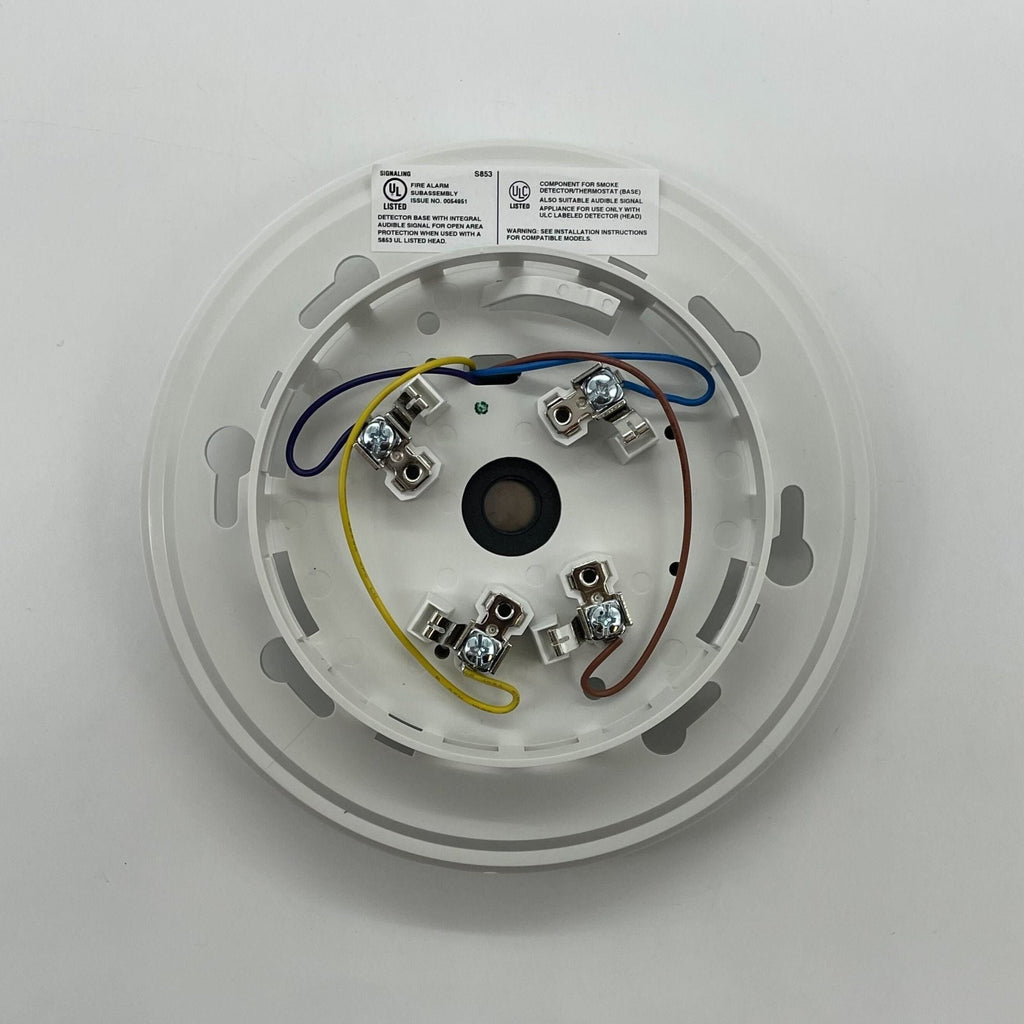

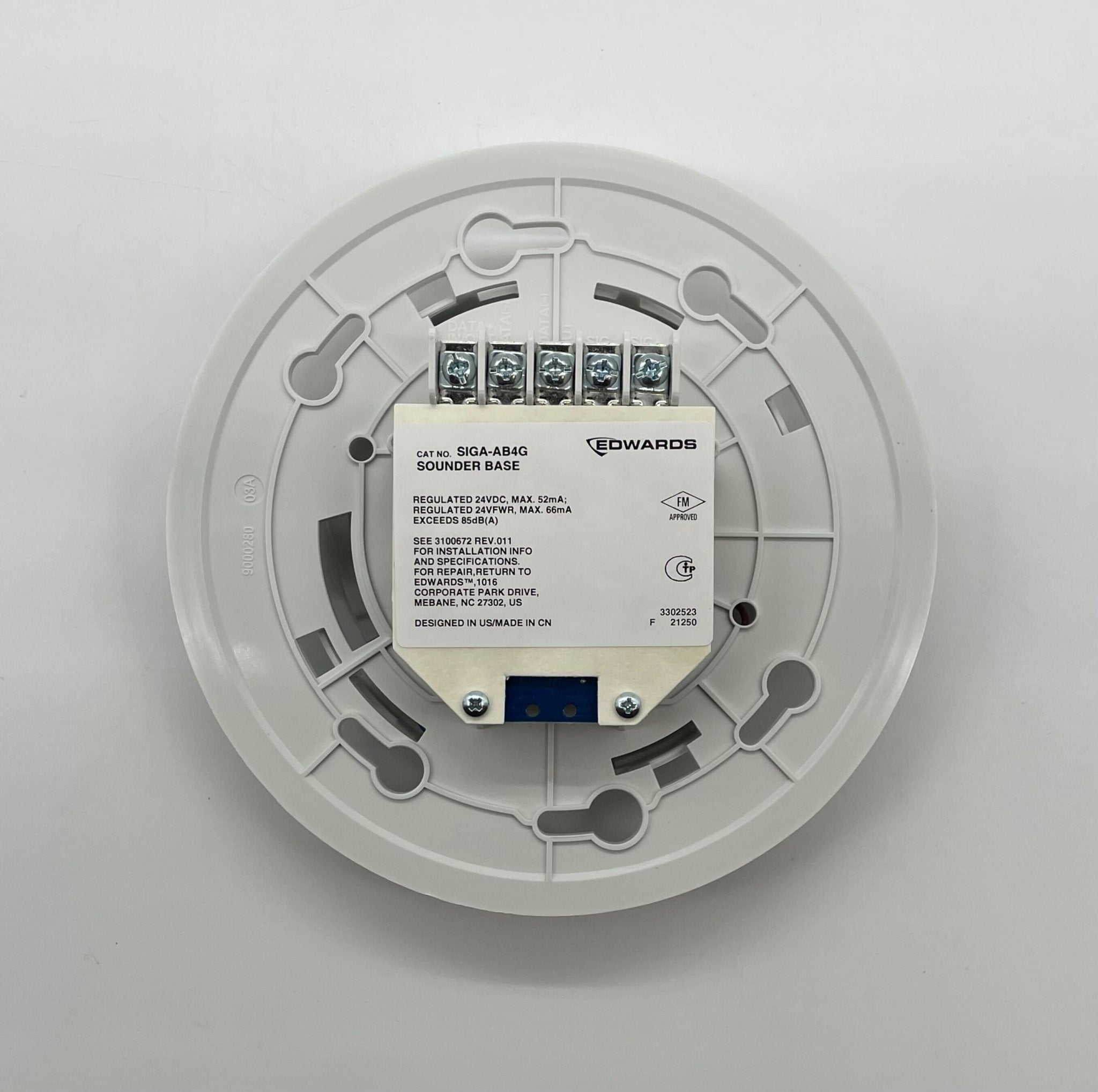

Edwards SIGA-AB4G — Signature Series sounder base that adds audible output to a single-function Signature detector.
The base carries its own sounder and takes the same address and programming label as the detector seated in it. That lets one detector raise a local alarm where a notification appliance is not wanted, or join a zone or system alarm on command.
- Riser voltage 16 to 33 VDC; supervisory current 1.46 mA DC, 2.15 mA FWR
- Operating current at 24 VDC: 24 mA low dBA, 41 mA high dBA
- UL 464 reverberant output at 24 VDC: temporal 75.5 low and 80.7 high dBA, steady 79.5 low and 84.5 high dBA
- Defaults high dBA and temporal; cut jumpers select low volume or steady tone
- 6.8 in. (173 mm) diameter, 0.8 in. (21 mm) above the box; flush mounts to a 4 in. square 2-1/8 in. deep box or the AB4G-SB surface box

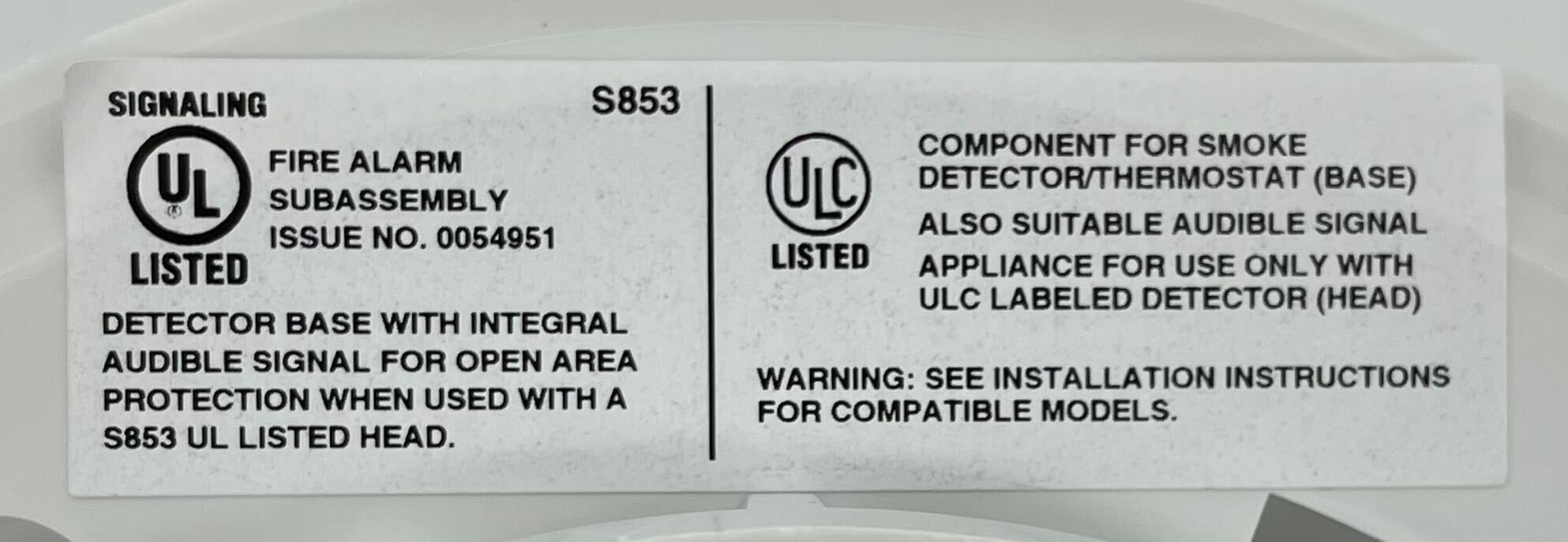

- UL 268 and UL 464 certified; indoor, 32 to 120 °F
Two siblings look identical and are not interchangeable: SIGA-AB4GT and SIGA-AB4G-LF support smoke and CO detectors when a SIGA-TCDR is on the same loop, the LF at 520 Hz. This base is not intended for smoke/CO devices in fire-plus-CO mode.
Documents
FAQ
Can the SIGA-AB4G be used with smoke/CO detectors?
Not in Fire-plus-CO mode. Use the SIGA-AB4GT or SIGA-AB4G-LF with a SIGA-TCDR on the same loop for combination smoke/CO detectors.
Does the base need its own address?
No. It uses the same address and programming label as the detector seated in it.
Can several bases sound together?
Yes. Bases on the same circuit can be activated as a group with a SIGA-CRR polarity reversal module, and synchronized with a G1M-RM signal master.
How is the tone set?
Jumpers select high or low dBA and temporal or steady output. The default is high dB with temporal output.
