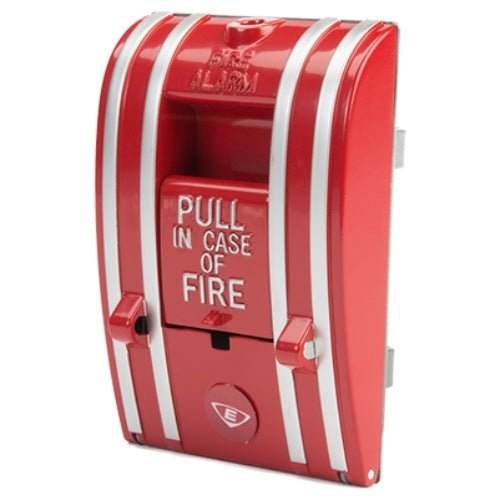

Edwards SIGA-270 is a single-action, one-stage intelligent manual pull station for the Edwards Signature Series system, with English markings.
The station uses the familiar Edwards teardrop shape in die-cast zinc with red epoxy finish and aluminum-colored markings. One pull on the handle breaks the glass rod and turns in a positive alarm. The rod discourages tampering but is not needed for operation. The station reports to the Signature loop controller, which assigns its address electronically from the serial number stored in the station.
Specifications
| Type |
Single action, one stage |
| Addressing |
Uses 1 module address; electronic addressing |
| Operating voltage |
15.2 to 19.95 VDC (19 VDC nominal) |
| Current |
250 µA standby; 400 µA activated |
| Construction |
Die-cast zinc, red epoxy, aluminum markings |
| Wire size |
12 to 18 AWG |
| Operating temperature |
32 to 120°F (0 to 49°C) |
| Humidity |
0 to 93% RH |
| Compatibility |
Signature Loop Controller |
| Agency |
UL, ULC, MEA, CSFM |
Installation notes
- Mounts to a North American 2-1/2 in (64 mm) deep 1-gang box.
- Green LED flashes when polled; red LED flashes in alarm.
- Accessories: 270-GLR glass rods (20), 276-K1 station reset key, 276B-RSB red surface mount box.
Related models
- SIGA-270P: two-stage presignal station
- SIGA-278: double-action, one-stage station
FAQ
Does the SIGA-270 need address switches set?
No. The Signature loop controller electronically addresses each station using its stored serial number, so no switches or dials need setting. Stations can also be addressed with the SIGA-PRO tool.
What back box does it need?
Single-stage SIGA-270 stations mount to North American 2-1/2 in (64 mm) deep 1-gang boxes. A red surface mount box, 276B-RSB, is available as an accessory.
Is the glass rod required?
No. The glass rod is visible on the front to discourage tampering, but it is not required for proper operation. Replacement rods are sold as 270-GLR (20 rods).
What is the difference from the SIGA-270P and SIGA-278?
The SIGA-270P is a two-stage presignal station that uses two module addresses. The SIGA-278 is a double-action, one-stage station.
