Edwards MN-FVPN — VoIP encoder/decoder that carries supervised mass notification audio over a TCP/IP Ethernet path for EST3 systems.
In encoder mode it takes audio from the Central Control Station and sends it over Ethernet. In decoder mode it takes that digital audio and feeds the local 3-ASU/4, 3-ASU/FT or local audio system. One encoder can feed one or many decoders, with end-to-end supervision of the audio path. It is a hardware unit in an aluminum housing, not a software license.
- Power: 18 to 28 VDC from the control panel, 89 mA
- Network: RJ-45, 10/100 Mbps, CAT6 or CAT6a cable
- Audio: 1 VRMS in from MN-ABPM; 100 mVRMS out to 3-ASU terminals 13 and 14

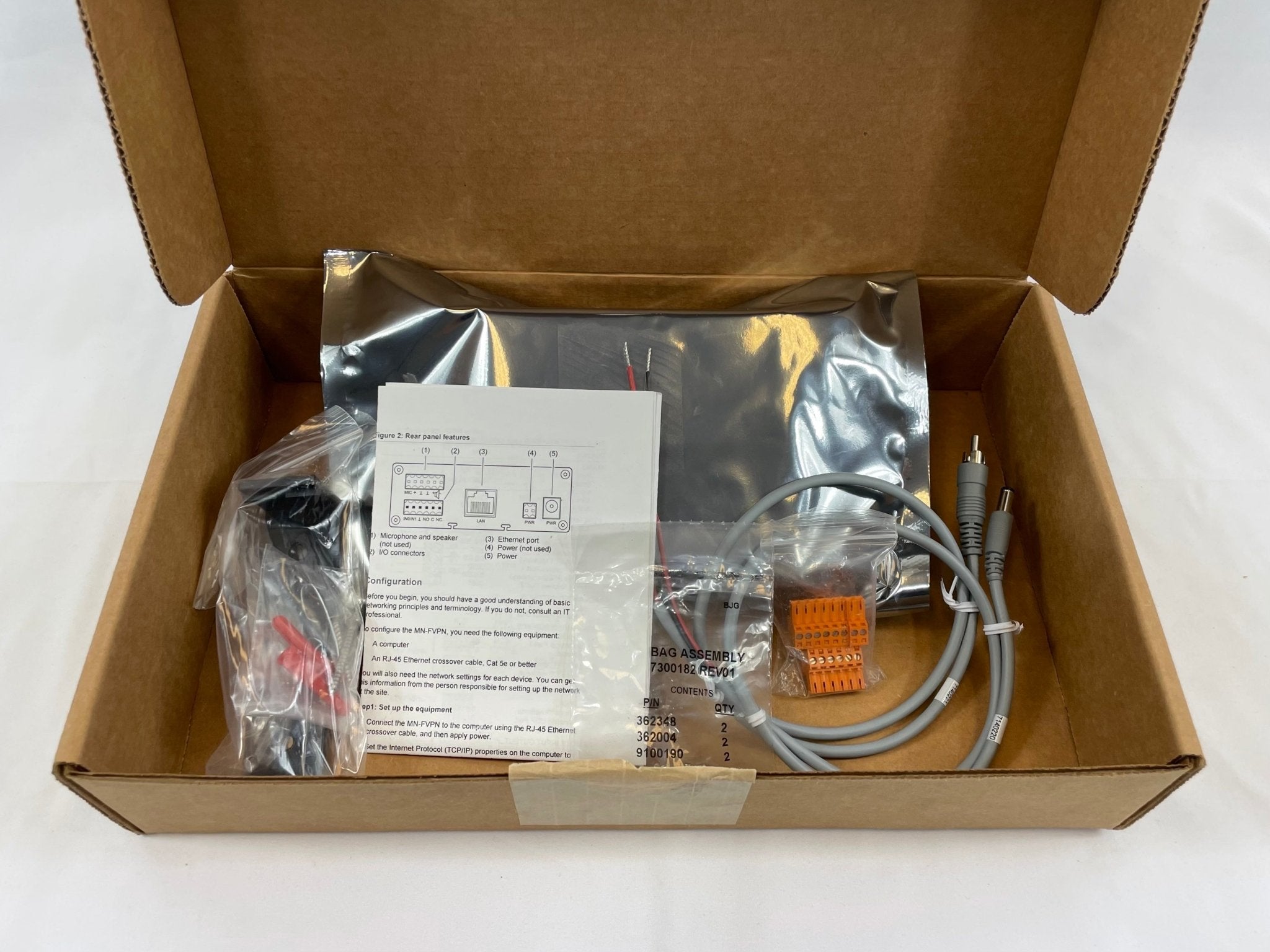

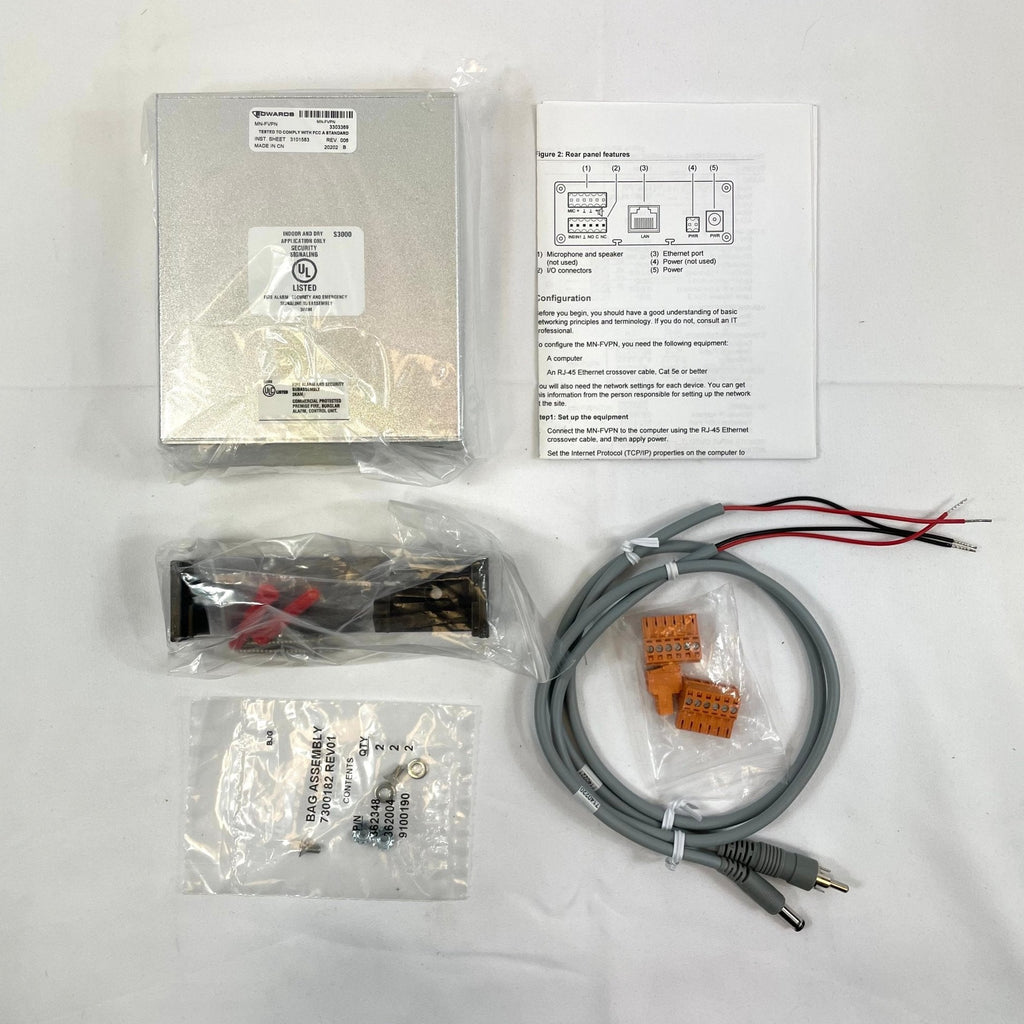

- Ships with MN-FVPB1 polymer bracket, MN-AUDCBL1 audio cable and MN-PWRCBL1 power cable
- 32 to 120 °F, 0 to 93% RH non-condensing
Mounts on an MN-BRKT1F in EST3 enclosures or an MN-BRKT3F in APS6A or APS10A supplies, both sold separately. Each unit used as a decoder also needs one MN-PASM2 preamp supervision module and one SIGA-RM1 or SIGA-MRM1.
