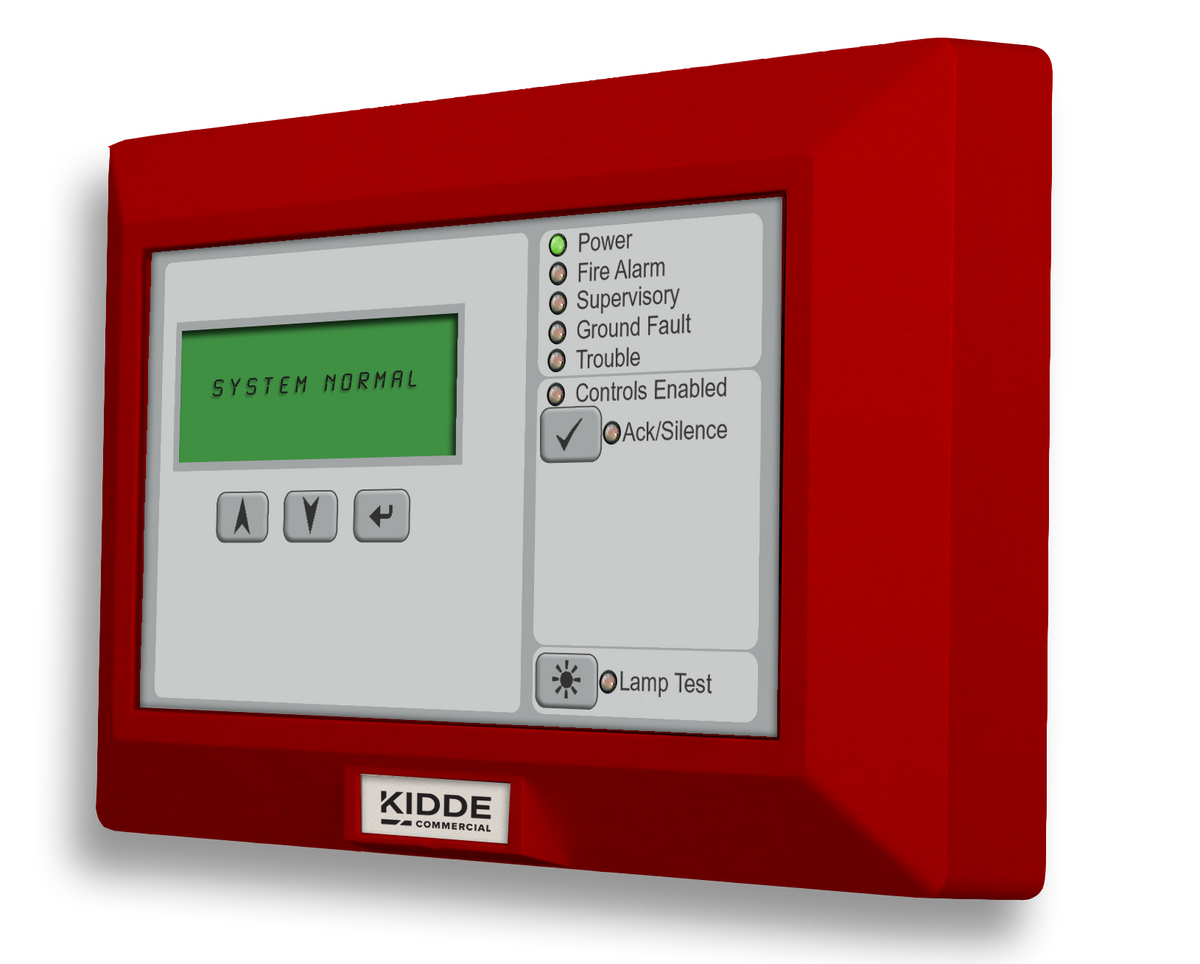

Edwards K-RLCD-R-2 is an R-Series remote LCD annunciator in red, with English text and no common controls. It is listed as compatible with the EVOLVE-ML series.
It gives status indication for compatible fire alarm control panels on a backlit LCD. According to the product data it needs no programming: set the address and the unit receives all of its information from the panel.
Features
- Large 4 x 20 character backlit LCD display
- Address set on the unit; panel supplies all other information
- Status LEDs and an internal buzzer as standard
- Class B or Class A RS485 wiring
- Standard 4-inch square electrical box mounting
- Up to two LED expanders can be connected, each adding 24 pairs of LEDs
- No common controls on this model
Specifications
| Display |
4 x 20 character backlit LCD |
| Color |
Red |
| Language |
English |
| Common controls |
None |
| Compatibility |
EVOLVE-ML series |
| Wiring |
RS485, Class A or Class B |
