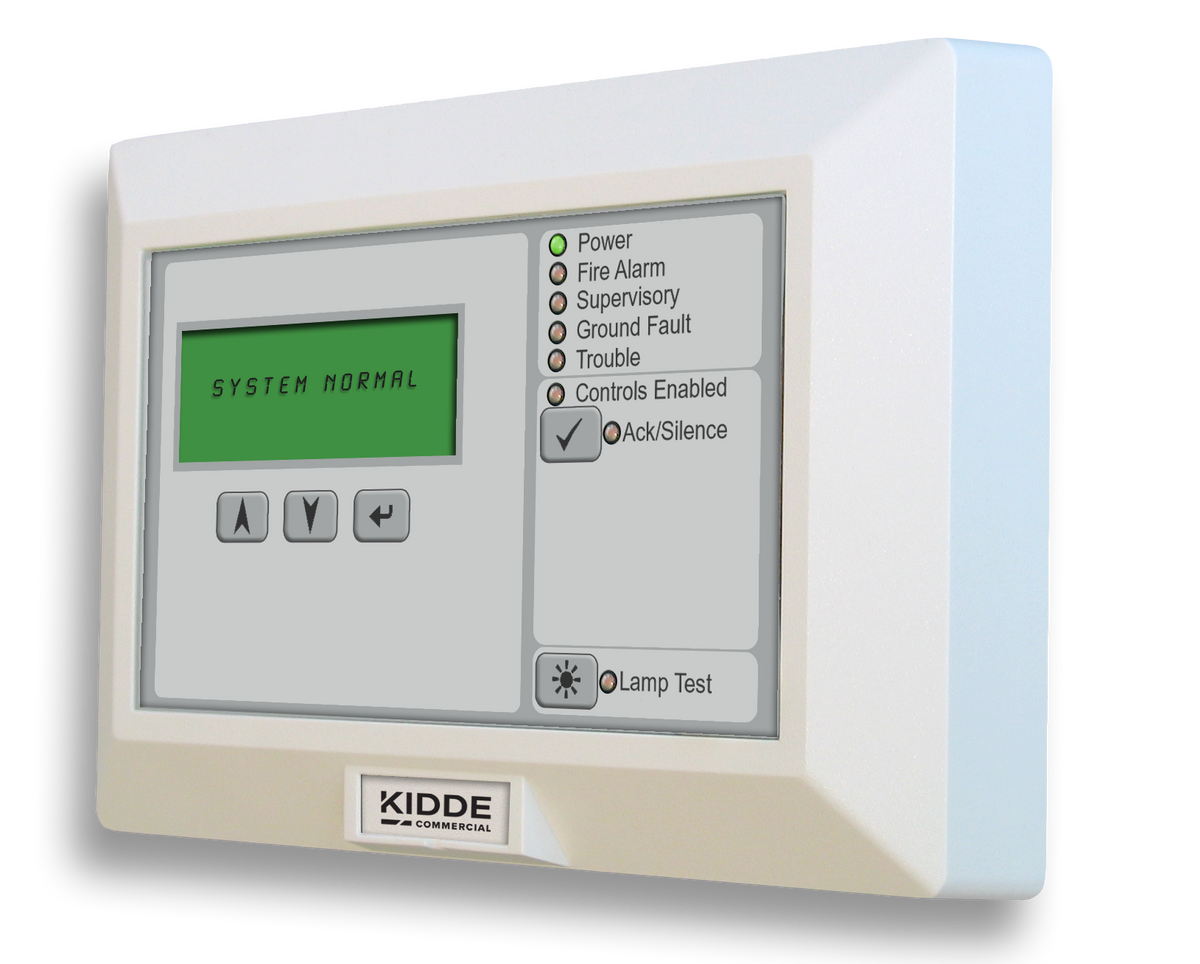

Edwards K-RLCD-2 is an R-Series remote LCD annunciator in white, with English text and no common controls. It is listed as compatible with the EVOLVE-ML series.
The unit shows panel status on a large backlit display and mounts in a standard 4-inch square electrical box. It takes its address setting and receives its information from the panel over RS485 wiring.
Features
- Large 4 x 20 character backlit LCD display
- Status LEDs and an internal buzzer as standard
- Class B or Class A RS485 wiring
- Standard 4-inch square electrical box mounting
- Up to two LED expanders can be wired to each annunciator, each adding 24 pairs of LEDs
- No common controls on this model
Specifications
| Display |
4 x 20 character backlit LCD |
| Color |
White |
| Language |
English |
| Common controls |
None |
| Compatibility |
EVOLVE-ML series |
| Wiring |
RS485, Class A or Class B |
