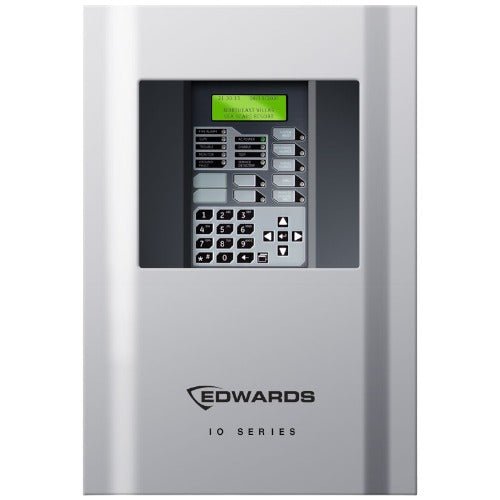

Built for small to mid-sized buildings, the Edwards IO64G is a single-loop intelligent fire alarm control panel from the iO Series. It supports up to 64 intelligent devices and two Class B notification appliance circuits. This model has a gray door, runs on 115 VAC and has English-language operation.
Key Features
- One intelligent device loop supporting up to 64 Signature Series detectors and modules; Class A wiring optional with a module
- Two Class B NACs, 2.5 A each, with Genesis horn silence over two wires and UL 1971 strobe synchronization
- Electronic addressing with automatic device mapping
- 4 x 20 character backlit LCD with two programmable switches
- Supports up to eight serial remote annunciators
- Options include a dual-line dialer (SA-DACT), Ethernet port (SA-ETH) and Class A adapter (SA-CLA)
Specifications
-
Manufacturer: Edwards
-
Part Number: IO64G
-
Loops: 1 loop, 64 intelligent devices max.
-
NACs: 2 Class B, 2.5 A each
-
Power Supply: 4.25 A
-
Primary Power: 115 VAC
-
Batteries: Cabinet holds up to (2) 10 Ah batteries
-
Relay Contacts: Form C alarm and trouble; Form A supervisory (24 VDC @ 1 A)
-
Enclosure: Surface mount, gray door
-
Language: English
-
Operating Environment: 32°F to 120°F (0°C to 49°C); 0–93% RH non-condensing
-
Agency Listings: UL, CSFM, ULC
Compatibility
Supports Edwards Signature Series intelligent detectors, modules and bases, R-Series remote annunciators, and Genesis notification appliances.
