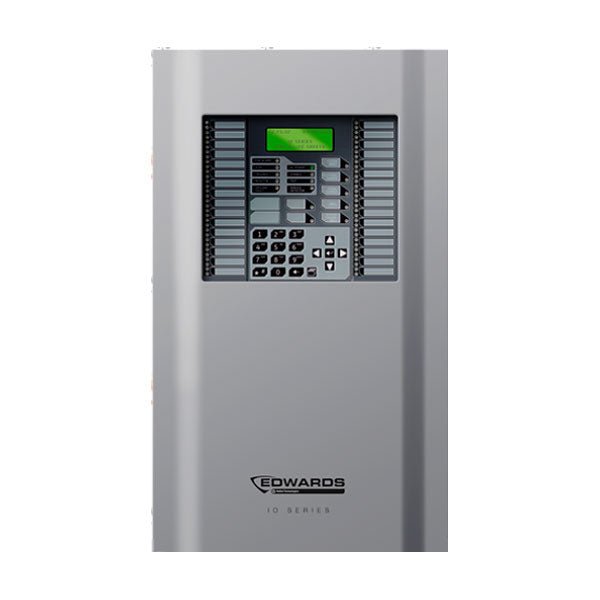

Edwards' iO1000G is an intelligent fire alarm control panel from the iO Series for small to mid-sized buildings, supplied with one loop installed and a grey door. The installed loop supports 125 detectors and 125 modules, and the four-loop system can grow to 1,000 device addresses with added loop controller cards.
Key Features
- One Class A or Class B Signature loop installed: 125 detectors and 125 modules
- Expandable in 250-point increments to 1,000 addresses
- Four NACs (Class B, or two Class A) with Genesis horn silence and UL 1971 strobe synchronization
- 4 x 20 character backlit LCD with two programmable switches
- Supports Signature Series detectors, modules, SIGA-REL releasing modules and CO detection
- Up to eight serial annunciators; optional Ethernet port
Specifications
-
Manufacturer: Edwards (EST)
-
Part Number: IO1000G
-
Door Color: Grey
-
Primary Power: 110 V
-
Loops: 1 installed (4-loop system)
-
Loop Capacity: 125 detectors / 125 modules
-
NAC Output: 24 VFWR; 6.0 A total, 2.5 A max. per circuit at 120/230 VAC 60 Hz
-
Batteries: 24 VDC SLA; two 18 Ah fit in cabinet; 26 Ah charging capacity
-
Operating Environment: 32°F to 120°F (0°C to 49°C), 0–93% RH non-condensing
Compatibility
Supports Edwards Signature Series intelligent detectors, modules and bases, R-Series remote annunciators and SIGA-REL releasing modules. Add loops with iO-SDC1 or iO-SDC2 loop controller modules.
