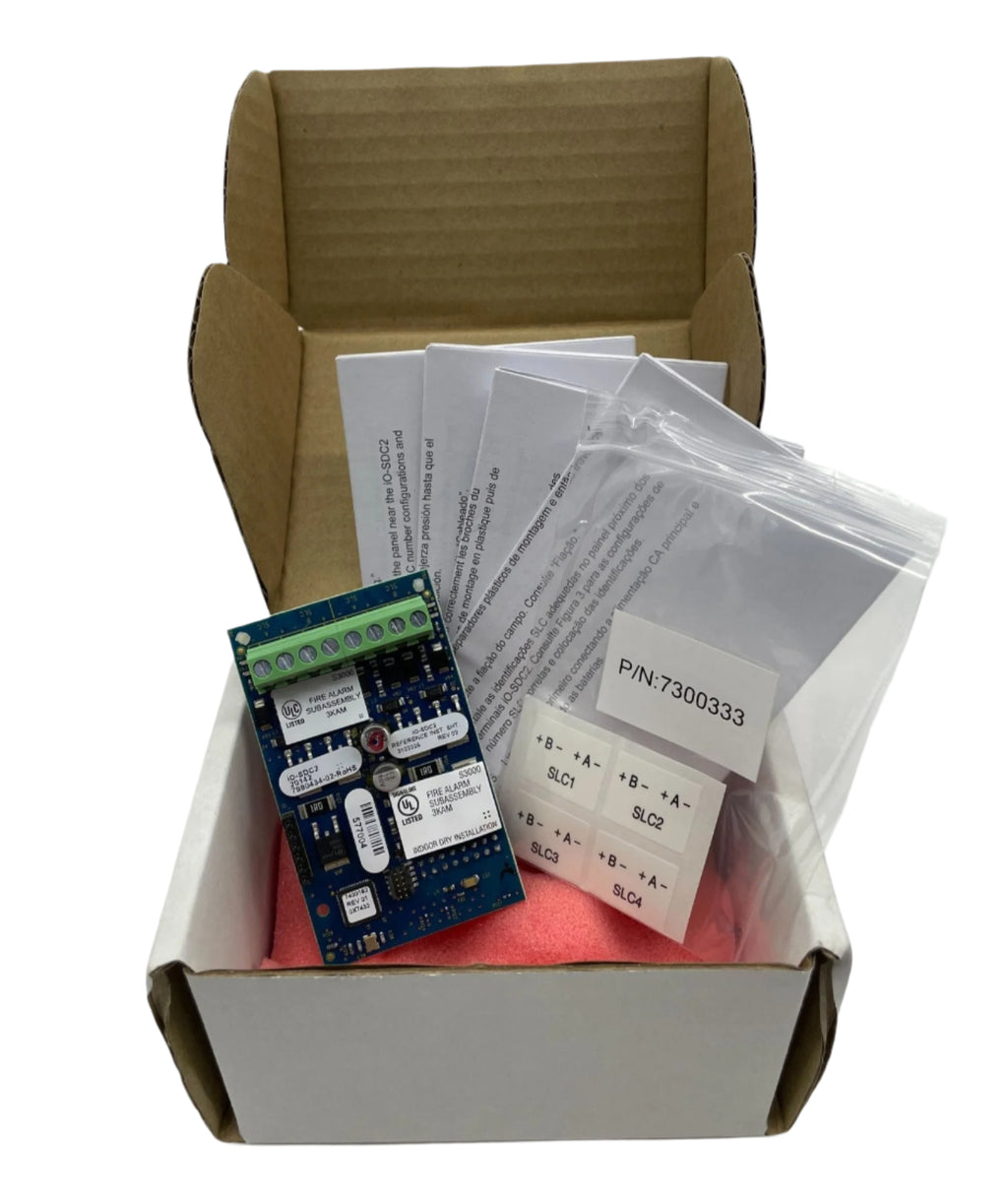

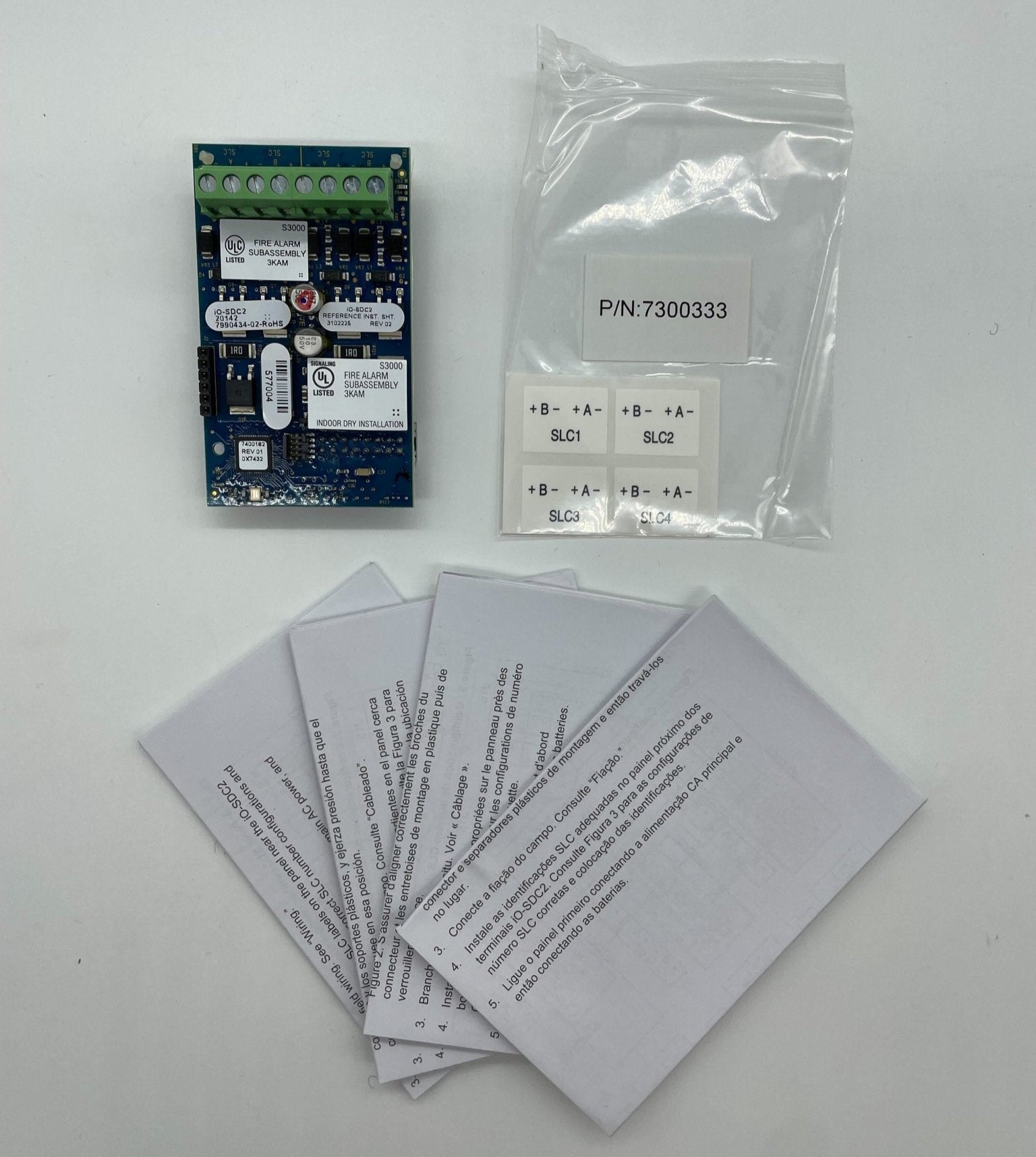

Edwards IO-SDC2 — dual loop controller card that adds two Signature signaling line circuits, 500 device addresses in total, to an iO1000 control panel.
An iO1000 ships with one 250-address Signature loop and has room for two loop controller modules in any combination of single and dual cards. Fitting iO-SDC2 cards is how the panel reaches its full four loops and 1,000 addresses, because each card brings up two complete loops instead of one.
- Two Signature loops on one card, 250 device addresses each and 500 in total
- Each loop supports 125 detectors and 125 modules, addresses 1 to 125 and 126 to 250
- Class B or Class A wiring; operating voltage 24 VDC
- Standby current 45 mA on a fully loaded loop
- Maximum loop resistance 66 Ω, loop capacitance 0.5 µF, circuit current 0.5 A
- Up to 64 isolators per loop, counting isolator bases and modules together
What separates it from the single loop iO-SDC1 is loop count and host panel alike: iO-SDC1 gives one 250-address loop and can also go into an iO64, where it replaces the standard 64-point loop, whereas Edwards catalogues the iO-SDC2 for the iO1000 only.
Documents
FAQ
Which panels accept the IO-SDC2?
The iO-SDC2 is for the iO1000 only. The single-loop iO-SDC1 can also be used in an iO64.
How many devices does it add?
Two Signature loops of 250 device addresses each, 500 in total, with 125 detector and 125 module addresses per loop.
How many loop cards can an iO1000 take?
The iO1000 ships with one 250-point loop installed and accepts any combination of two single or dual Signature loop modules.
What are the loop wiring limits?
66 ohms maximum total loop resistance, 0.5 µF maximum loop capacitance and 0.5 A maximum circuit current, with 12 to 18 AWG terminals.
