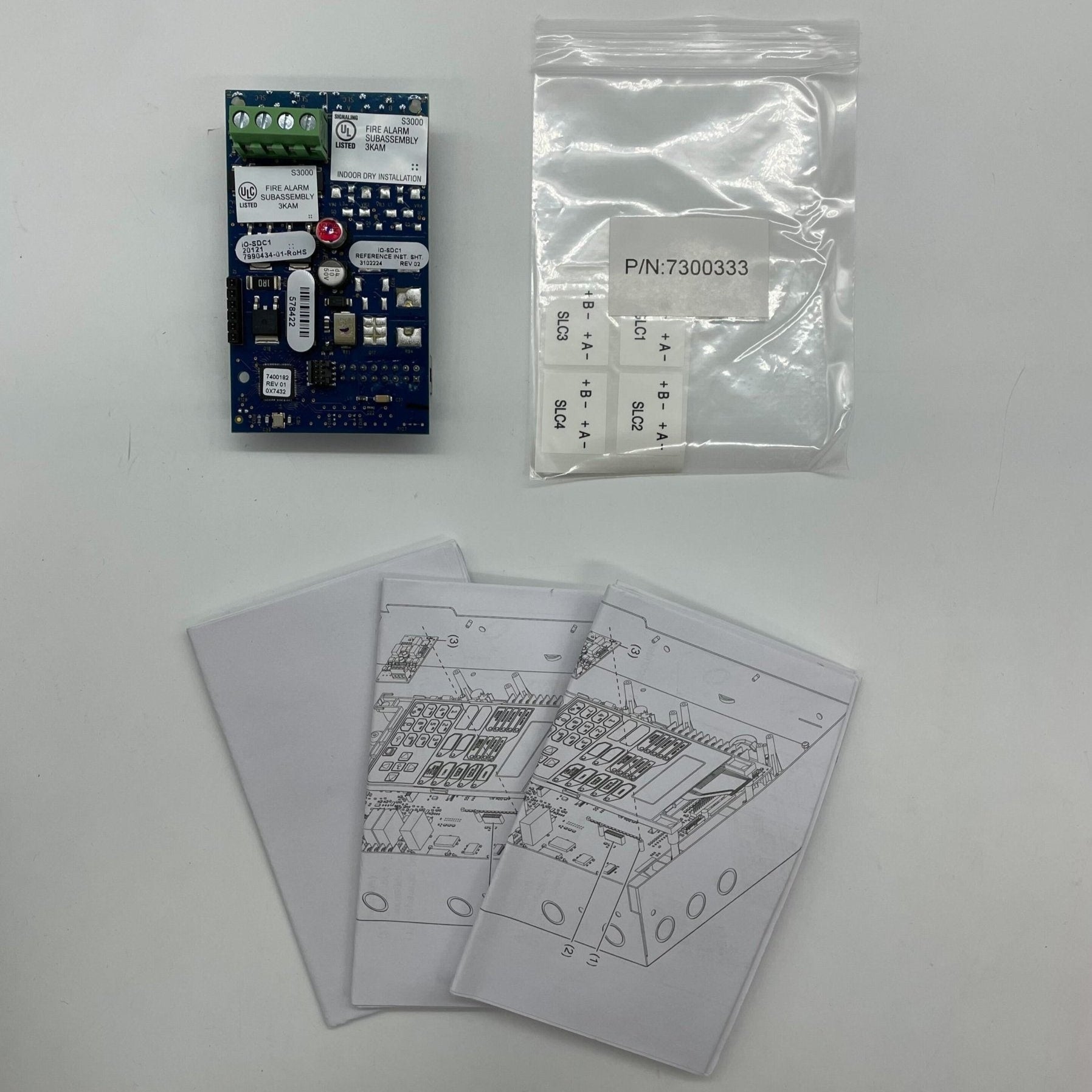

Edwards IO-SDC1 — single loop controller card adding one 250-device Signature signalling line circuit to an iO Series panel.
In an iO1000 it fills one of the two expansion slots and adds a full Signature loop of 125 detector and 125 module addresses, toward the 1,000-address ceiling. In an iO64 the same card replaces the standard 64-point loop controller.
- One loop: 250 device addresses on an iO1000, or 64 addresses on an iO64
- Class B or Class A loop wiring, 24 VDC, 55 mA standby on a fully loaded loop
- Communication line voltage 20.6 V peak-to-peak maximum, circuit current 0.5 A maximum
- Maximum total loop resistance 66 Ω and capacitance 0.5 µF
- Up to 64 isolators per loop, isolator bases and modules counted together
- Ground fault impedance 0 to 5 kΩ, terminals 12 to 18 AWG
- 32 to 120 °F (0 to 49 °C), 0 to 93 percent non-condensing at 90 °F
The difference from the IO-SDC2 is loop count, not a field option: IO-SDC2 carries two Signature circuits and 500 addresses, fits the iO1000 only, and draws 45 mA standby. Both take one slot.
Documents
FAQ
Which panels use the iO-SDC1?
The iO64, where it replaces the standard 64-point loop, and the iO1000, where it adds a 250-point expansion loop.
How many devices does one loop support?
Up to 125 sensors and 125 modules per loop on an iO1000.
How long can the loop be?
Up to 20,000 ft of wiring per loop, within the loop resistance and capacitance limits.
What is the difference from the iO-SDC2?
The iO-SDC2 is a dual loop card for the iO1000 that provides two SLC circuits, 500 points in total; the iO-SDC1 provides one loop.
