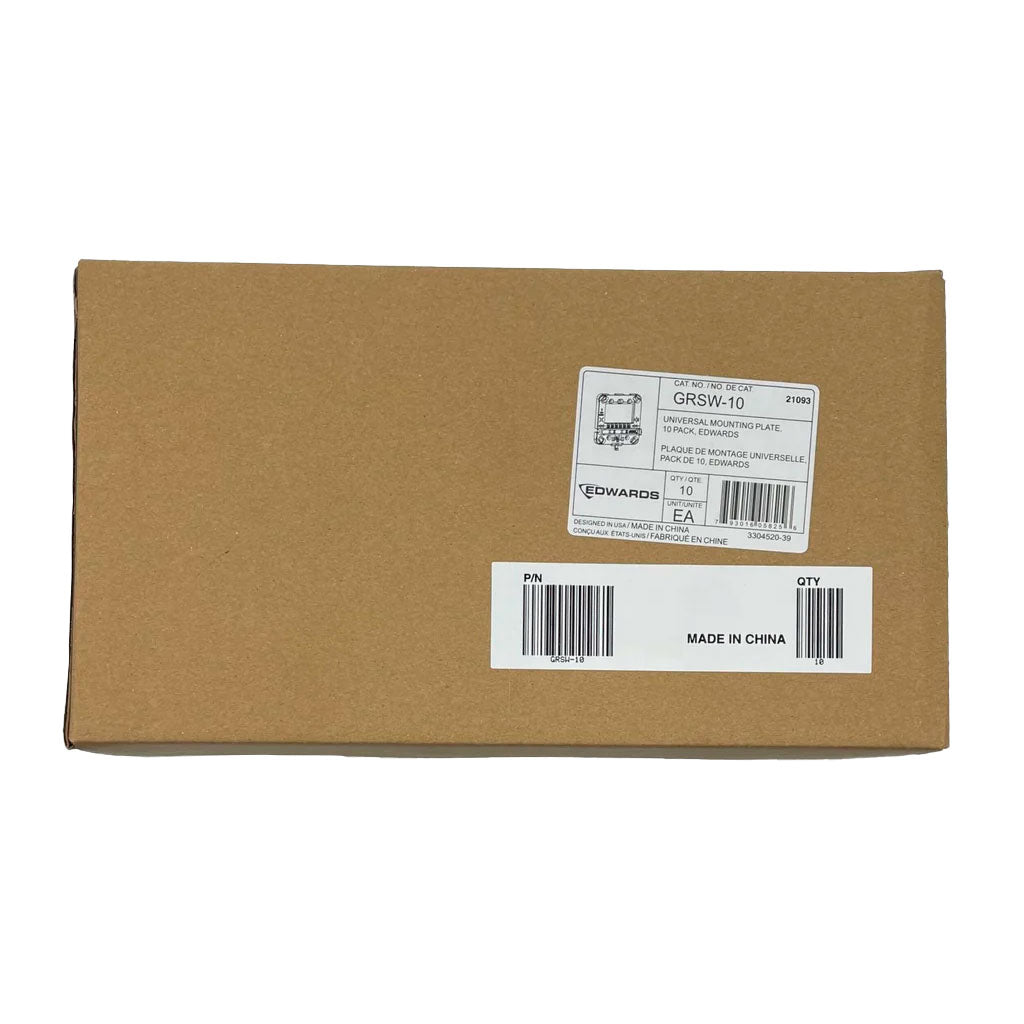

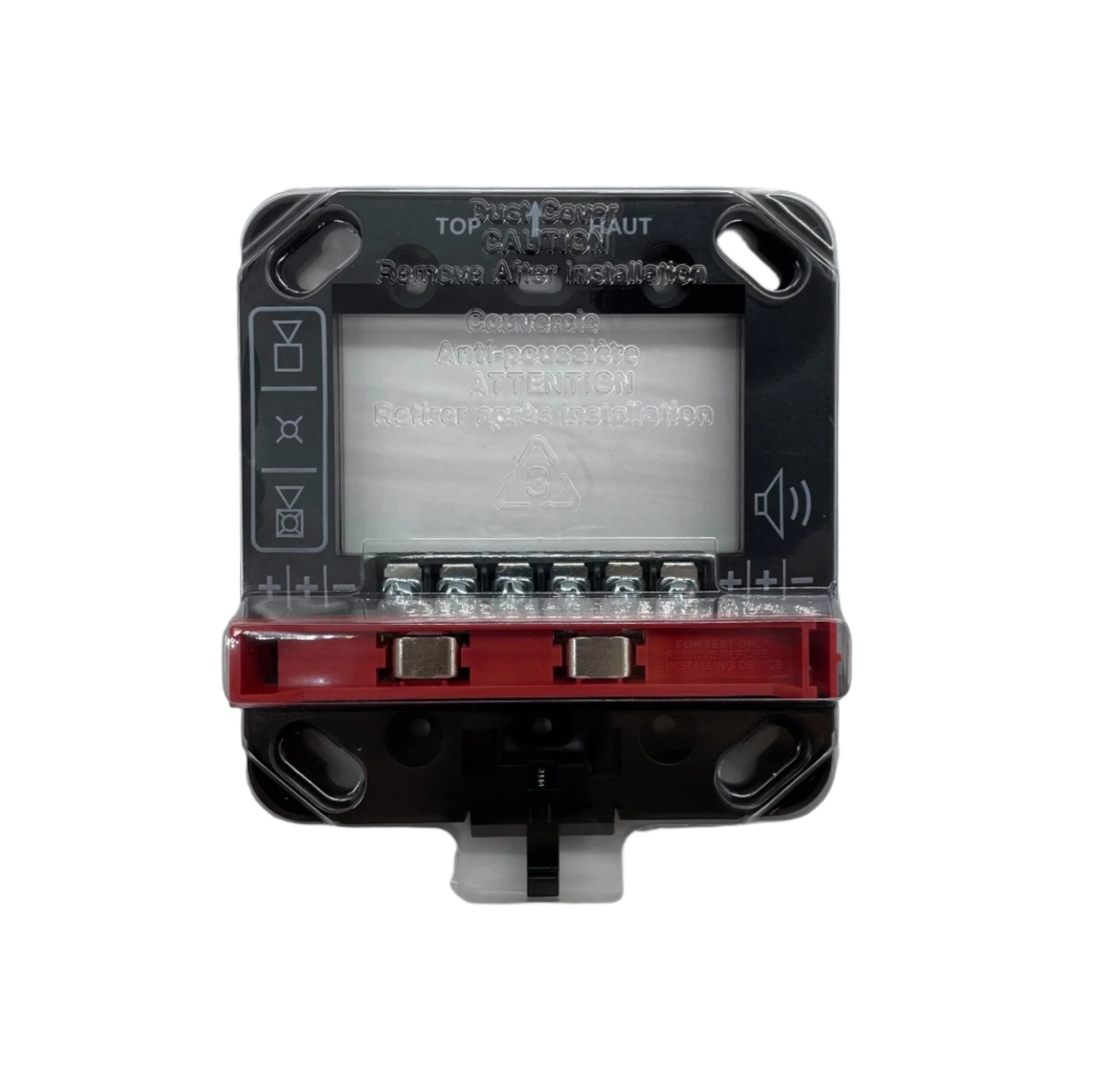

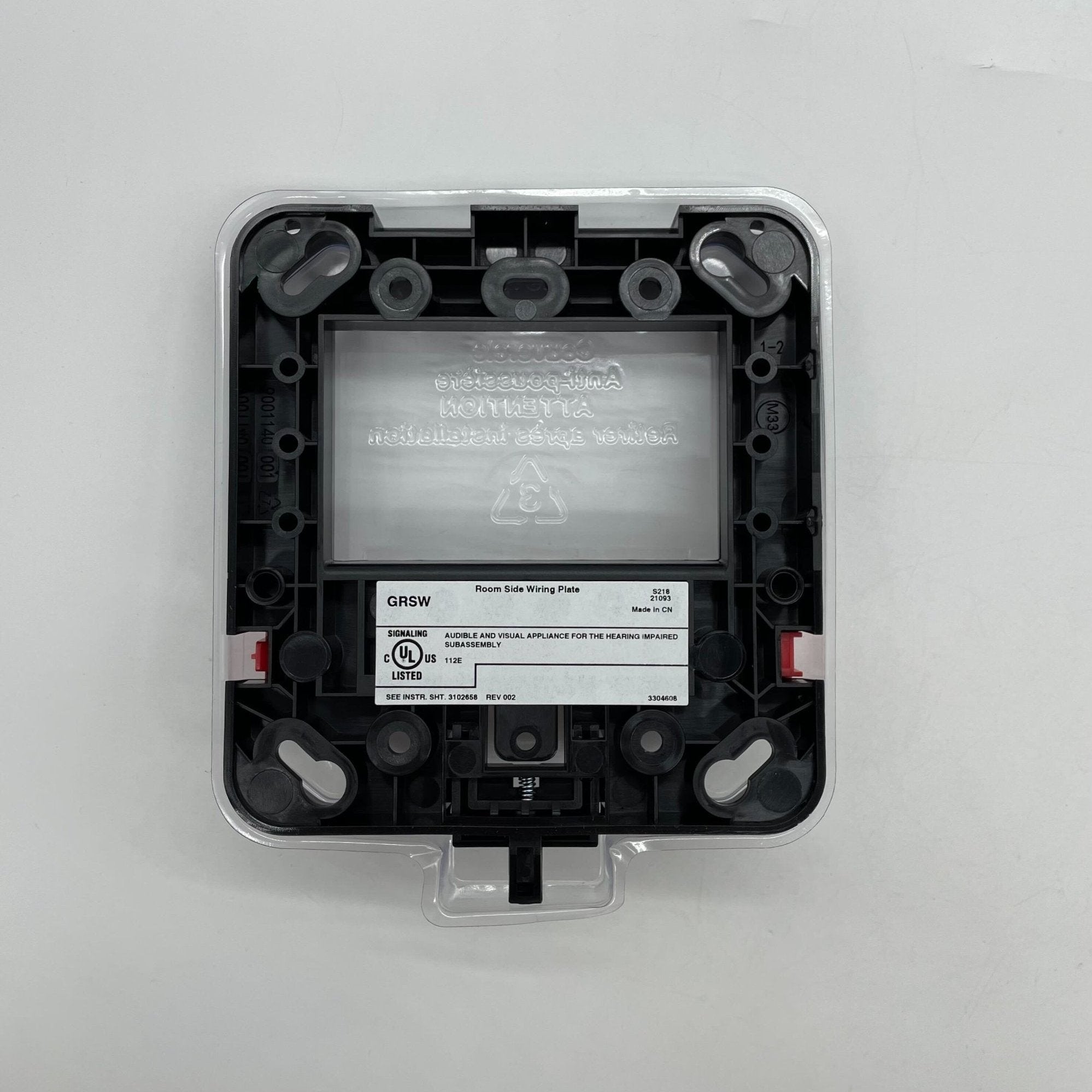

Edwards GRSW-10 is a carton of ten GRSW universal room side wiring plates for Genesis LED speakers and speaker-strobes. The plate is mounted and wired first, so installers can pre-install the field wiring and check continuity with the included diagnostics check bar before the appliance is fitted. Installers use it during rough-in on Genesis LED projects where devices are hung later.
Specifications
| Pack quantity |
10 GRSW plates |
| Terminals |
In/out screw terminals, 12 to 18 AWG |
| Electrical box |
2-gang or 4-inch square |

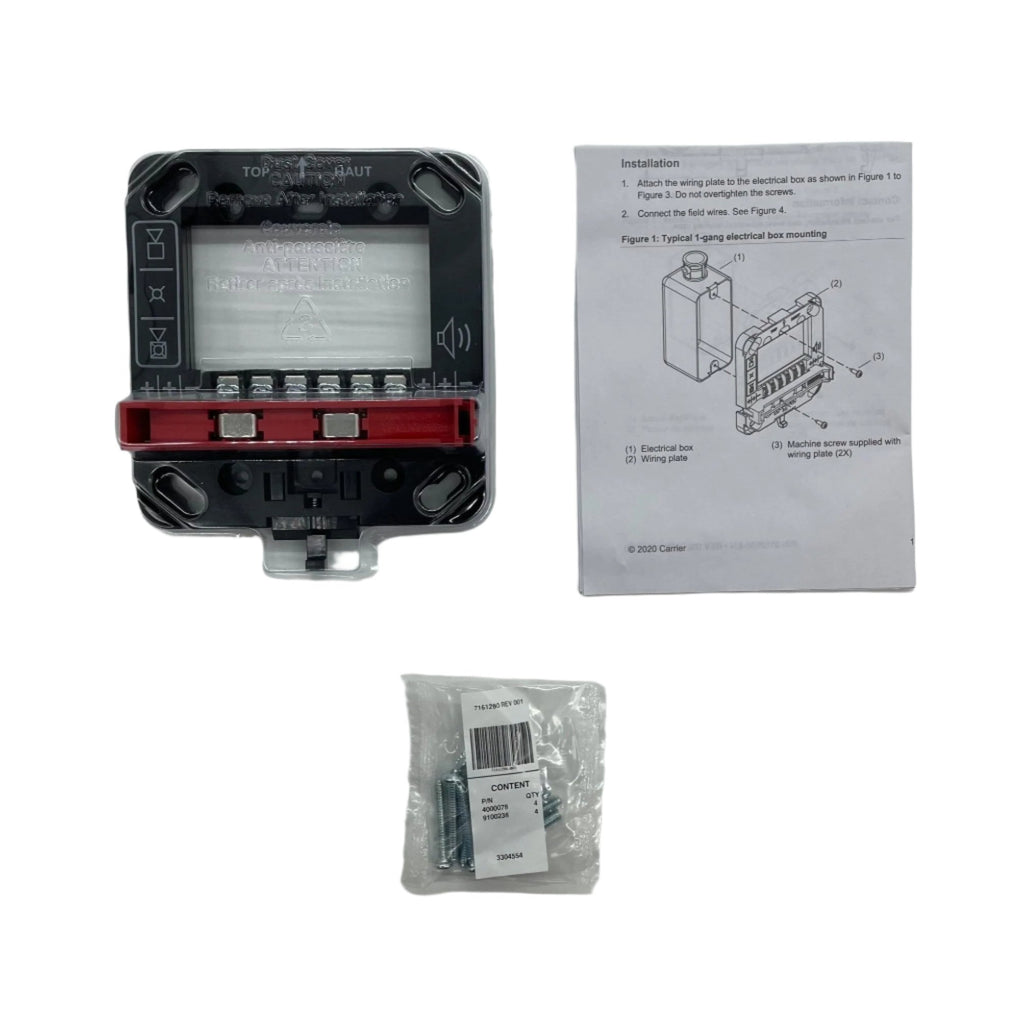

| Includes |
Diagnostics check bar for continuity testing |
| Used with |
Genesis LED G4S Series speakers and speaker-strobes; GCS Series ceiling mount appliances |
Features
- Allows wiring to be installed and tested before the appliance is mounted
- Appliance mounts onto the plate after rough-in
- Universal plate shared across the Genesis LED G4S and GCS series

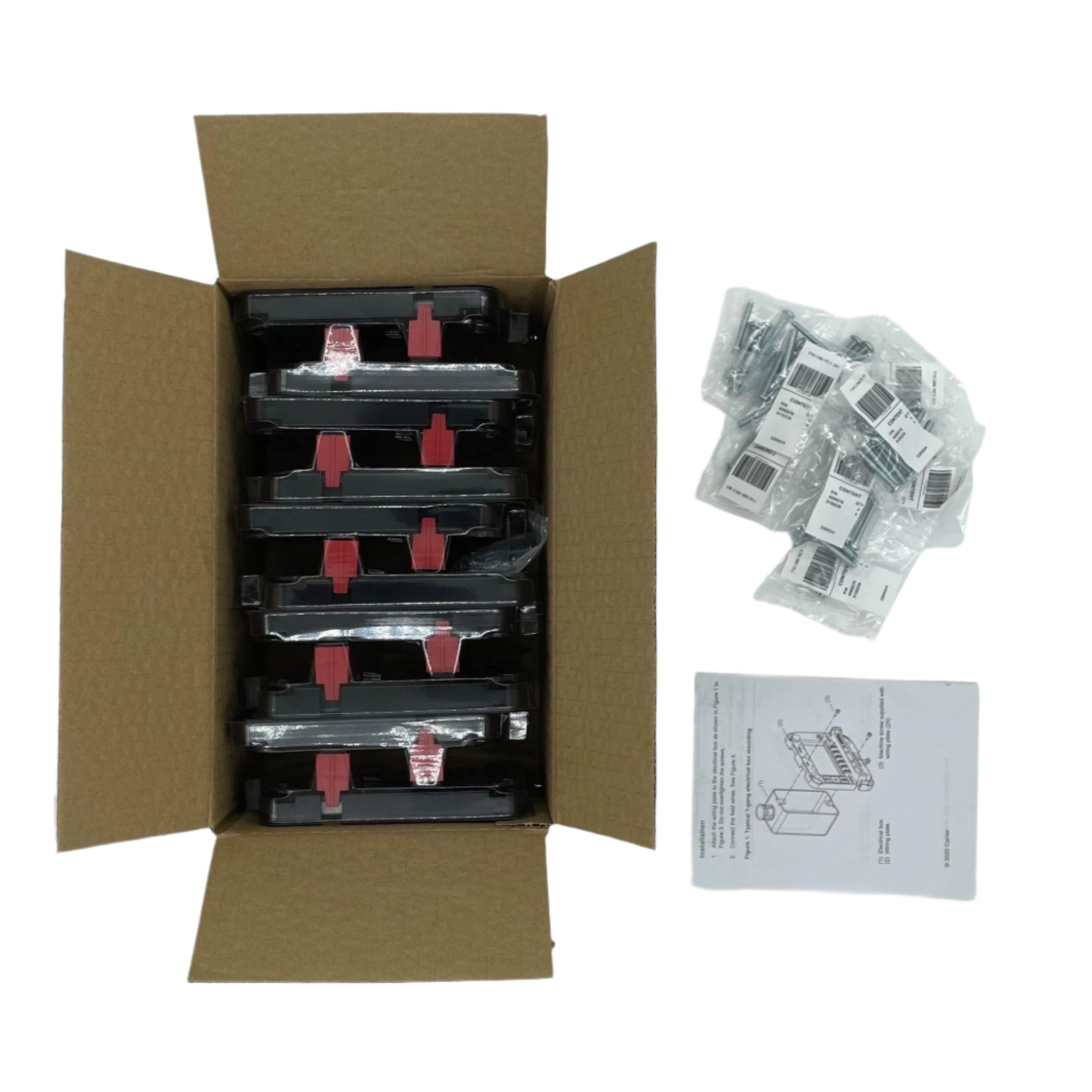

- Sold in packs of 10
Compatible with
- Genesis LED G4S Series wall speakers and speaker-strobes, including G4SWF, G4SWN, G4SVWN, G4SVWF, G4SRF and G4SVRF
- Genesis LED GCS Series ceiling speaker-strobes, including GCSVWN
