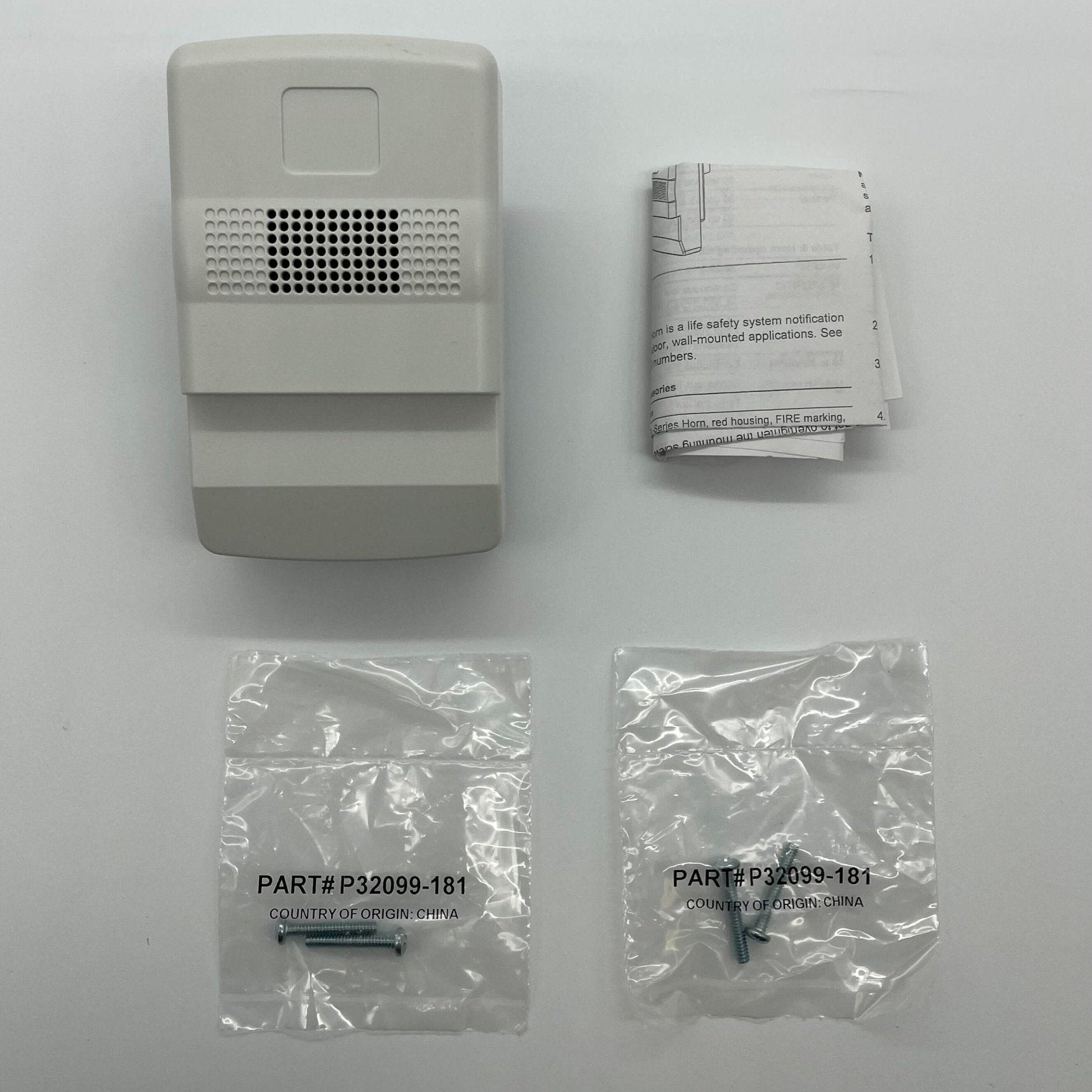

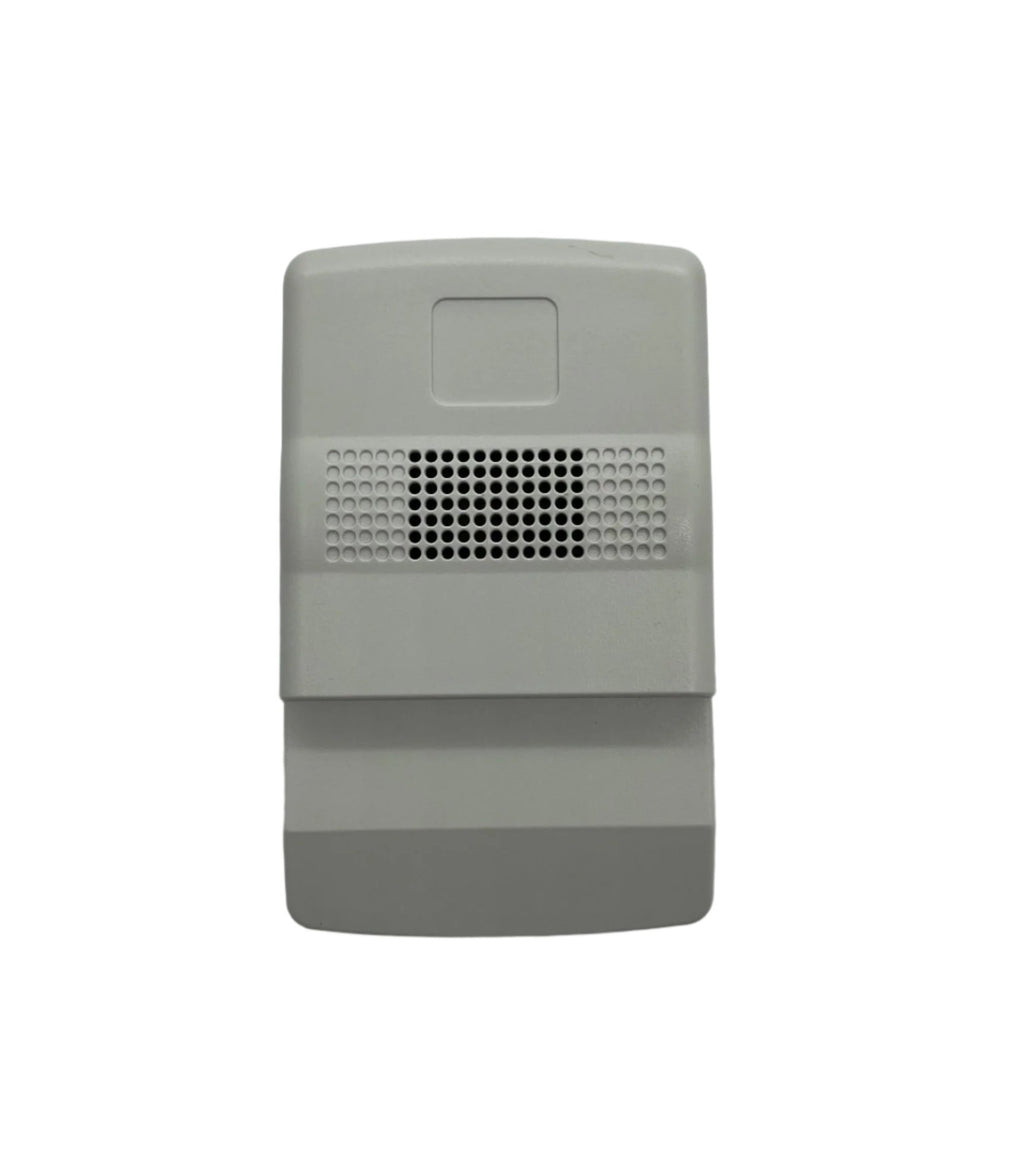

Edwards GL1WN-HD is a wall-mount horn from the Genesis GL Series, in a white housing with no marking. About the size of a deck of cards, it fits a standard one-gang box and sticks out roughly one inch from the wall, with no visible mounting screws.
Tone and volume are set in the field. The default is temporal at high dB, and it can be changed to a steady tone or low dB. Horn-only models can go on either a wall or a ceiling.
Features
- Selectable temporal (Code 3) or continuous tone
- Selectable high or low dB output
- Fits a standard 1-gang box, no trim plate needed
- About 1 in. deep with no visible screws
- Wall or ceiling mounting
- Surface box (GL1xN-BB1G) and 4-inch square trim plate (GL1xN-TP) available
Specifications
| Operating voltage |
16 to 33 VDC |
| Horn pattern |
Temporal Code 3 or continuous |
| Dimensions |
4.53 x 2.76 x 1.27 in. (115 x 70 x 32 mm) |
| Wire size |
12 to 18 AWG |
| Operating temperature |
33.8 to 120.2 F (1 to 49 C), 93% RH max. |
| Housing |
UV-stabilized plastic, 94V-0 |
| Mounting |
2-1/2 in. deep 1-gang box, GL1xN-BB1G surface box, or GL1xN-TP trim plate for a 4-in. square box |
| Approvals |
UL, ULC, CSFM, FCC; RoHS |
Specifications taken from the manufacturer data sheet E85001-0635 LED Wall Horns and Strobes (Genesis GL Series).
