Edwards GCWA-S7VMHA GC Ceiling, 70 V Speaker With High Range Strobe, White Housing, Alert Markings, Amber Lens

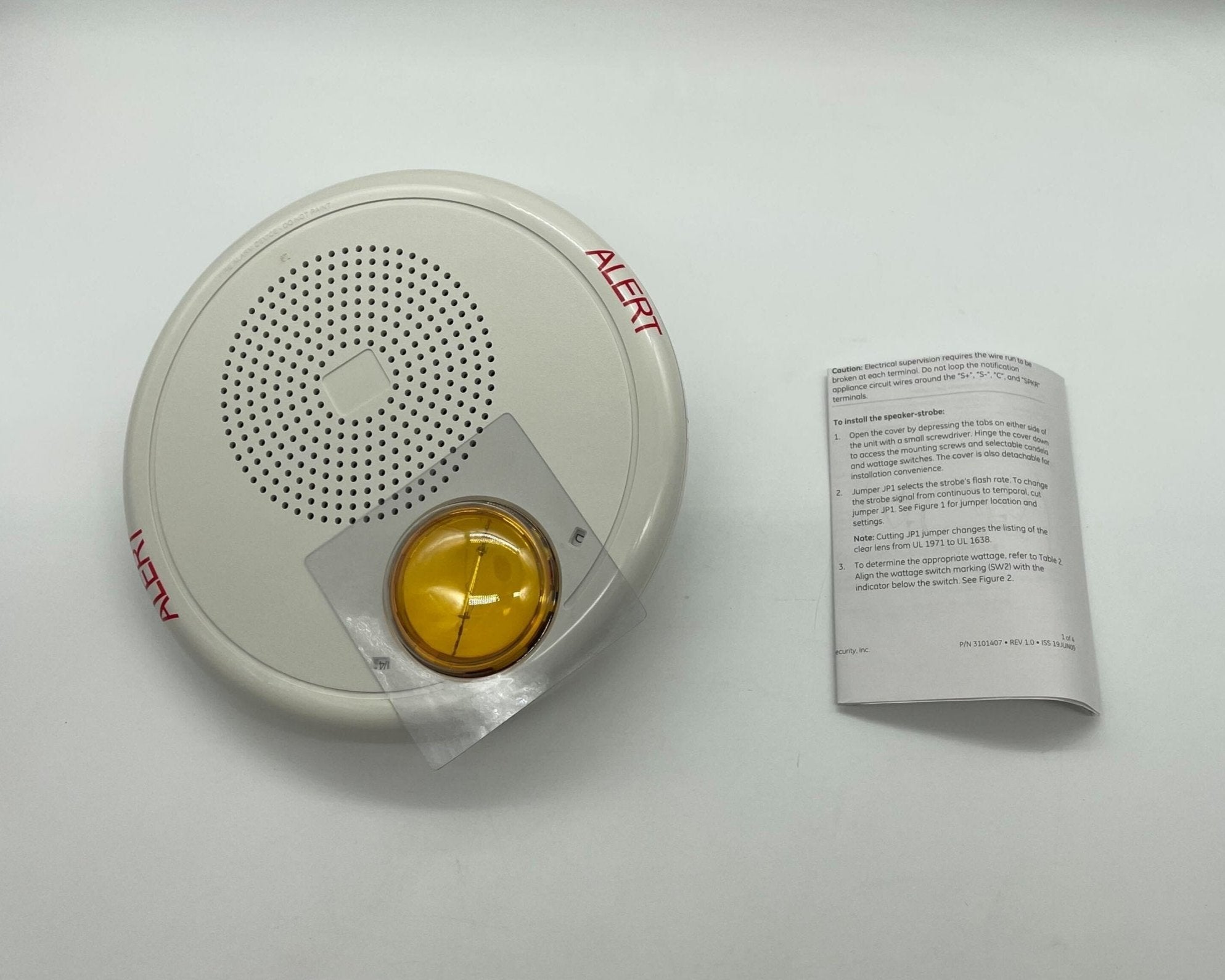

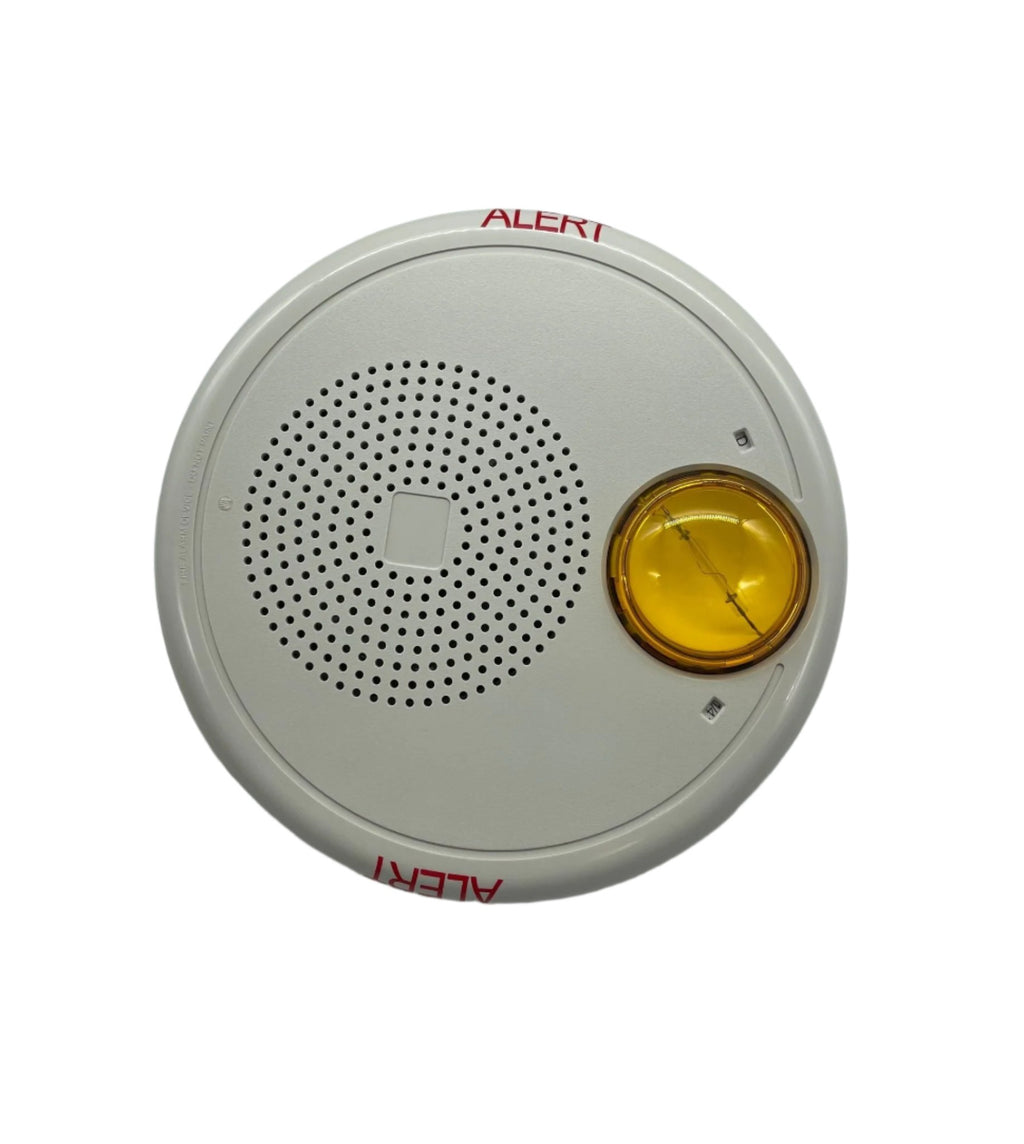

Genesis GC series ceiling speaker-strobe with a white housing and "ALERT" marking, for 70 V RMS audio circuits. It mounts flush to a 4 in. square electrical box and has field-selectable wattage taps from 1/4 to 2 W. The amber-lens strobe is a mass notification (UL 1638) signal with selectable 82, 100, 130 or 155 cd output. ALERT-marked white models are intended for mass notification / emergency communication signaling, to distinguish them from fire alarm appliances.
Key Features
- High-candela amber-lens strobe with a 4-position output switch (A/B/C/D)
- Selectable 1/4, 1/2, 1 or 2 watt taps; settings stay visible after installation
- Low-profile round design, 6.8 in. (173 mm) diameter, 1.0 in. (25 mm) deep
- Flush mounts to a 4 in. square box, 2-1/8 in. deep - no extension ring or trim plate needed

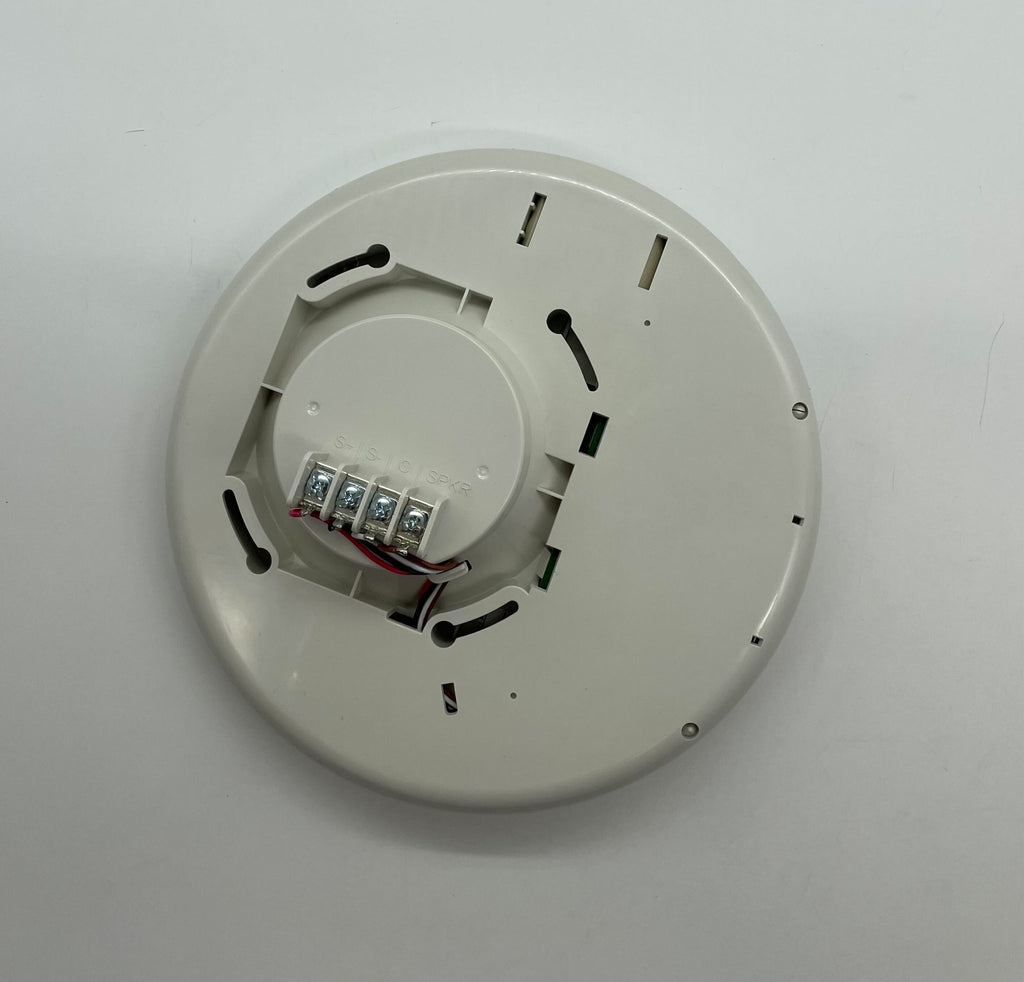

- #18 to #12 AWG screw terminals
- Listed for indoor ceiling or wall use
Specifications
| Speaker voltage |
70 V RMS |
| Housing color |
White |
| Marking |
ALERT |
| Wattage taps |
1/4, 1/2, 1, 2 W (selectable) |
| Speaker frequency response |
400 to 4,000 Hz |
| Dimensions |
6.8 in. (173 mm) diameter x 1.0 in. (25 mm) |
| Operating environment |
Indoor only, 32-120 F (0-49 C), 0-93% RH |
| Shipping weight |
1.62 lb (0.73 kg) |
| Lens color |
Amber |
| Strobe output |
Selectable 82, 100, 130 or 155 cd (amber lens, UL 1638) |
| Strobe operating voltage |
16 to 33 VDC or 16 to 33 VFWR (24 V nominal) |
| Strobe flash rate |
One flash per second |
Compatible With
- 25/70 V RMS emergency voice / mass notification audio circuits (Edwards EST audio amplifiers)
- G1M-RM synchronization output module
- SIGA-CC1S / SIGA-MCC1S synchronization modules
