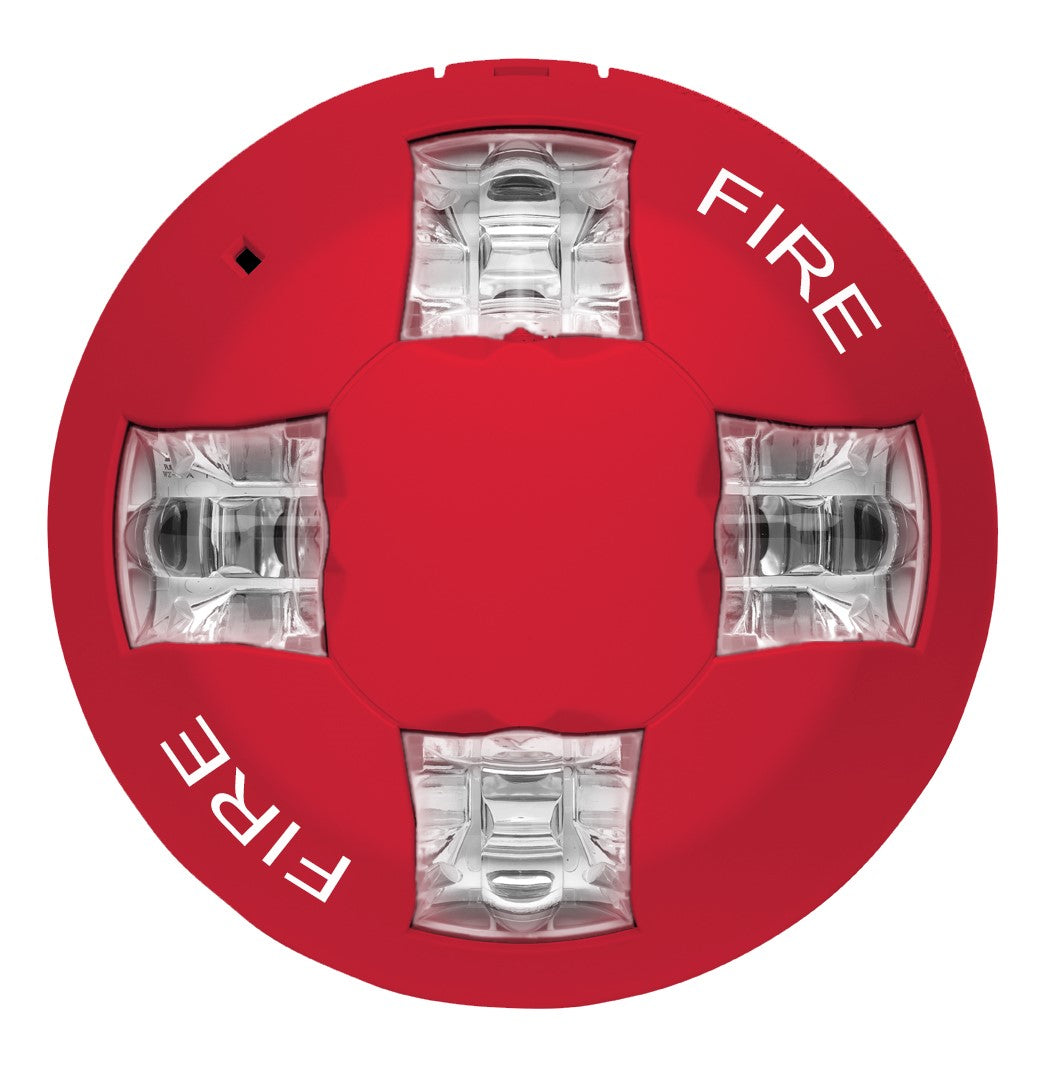

Edwards GCVRF is a ceiling-mount LED strobe from the Genesis LED GC Series, with a red housing and FIRE marking. It is a round, low-profile appliance that can also be used on a wall, and it works with the other Genesis notification devices on a 16 to 33 VDC circuit.
The appliance plugs onto a room-side wiring plate that is ordered separately and can be pre-wired before the strobe is attached. The LED strobe can share a circuit with legacy xenon strobes.
Features
- LED strobe field-selectable to 15, 30, 75 or 115 cd
- Draws about 35 mA at 24 VDC
- Low profile, about 1.5 in. deep
- Mounts over a 1-gang, 2-gang or 4-inch square box
- Pre-wires on a room-side wiring plate (sold separately)
- Quick-swap covers allow the marking to be changed
- May be mixed with legacy xenon strobes
Specifications
| Operating voltage |
16 to 33 VDC or 16 to 33 VFWR |
| Light output |
Selectable 15, 30, 75 or 115 cd |
| Current |
35 mA at 16 to 33 VDC; 45 mA FWR |
| Strobe flash rate |
Approx. 1 flash per second |
| Mounting |
Ceiling or wall |
| Dimensions (diameter x depth) |
6.8 x 1.82 in. (17.27 x 4.62 cm) |
| Wire size |
12 to 18 AWG |
| Compatible electrical boxes |
1-gang, 2-gang, 4-inch square |
| Trim plates |
GCTR (red), GCTW (white), 10.6 in. diameter |
| Operating temperature |
32 to 122 F (0 to 50 C) |
| Relative humidity |
0 to 93% non-condensing |
| Color / marking |
Red / FIRE |
Specifications taken from the manufacturer data sheet E85001-1021 Genesis LED GC Series Ceiling Mount Notification Devices.
