Name: Edwards GCHFWF-S7VMC Genesis High Fidelity Ceiling Speaker Strobe, 70 Vrms, 15/30/75/95 cd, FIRE Marking, White
Brand: Edwards
SKU: GCHFWF-S7VMC
Price: 260.2 USD
Availability: OutOfStock

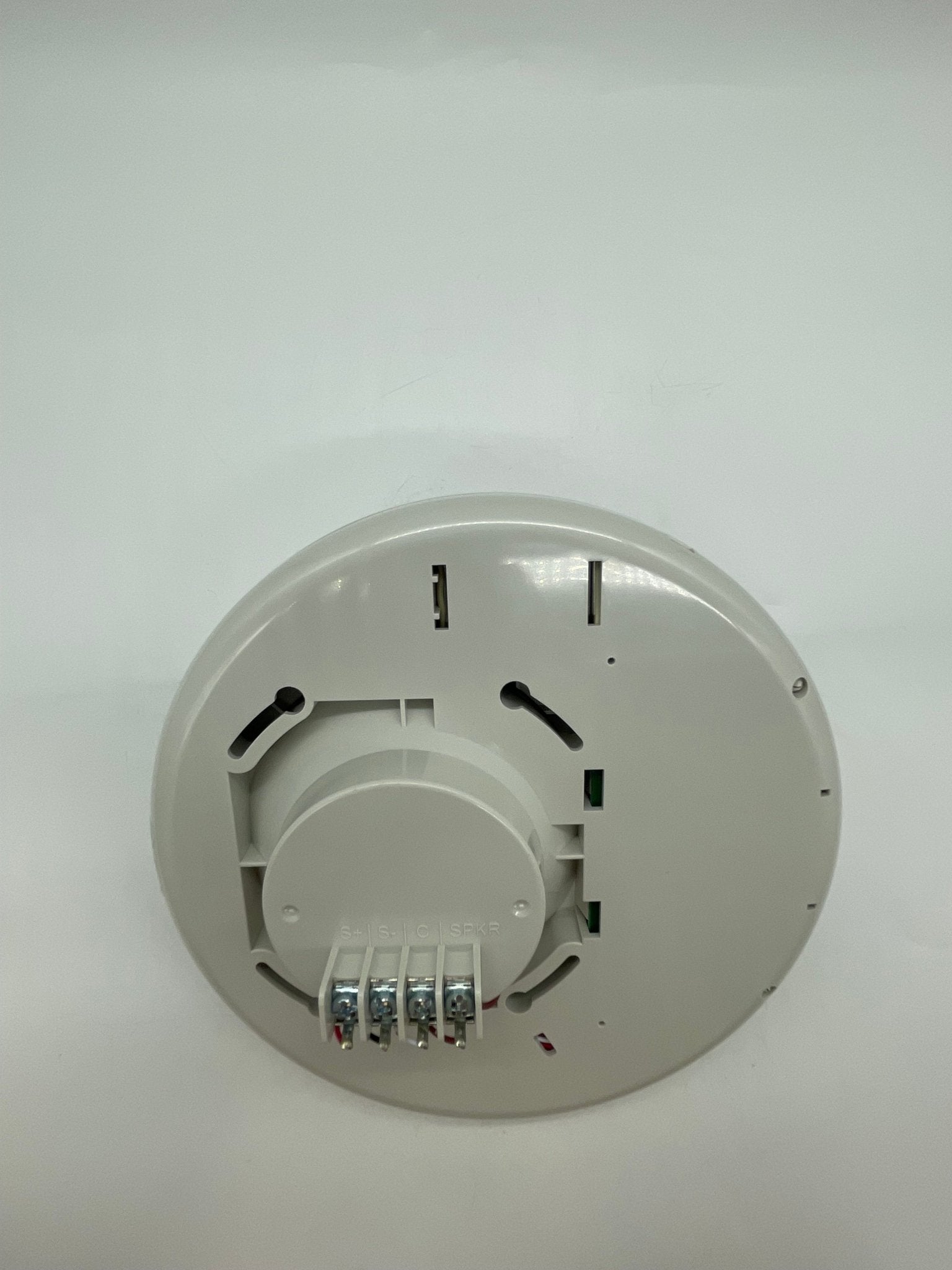

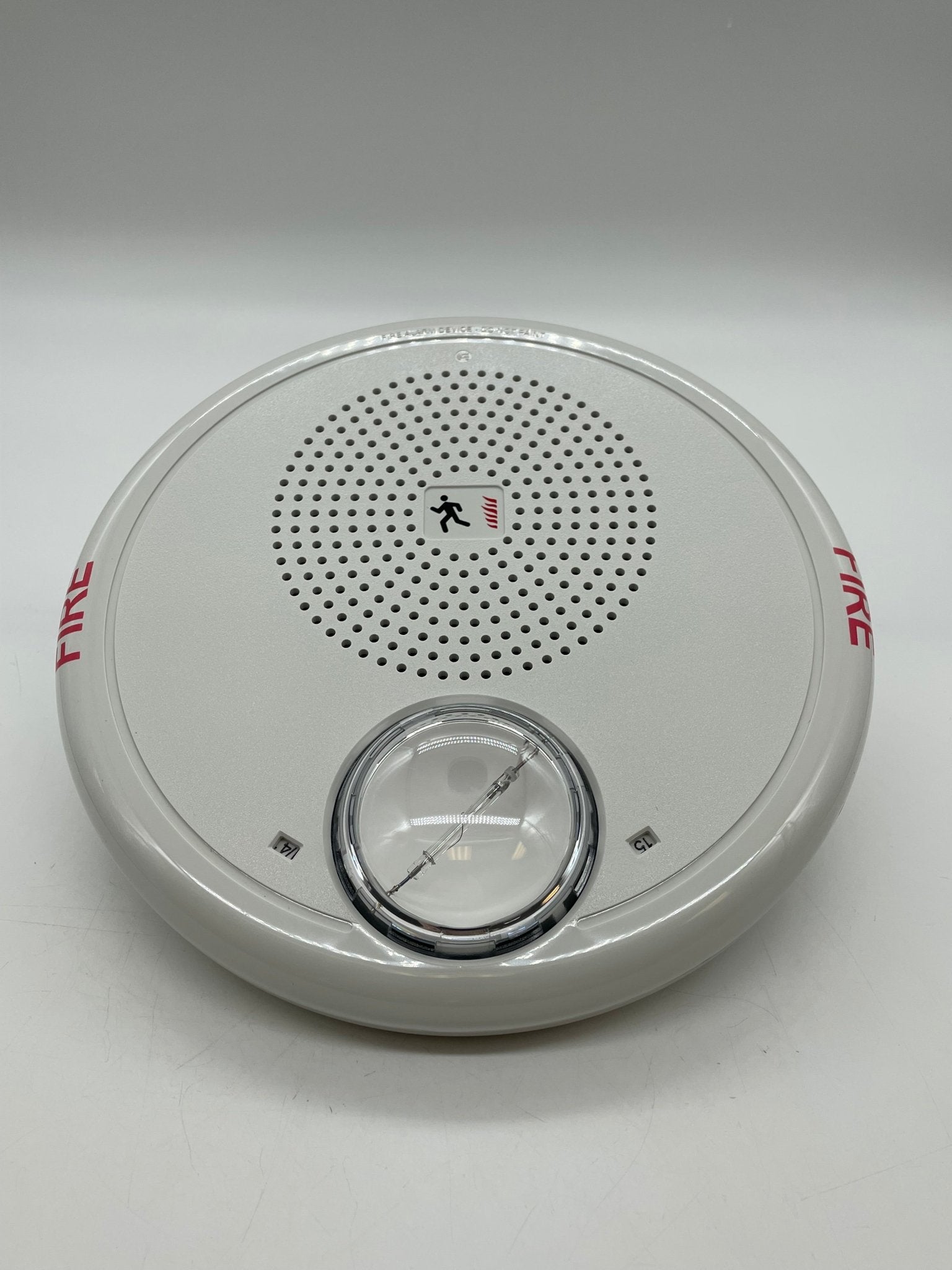

Edwards GCHFWF-S7VMC Multi-Candela Ceiling Speaker Strobe

Edwards GCHFWF-S7VMC Multi-Candela Ceiling Speaker Strobe - image 2

Edwards GCHFWF-S7VMC Multi-Candela Ceiling Speaker Strobe - image 3

Edwards GCHFWF-S7VMC Multi-Candela Ceiling Speaker Strobe - image 4

Edwards GCHFWF-S7VMC Multi-Candela Ceiling Speaker Strobe - image 5

Edwards GCHFWF-S7VMC Multi-Candela Ceiling Speaker Strobe - image 6

Edwards GCHFWF-S7VMC Multi-Candela Ceiling Speaker Strobe - image 7

Edwards GCHFWF-S7VMC Multi-Candela Ceiling Speaker Strobe - image 8

Edwards GCHFWF-S7VMC Multi-Candela Ceiling Speaker Strobe - image 9

Edwards GCHFWF-S7VMC Multi-Candela Ceiling Speaker Strobe - image 10

Roll over image to zoom in Click on image to zoom

Newer model available

This model has been replaced by the newer product below. The original is available while current stock lasts.

This model

GCHFWF-S7VMC

$260.20

Discontinued, no longer stocked

Recommended replacement

Edwards GCSVWF Genesis LED Ceiling Speaker-Strobe, White, FIRE Marking

$91.30$109.56

● Available to order

View details

Category: Speaker Strobes
Brand: Edwards
SKU: GCHFWF-S7VMC
UPC: 793016048943
Weight: 2.0 lb

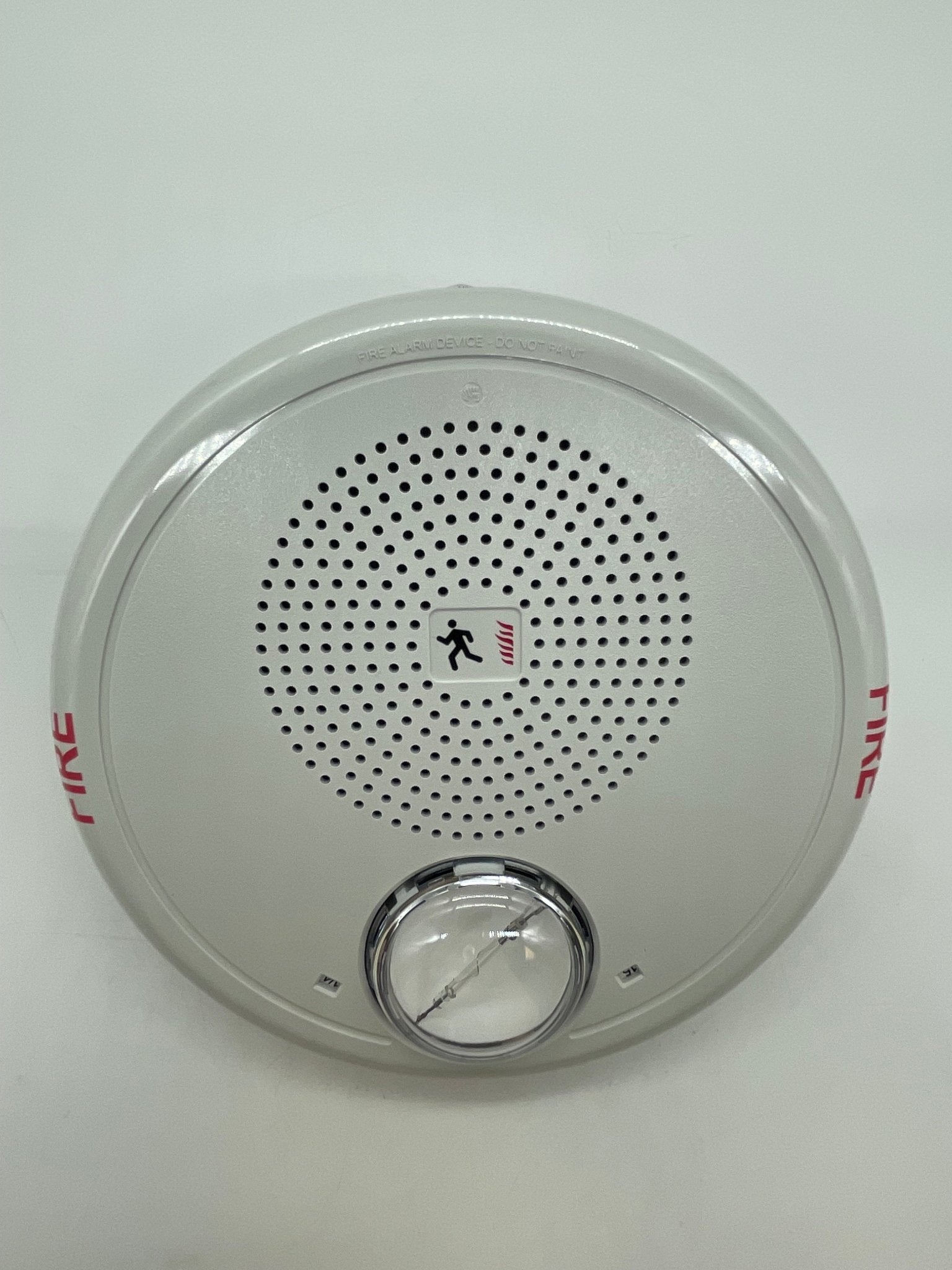

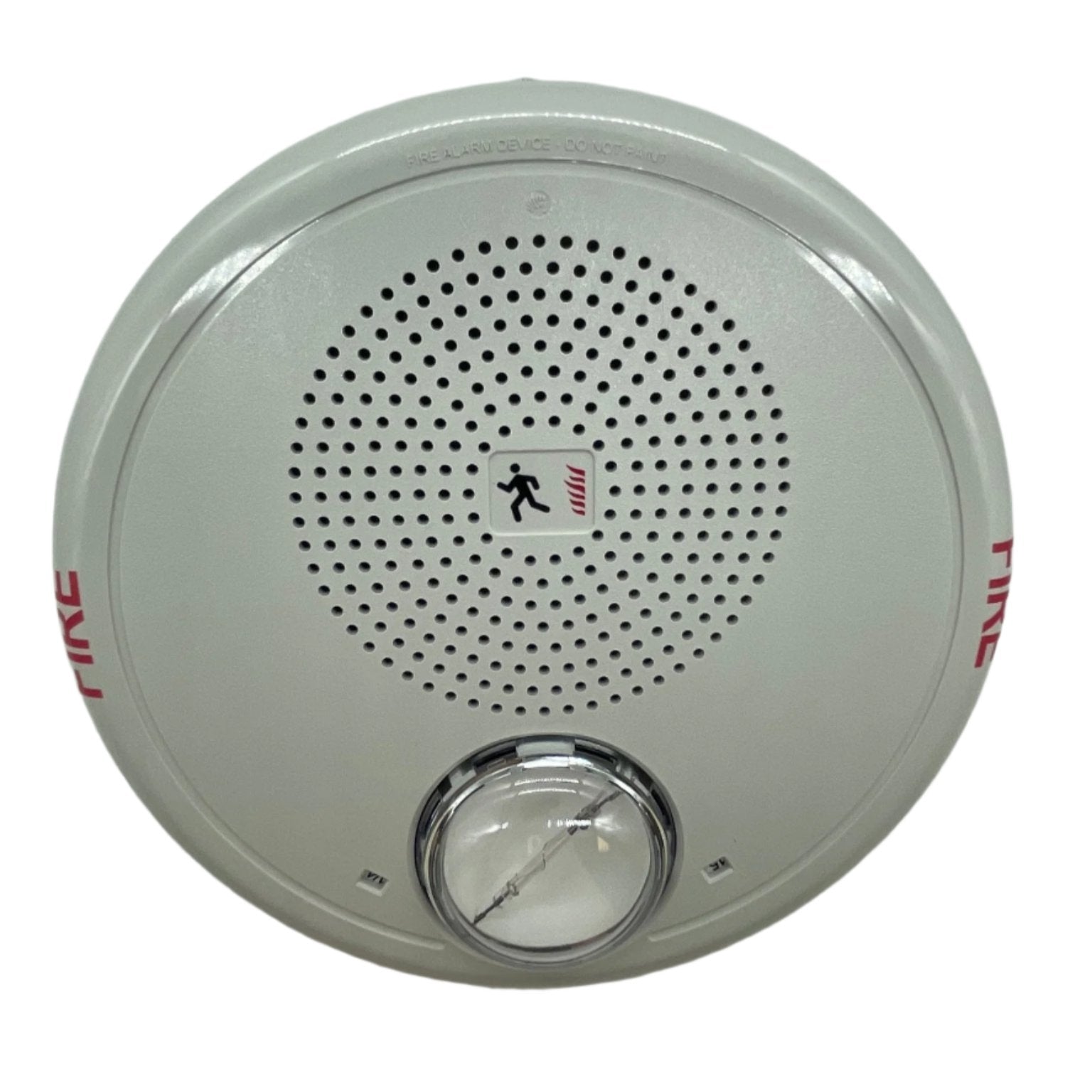

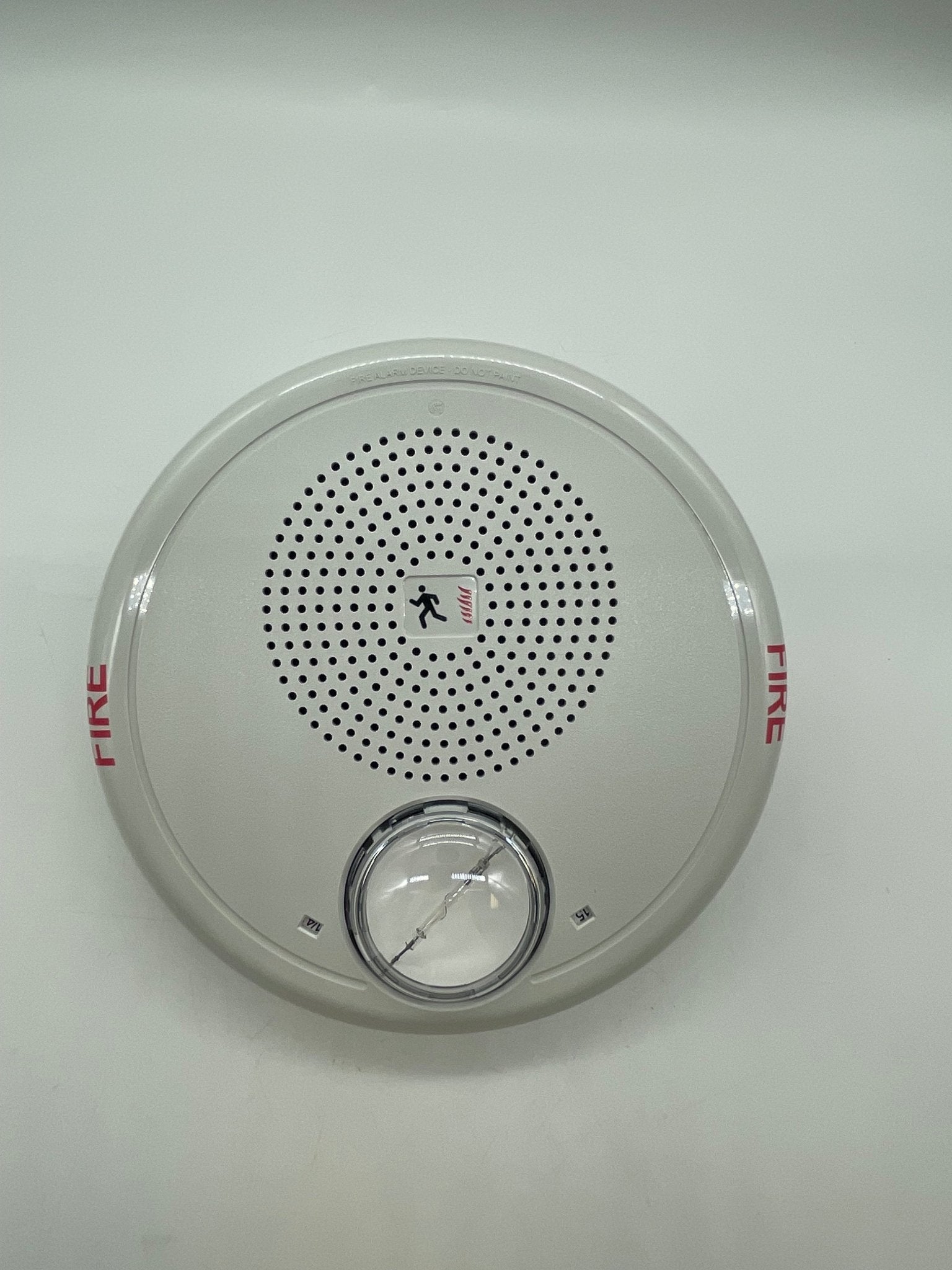

Edwards GCHFWF-S7VMC — Genesis GC Series high fidelity ceiling speaker strobe, white housing, FIRE marking, clear lens, 70 Vrms speaker.

Edwards decodes this number in its own ordering table. GC is the Genesis ceiling line, HF the 520 Hz high fidelity models for newly constructed sleeping areas, W white housing, F the FIRE marking, S7 the 70 Vrms speaker input and VM the multi-candela strobe. The final C is the clear lens, not the mounting.

Strobe selectable at 15, 30, 75 or 95 cd
Speaker taps of 1/4, 1/2, 1 and 2 W, set in place behind the cover
90.8 dBA at 2 W per UL 1480 and per ULC-S541, at 10 ft, on the 70 Vrms models
Strobe current 0.109 to 0.318 A DC at the four settings
Clear lens rated to UL 1971 and ULC S526, UL 464 for low frequency

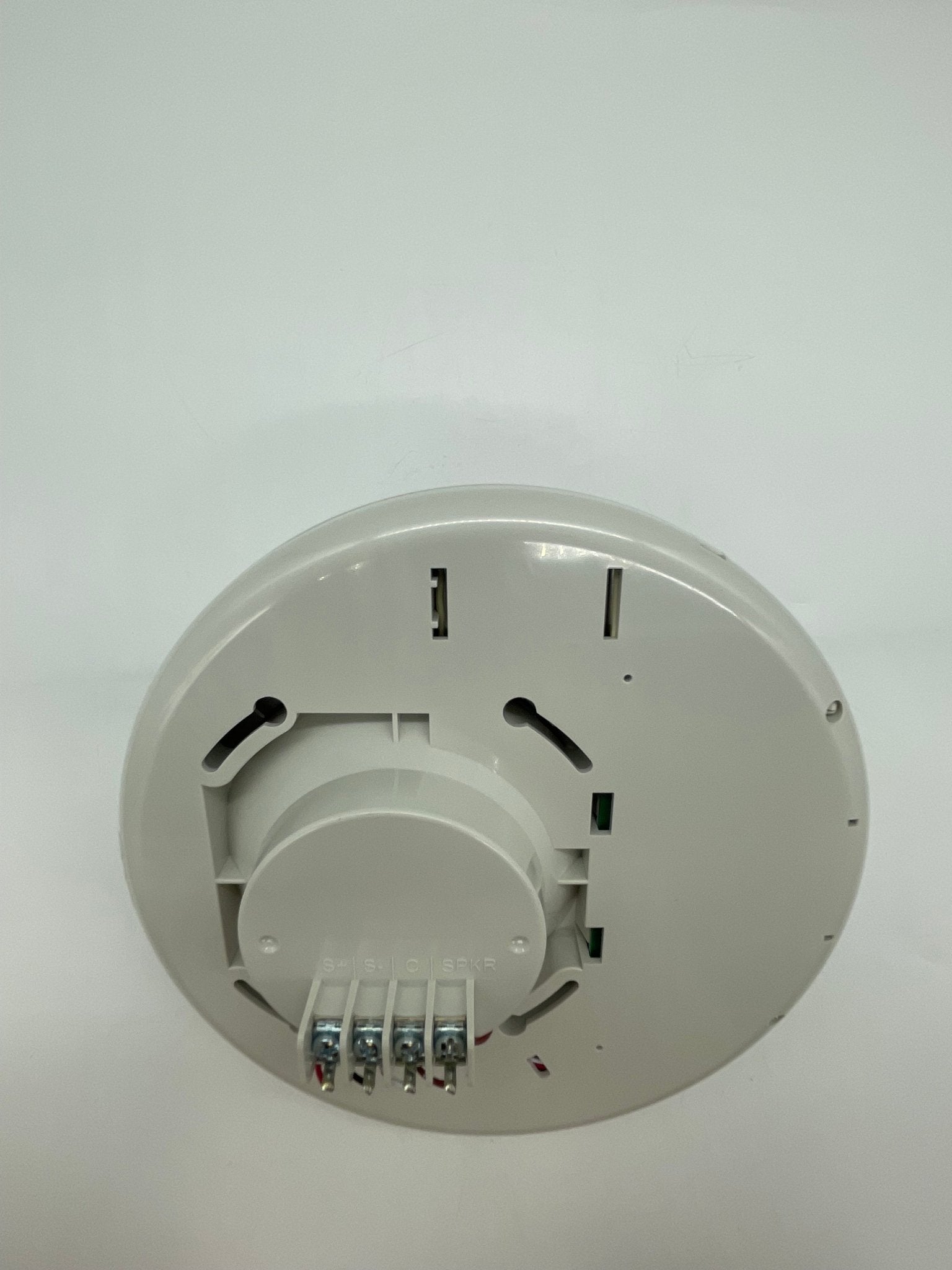

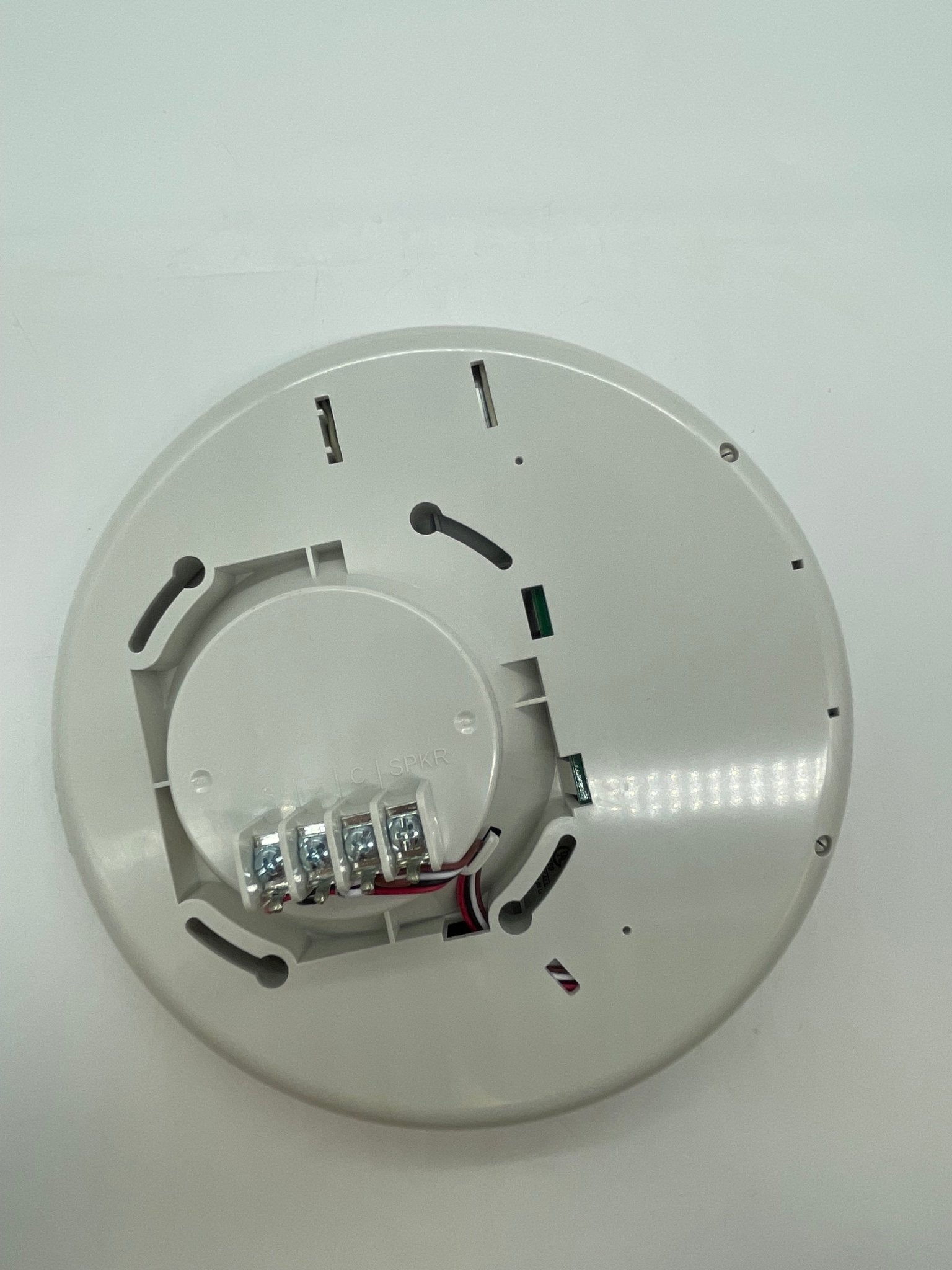

Flush to a 4 in. square 2 1/8 in. deep box, no extension ring; 6.8 in. across, indoor only

GCF-S7VM is the same white FIRE appliance without high fidelity, GCHFWF-S7VMCH swaps in the 95 to 177 cd strobe, GCHFWF-S2VMC is 25 Vrms and GCHFRF-S7VMC is red. Amber and blue lens models are separate numbers under UL 1638.
