Edwards GCHFWF-S2 Genesis High Fidelity Ceiling Speaker, White, Fire Marking, 25V

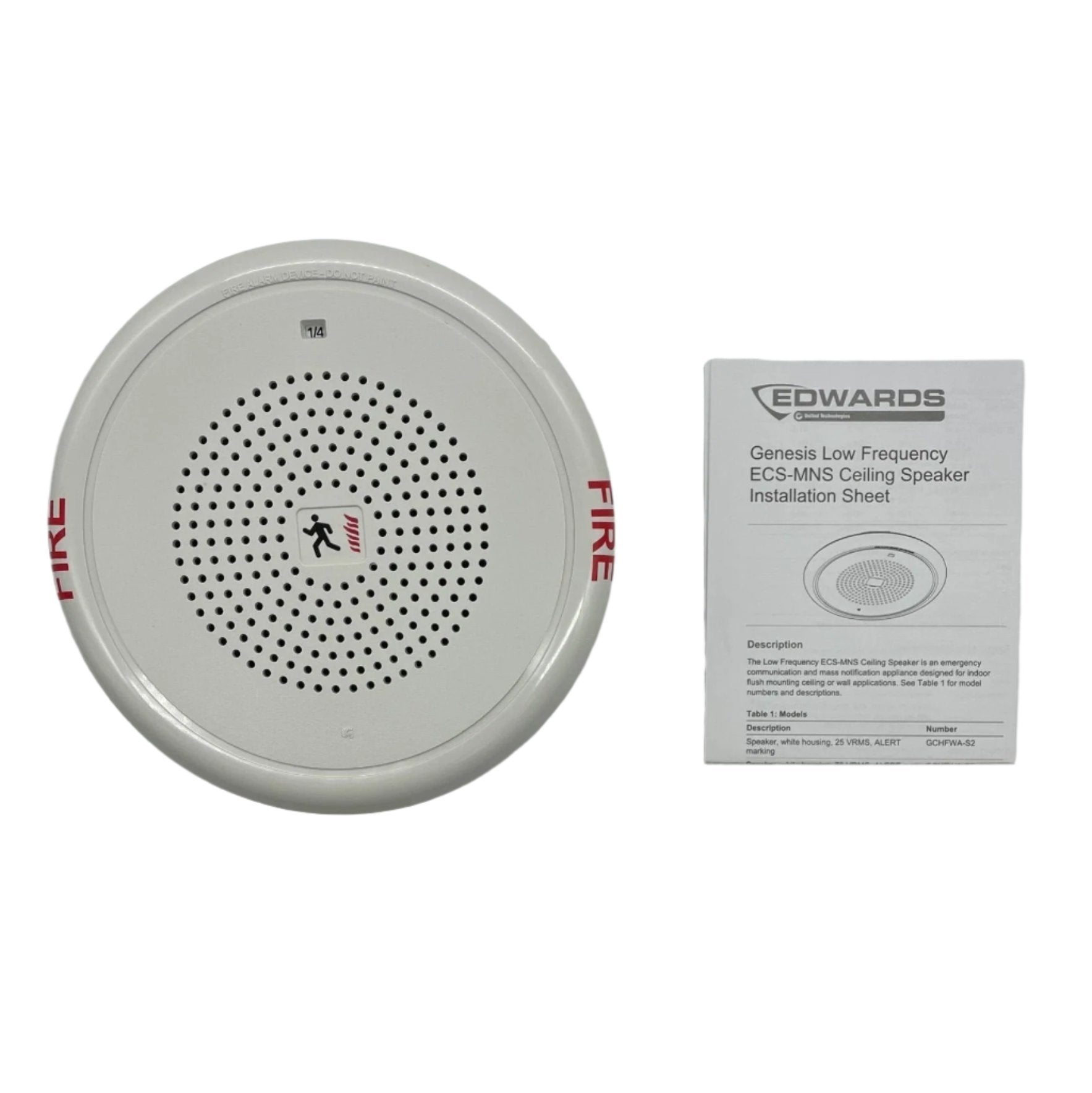

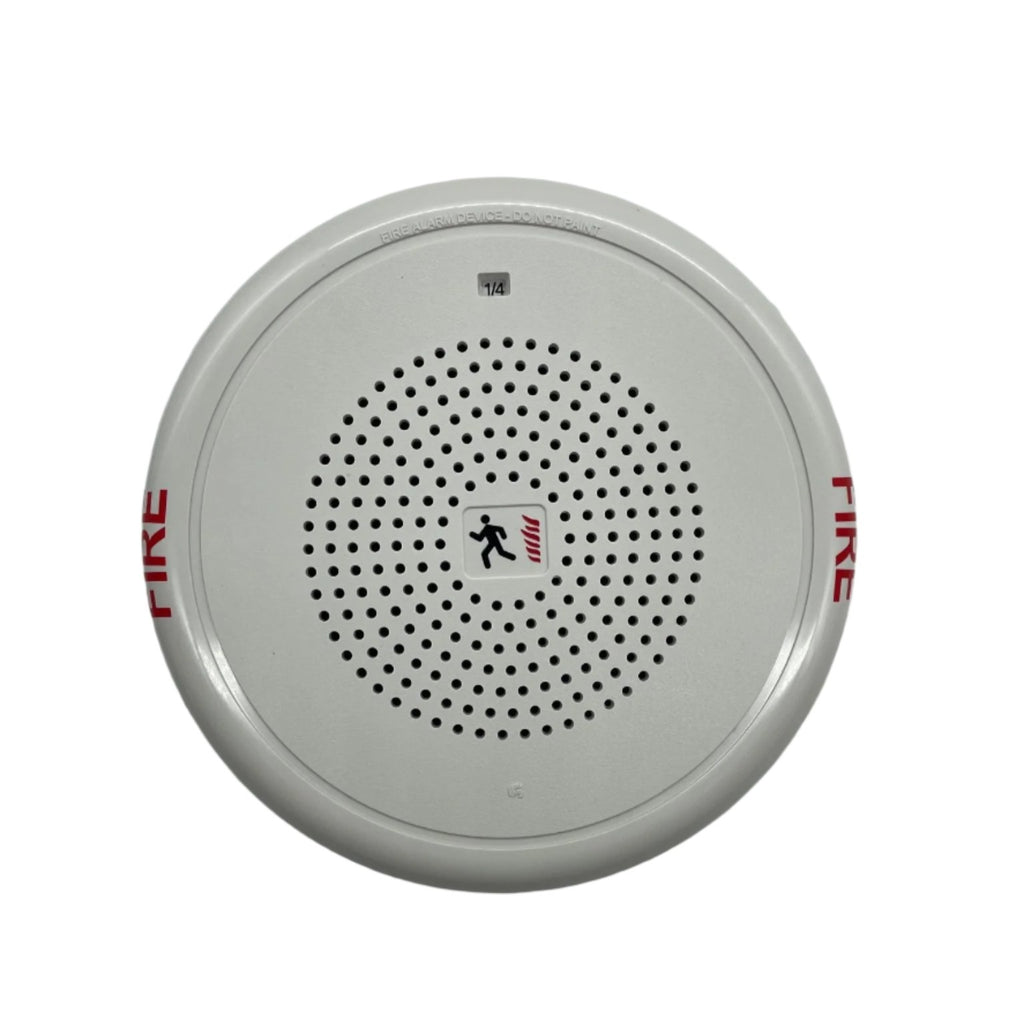

Genesis GC series High Fidelity (520 Hz capable) ceiling speaker (speaker only, no strobe) with a white housing and "FIRE" marking, for 25 V RMS audio circuits. It mounts flush to a 4 in. square electrical box and has field-selectable wattage taps from 1/4 to 2 W. High Fidelity (GCHF) models are listed for low frequency 520 Hz signaling in sleeping areas when used with approved audio equipment.
Key Features
- High Fidelity model, 520 Hz capable (meets NFPA low frequency requirement for sleeping areas)
- Selectable 1/4, 1/2, 1 or 2 watt taps; settings stay visible after installation
- Low-profile round design, 6.8 in. (173 mm) diameter, 1.0 in. (25 mm) deep
- Flush mounts to a 4 in. square box, 2-1/8 in. deep - no extension ring or trim plate needed

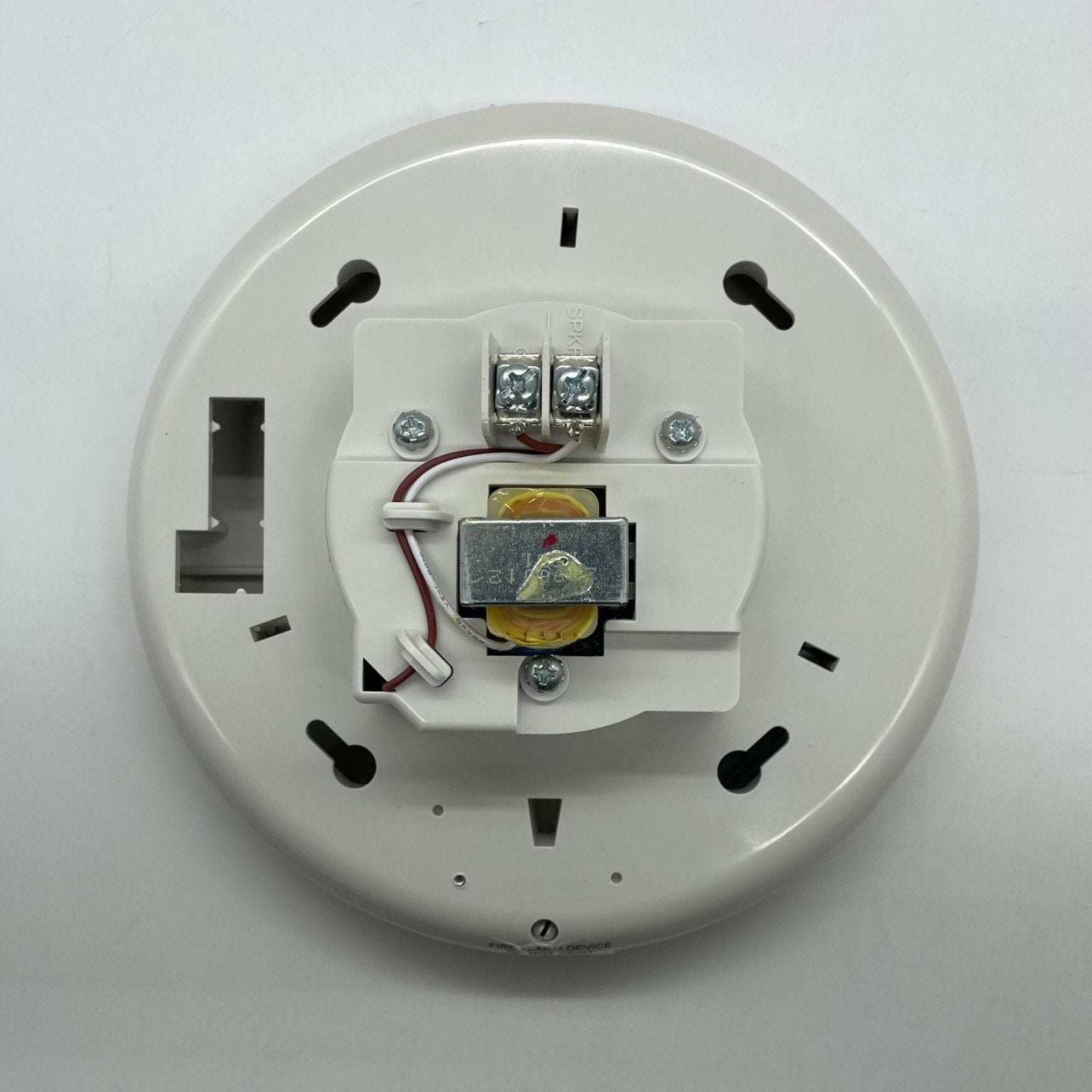

- #18 to #12 AWG screw terminals
- Listed for indoor ceiling or wall use
Specifications
| Speaker voltage |
25 V RMS |
| Housing color |
White |
| Marking |
FIRE |
| Wattage taps |
1/4, 1/2, 1, 2 W (selectable) |
| Speaker frequency response |
400 to 4,000 Hz |
| Dimensions |
6.8 in. (173 mm) diameter x 1.0 in. (25 mm) |
| Operating environment |
Indoor only, 32-120 F (0-49 C), 0-93% RH |
| Shipping weight |
1.62 lb (0.73 kg) |
Compatible With
- 25/70 V RMS emergency voice / mass notification audio circuits (Edwards EST audio amplifiers)
