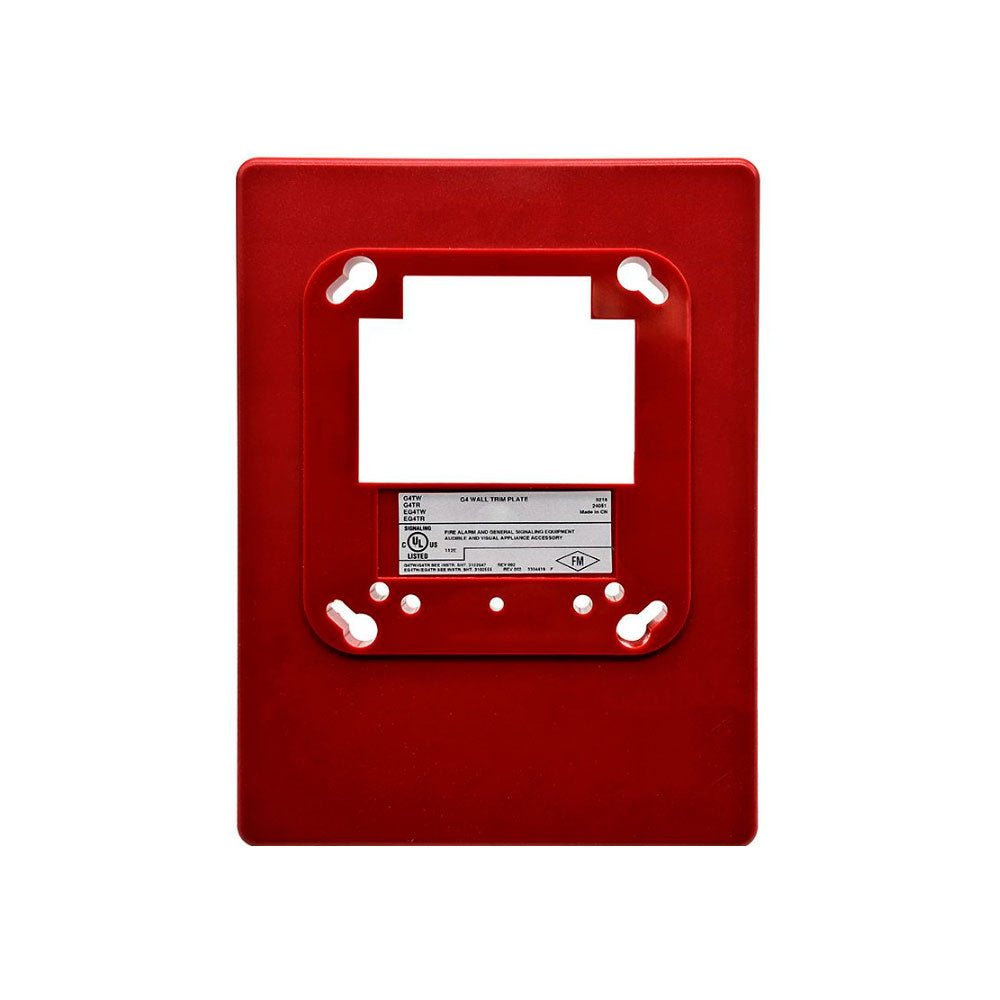

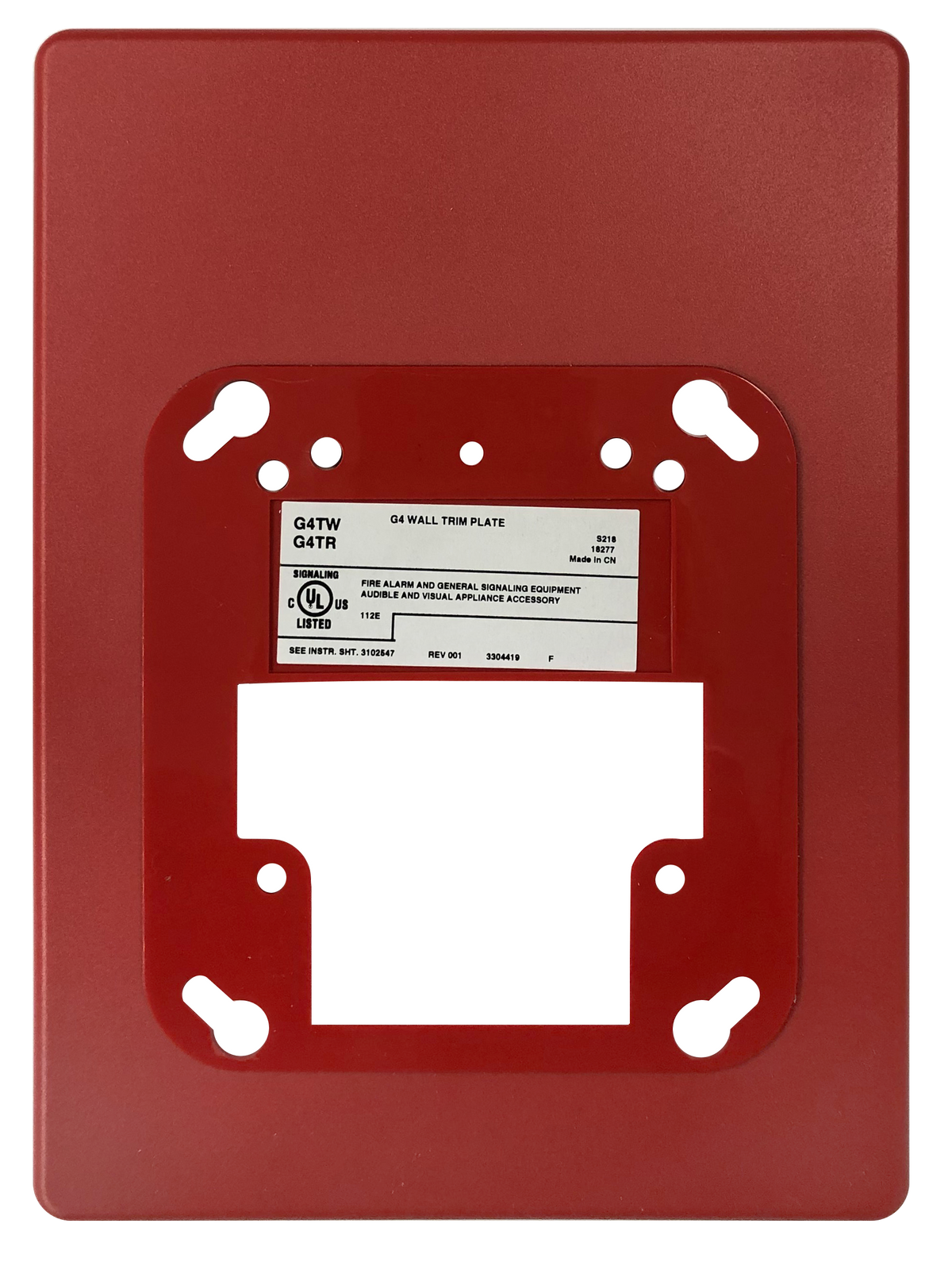

Edwards G4TR — red trim plate for Genesis LED G4 Series wall-mount notification appliances.
Genesis LED G4 Series horns, strobes and horn-strobes fit 1-gang, 2-gang, 3.5-inch octagon or 4-inch square boxes. The G4TR is the optional trim plate for that family: in the Edwards mounting sequence it sits between the electrical box and the appliance mounting plate, and at 5.6 by 7.5 in. it extends beyond the appliance on every side. It is a mechanical accessory with no wiring of its own.
- Trim plate for Genesis LED G4 Series wall-mount appliances, red
- Dimensions 5.6 × 7.5 × 0.3 in. (14.22 × 19.05 × 0.76 cm)
- Suits G4 devices on 1-gang, 2-gang, 3.5-inch octagon or 4-inch square boxes
- Boxes must be at least 1-1/2 in. (3.81 cm) deep
- Optional item, ordered separately from the appliance
- Appliance body it trims measures 4.95 × 5.78 × 1.62 in.
G4TW is the identical plate in white. Do not confuse it with the GP10 room side wiring plate, which G4 appliances actually require and which is also ordered separately, or with the 27193-21 red and 27193-26 white two-gang surface mount boxes.
