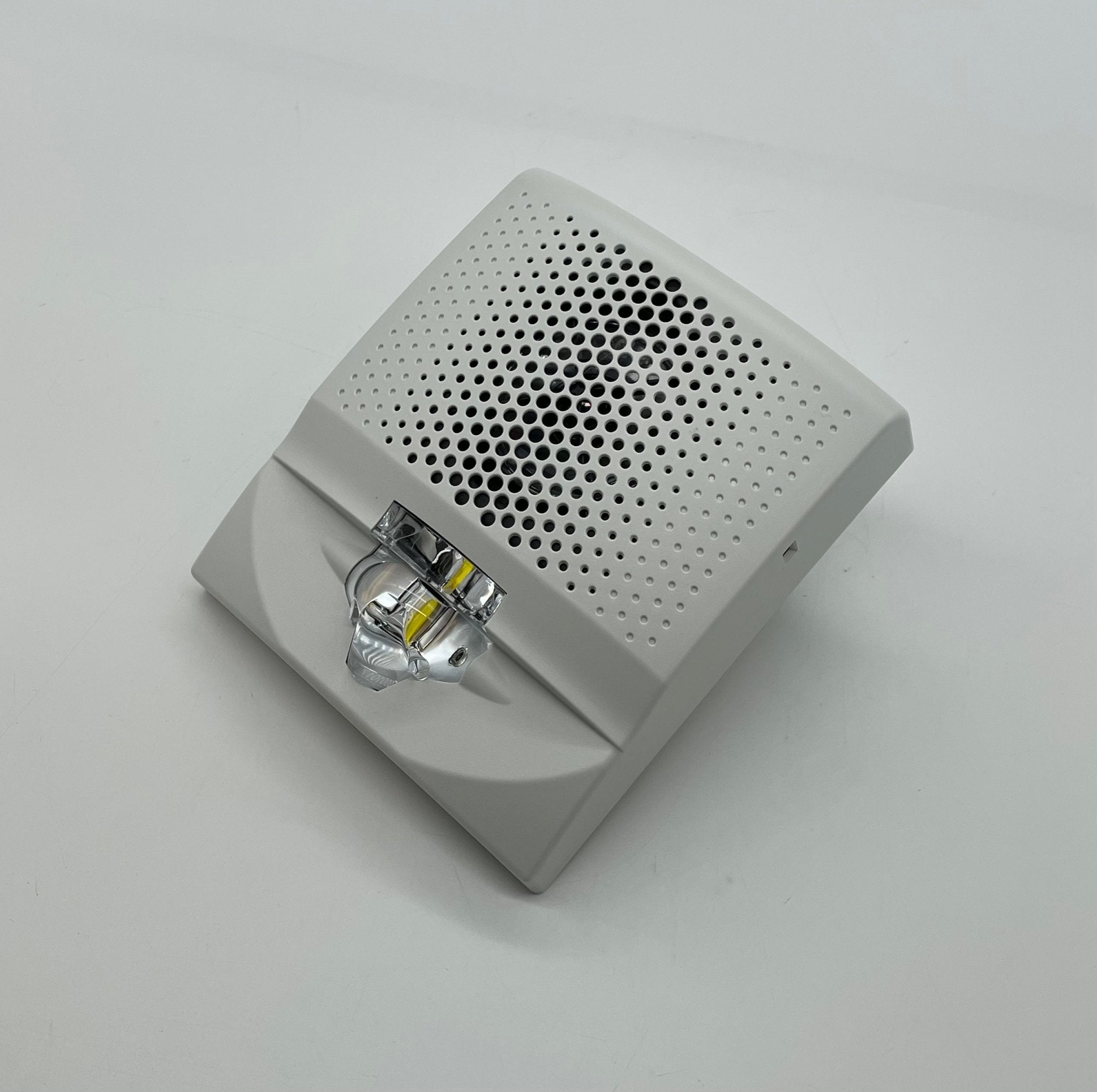

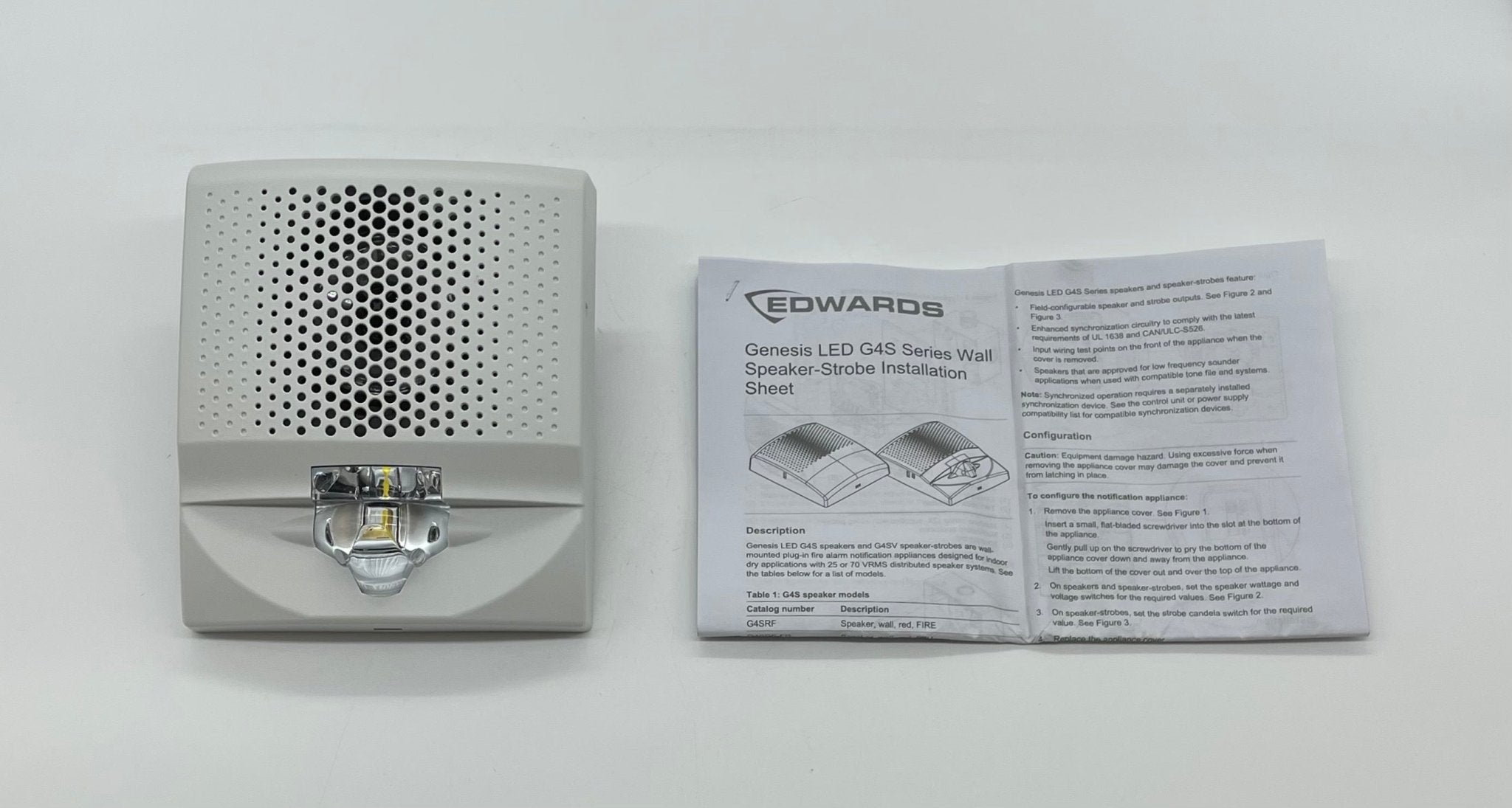

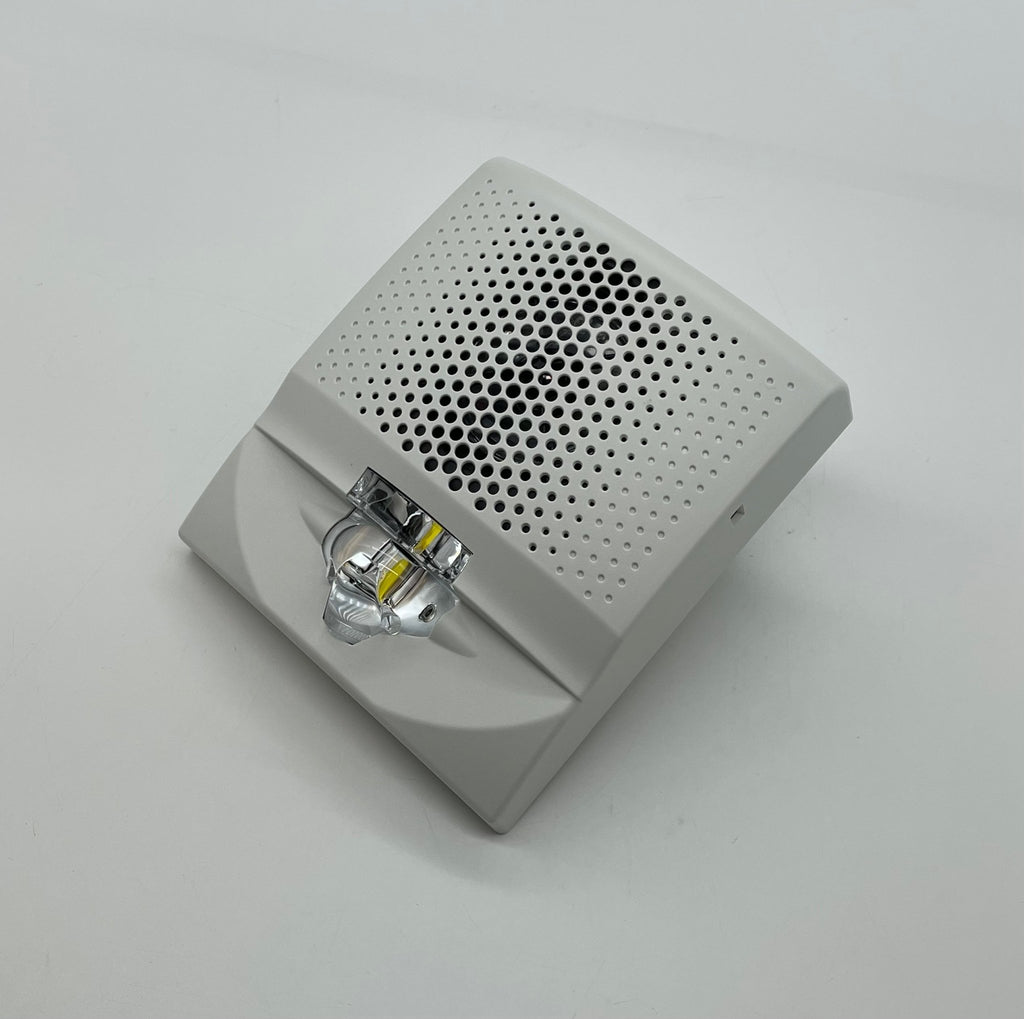

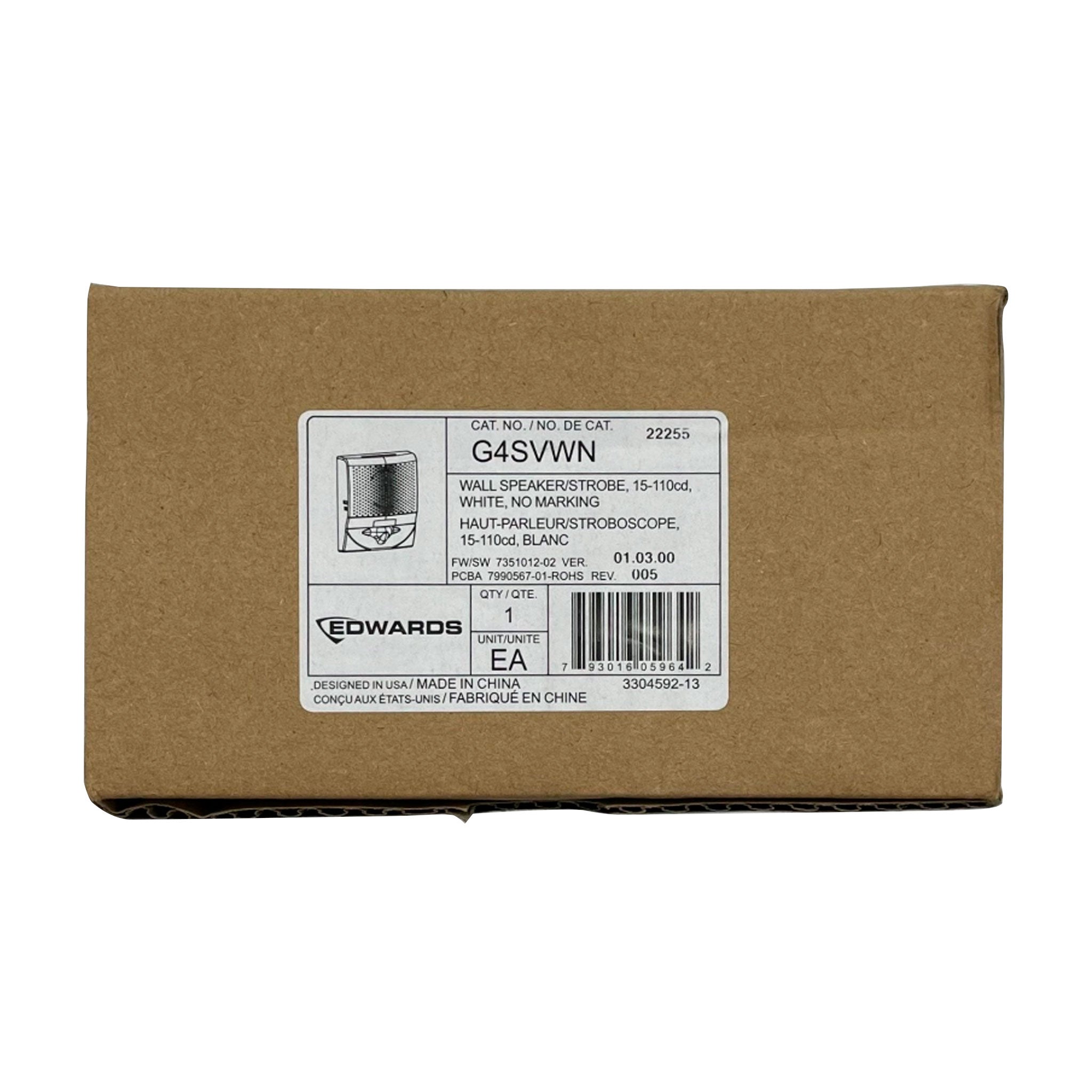

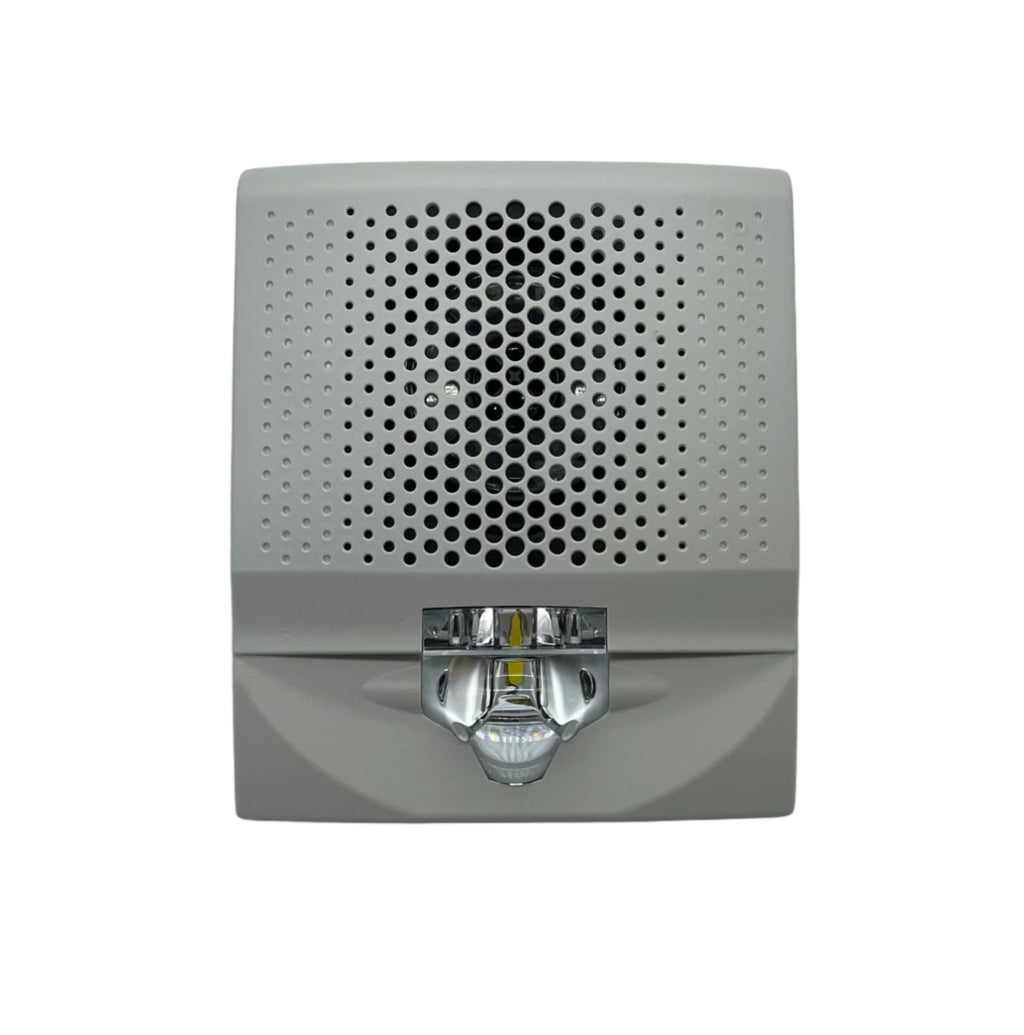

Edwards G4SVWN — Genesis LED G4S Series wall-mount speaker strobe, white housing, supplied with a blank cover carrying no lettering.
The Edwards model number syntax block decodes it letter by letter: G4S is the wall-mount speaker series, SV the speaker-strobe function, W white, N no marking. Covers are quick-swap, so FIRE, FEU, FUEGO or ALERT lettering can be added later.
- Strobe output selectable at 15, 30, 75 or 110 candela
- Strobe current 28 mA at 16 to 33 V DC, 36 mA on FWR, identical at every setting

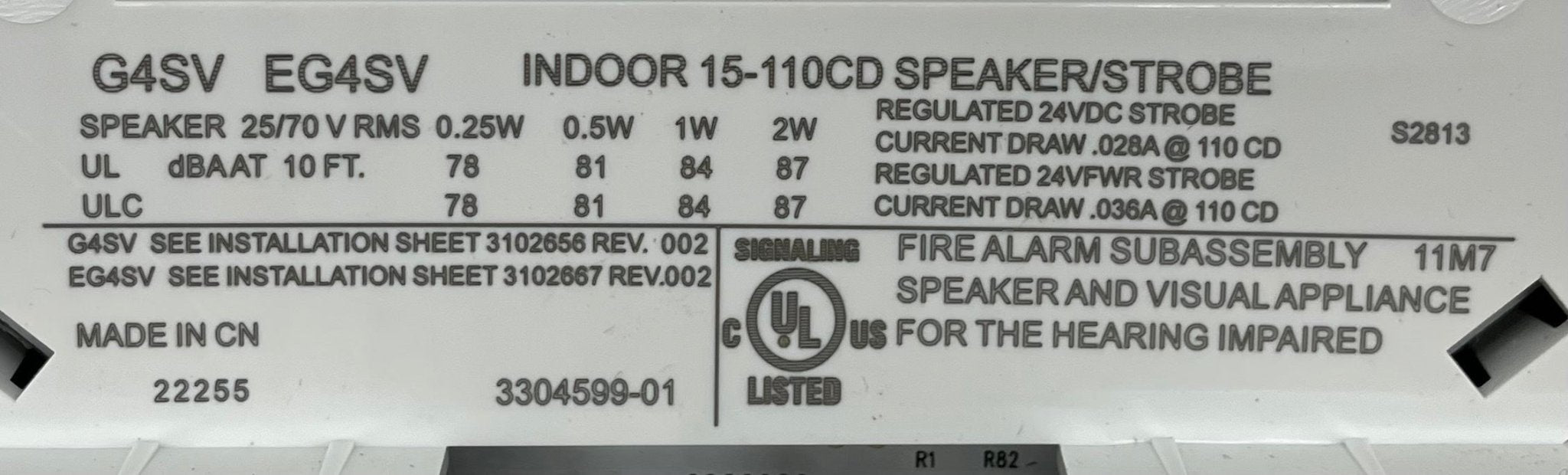

- Speaker taps of one quarter, one half, 1 and 2 watts; selectable 25 V or 70 V
- 78, 81, 84 and 87 dBA reverberant across those taps; speech transmission index 0.81
- 520 Hz capable; 20 Ω maximum between synchronised devices
- 4.95" × 5.78" × 1.62"; fits 2-gang and 4-inch square boxes
The GRSW room side wiring plate is required and ordered separately as GRSW-10. G4SVWF is the same unit marked FIRE, G4SVRN the red blank version, G4SWN a speaker with no strobe, and the ceiling GCSVWN tops out at 115 candela rather than 110.
Documents
FAQ
Is the mounting plate included?

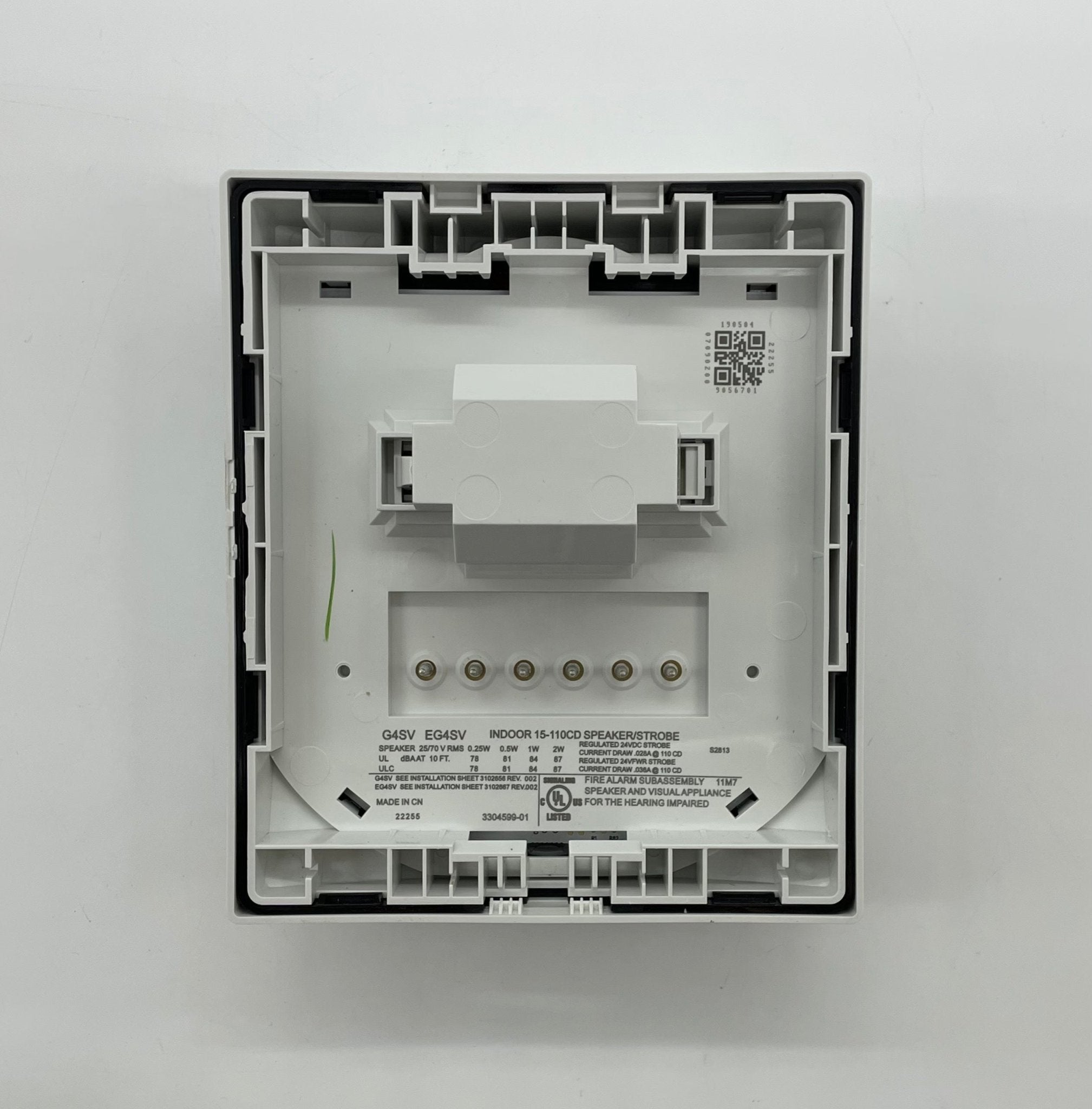

No. G4S devices mount to the required GRSW room side wiring plate, which is ordered separately in packs of 10 as GRSW-10.
Which electrical boxes does it fit?
Standard two-gang and 4 in. square boxes. Optional G4TW white trim plates cover oversized openings.
Can it be mixed with xenon strobes?
Yes. Edwards states G4S LED strobes can be mixed with xenon strobes on the same circuit and used in the same field of view.
Can a marking be added later?
Yes. Covers are quick-swap, and replacement covers are available with FIRE, FEU, FUEGO or ALERT lettering.
