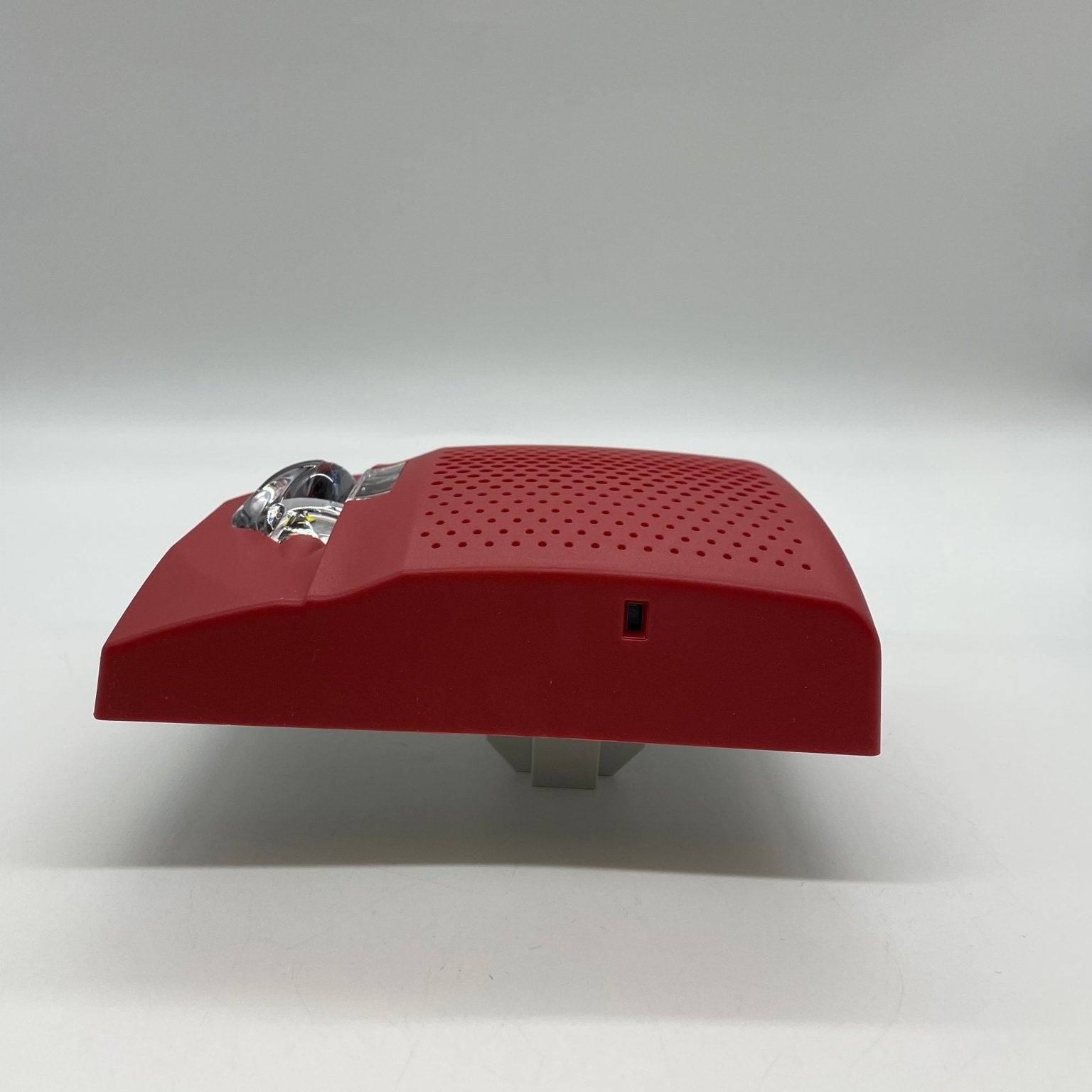

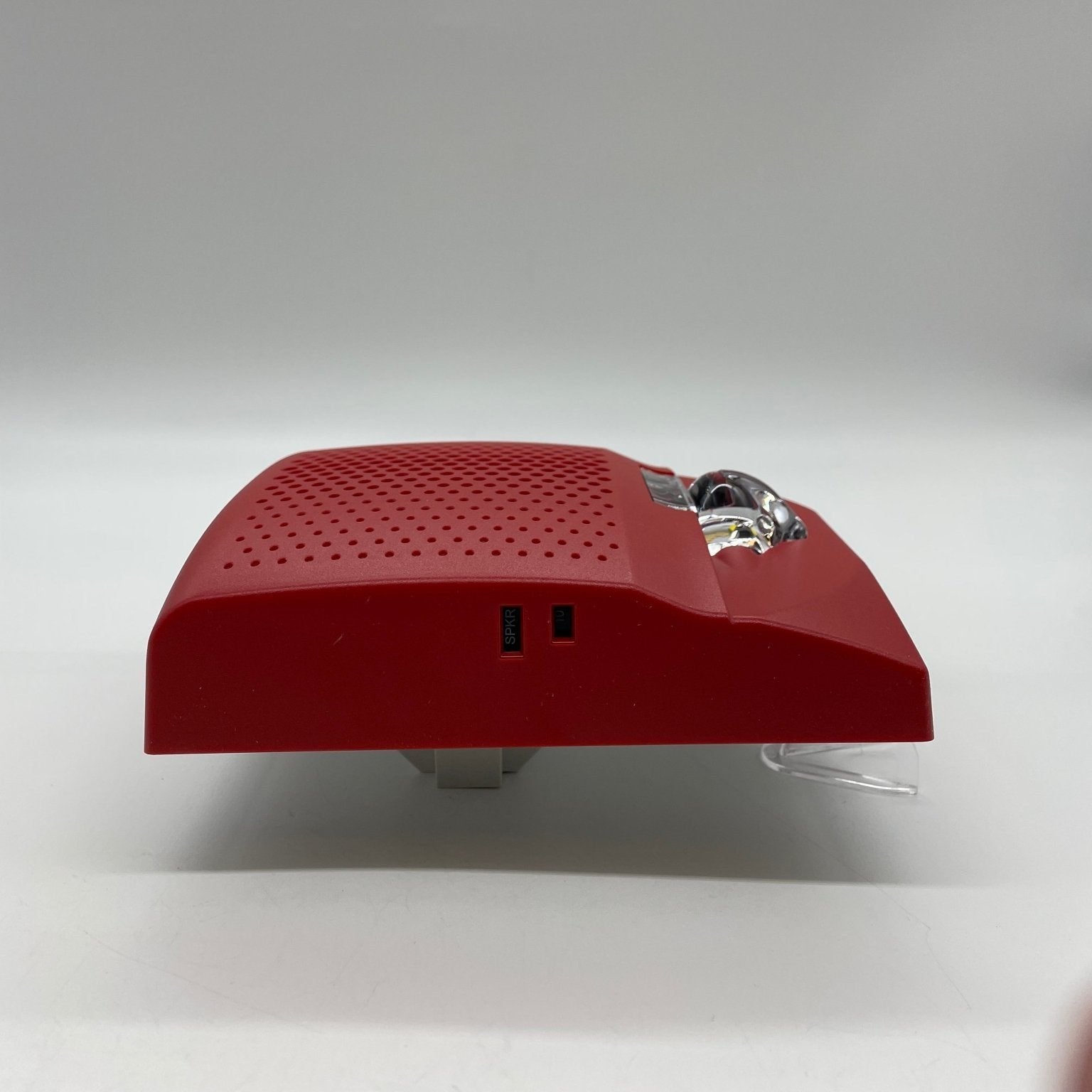

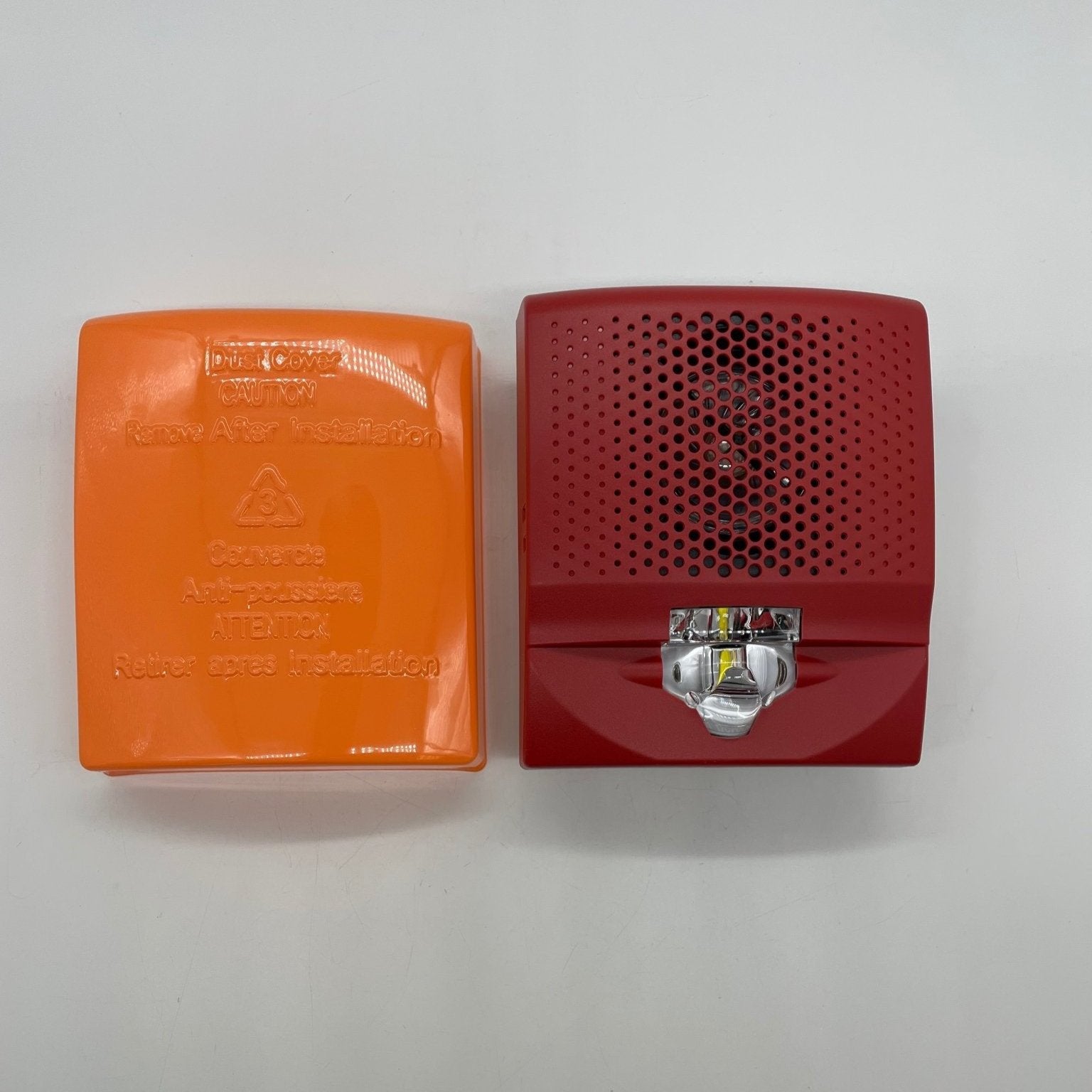

Edwards G4SVRN is a wall-mount speaker-strobe from the Genesis LED G4S Series, in a red housing with no marking. It combines a voice speaker with an LED strobe, so one appliance handles both the audible and visible parts of a voice evacuation notification circuit.
The speaker is built for clear voice output (STI rating 0.81) and can reproduce 520 Hz low-frequency signals. A single model covers both 25 V and 70 V audio systems through a field switch, and it installs on a room-side plate that can be wired before the appliance goes on.
Features
- LED strobe field-selectable to 15, 30, 75 or 110 cd
- Speaker switchable between 25 V and 70 V RMS in the field
- Wattage taps of 1/4, 1/2, 1 and 2 W
- STI rating of 0.81 and 520 Hz low-frequency capability
- Fits 2-gang and 4-inch square boxes
- Quick-swap covers allow the marking to be changed in the field
Specifications
| Strobe operating voltage |
16 to 33 VDC or 16 to 33 VFWR |
| Speaker voltage |
25 V or 70 V RMS, field selectable |
| Wattage taps |
1/4, 1/2, 1 and 2 W |
| Frequency response |
400 to 4,000 Hz UL rated; 100 to 11,000 Hz nominal |
| Light output |
Selectable 15, 30, 75 or 110 cd |
| Strobe flash rate |
Approx. 1 flash per second |
| Wire size |
12 to 18 AWG |
| Dimensions (W x H x D) |
4.95 x 5.78 x 1.62 in. (12.57 x 14.68 x 4.11 cm) |
| Compatible electrical boxes |
2-gang, 4-inch square |
| Trim plates |
G4TR (red), G4TW (white) |
| Operating temperature |
32 to 122 F (0 to 50 C) |
| Relative humidity |
0 to 93% non-condensing |
| Color / marking |
Red / none |
Specifications taken from the manufacturer data sheet E85001-1026 Genesis LED G4S Series Wall Mount Speakers and Speaker-Strobes.
