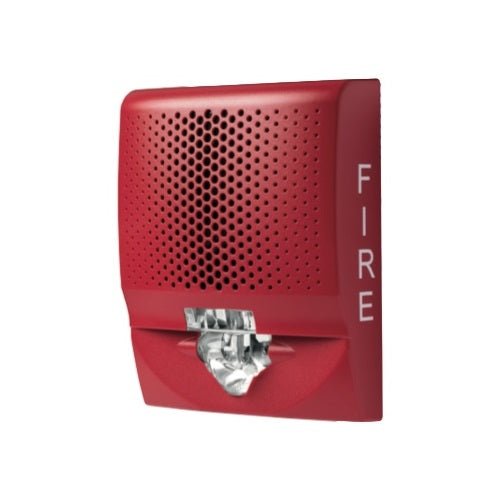

Edwards G4SVRF — Genesis LED G4S Series wall-mount speaker-strobe, red housing, FIRE marking.
The LED G4S generation replaced xenon Genesis strobes and draws the same current at every candela setting, so light output can be raised late in a job without recalculating the circuit. Voltage and wattage are slide switches under the cover, and both settings stay readable through side windows once it is closed, so a floor can be rebalanced without pulling devices off the wall.
- Strobe: field-selectable 15, 30, 75 or 110 cd; 16 to 33 VDC or VFWR; 28 mA DC / 36 mA VFWR at any setting
- Speaker: selectable 25 V or 70 V with 1/4, 1/2, 1 and 2 W taps giving 78, 81, 84 and 87 dBA
- UL-rated response 400–4,000 Hz; 520 Hz capable; STI 0.81
- 4.95" × 5.78" × 1.62"; 2-gang or 4" square box; 12 to 18 AWG terminals
The GRSW room-side wiring plate is required and is not supplied — order it separately in ten-packs as GRSW-10. This applies to the red G4SVRF exactly as to the white G4SVWF.
