Edwards G4RF-S2 Speaker (25V), Multi-Tap, Red W/Fire

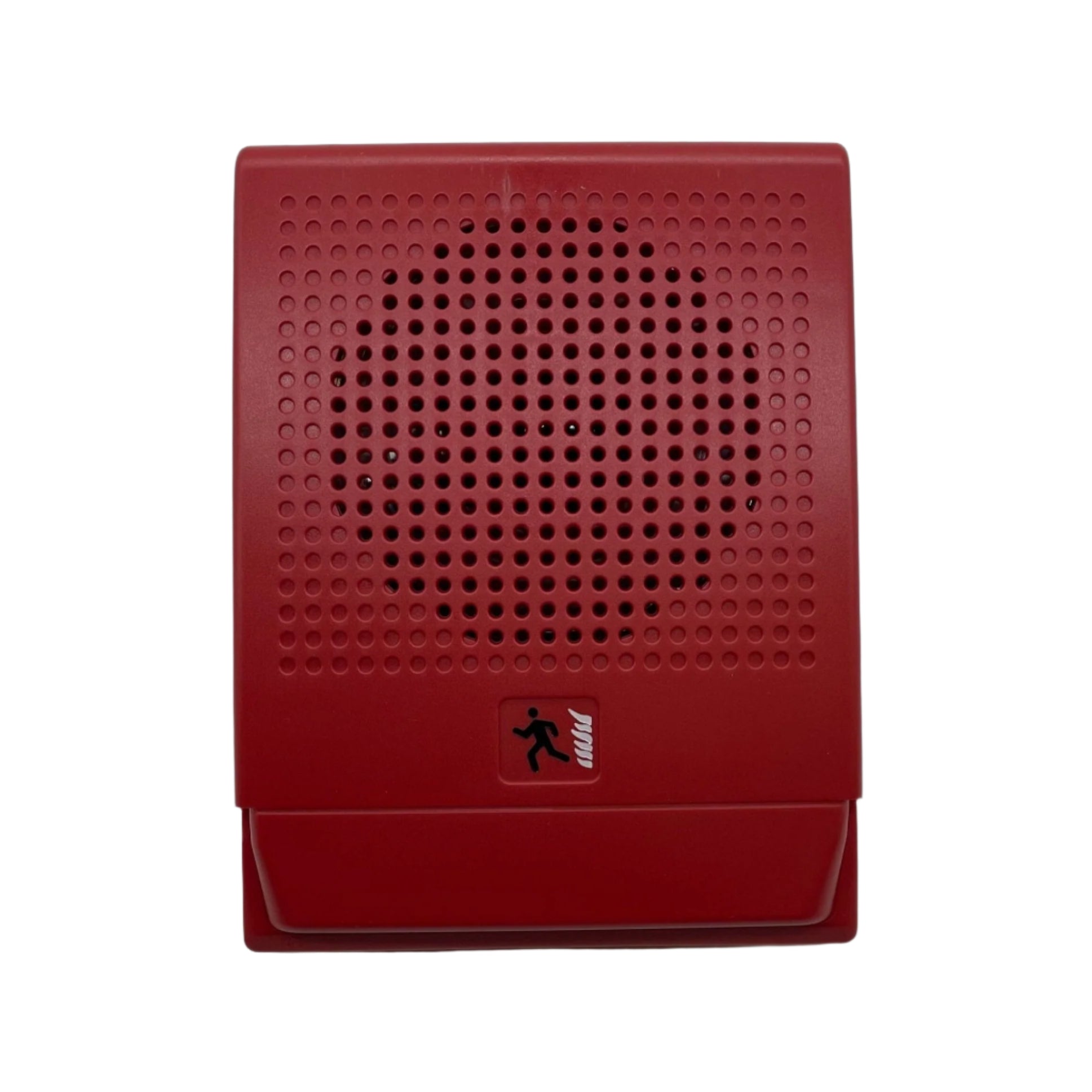

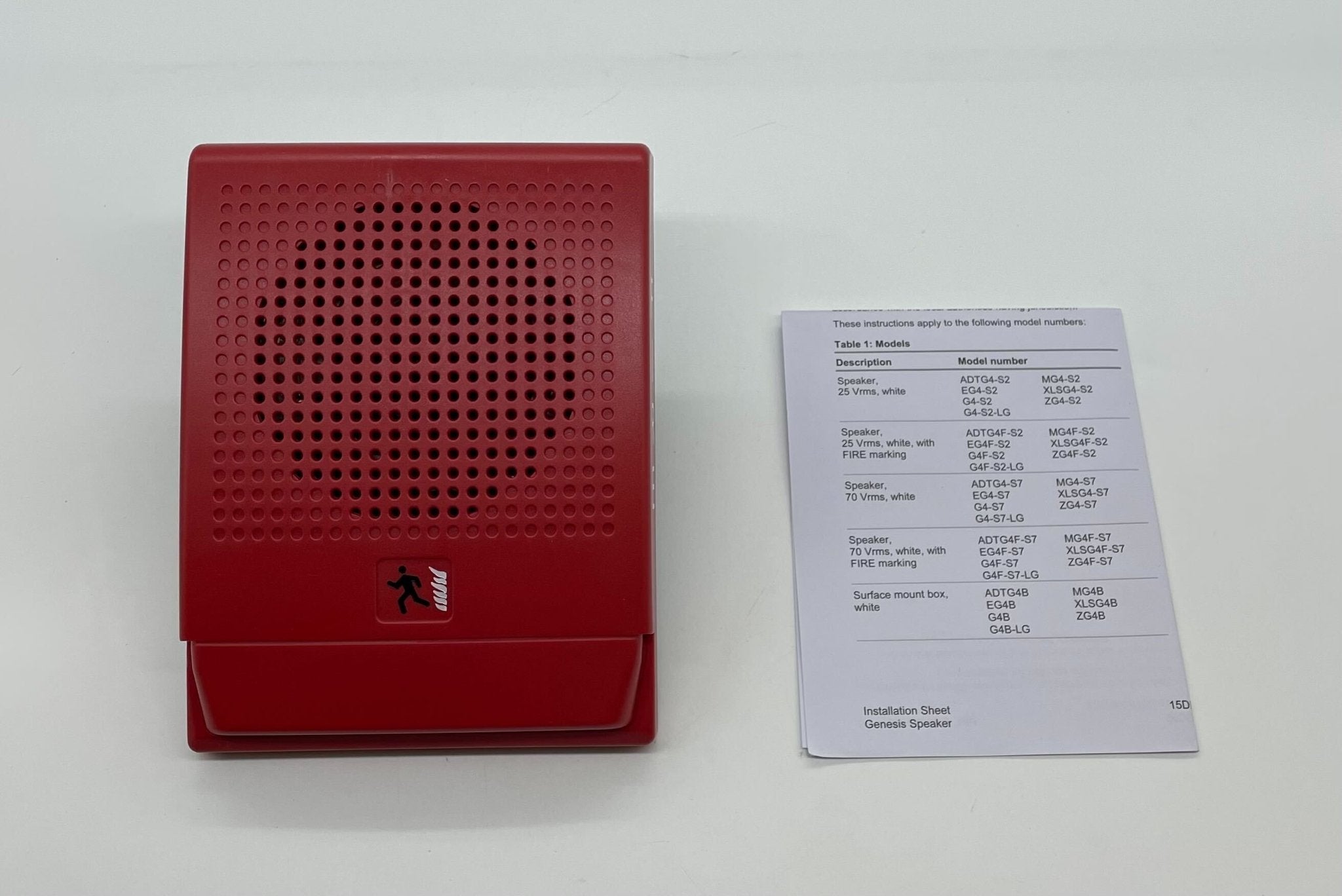

Genesis G4 series wall speaker (speaker only, no strobe) with a red housing and "FIRE" marking, for 25 V RMS audio circuits. It is a low-profile life safety speaker that flush mounts to a 4 in. square electrical box and has field-selectable wattage taps from 1/4 to 2 W.
Key Features
- Selectable 1/4, 1/2, 1 or 2 watt taps; setting stays visible through a window after installation
- Low profile: protrudes about 1 in. (25 mm) from the wall, no visible mounting screws
- DC blocking capacitor included for audio circuit supervision
- Fits a standard 4 in. square box, 2-1/8 in. deep; optional G4B (white) / G4RB (red) surface box

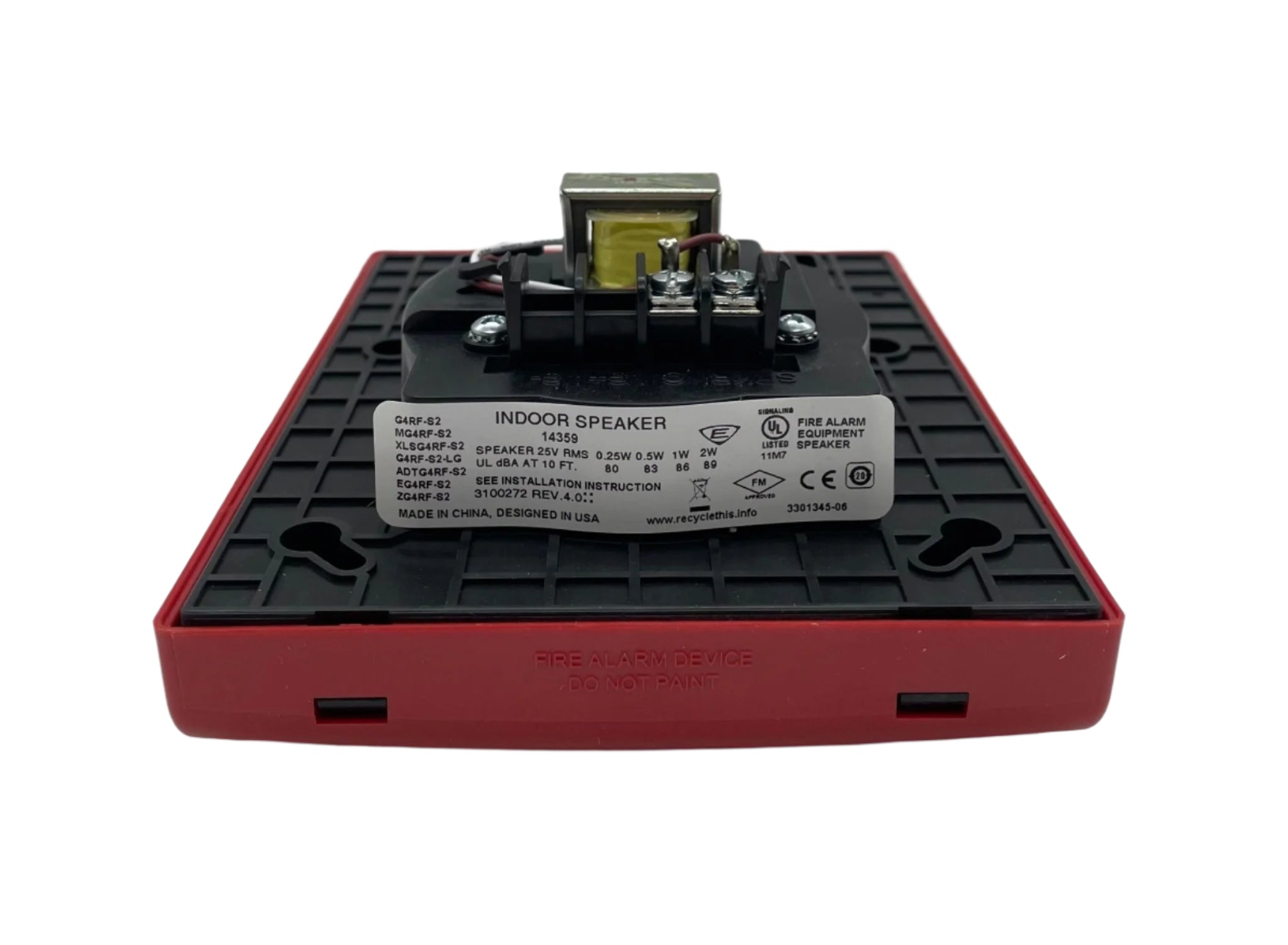

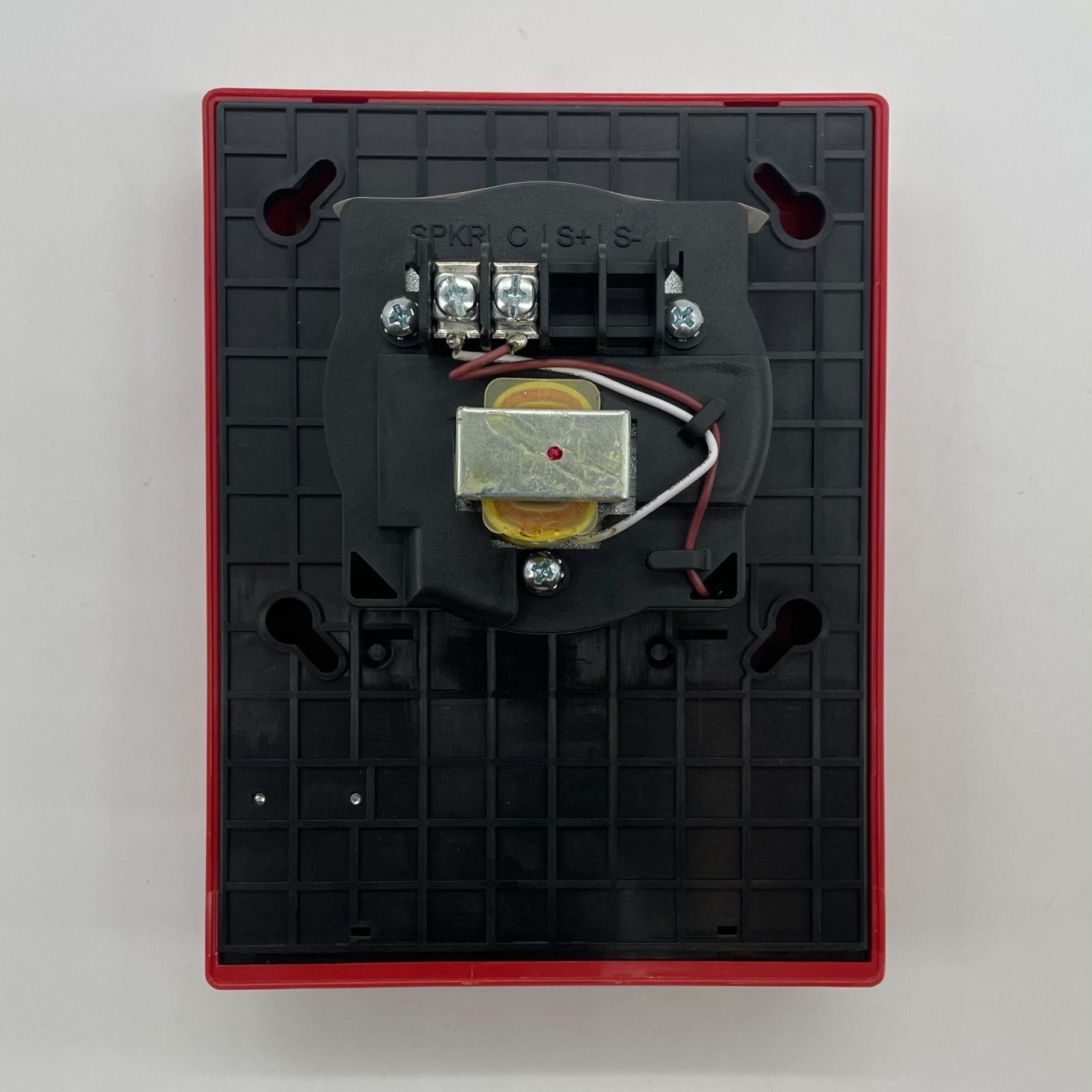

- #18 to #12 AWG screw terminals
- Indoor wall mounting only
Specifications
| Speaker voltage |
25 V RMS |
| Housing color |
Red |
| Marking |
FIRE |
| Dimensions |
6.5 in. H x 5 in. W x 1 in. D (165 x 127 x 25 mm) |
| Wattage taps |
1/4, 1/2, 1, 2 W (selectable) |
| Speaker frequency response |
400 to 4,000 Hz |
| Operating environment |
32-120 F (0-49 C), 0-93% RH, indoor |
| Shipping weight |
1.5 lb (0.68 kg) |
| Sound output at 2 W |
89 dBA at 10 ft (UL 1480) |
| Certifications |
UL 1480, ULC-S541, CSFM, MEA |
Compatible With
- 25/70 V RMS fire alarm / emergency voice audio circuits (Edwards EST audio amplifiers)
- G4B / G4RB surface mount boxes
