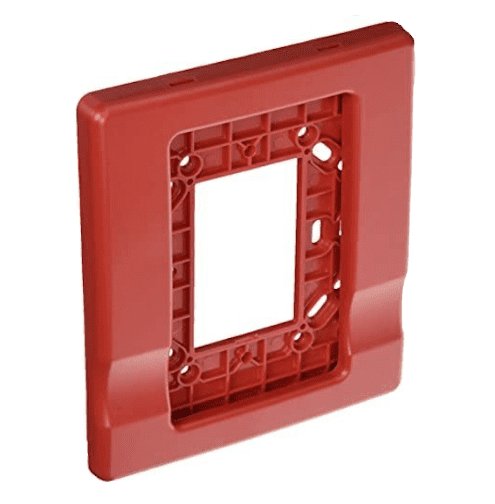

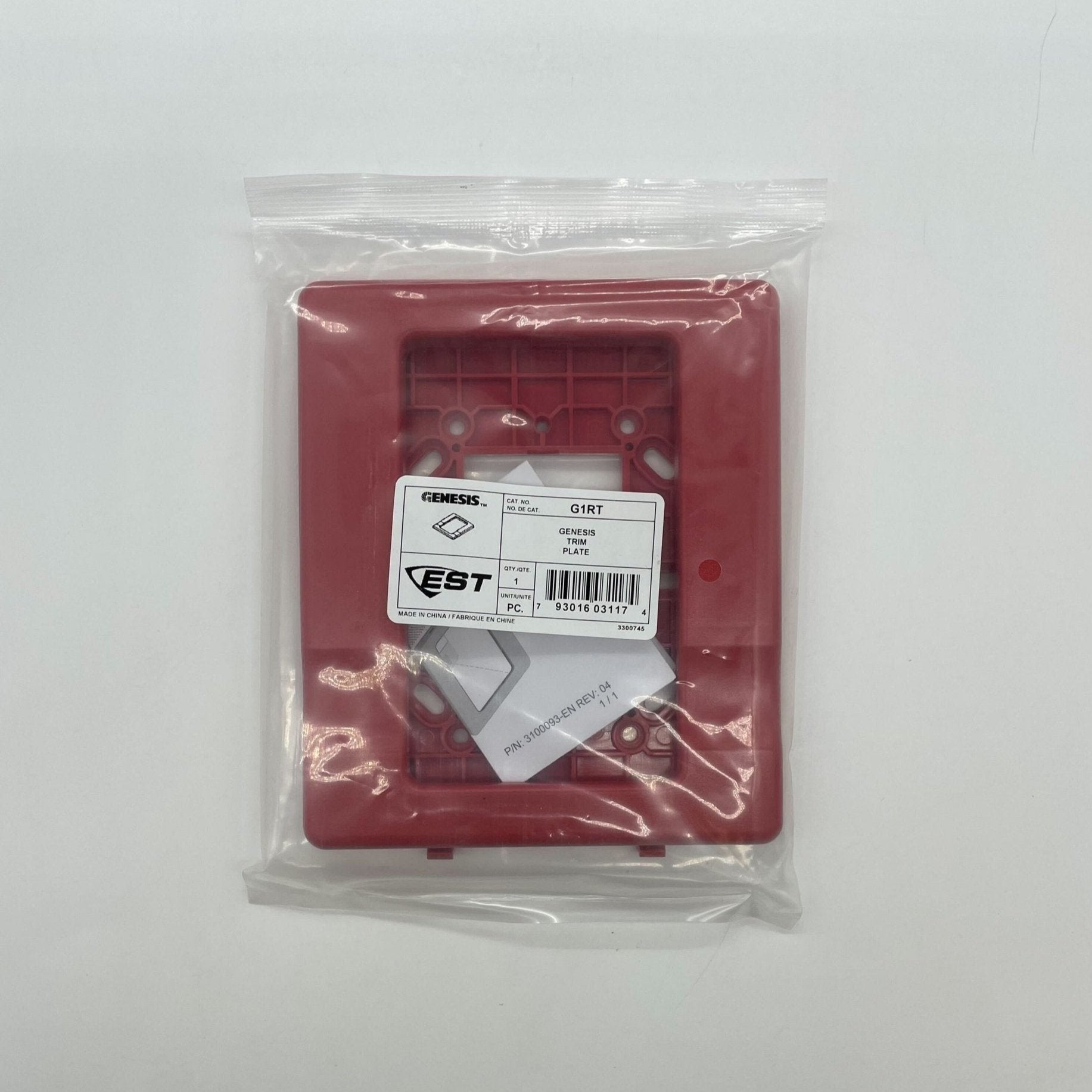

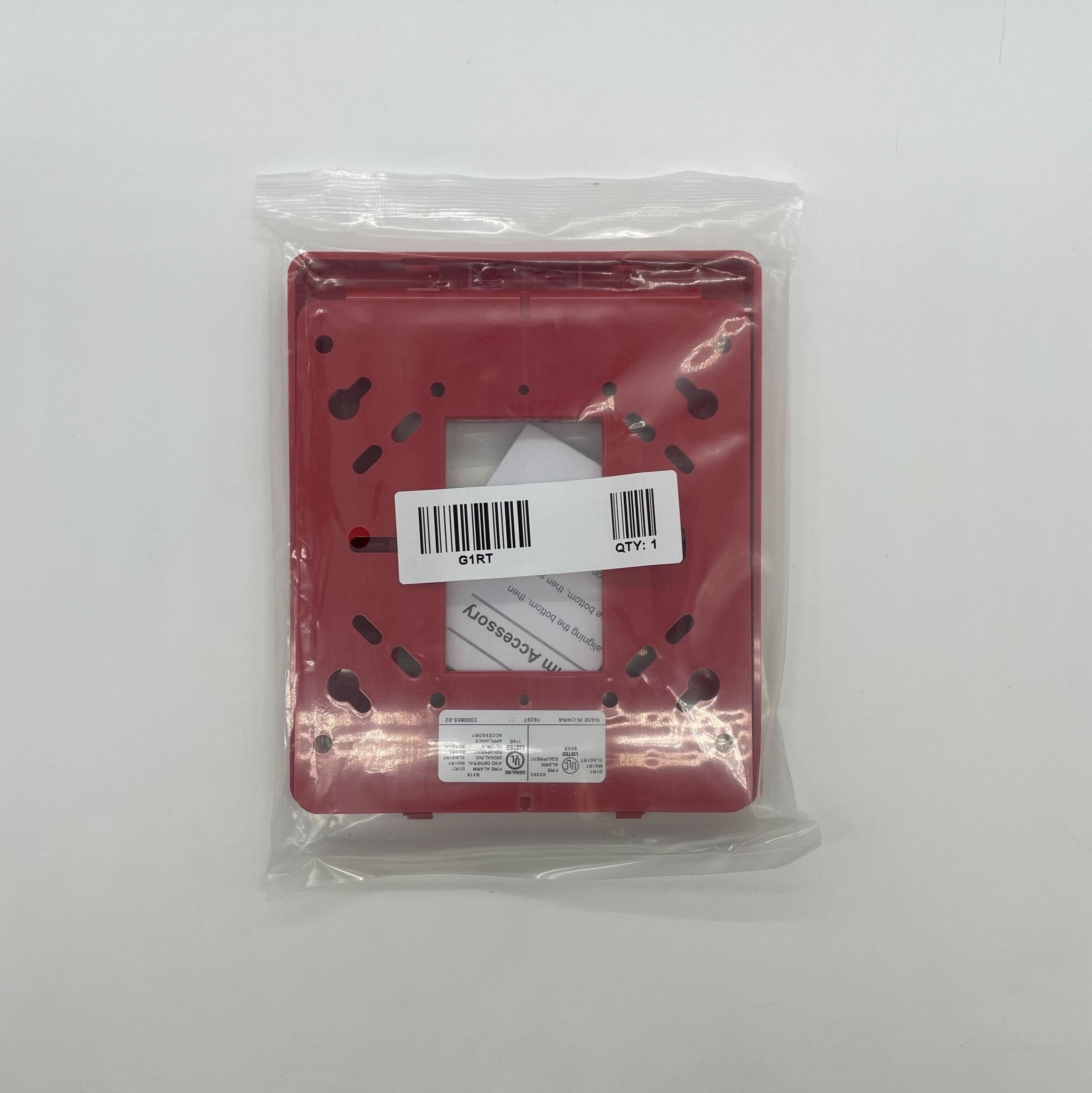

Edwards G1RT — red Genesis trim plate that lets a one-gang Genesis signal finish an oversized electrical box.
Genesis horns, strobes and horn-strobes mount directly to a standard one-gang box and need no trim at all. When the opening is larger, the plate sits behind the appliance and closes the gap for a clean result. Edwards lists the plate in two finishes in the same ordering row: G1T is the white plate under the White Finish column and G1RT is the red plate under the Red Finish column, matching red Genesis appliances.
- Finish: red; the R is the colour, not a size or a function
- Covers two-gang, 4 in. square, 4 in. octagonal and European single-gang openings
- Plate size: 5 in. wide, 5-7/8 in. high, 1/2 in. deep
- Shipping weight: 0.15 lb
- Published under Mounting Accessories in Genesis data sheet 85001-0573
This is the classic Genesis plate. The later Genesis LED G1 series transposes the suffixes: there the red trim ring is G1TR and the white one is G1TW, and that ring is 9/16 in. deep. G1RT-FIRE is the same red plate with FIRE markings.
