Edwards G1R-HD — Genesis temporal/steady mini-horn, red, no FIRE lettering, horn only.
Genesis appliances flush mount to a standard one-gang box with no trim plate and no visible mounting screws, so installers reach for them where a bulkier horn would stand out. The G1R-HD sounds the temporal three-pulse pattern by default; cutting an on-board jumper sets a steady tone, and a second selects low dB, dropping output about 5 dB. Horn-only Genesis models may be wall or ceiling mounted.

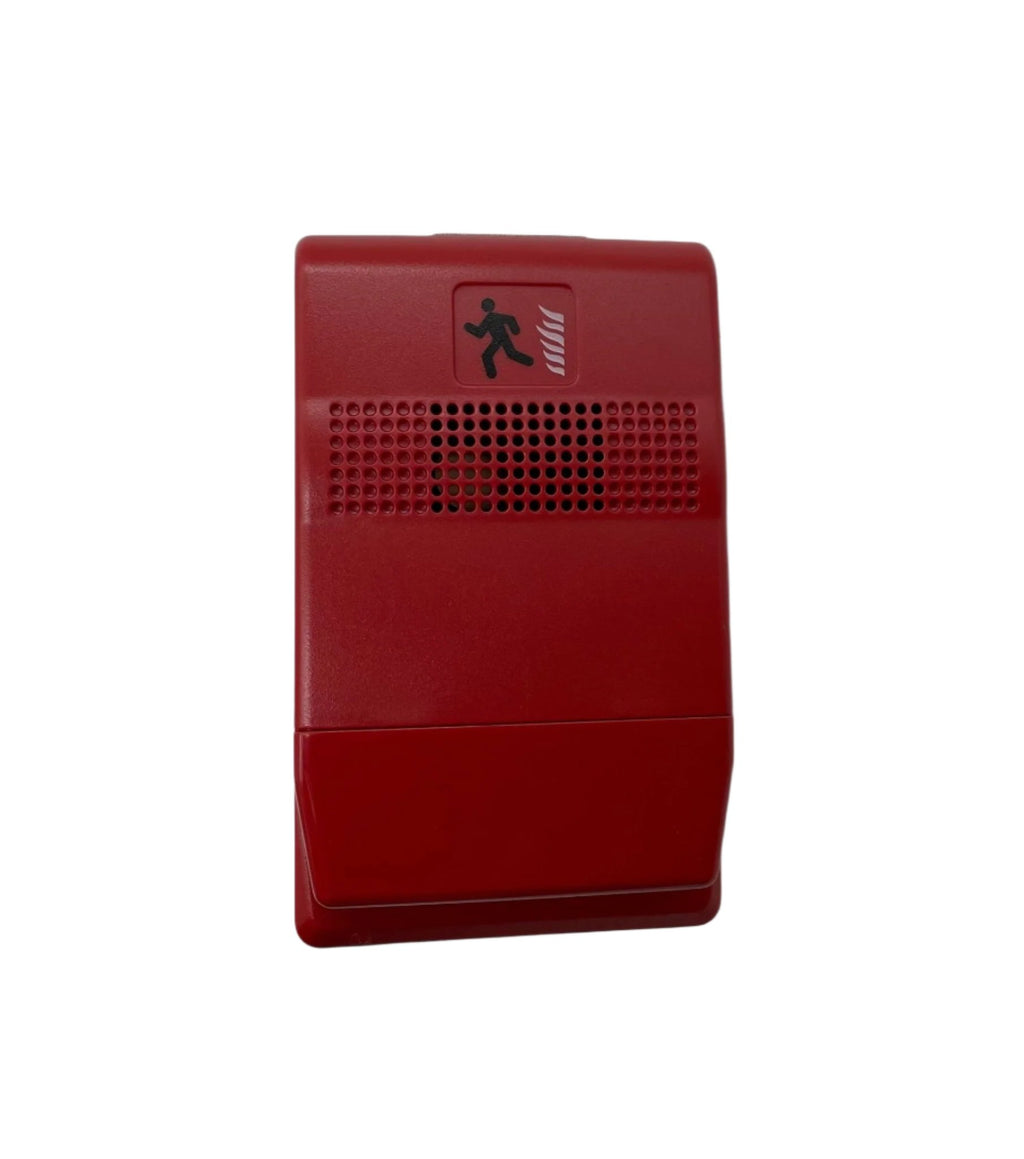

- Housing red, marking none — running man icon screen printed on housing
- 16–33 Vdc filtered or 16–33 V FWR unfiltered, non-coded
- UL 464 reverberant at 24 Vdc: 84.4 dBA temporal / 88.6 steady on high, 79.4 / 83.5 on low
- UL rated current at 24 Vdc: 36 mA high dB, 27 mA low dB
- Temporal rate synchronizes with the optional G1M Signal Master within 10 ms
- Indoor only, 32–120°F (0–49°C)
Check the suffix before ordering: G1R-HD is red with no lettering, G1RF-HD is red with FIRE, and G1-HD is white — one character apart.
