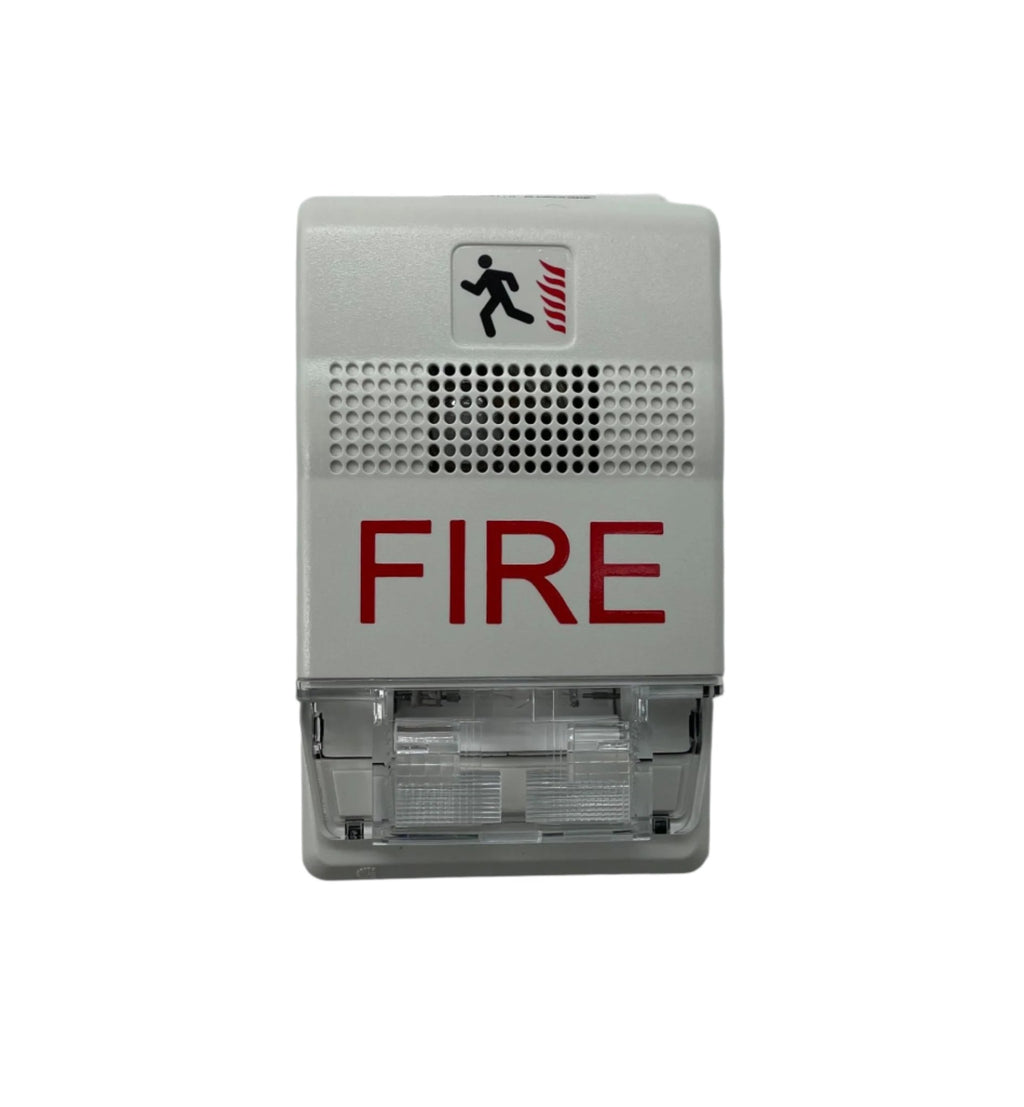

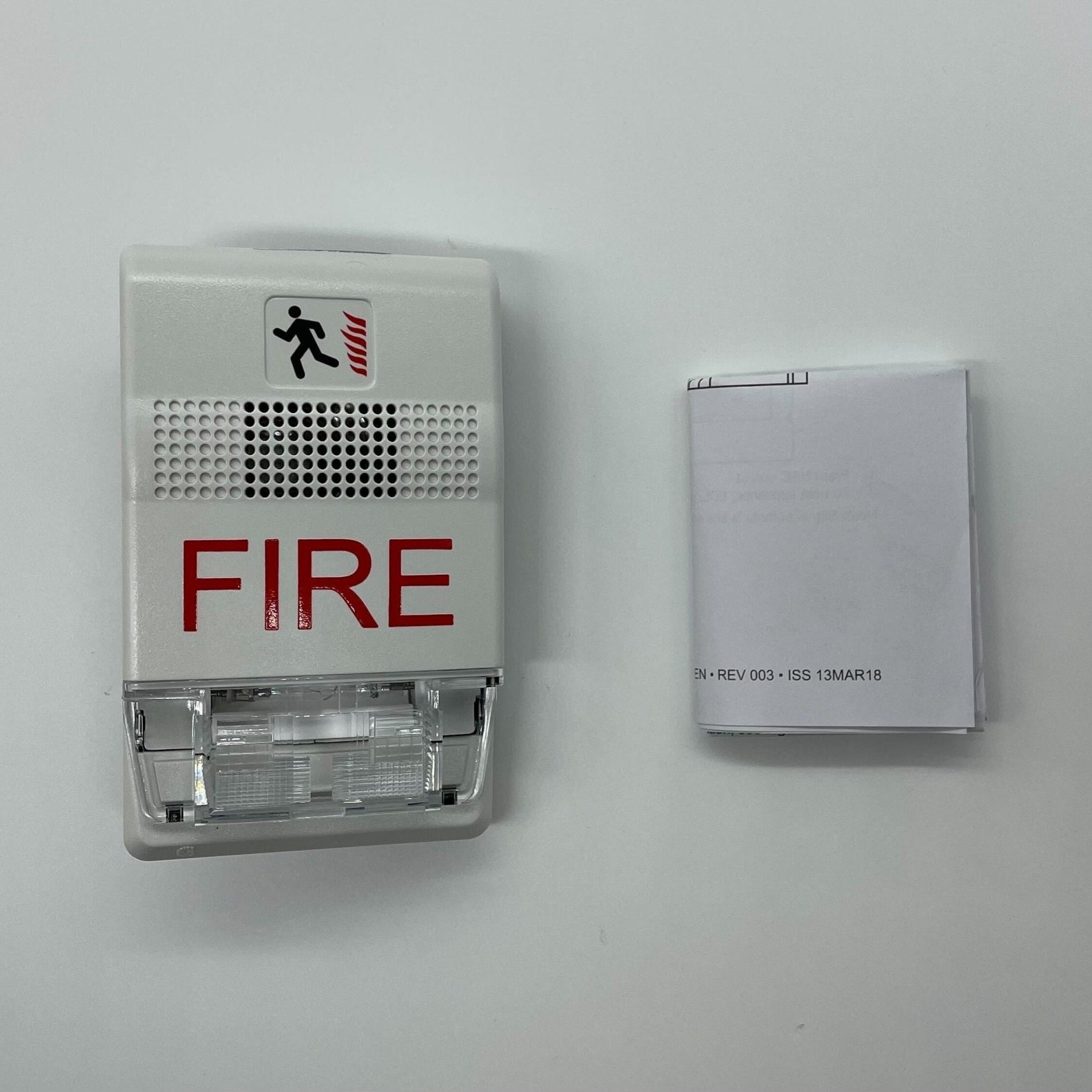

Edwards G1F-CVM is a Genesis wall-mount chime-strobe in white with FIRE marking. It combines a mellow-tone chime with a multi-candela strobe in a housing about the size of a deck of cards.

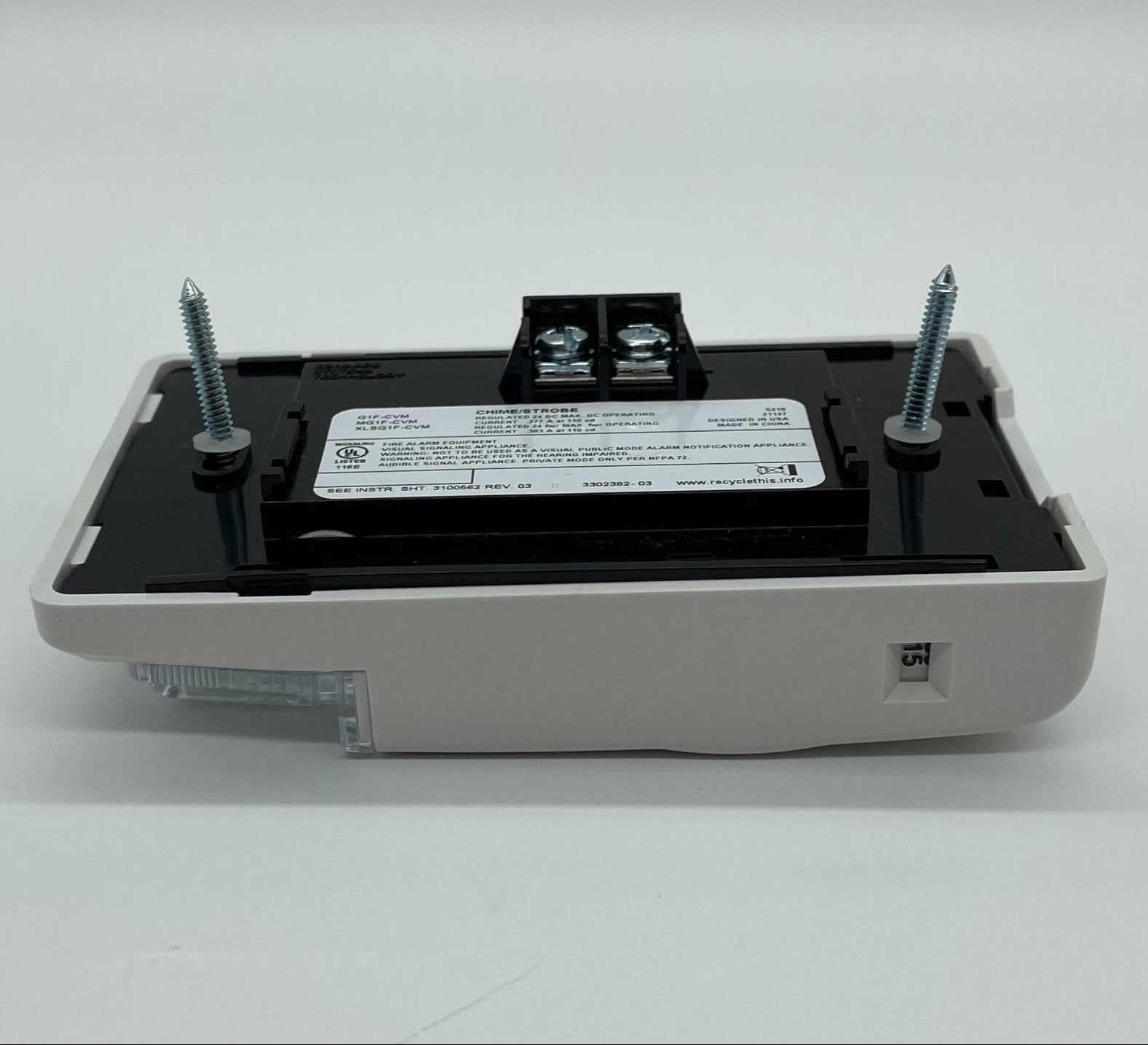

Strobe output is set to 15, 30, 75 or 110 cd with a switch on the side of the device, and the setting stays visible after installation. The chime pulses at 60 strokes per minute on steady voltage, or can be set for temporal output, and high dB is the factory setting. Chime and strobe run on a single pair of wires. Genesis chimes are for private-mode signaling; use Genesis horns and horn-strobes for public mode.
Specifications
| Strobe output |
15, 30, 75 or 110 cd, selectable |
| Operating voltage |
16–33 VDC filtered or 16–33 VFWR |
| Chime output |
High (default) or low, about 5 dB lower |
| Chime pattern |
60 strokes/min, temporal, or coded with G1M Signal Master |
| Wire size |
#18 to #12 AWG |
| Mounting |
Indoor wall; 1-gang box, 2-1/2 in. deep for flush |
| Dimensions |
4-1/2 × 2-3/4 × 13/16 in. |
| Environment |
32–120°F, 93% RH |
| Standards |
UL 1971, UL 1638, UL 464; CSFM, MEA |
Installation notes
- Mounts to a standard one-gang surface or flush box; optional trim plate covers 2-gang, 4 in. square or octagonal boxes
- Low dB and temporal modes are set by cutting jumpers on the board
- Strobes need continuous voltage
- Synchronizes with the G1M-RM Genesis Signal Master, SIGA-CC1S, SIGA-MCC1S, BPS6A or BPS10A
- Surface mounting uses the model 27193 surface box or equivalent
Related models
G1RF-CVM is the red version, and G1F-C is the chime only.
