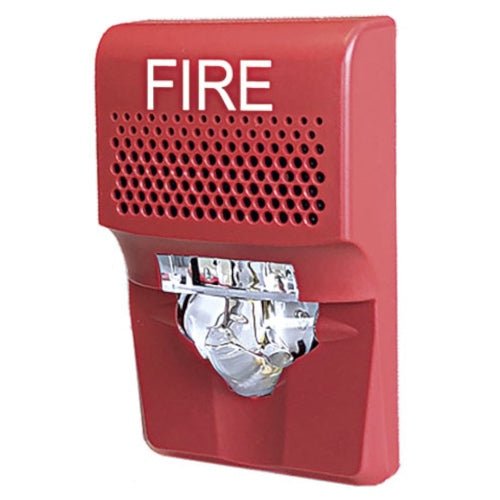

Edwards G1AVRF — Genesis LED compact wall horn-strobe, red housing with FIRE marking.
The number decodes from the Model Number Syntax block of the Edwards catalogue sheet: G1 is the Genesis LED wall-mount series, AV the horn-strobe function, R a red housing and F the FIRE marking. It fits a standard one-gang box, stands about an inch off the wall, and draws far less current than a xenon strobe.
- Field-selectable 15, 30 or 75 candela, set by a slide switch under the cover
- Selectable constant or Temporal Code 3 horn, high or low dB output
- 85 dBA high and 80 dBA low reverberant per UL 464; 92 and 86 dBA anechoic per CAN/ULC S525
- 16 to 33 VDC or VFWR; 45 mA at high dB, 35 mA at low dB, any candela setting
- 3 × 4-5/8 × 1-1/8 in. (7.62 × 11.75 × 2.86 cm); 12 to 18 AWG terminals
- Sync within 20 Ω between any two devices; UL 1971, UL 1638, UL 464
G1ARF is the horn only and G1VRF the strobe only in the same housing. G1AVRN drops the lettering and G1AVWF is white, while G1AVRF-CVR is a replacement cover, not a working appliance. G4AVRF is the larger two-gang model, adding a 110 candela setting.
Documents
FAQ
What box does the G1AVRF mount on?
A standard 1-gang electrical box, with no trim ring needed. An optional G1TR red trim ring is available for 4 in. square boxes, and the 27193-11 is the red one-gang surface mount box.
Which candela settings are available?
15, 30 or 75 cd, set with a slide switch.
Can it share a circuit with xenon strobes?
Yes. G1 LED strobes can be mixed on the same circuit and used in the same field of view as xenon strobes.
What horn options are there?
Selectable high or low dB output and temporal or steady horn output.
