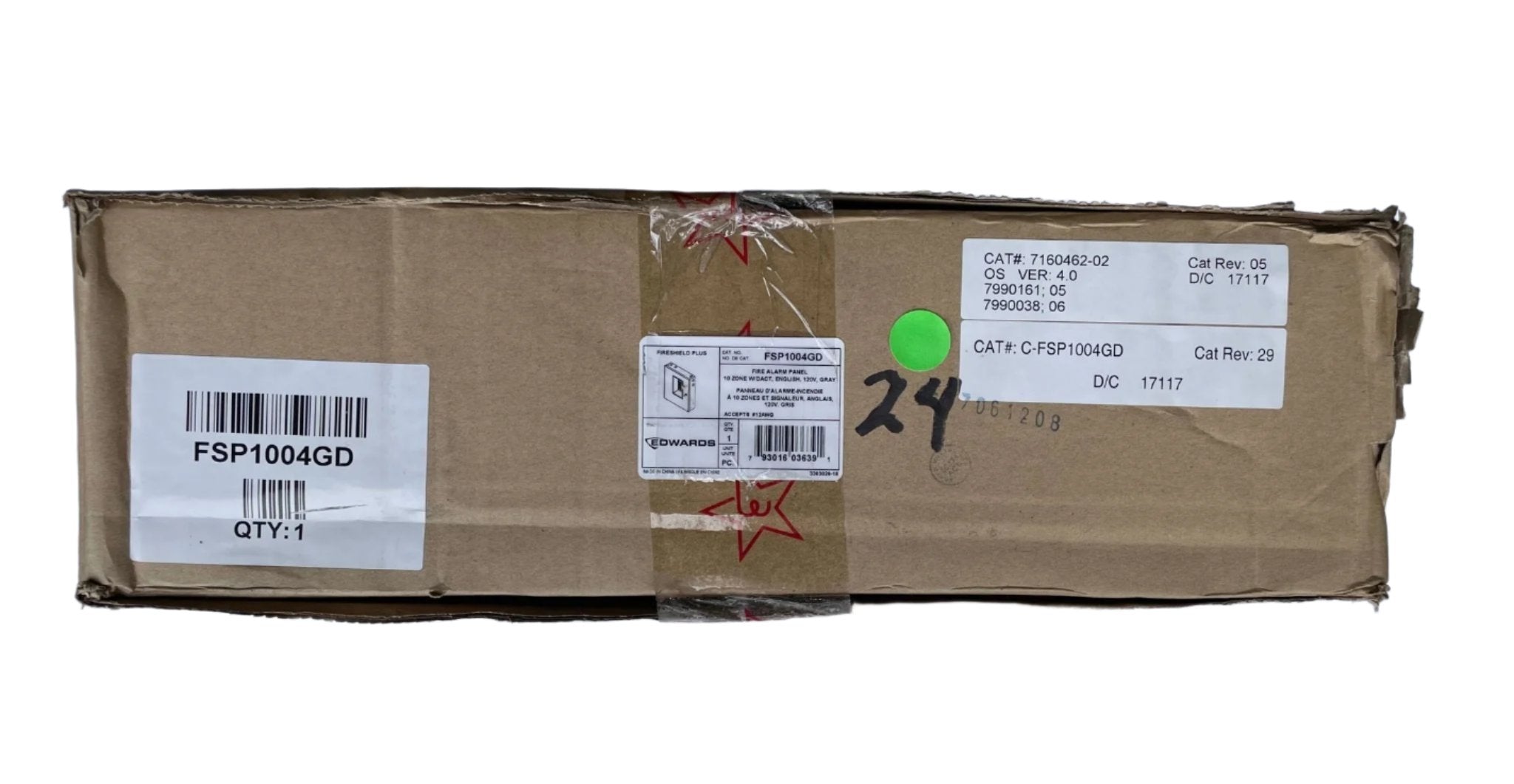

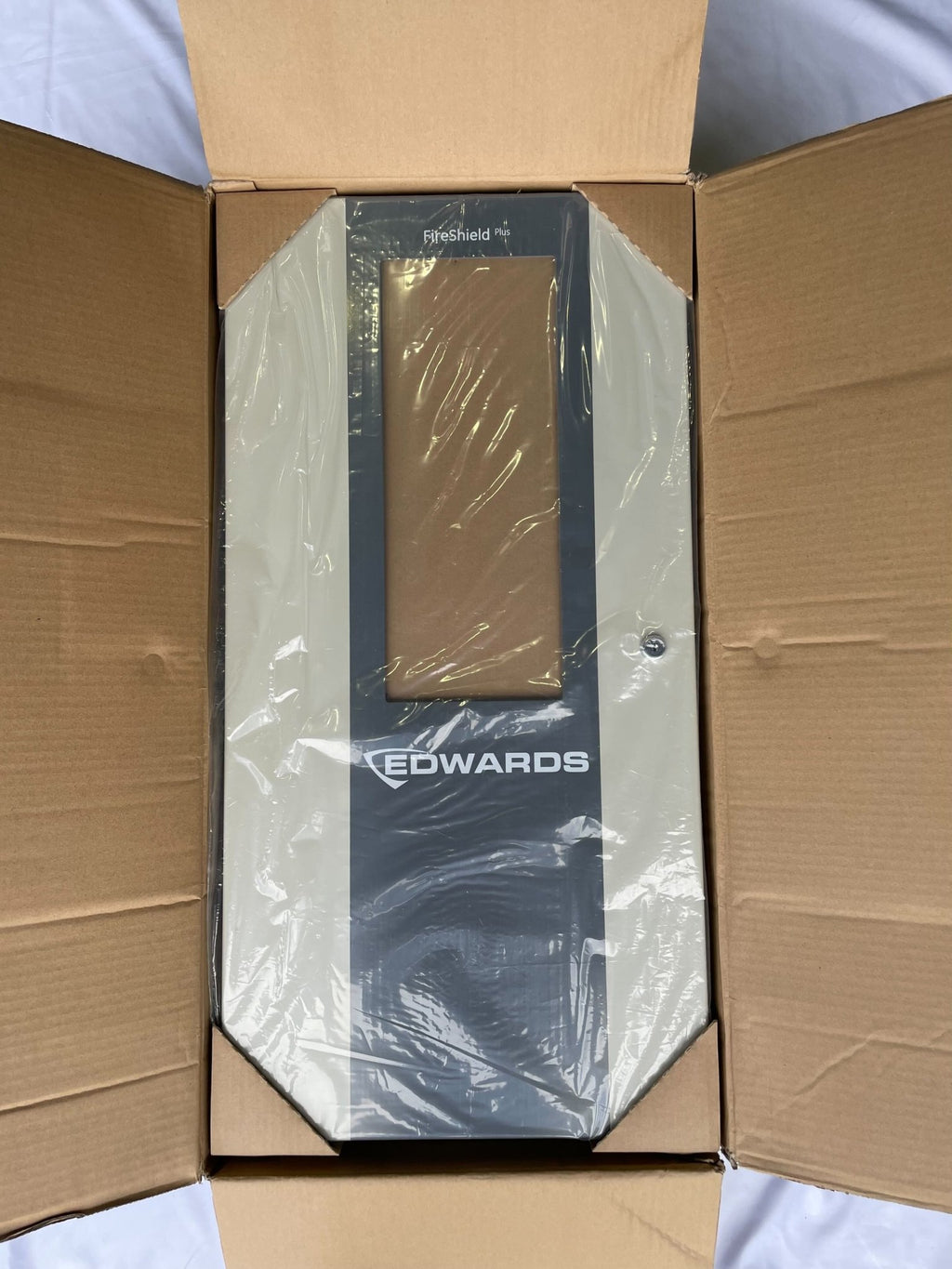

Edwards FSP1004GD — FireShield Plus ten-zone conventional fire alarm control panel, 120 V, gray cabinet, supplied with the F-series dialer and modem.
FireShield Plus covers small and medium buildings, with front-panel programming and one-person walk test. Each initiating circuit is selectable for alarm, alarm with smoke verification, waterflow with or without retard, combination waterflow and supervisory, latching supervisory or monitor. The trailing D denotes the factory-fitted F-DACT communicator, which reports to a central station over loop-start telephone lines and adds an LCD, an event history log and a modem.
- Ten Class B initiating device circuits; pairs convert to give up to five Class A
- Four Class B notification circuits, or two Class A
- 2.0 A per NAC, 3.5 A total, 7.0 A with the F-XTR120 expander transformer
- 4.25 A supply expandable to 7.5 A; 0.5 A 24 VDC auxiliary
- Two 18 Ah sealed lead-acid batteries fit the cabinet
Check the suffix: FSP1004G is the same ten-zone panel without the dialer, FSP1004RD is the red-cabinet version with it, and FSP1004G-2 is the 230 V model.
