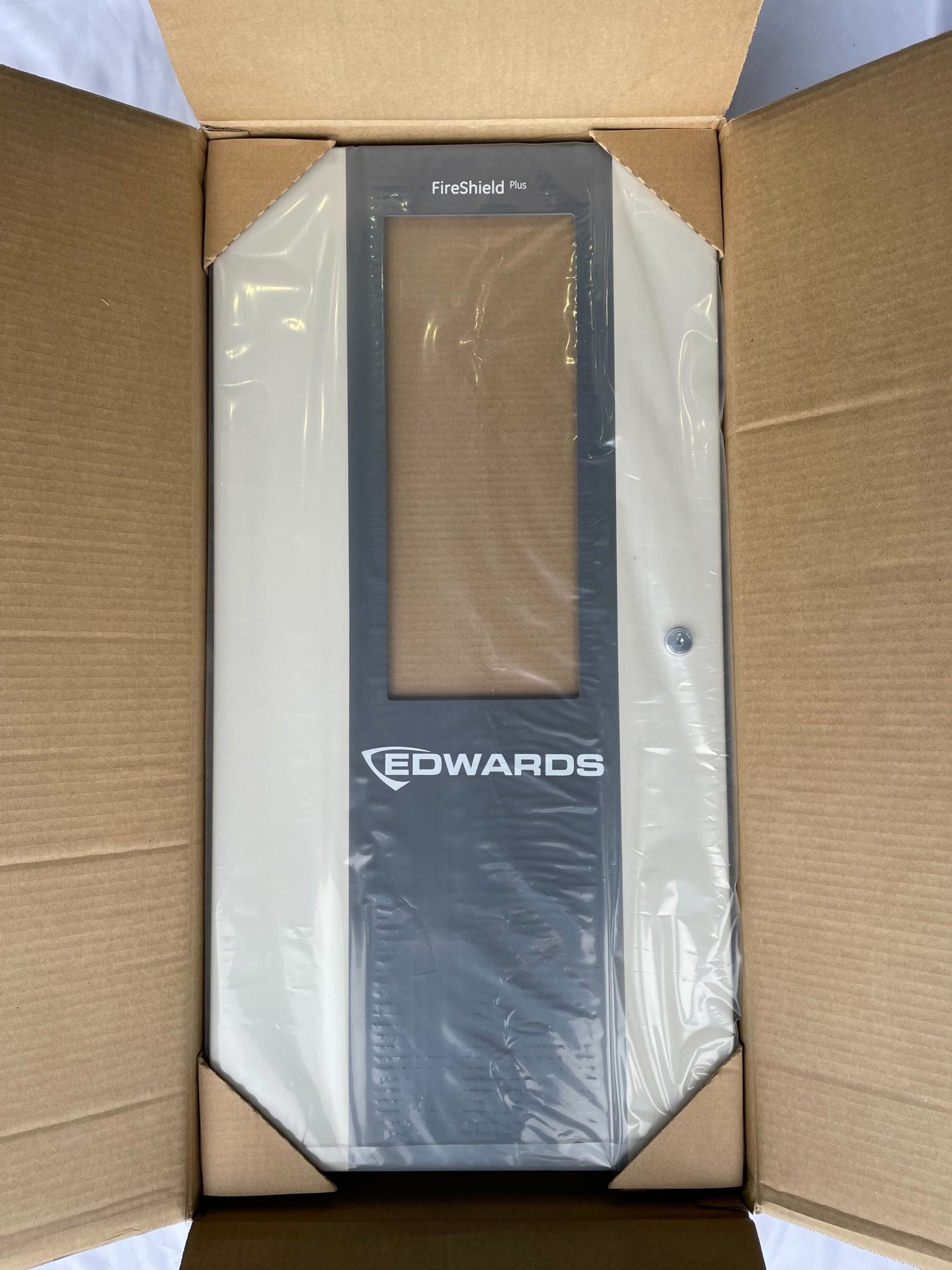

Edwards FSP1004G — FireShield Plus conventional fire alarm control panel with ten initiating circuits, in the gray cabinet.
Despite the 1004 in the catalog number this is a ten zone panel: the digits read as ten IDCs and four NACs. It is the larger FireShield Plus panel and the only one whose supply can be expanded. Circuits are paired rather than fixed, so two Class B IDCs can be combined into one Class A IDC.
- 10 Class B IDCs and 4 Class B NACs as shipped; up to 5 Class A IDCs or 2 Class A NACs
- 4.25 A power supply, expandable to 7.5 A with the F-XTR120 transformer
- NACs rated 2.0 A each, 3.5 A total, or 7.0 A with the expander
- Auxiliary output 24 Vdc regulated, 0.5 A maximum
- Charges up to two 24 Ah sealed lead acid batteries, 18 Ah fitting in the cabinet
- NAC modes: Genesis, continuous, temporal, coded and city tie
- Terminals 18 to 12 AWG; UL 864 under S3000, ULC-S527, CSFM and FDNY
The G is cabinet color only. FSP1004R is the same panel in red, FSP1004GD and FSP1004RD ship with the DACT dialer fitted, and FSP1004-2 is the 230 Vac build. FSP502 is the five zone, two NAC panel.
