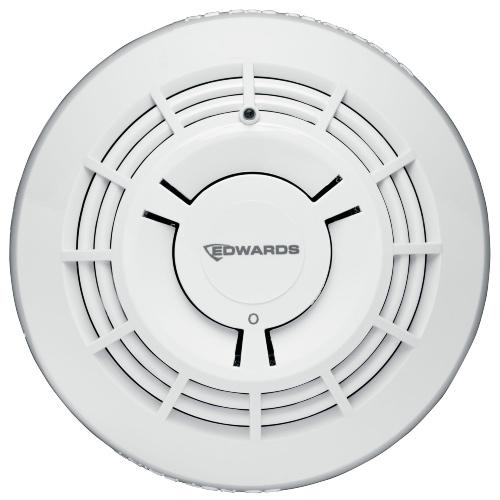

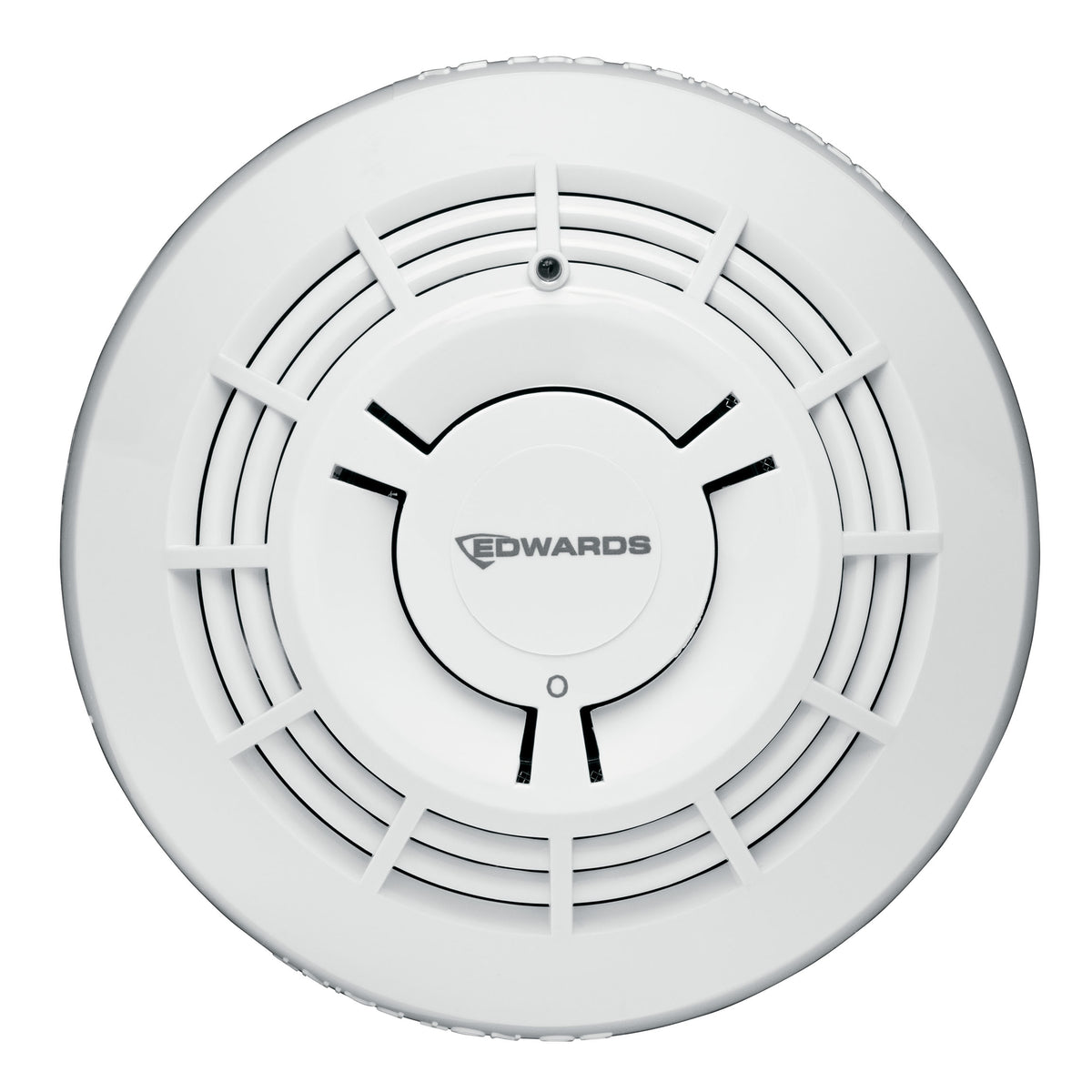

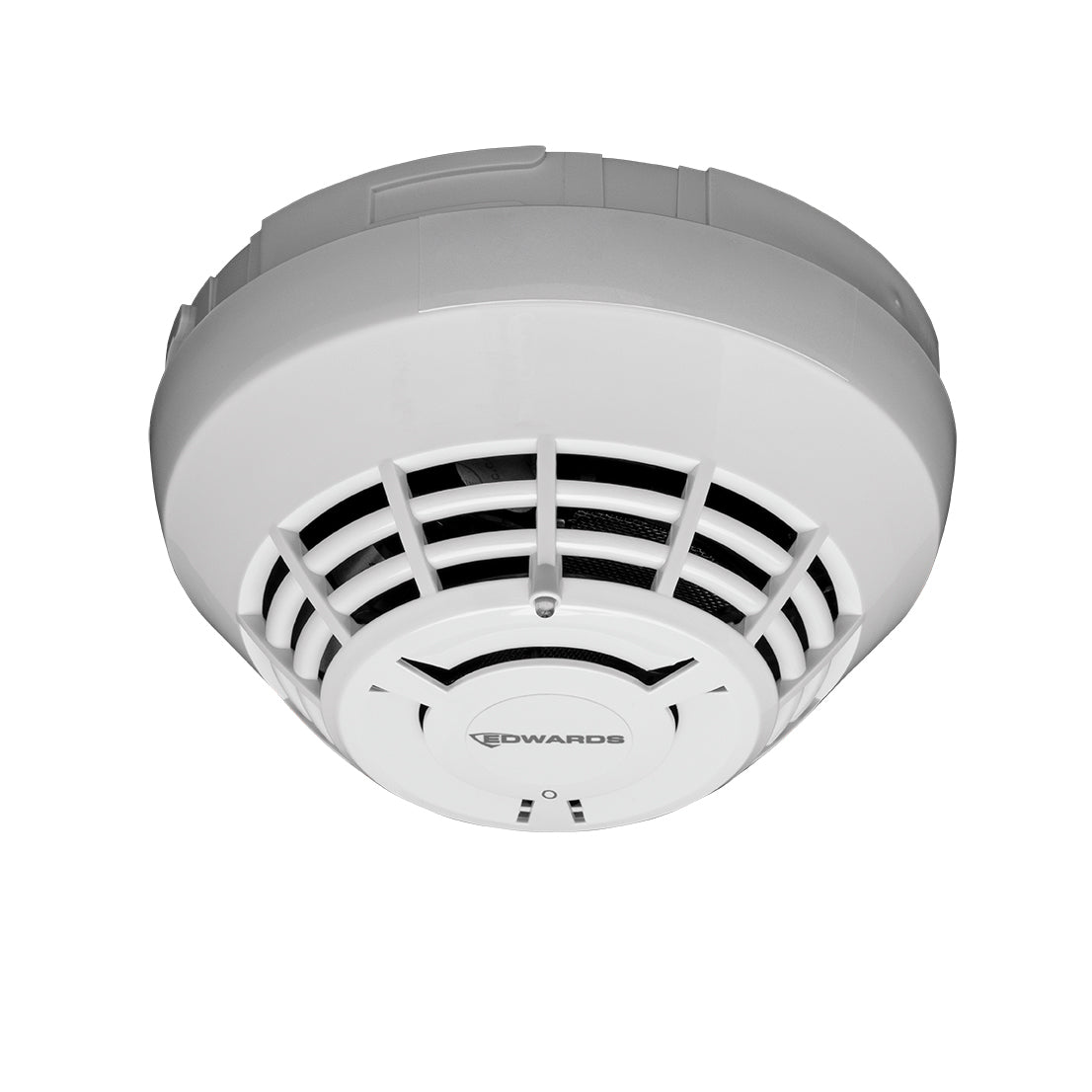

Edwards SIGA-OSD-FCN is the China-built version of the Signature Optica Series SIGA-OSD intelligent smoke detector. It uses dual optical wavelengths and multiple detection angles to tell real smoke from nuisance particles such as cooking particulates. The on-board microprocessor makes the alarm decision and reports to a Signature loop controller.
Specifications
| Sensing |
Multi-criteria optical (photoelectric) |
| Sensitivity range |
0.5 to 4.36 %/ft (1.6 to 13.6 %/m) obscuration |
| Operating voltage |
15.20 to 19.95 VDC |
| Normal current |
32 µA |
| Alarm current |
45 µA |
| Air velocity |
0 to 4,000 ft/min |
| Operating environment |
32 °F to 120 °F (0 °C to 49 °C), 0 to 93% RH non-condensing |
| Compatibility |
Control panels with a Signature loop controller only |
| Certification |
UL 268 7th Edition |
| Detector testers |
Testifire 1000, Testifire 2000 |
Features
- Integrated nuisance rejection reduces unwanted alarms from general cooking particulates
- Uses existing wiring; up to 250 detectors per loop on supported panel firmware
- Five sensitivity settings, twenty pre-alarm settings and automatic day/night sensitivity adjustment
- Two levels of environmental compensation and two levels of dirty detector warning
- Automatic device mapping, electronic addressing and non-volatile memory
- Bicolor green/red status LED
Related models
The SIGA-OSD is the same detector from the standard source. The head mounts on Signature Series bases: SIGA-SB / SIGA-SB4 standard, SIGA-RB / SIGA-RB4 relay, SIGA-IB / SIGA-IB4 isolator, or SIGA-AB4G audible bases. The SIGA-LED remote LED connects to the SIGA-SB or SIGA-SB4 only.
Documents
FAQ
Which panels is the SIGA-OSD-FCN compatible with?
Only control panels that use a Signature loop controller.
Is a base included?
The detector mounts on a separate Signature Series base: standard (SIGA-SB, SIGA-SB4), relay (SIGA-RB, SIGA-RB4), isolator (SIGA-IB, SIGA-IB4) or audible (SIGA-AB4G).
Does it reduce cooking nuisance alarms?
Yes. Integrated nuisance rejection reduces unwanted alarms from general cooking particulates, and it is certified to UL 268 7th Edition.
What is the difference from the SIGA-OSD?
Per the product description, the -FCN suffix identifies the SIGA-OSD version manufactured in China.
