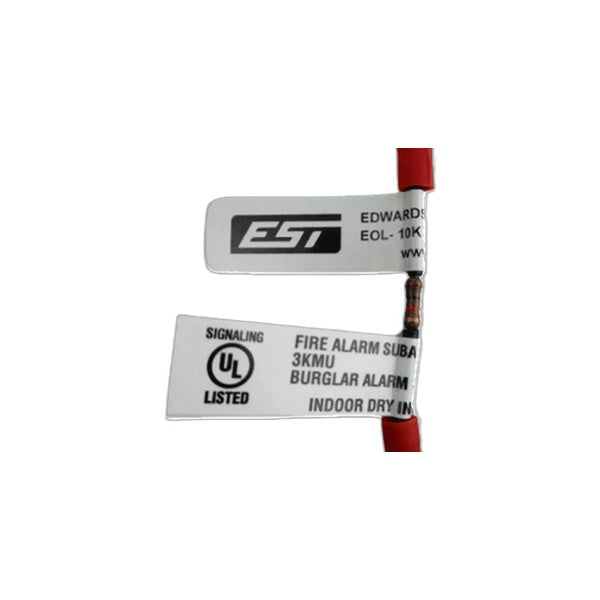

Edwards EOL-10 — end-of-line resistor from the Edwards EOL series, fitted at the far end of a supervised fire alarm circuit.
An end-of-line resistor lets a panel tell an intact wire run from a broken one: the panel pushes a small supervisory current through it and watches, so an open conductor reads as a trouble instead of a silent dead circuit. The resistance is a design parameter, not a detail — the wrong value shifts that current, which is how a broken circuit ends up reading as normal. Edwards issues a catalogue number per value, and the number carries the value.
- Edwards publishes EOL-4.7 as EOL Resistor 4.7K, UL Listed; EOL-15 as 15k, 1/2 watt, UL Listed; and EOL-47 as 47K, 1/2 watt, UL Listed
- Edwards names the value per circuit — 47 kΩ (EOL-47) on intelligent addressable input modules, 15 kΩ (EOL-15) on EST3X notification appliance circuits, EOL-P1 for ULC
- No resistance or wattage figure is published here for EOL-10, because no Edwards catalogue or data sheet we hold lists this part number
Confirm the value the panel, module or circuit requires before ordering. EOL-4.7, EOL-15, EOL-47, EOL-P1 and EOL3.6-1.1 do not substitute for one another.
