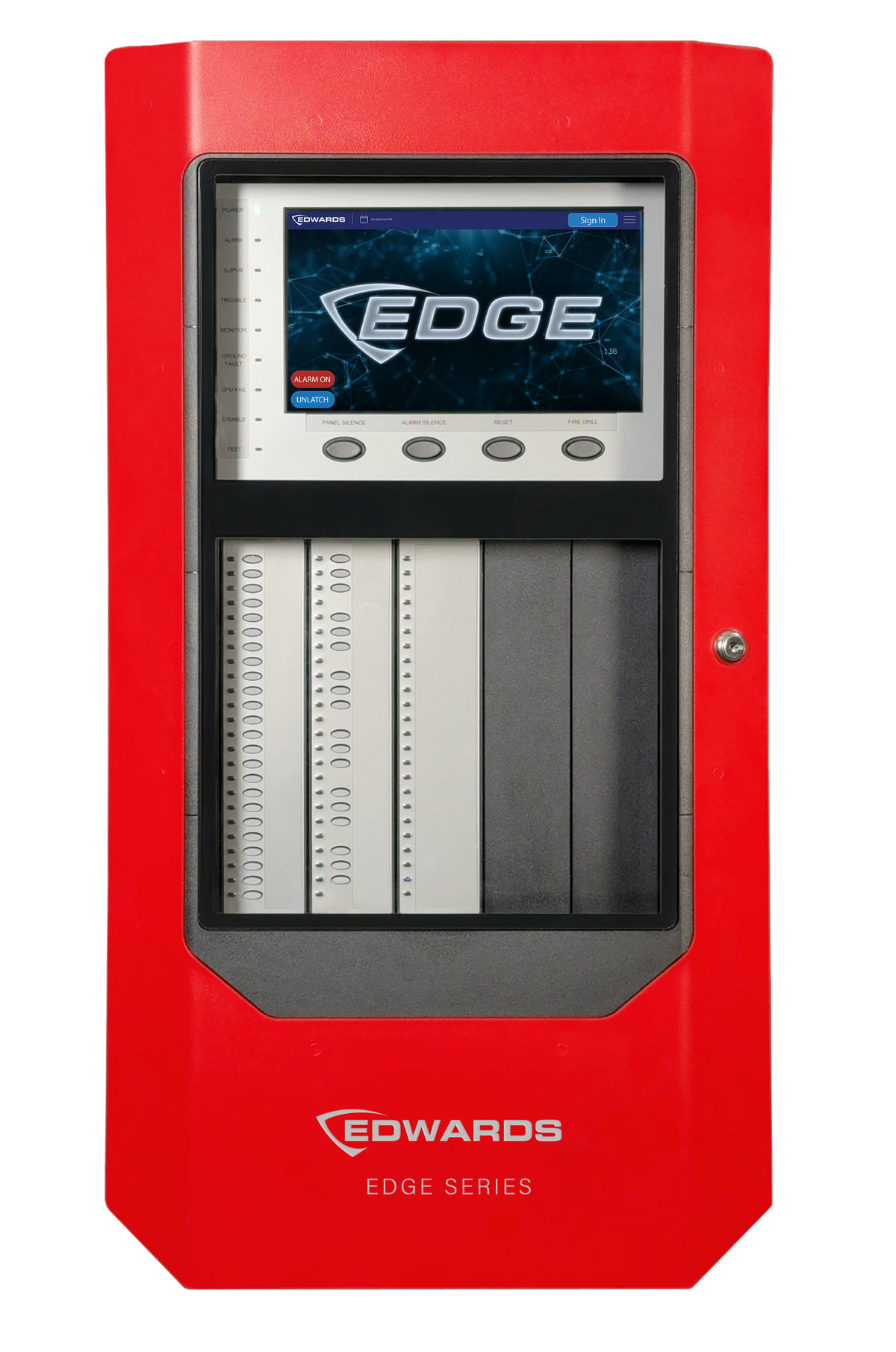

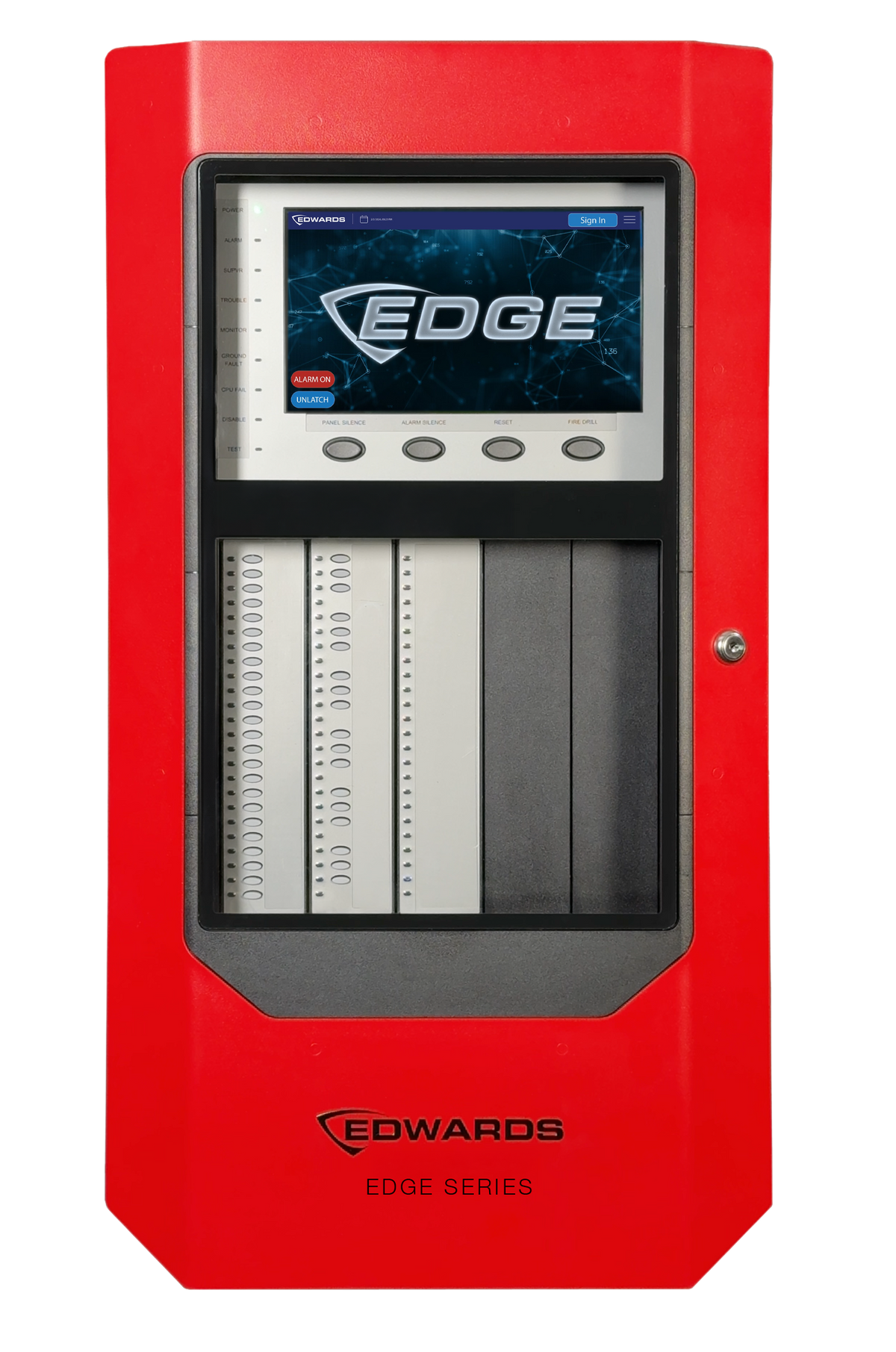

Edwards EDGE-ML-R — EDGE Series intelligent fire alarm control panel with one built-in 250 point Signature loop, 110/220 V operation and a red outer door.
It is operated from a 10 " capacitive touchscreen on a 10 A supply with Voltage Boost. The built-in loop carries 125 detector and 125 module addresses, and EDGE-SLC-250 or EDGE-SLC-500 cards take it to four loops and 1,000 addresses. The RZI16-2 module brings conventional circuits onto the same panel.
- One Class A or Class B Signature loop, 125 detector plus 125 module addresses
- Four NACs, Class B or Class A with EDGE-CLA1, 24 VDC, 8.0 A total, 2.5 A per circuit, 15 kΩ end of line
- Three Form C relays, alarm, supervisory and trouble, at 30 VDC 1.0 A
- Mains 120/240 VAC 50/60 Hz, 3.0 A max at 120 V, 1.5 A at 240 V
- Battery charging 1.5 A or 3.0 A selectable, 65 Ah max sealed lead acid
- Built-in Ethernet and USB-C, peer to peer networking across 24 panels
EDGE-ML-G is the same panel with a grey door; EDGE-ML-RRK and EDGE-ML-GRK are the retrofit kits, adding a collar and omitting the backbox so an iO500 or iO1000 can be replaced in place. Note the cabinet holds only two 18 Ah batteries, so the 65 Ah charger limit needs a BC-1.
