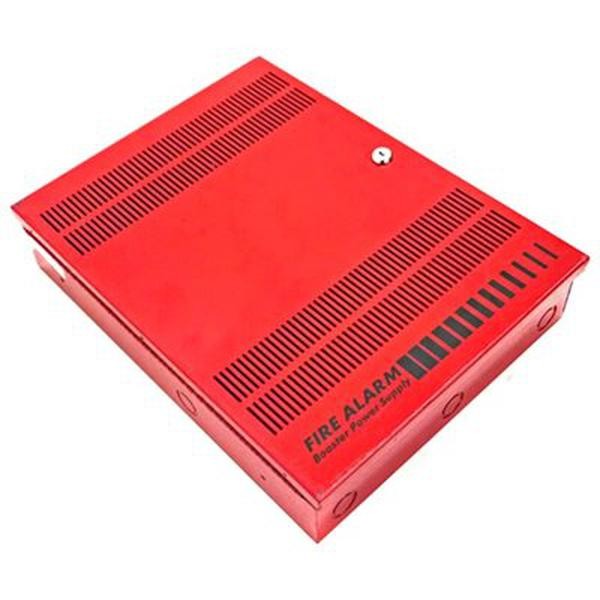

Edwards BPS10 is a 10 amp booster power supply: a 24 VDC filtered, regulated and supervised unit, 110 V input, that provides additional notification appliance circuits or auxiliary power for Edwards fire alarm systems. It has its own supervised battery charger and is supervised by the main system.
Edwards documents the 10 A booster on catalog sheet 85005-0125, where the current 10 A model is shown as BPS10A. Per that data sheet, the 10 A booster provides four Class B NACs (convertible to two Class A) at 3.0 A maximum per circuit and 10 A total, activated from an existing NAC or Signature control module, with continuous, 3-3-3 temporal or follow-panel signal rates.
Specifications
| Output |
24 VDC filtered and regulated, 10 A total |
| NACs |
Four Class B or two Class A, 3.0 A max per circuit (per 85005-0125) |
| Input |
110 V |
| Signal rates |
Continuous, 3-3-3 temporal, or follow panel NAC |
| Supervision |
Supervised by the main system; on-board diagnostic LEDs |
Related models
- BPS10A: current 10 A remote booster power supply
- BPS6A: 6.5 A remote booster power supply
Documents
FAQ
What does the BPS10 do?
It is a 10 A, 24 VDC filtered, regulated and supervised booster power supply that adds notification appliance circuits or auxiliary power where the main panel needs more capacity.
How is it activated?
Edwards boosters are activated from an existing NAC or a Signature control module through their sense inputs, and can follow the panel's coded signal rate.
Are batteries included?
No. The booster supervises and charges its own battery set, ordered separately.
