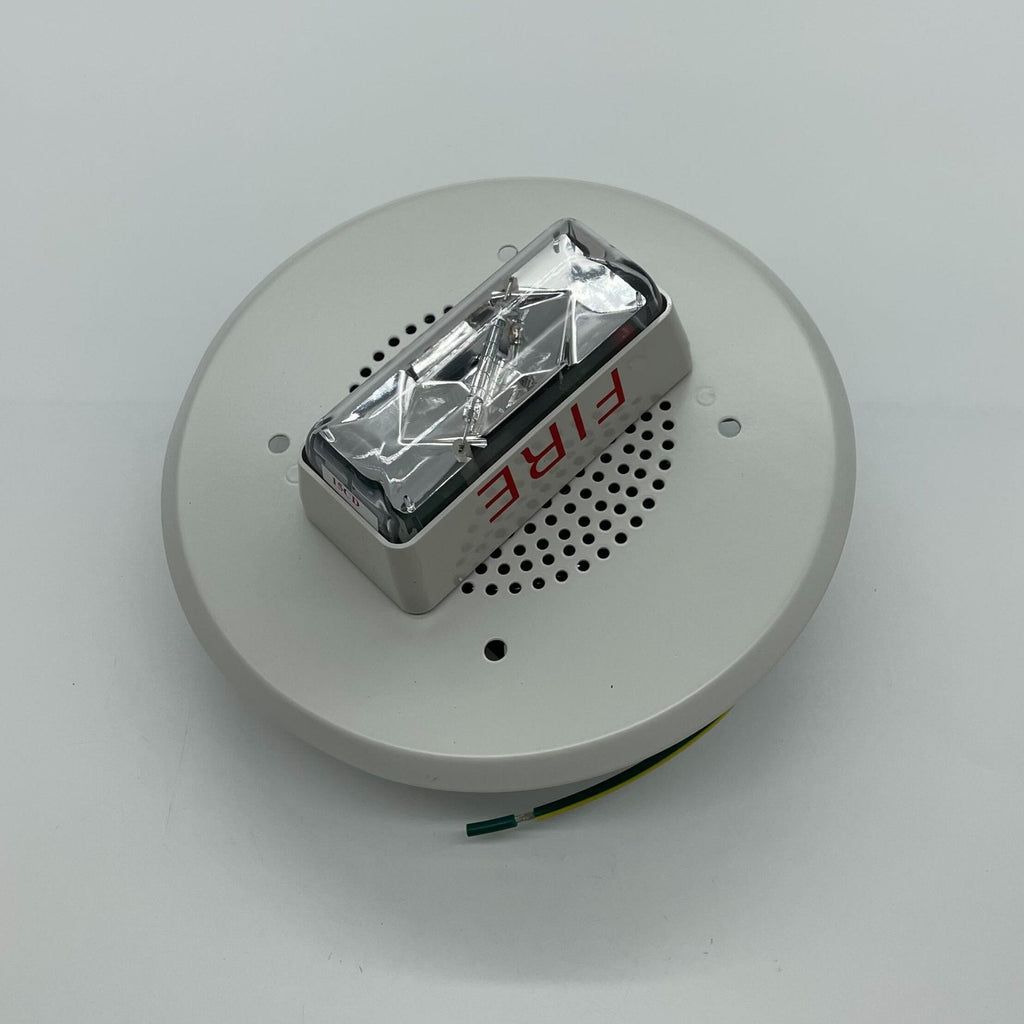

Edwards 965-5A-4RW is a ceiling speaker-strobe from the Edwards 965 Series, built around a 4-inch cone for 70 V audio. It carries a 15 cd strobe and a 7.35 in. white steel baffle.

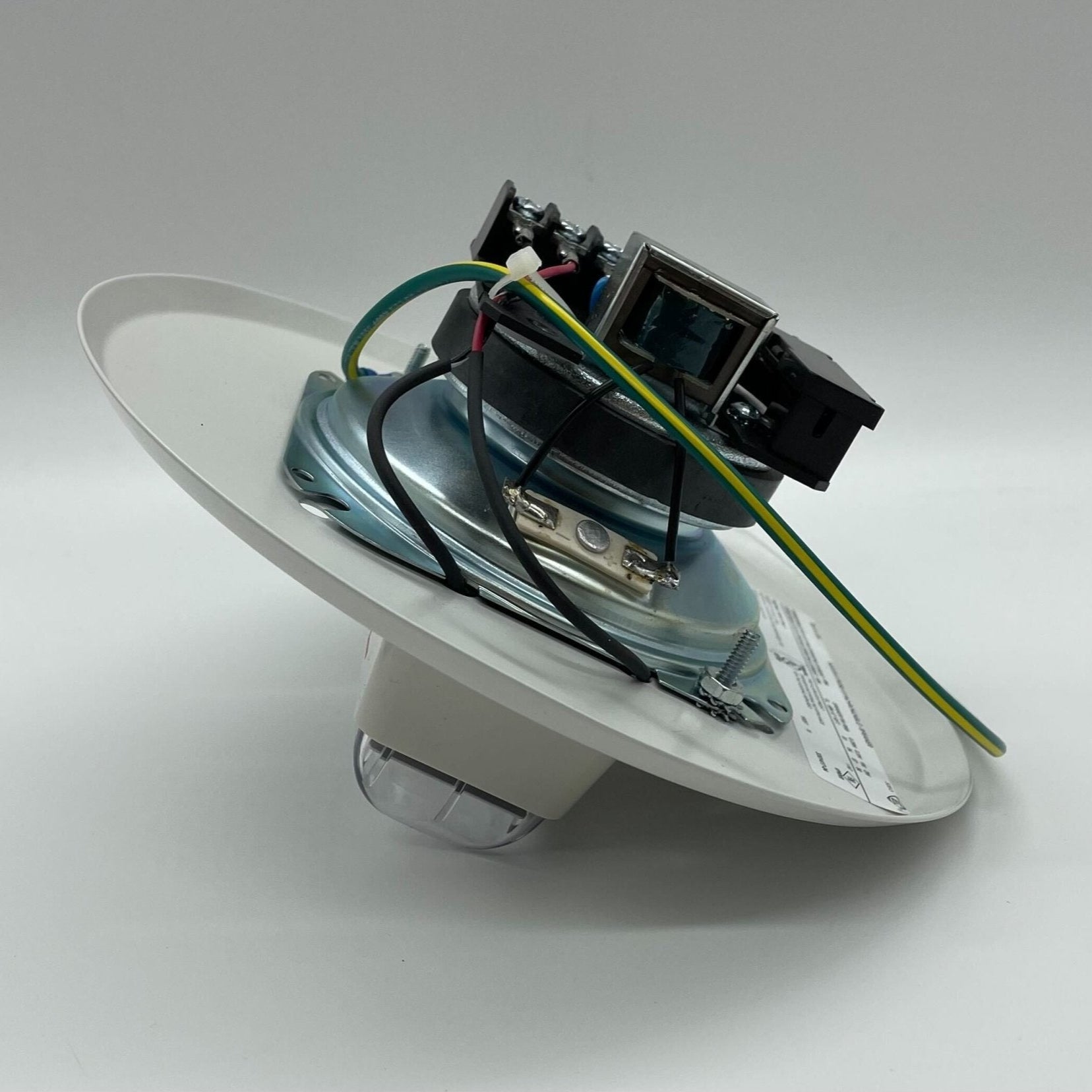

The sealed mylar speaker produces up to 90 dBA at 2 W, with taps from 1/4 to 2 W. An integral DC blocking capacitor lets the audio circuit be supervised. Under UL 1971 the strobe is rated for wall use only, and the unit ships with a ceiling FIRE marking (LKC-1).
Features
- 70 V speaker with 1/4 to 2 W taps (81 to 90 dBA)
- 15 cd strobe (wall only under UL 1971)
- 7.35 in. white steel baffle
- Integral DC blocking capacitor
- Ships with ceiling FIRE marking (LKC-1)
- Mounts to a 960A-4RF round flush box or a 4-inch square box with extension ring
Specifications
| Speaker voltage |
70 VRMS |
| Speaker |
4 in. mylar cone, sealed back, 8 W, 8 ohm; 400 to 4,000 Hz |
| Strobe output |
15 cd (UL 1971 wall only; UL 1638 / ULC S526 15 cd) |
| Strobe voltage |
16 to 33 VDC continuous |
| Baffle |
7.35 in. steel, white epoxy powder coat |
| Mounting |
960A-4RF round flush box, or 4-in. square box 2-1/8 in. deep with 1-1/2 in. extension ring |
| Environment |
Indoor, 32 to 120 F, 85% RH at 30 C |
| Approvals |
UL 1971, UL 1638, UL 1480, ULC S526, ULC S541, CE, FM, CSFM, MEA |
Specifications taken from the manufacturer data sheet E85001-0283 4-inch Ceiling Speakers and Speaker-Strobes.
