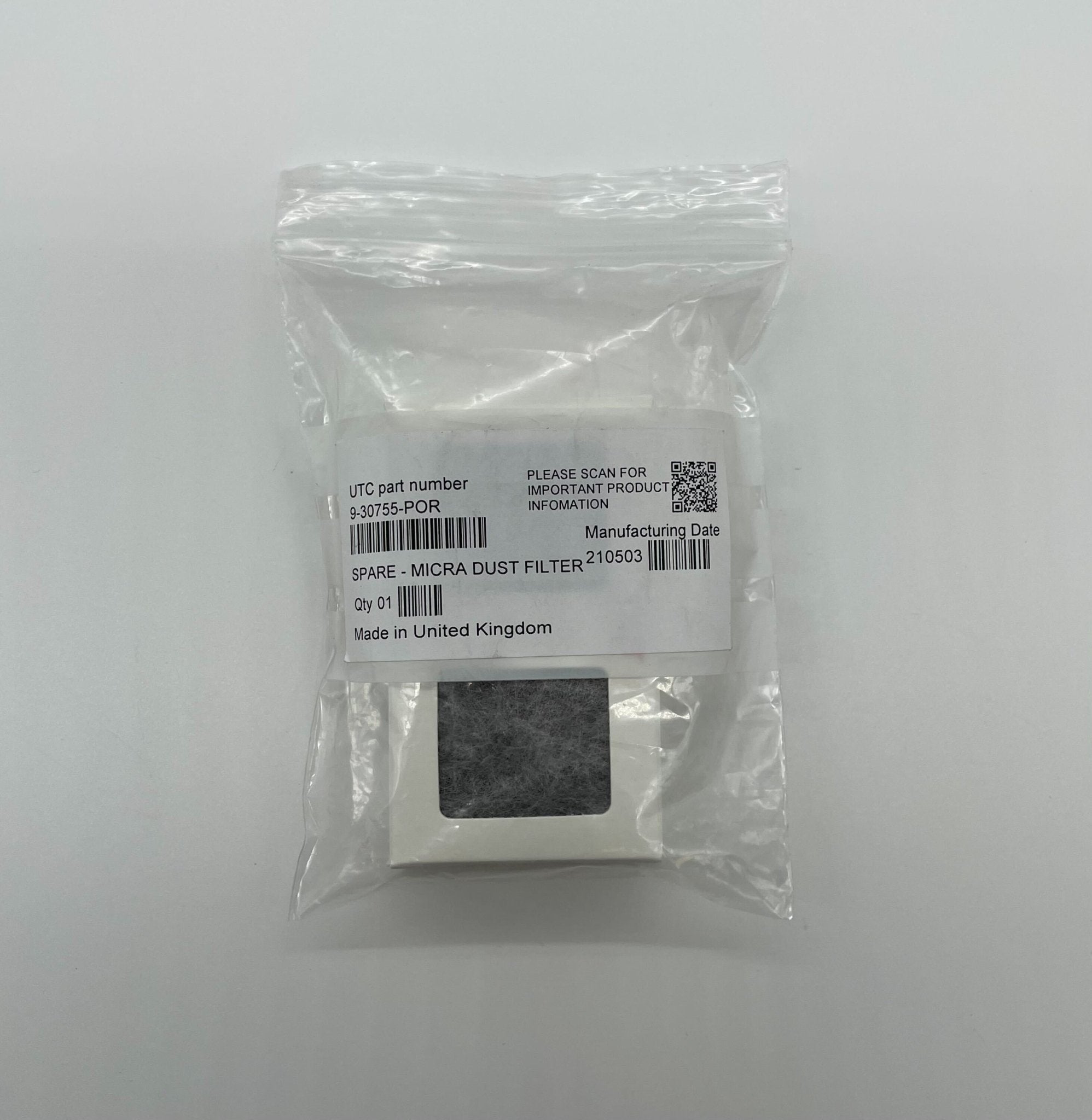

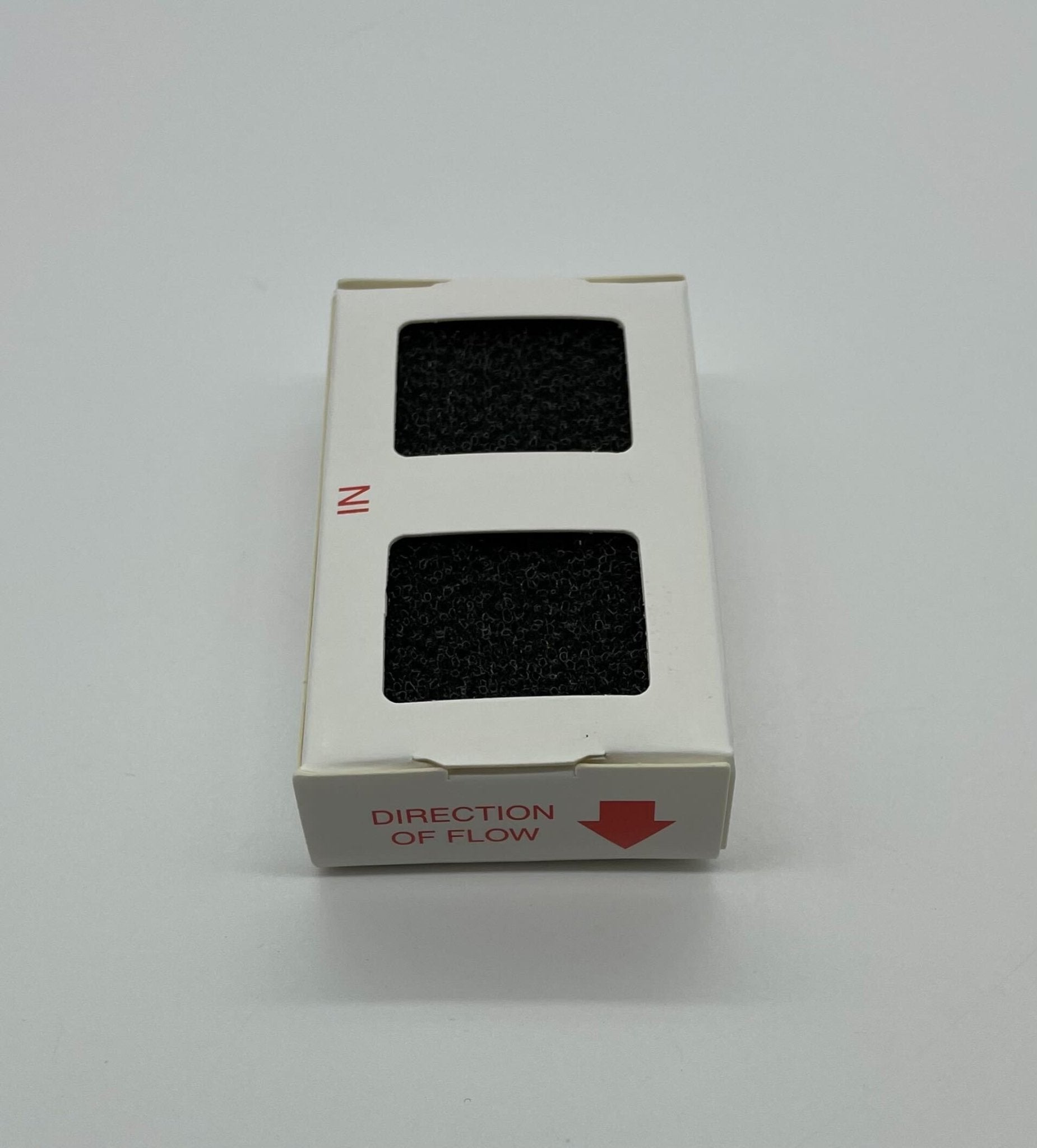

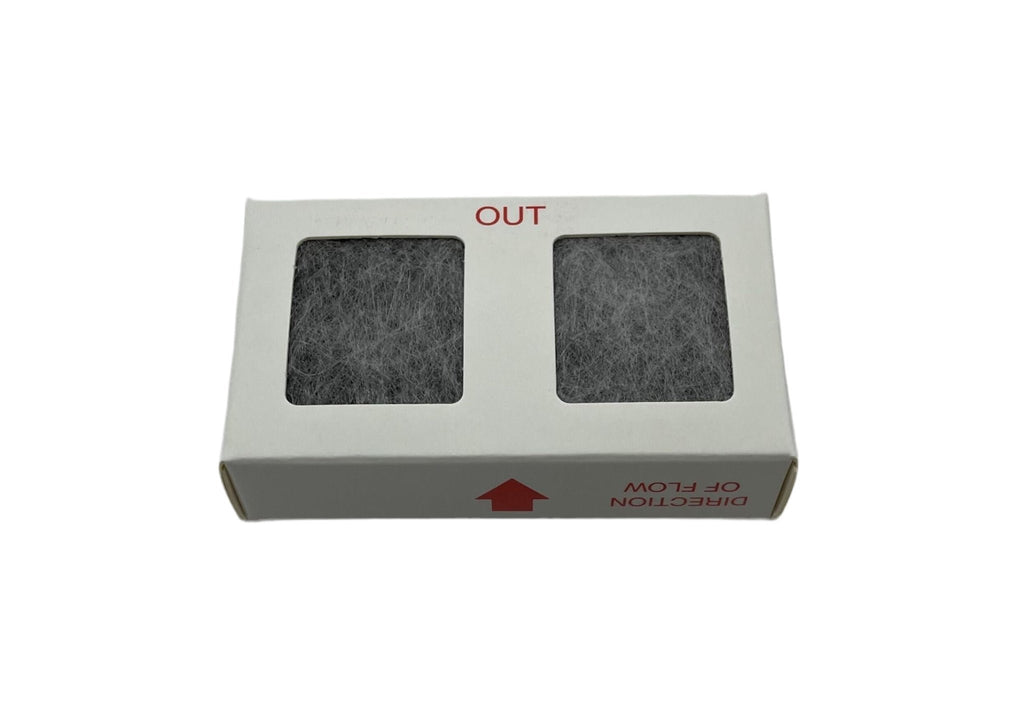

Edwards 9-30755-POR is a replacement dust filter for Stratos aspirating smoke detectors. The 9-30755 filter fits the Stratos Nano and the Stratos Micra 10, Micra 25 and Micra 100.
Specifications
| Fits |
Stratos Nano, Micra 10, Micra 25, Micra 100 |
| Also compatible with |
Senator and LaserSense Nano, 10, 25 and 100 |
| Dimensions (W x H x D) |
20 x 44 x 77 mm |
| Mounting type |
Insert |
| Environment |
Indoor |
| Certification (9-30755) |
EN54-20, FM, UL |
Installation notes
- Replace the filter as part of routine maintenance to keep dust out of the detector sampling path.
- Follow the detector manual for the filter replacement procedure.
- The filter is an insert-type cartridge for indoor use and is carried in the Stratos-Micra 100 ordering information as part 30755.
Installers keep spare filters on hand for scheduled service of Stratos Nano and Micra detectors.
