Edwards 757-8A-TW is an Integrity 757 Series temporal horn-strobe with a 110 cd strobe in a white housing. It provides the higher light output used in sleeping areas and large rooms.
Specifications
| Strobe output |
UL 1971: 110 cd wall, 60 cd ceiling; ULC S526: 120 cd |
| Operating voltage |
16 to 33 Vdc or Vfwr, constant |
| Horn output, anechoic average |
98 dBA high, 94 dBA low |
| Horn current |
40 mA high, 20 mA low at 24 Vdc |
| Horn tone |
Temporal or continuous |
| Flash rate |
One per second, synchronized |
| Housing |
White textured plastic |
| Weight |
2.0 lb (0.9 kg) |
Installation notes
- Needs a sync source such as the G1M-RM, SIGA-CC1S, SIGA-MCC1S, BPS6A or BPS10A to meet UL 1971 synchronization.

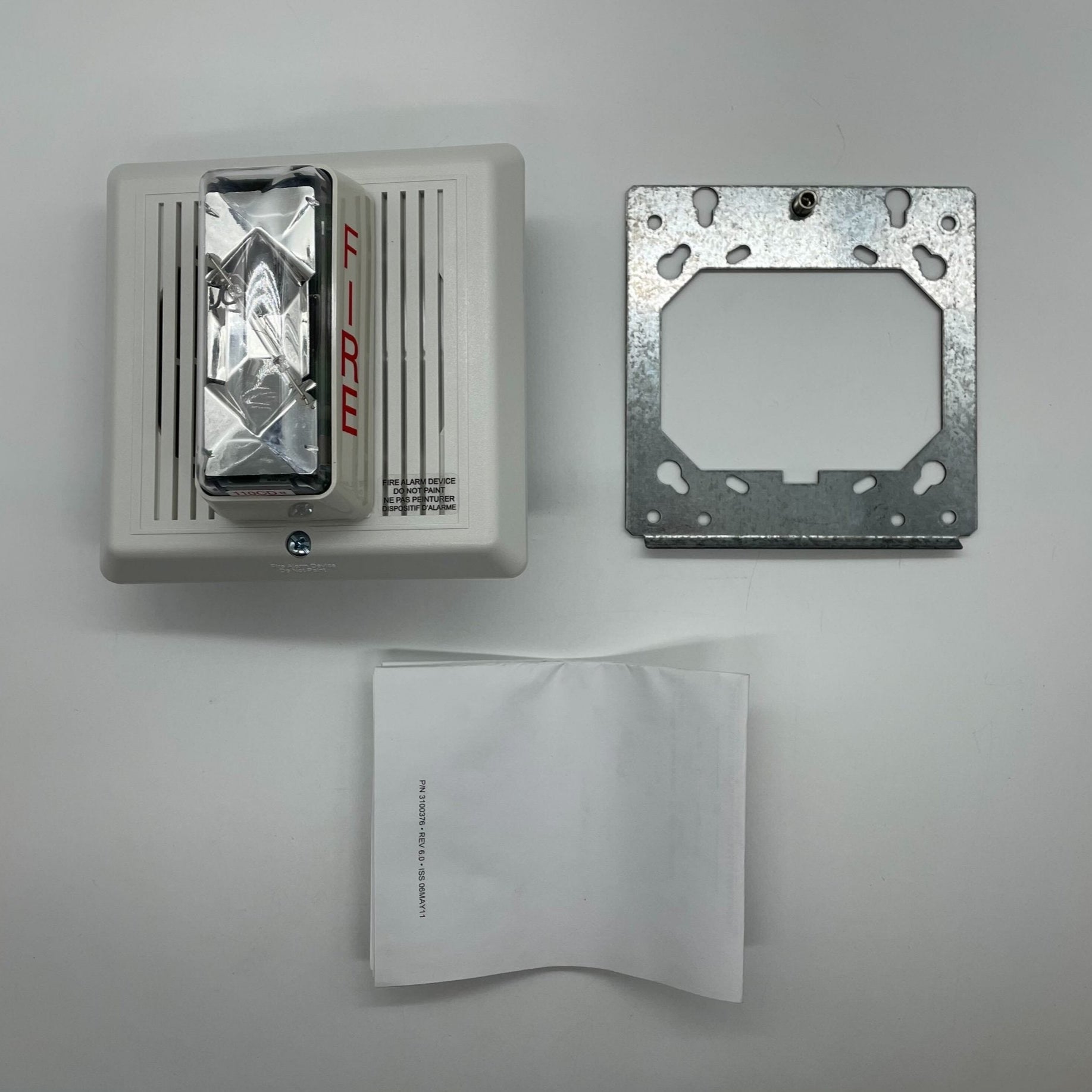

- Flush mounts to a North American 2-gang box at least 2 3/4 in deep.

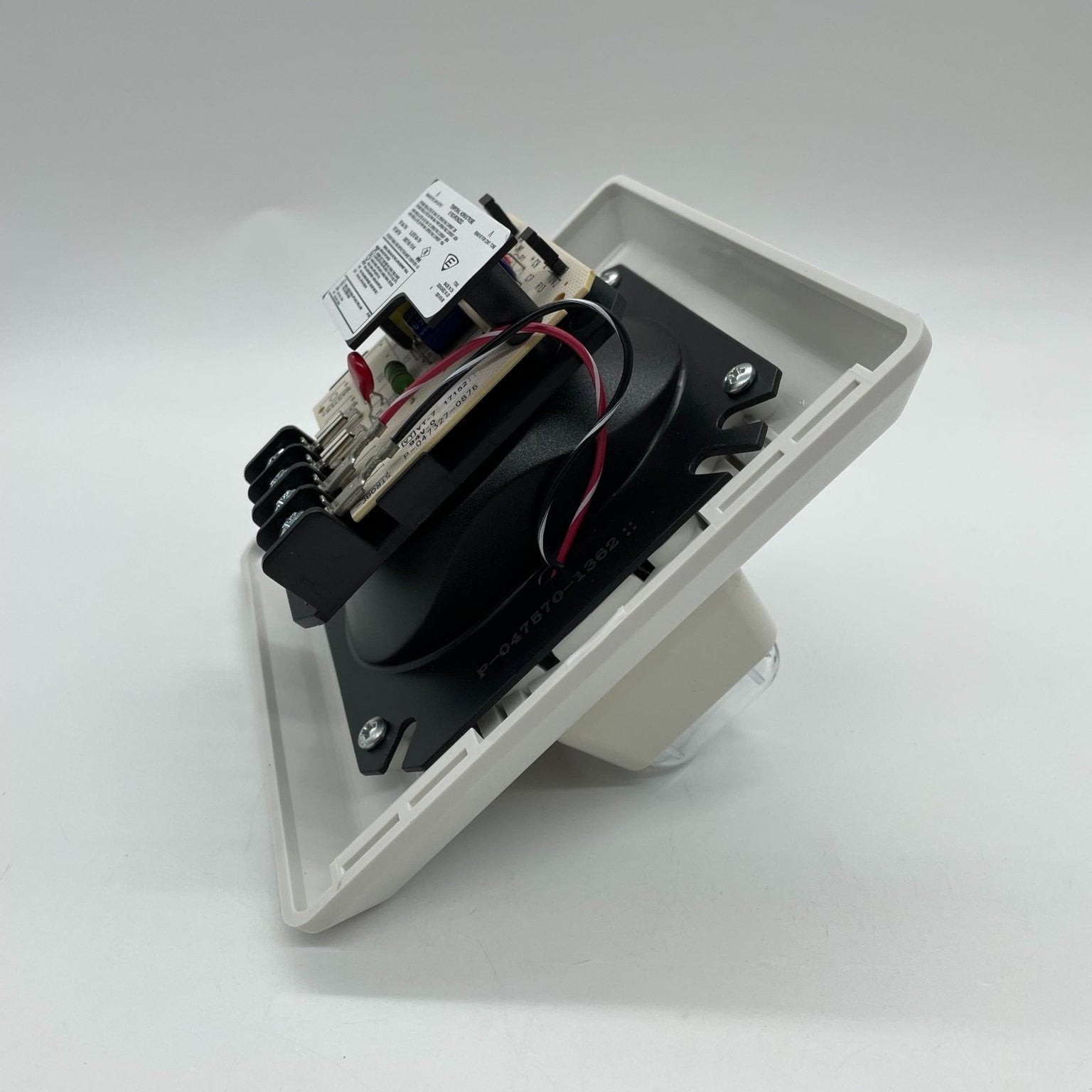

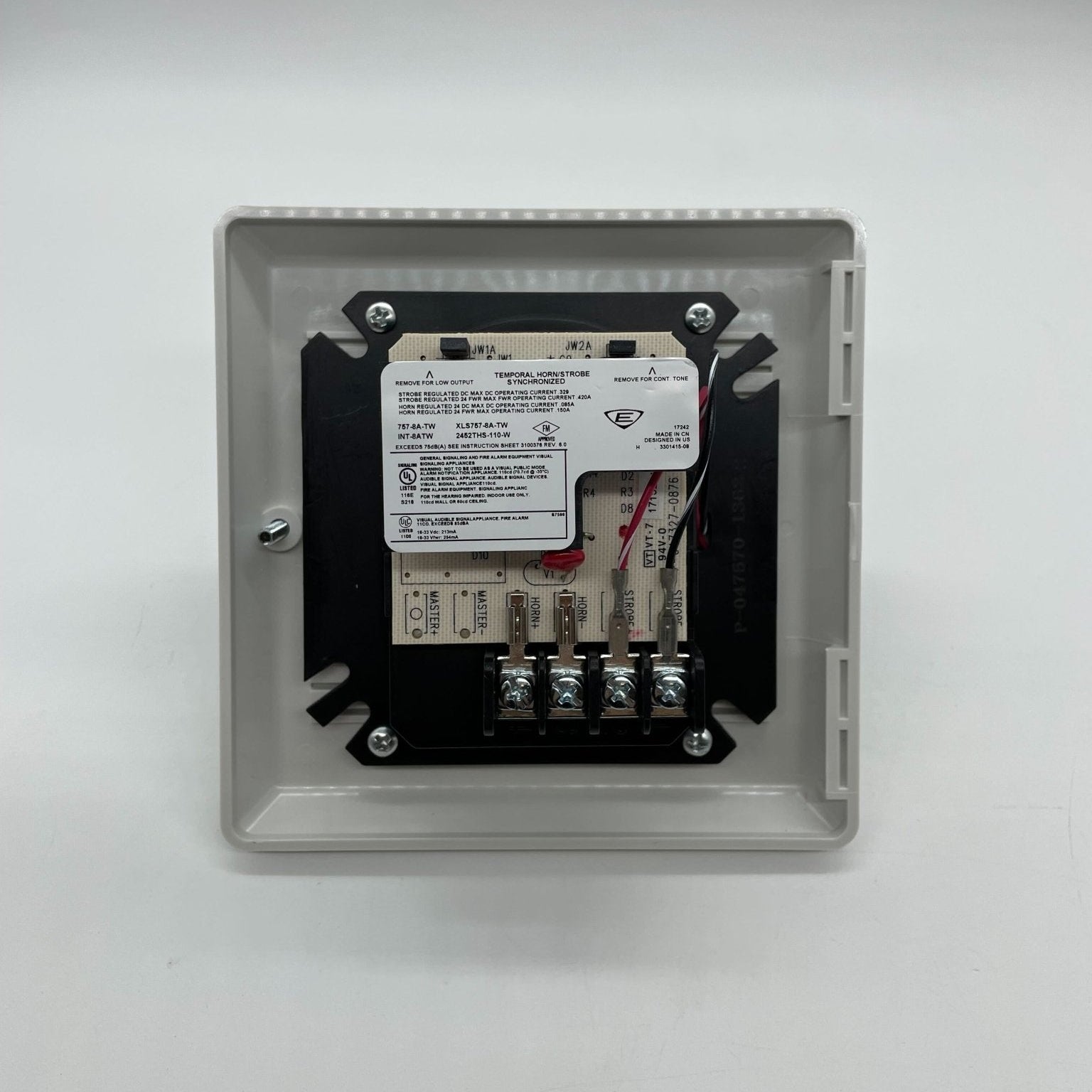

- Terminals accept up to #12 AWG with separate polarized horn and strobe inputs.
Installers use it where a high-output visible and audible alarm signal is required.
