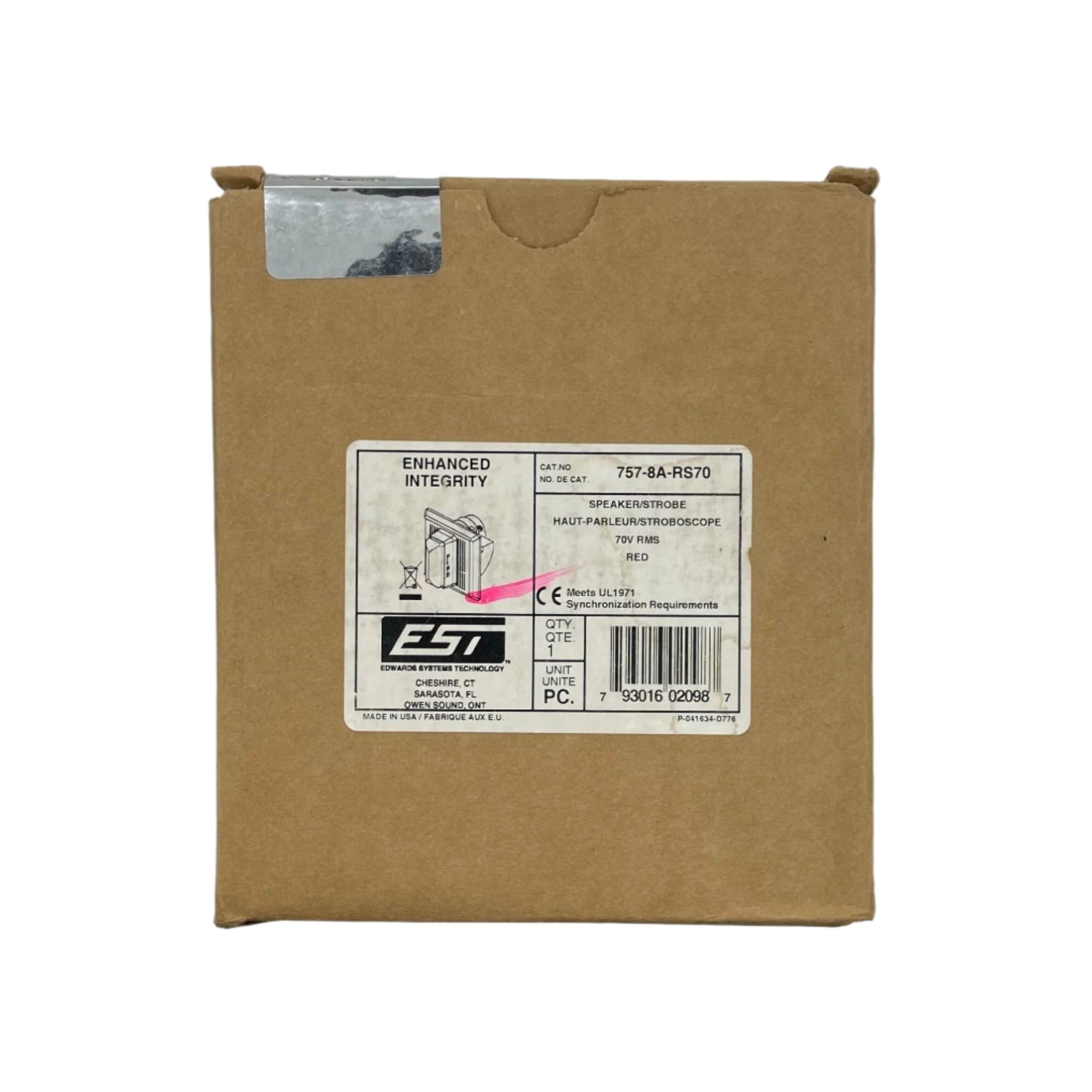

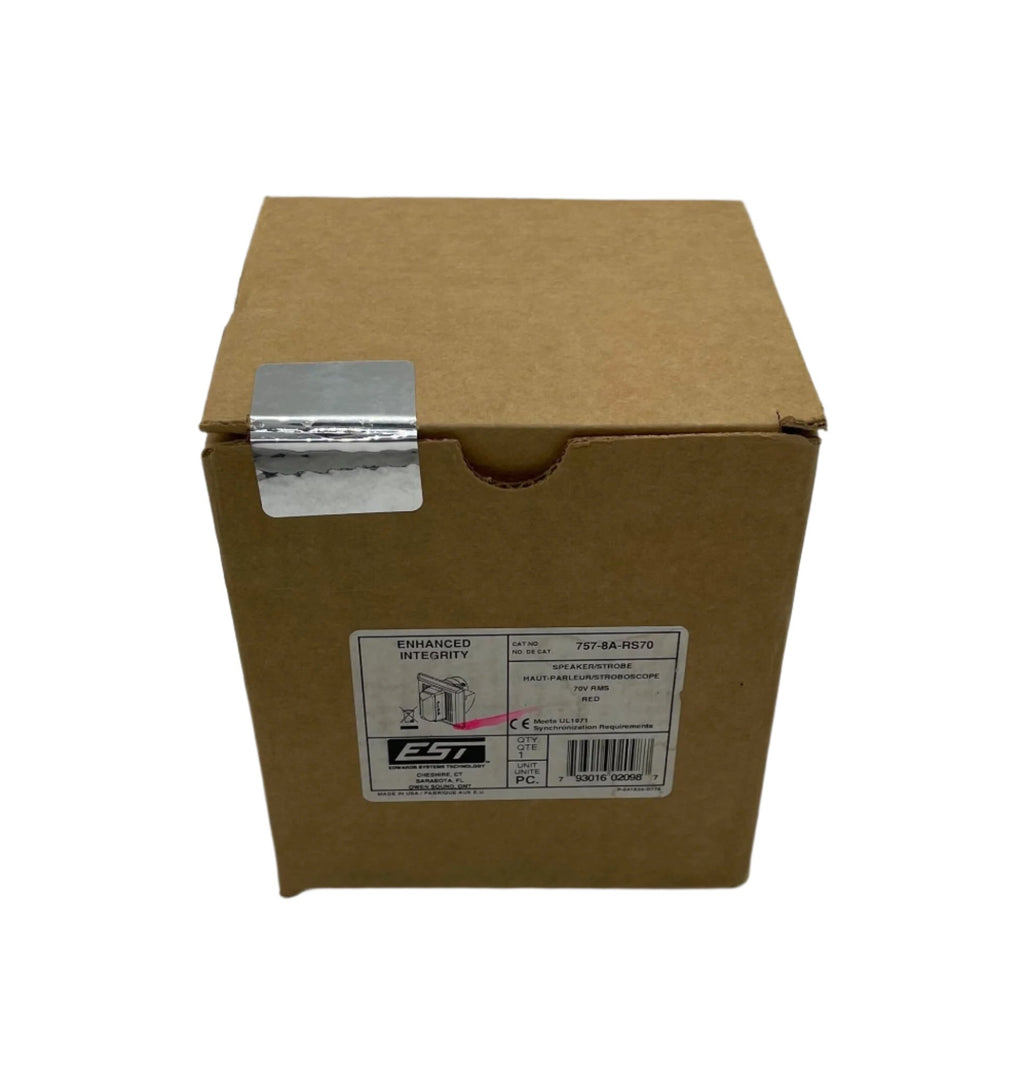

Edwards 757-8A-RS70 is an Integrity 757 Series re-entrant speaker-strobe with a 110 cd strobe, red housing and a 70 Vrms speaker. Its housing is rated for outdoor use when installed in a weatherproof box.
Specifications
| Speaker circuit |
70 Vrms |
| Wattage taps |
2, 4, 8 and 15 W |
| Speaker output at 10 ft |
98 dBA at 15 W, 95 at 8 W, 93 at 4 W, 90 at 2 W (subtract 3 dBA for strobe models) |
| Speaker driver |
Sealed compression driver, 8 ohm voice coil |
| Strobe rating |
UL 1971: 110 cd wall, 60 cd ceiling |
| Strobe voltage |
16 to 33 Vdc continuous |
| Temperature |
-31 to 150 F (-35 to 66 C) |
| Weight |
2.5 lb (1.2 kg) |
Installation notes
- Speaker terminals take up to #12 AWG; the strobe has 6 in color-coded polarized leads.
- Flush mount uses the 960A-4SF box; surface mount uses the 757A-SB; outdoor mounting uses the 757A-WB weatherproof box.
- Strobe sync sources include SIGA-CC1S, SIGA-MCC1S, G1M-RM, BPS6A and BPS10A.
Installers use it in loud or outdoor areas such as warehouses, plants and parking structures.
