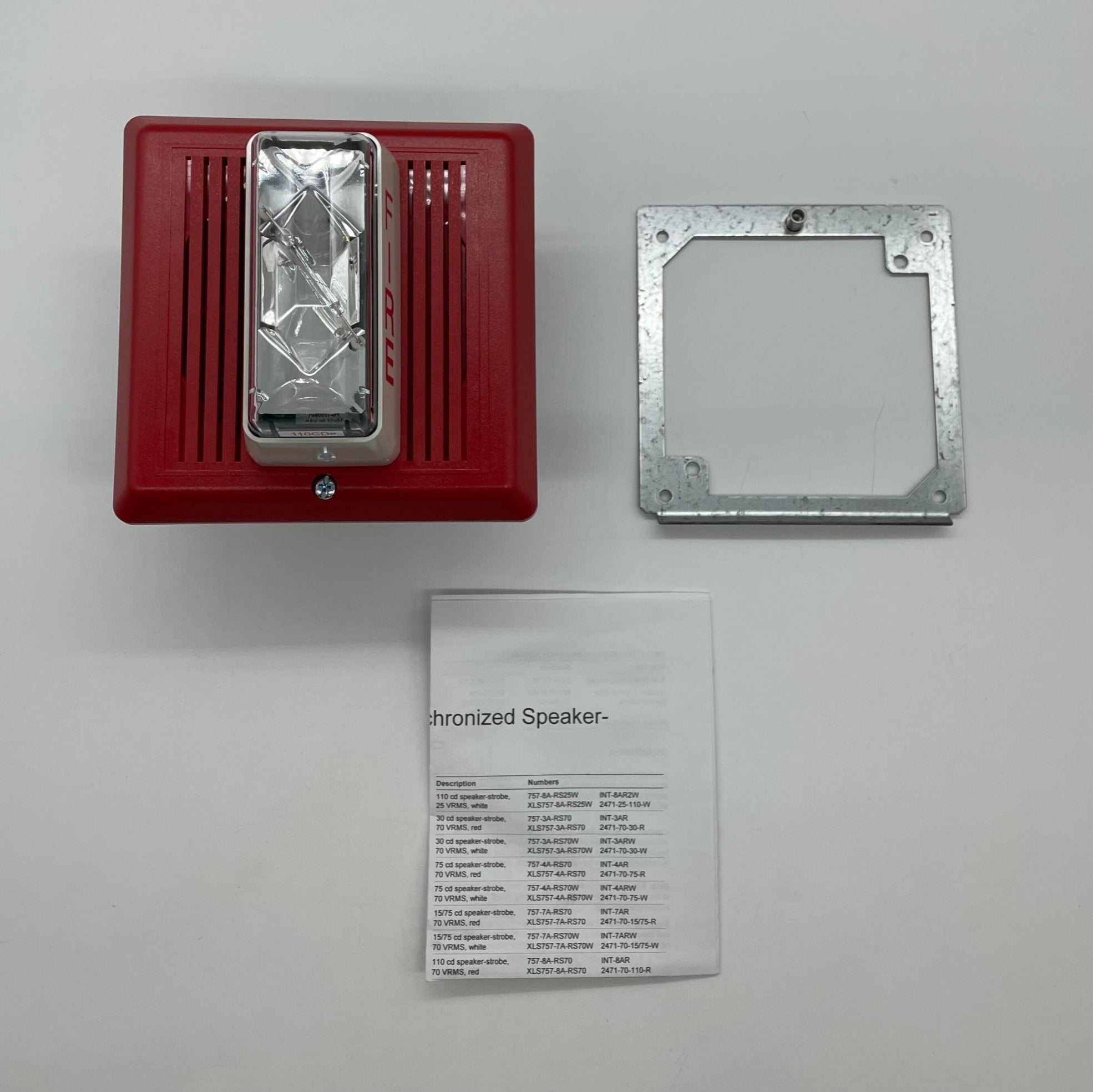

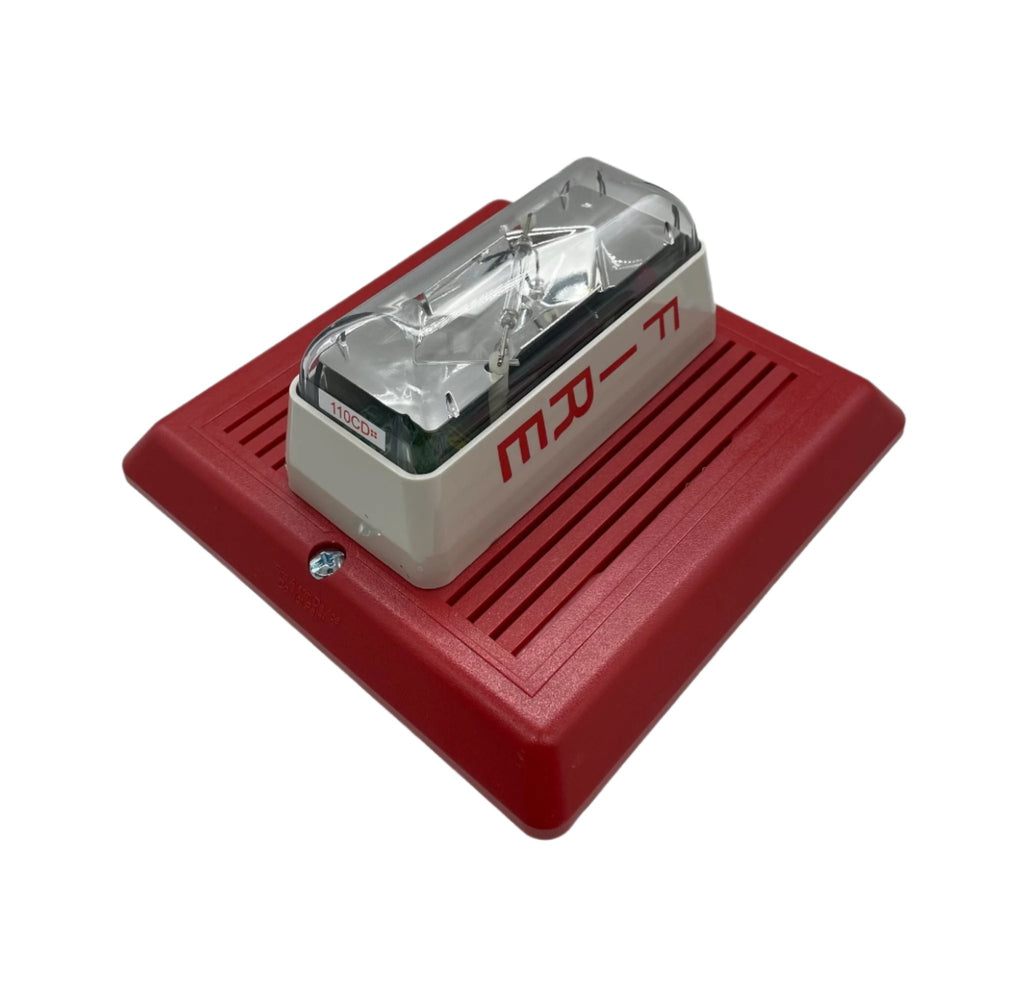

Edwards 757-8A-RS25 is an Integrity Series re-entrant speaker-strobe in a red housing, for 25 V audio systems. Its strobe is rated 110 cd for wall mounting and 60 cd for ceiling mounting under UL 1971.
A sealed compression driver delivers up to 98 dBA at 15 W, and the speaker taps run from 2 to 15 W. The housing is outdoor rated when used with the 757A-WB box, so it suits industrial and other harsh spaces, as well as voice systems for life safety and mass notification.
Features
- Re-entrant compression driver, up to 98 dBA at 15 W
- Taps of 2, 4, 8 and 15 W
- 110 cd strobe (60 cd when ceiling mounted)
- Outdoor rated with the 757A-WB box
- DC blocking capacitor included
- Lens markings can be changed
Specifications
| Speaker voltage |
25 VRMS |
| Speaker output at 10 ft |
15 W: 98 dBA; 8 W: 95 dBA; 4 W: 93 dBA; 2 W: 90 dBA |
| Driver |

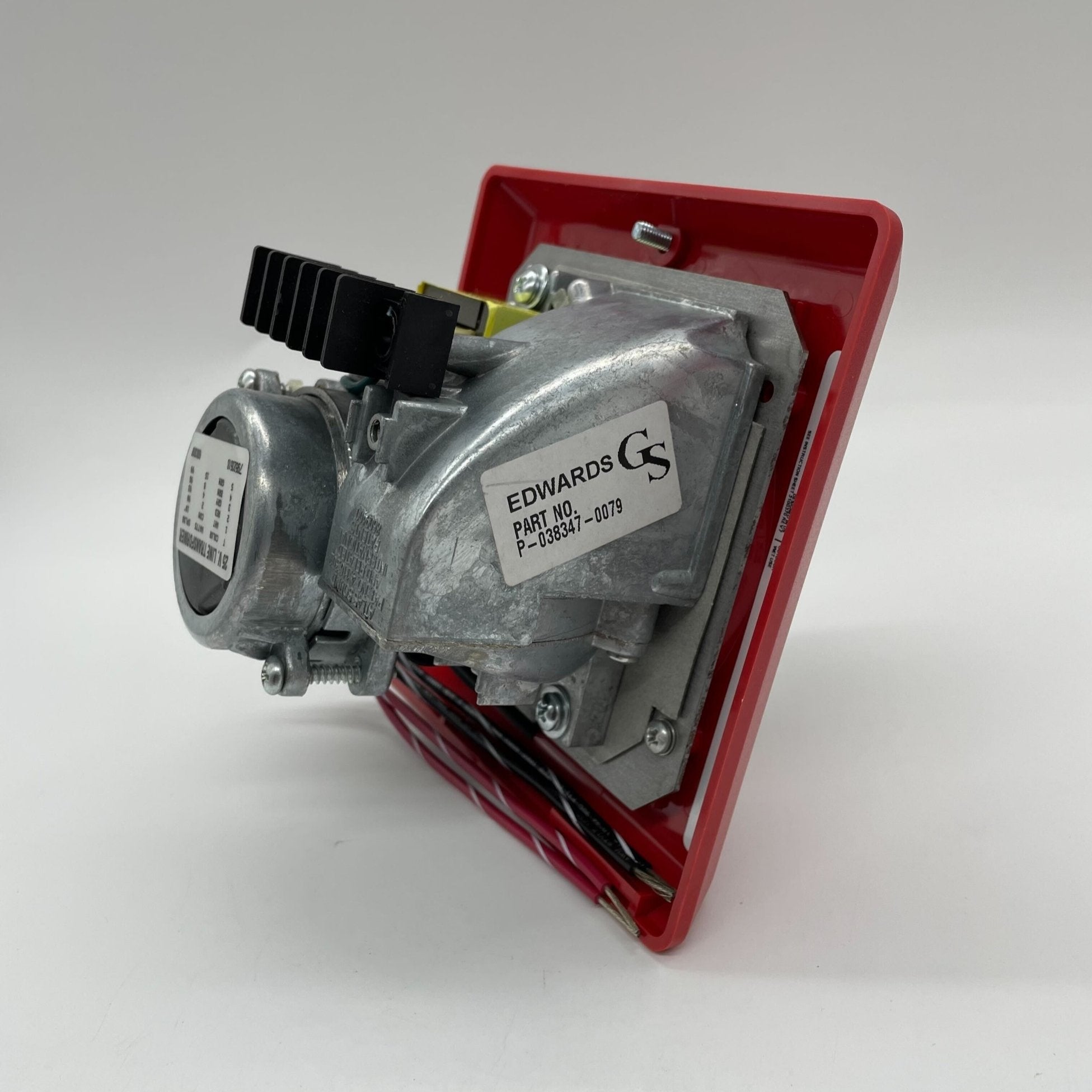

Sealed compression driver, 8 ohm |
| Strobe voltage |
16 to 33 VDC continuous |
| Strobe output |
UL 1971 110 cd wall / 60 cd ceiling; UL 1638 and ULC S526 110 cd |
| Wire connections |

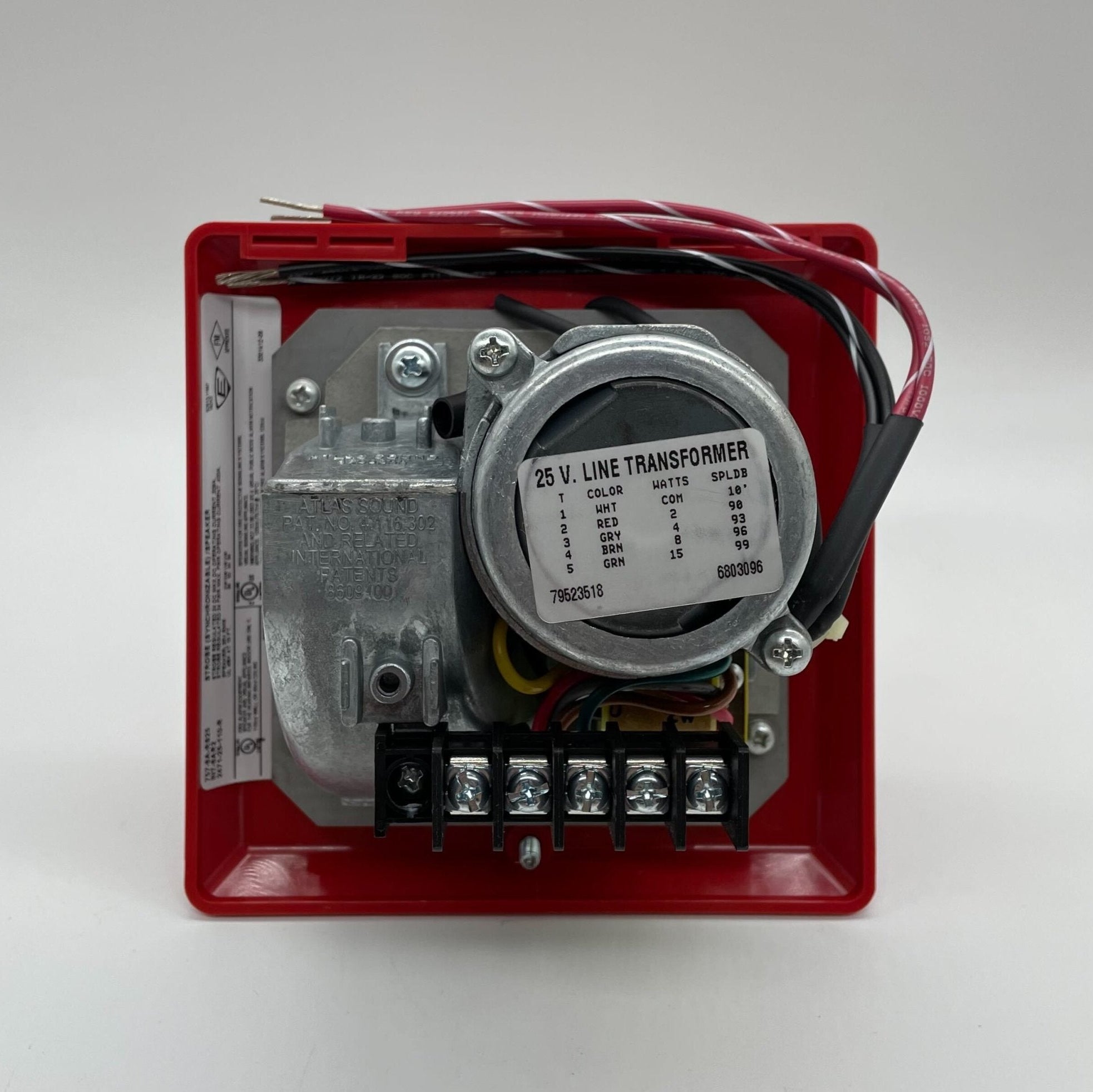

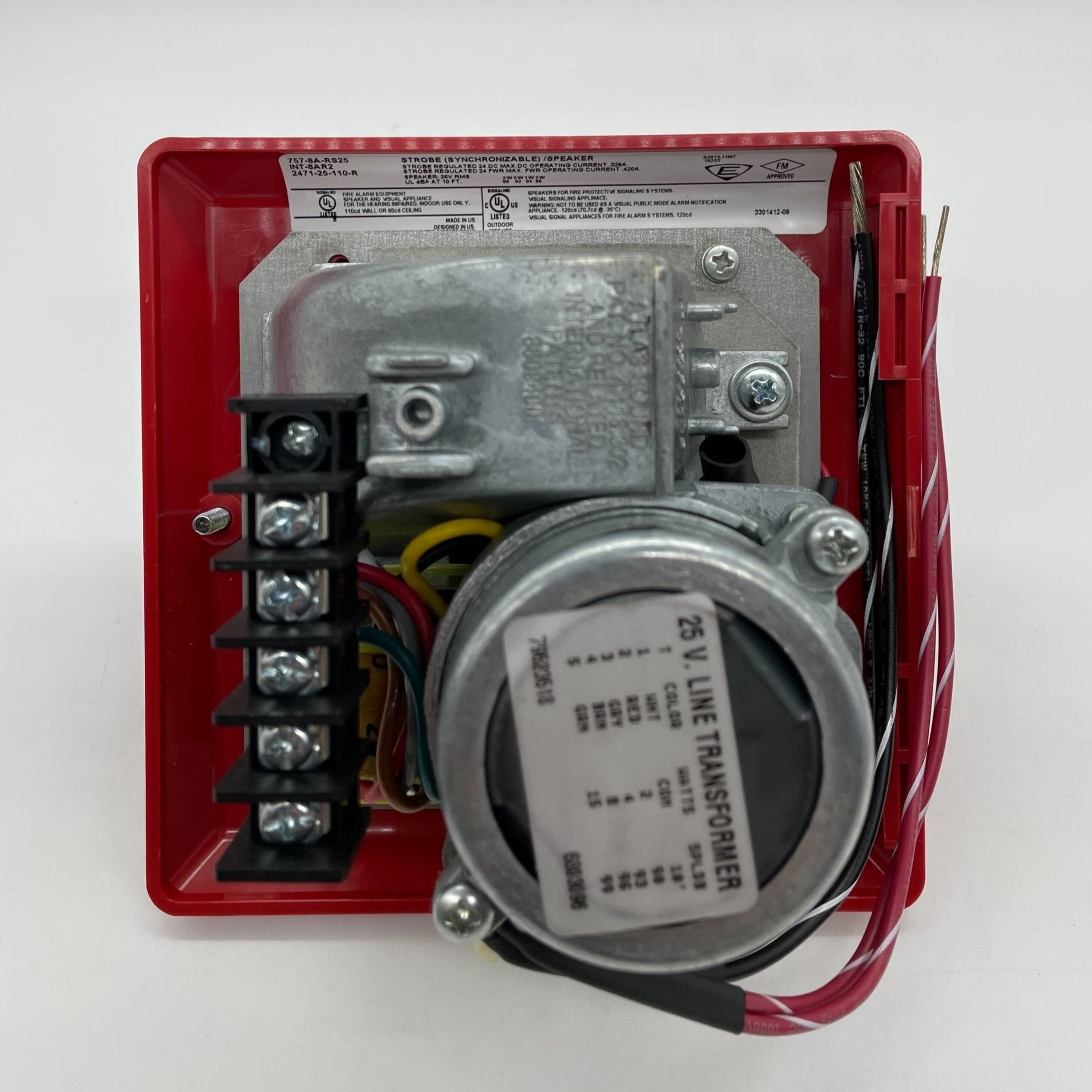

Speaker terminals to 12 AWG; strobe 6 in. color-coded leads |
| Mounting |
Indoor flush 960A-4SF; surface 757A-SB; outdoor 757A-WB |
| Approvals |
UL 1971, UL 1638, UL 1480, ULC S526, ULC S541, MEA, CSFM, FM |
Specifications taken from the manufacturer data sheet E85001-0317 Integrity Re-entrant Speaker and Speaker-Strobe.
