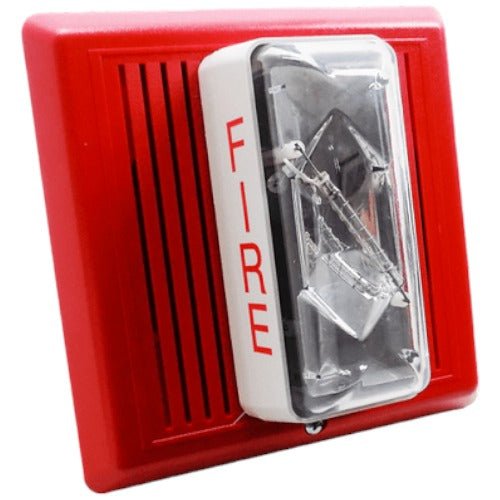

Edwards 757-7A-T — Integrity 757 Series temporal horn strobe, 15/75 cd, red, wall orientation.
The 15/75 is two ratings of one fixed output, not two settings. Edwards rates this strobe at 15 cd under UL 1971, the standard for public-mode appliances for the hearing impaired, and at 75 cd under UL 1638, which measures on axis. Nothing is switched: candela is fixed by model, so output is chosen at the order.
- UL 1971 15 cd wall and 15 cd ceiling; UL 1638 75 cd; CAN/ULC-S526-07 15 cd, 75 cd on axis
- Rated 17.7 cd at -31 °F (-35 °C)
- 16 to 33 Vdc or Vfwr; horn and strobe need a constant, not pulsed, signal voltage
- Strobe typical current 90 mA at 24 Vdc; horn 40 mA high, 20 mA low
- Jumpers select temporal or steady tone and high or low output; temporal horns self-synchronise within 200 ms on a common circuit, but strobe flash needs a G1M-RM, SIGA-CC1S or BPS booster to meet UL 1971
Ships with the LKW-1 FIRE wall lens; LKC kits give ceiling markings. The candela siblings share this body: 757-5A-T 15 cd, 757-3A-T 30 cd, 757-4A-T 75 cd and 757-8A-T 110 cd; 757-1A-T is the horn alone. Add -W for white.
FAQ
Is the 15/75 candela output selectable?
No. Candela is fixed by model: 15 cd under UL 1971 and 75 cd on axis under UL 1638. Choose the output when ordering.
Can the horn tone be changed?
Yes. Jumpers select temporal or steady tone and high or low output.
Do the strobes synchronize?
Temporal horns self-synchronize within 200 ms on a common circuit, but strobe flash needs a G1M-RM, SIGA-CC1S or BPS booster to meet UL 1971.
What current does it draw?
The strobe draws 90 mA typical at 24 Vdc; the horn draws 40 mA on high and 20 mA on low.
