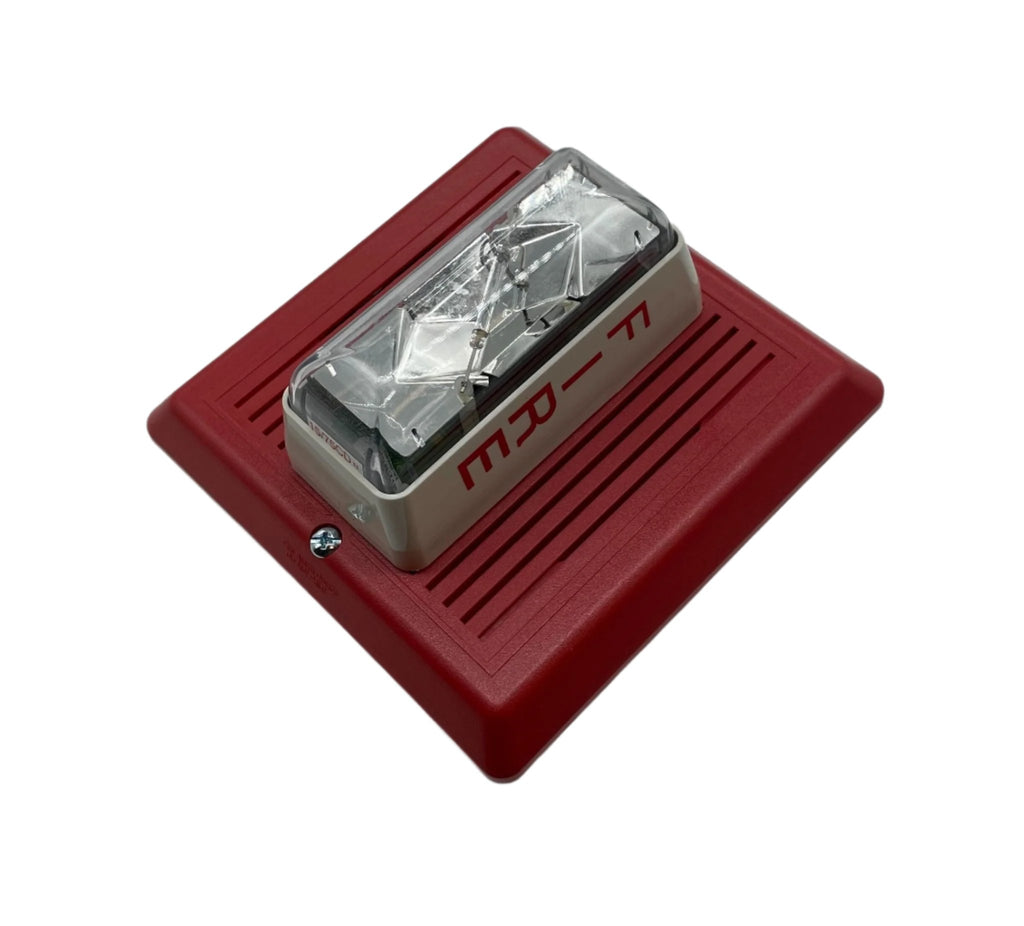

Edwards 757-7A-SS70 is an Integrity 757 Series speaker-strobe in a red housing, for 70 Vrms audio circuits. The strobe is rated 15/75 cd, and the speaker has selectable wattage taps for voice evacuation and tone signals.
Specifications
| Speaker circuit |
70 Vrms |
| Wattage taps |
1/4, 1/2, 1 and 2 W |
| Speaker output |
90 dBA at 2 W (87 dBA for speaker-strobe models) |
| Speaker cone |
4 in mylar, 250 to 13,000 Hz |
| Strobe rating |

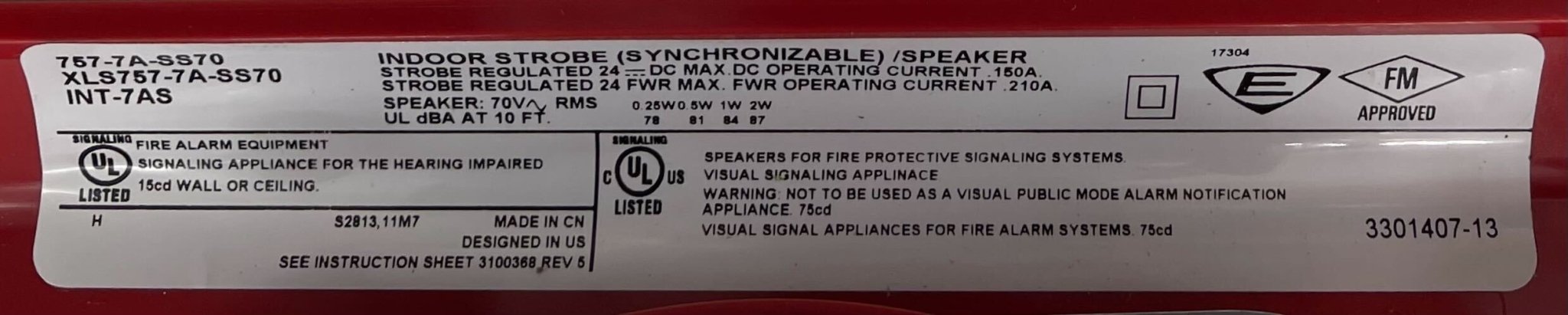

UL 1638 / ULC S526: 15/75 cd; UL 1971: 15 cd wall, 15 cd ceiling |
| Strobe voltage |
16 to 33 Vdc continuous |
| Typical current |
90 mA at 24 Vdc; 128 mA at 24 Vfwr |
| Weight |
2.2 lb (1 kg) |
Installation notes

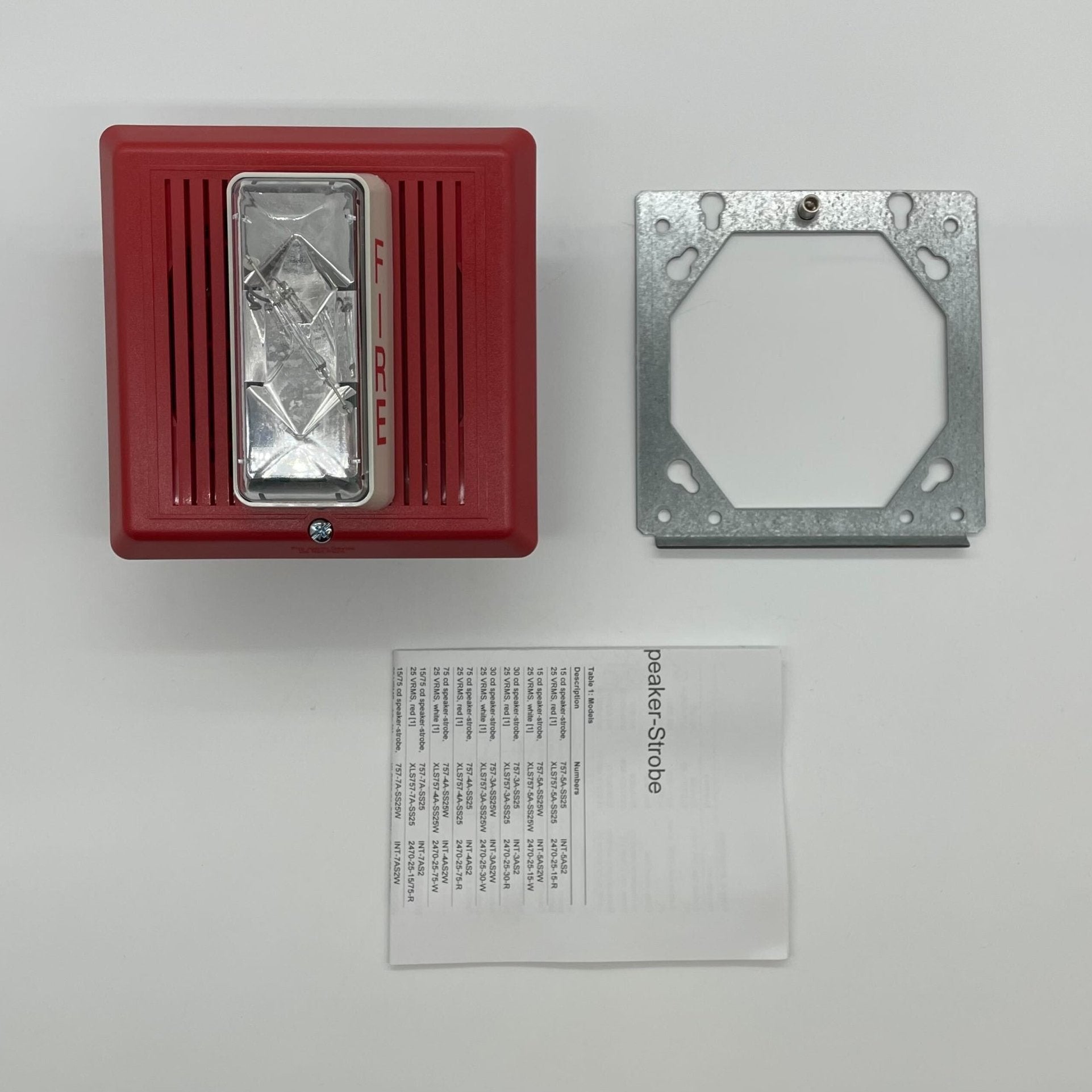

- Flush mounts to a North American 4 in square box, 1 1/2 in deep, with a 1 1/2 in extension ring.

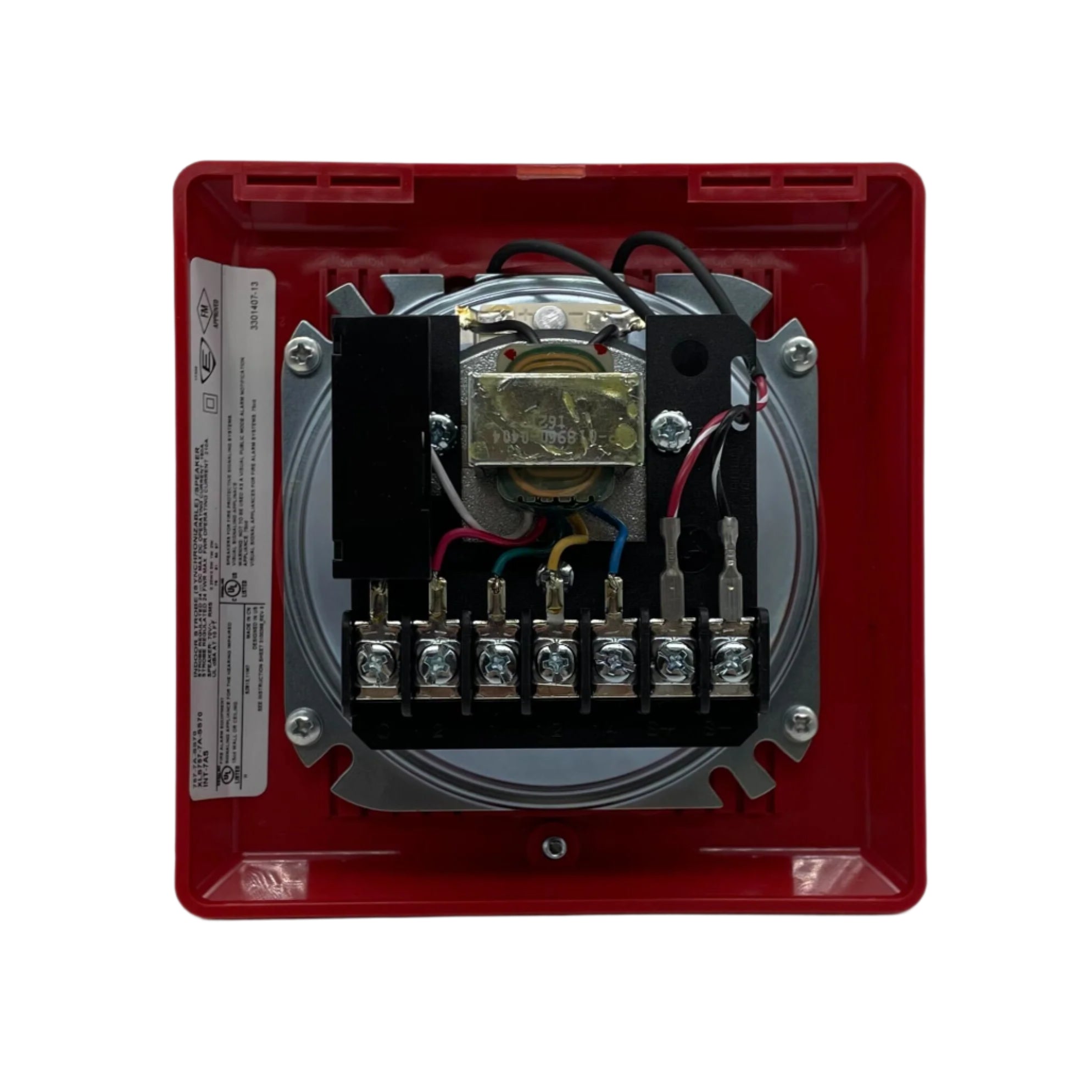

- Supplied with a DC blocking capacitor for audio circuit supervision.
- Strobe synchronization sources: G1M-RM, SIGA-CC1S, SIGA-MCC1S, BPS6, BPS10.
Installers use it for combined voice and strobe notification in hotels, malls, hospitals and other public buildings.
