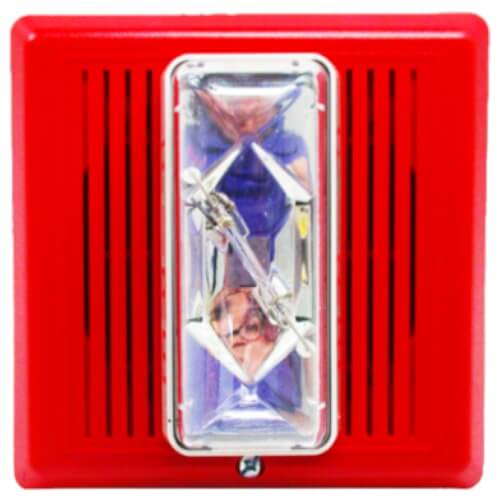

Edwards 757-5A-T is an Integrity 757 Series temporal horn-strobe with a 15 cd strobe in a red housing. The horn can be set to temporal or continuous tone and to high or low output.
Specifications
| Strobe output |
15 cd (UL 1971, wall mount, indoor only) |
| Operating voltage |
16 to 33 Vdc or Vfwr, constant |
| Horn output, anechoic average |
98 dBA high, 94 dBA low |
| Horn current |
40 mA high, 20 mA low at 24 Vdc |
| Flash rate |
One per second, synchronized |
| Wire terminals |
#12 AWG maximum, separate polarized horn and strobe inputs |
| Indoor temperature |
32 to 120 F (0 to 49 C) |
| Weight |
2.0 lb (0.9 kg) |
Features
- Temporal pattern per the data sheet: 1/2 sec on, 1/2 sec off, 1/2 sec on, 1/2 sec off, 1/2 sec on, 1 1/2 sec off.
- Needs an external sync source such as the G1M-RM, SIGA-CC1S, SIGA-MCC1S, BPS6A or BPS10A to meet UL 1971 synchronization.
- Flush mounts to a North American 2-gang box; 757A-SB surface box and 757A-BDF frame are available.
Installers use it as a temporal horn-strobe for wall mounting in corridors and rooms.
