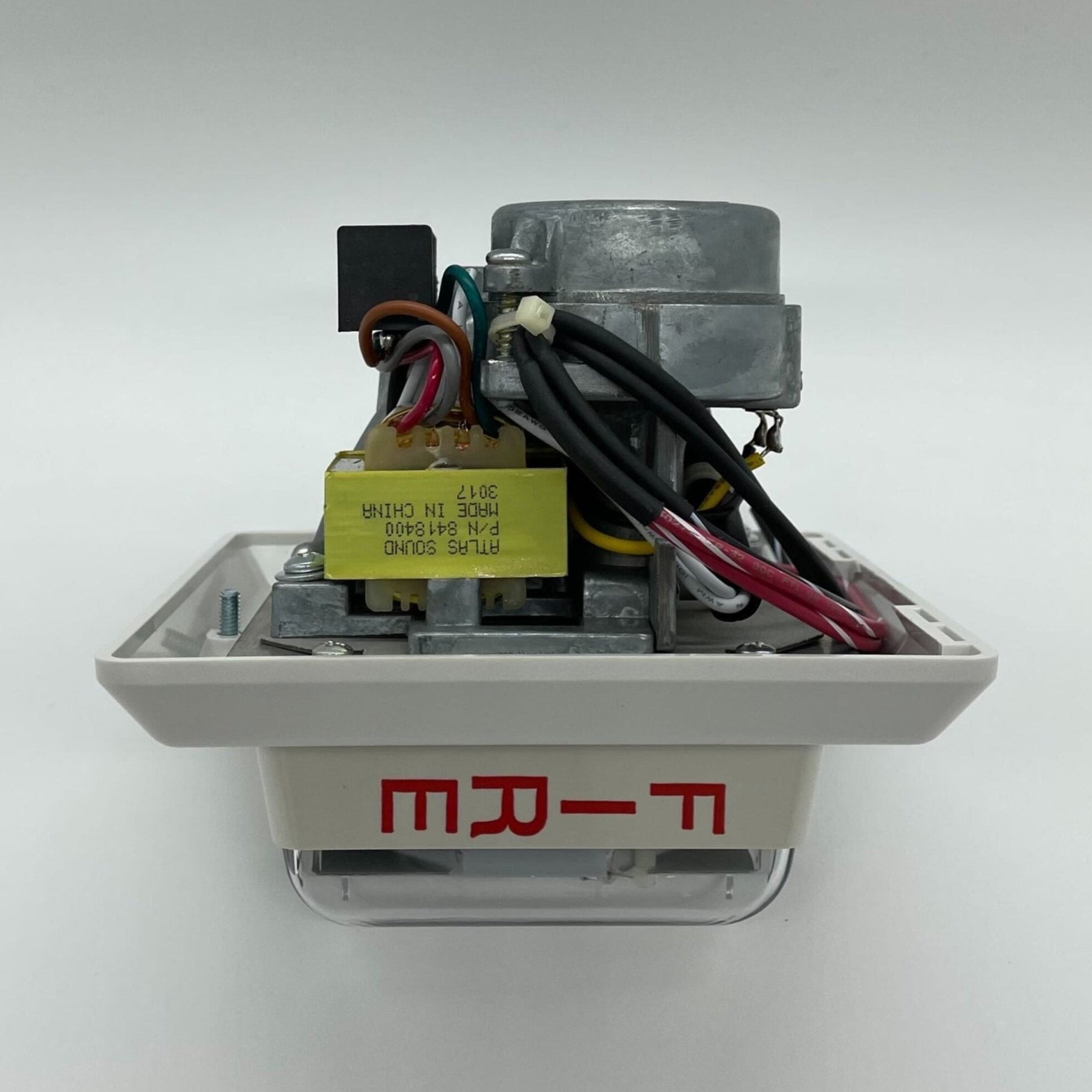

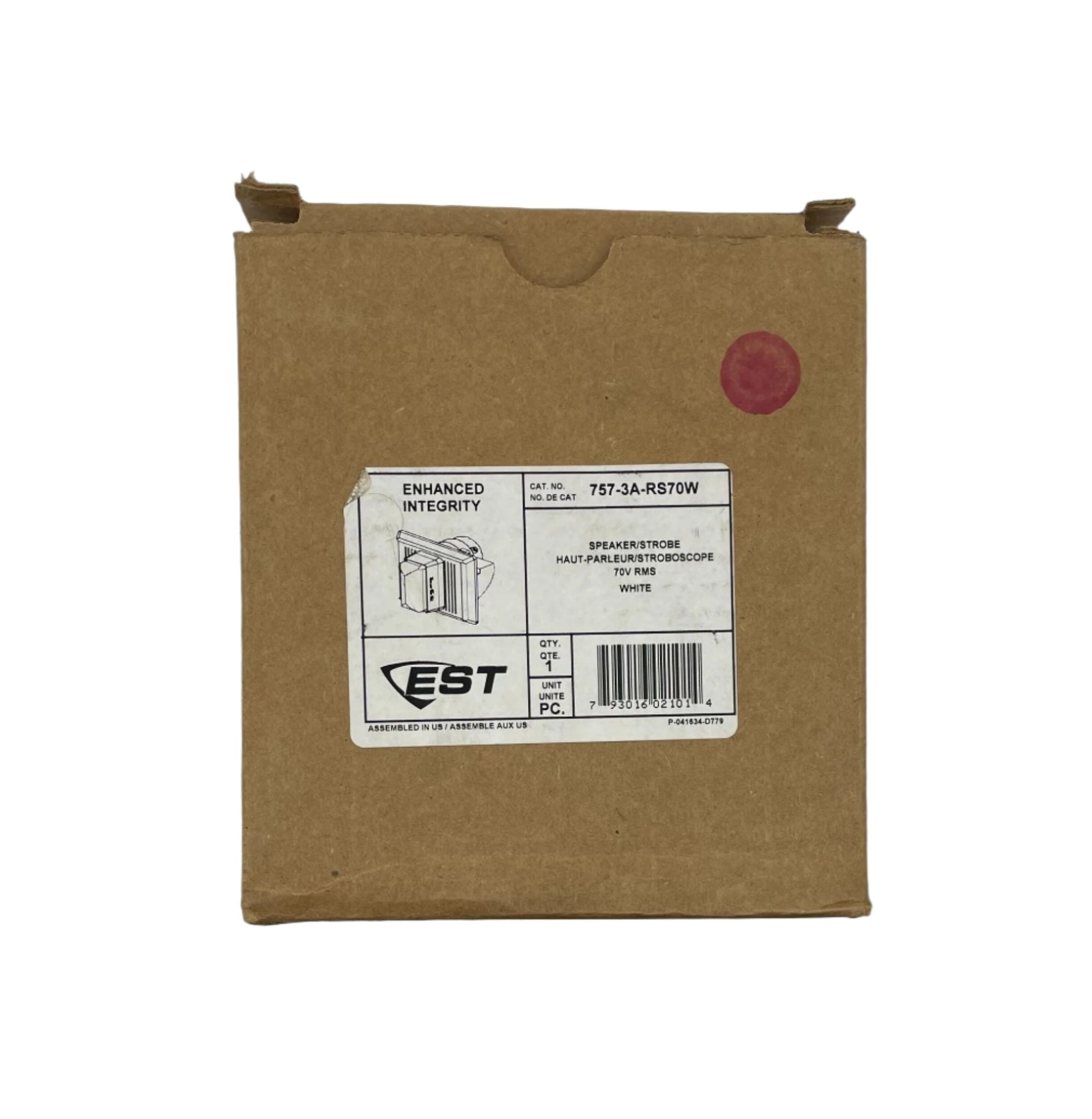

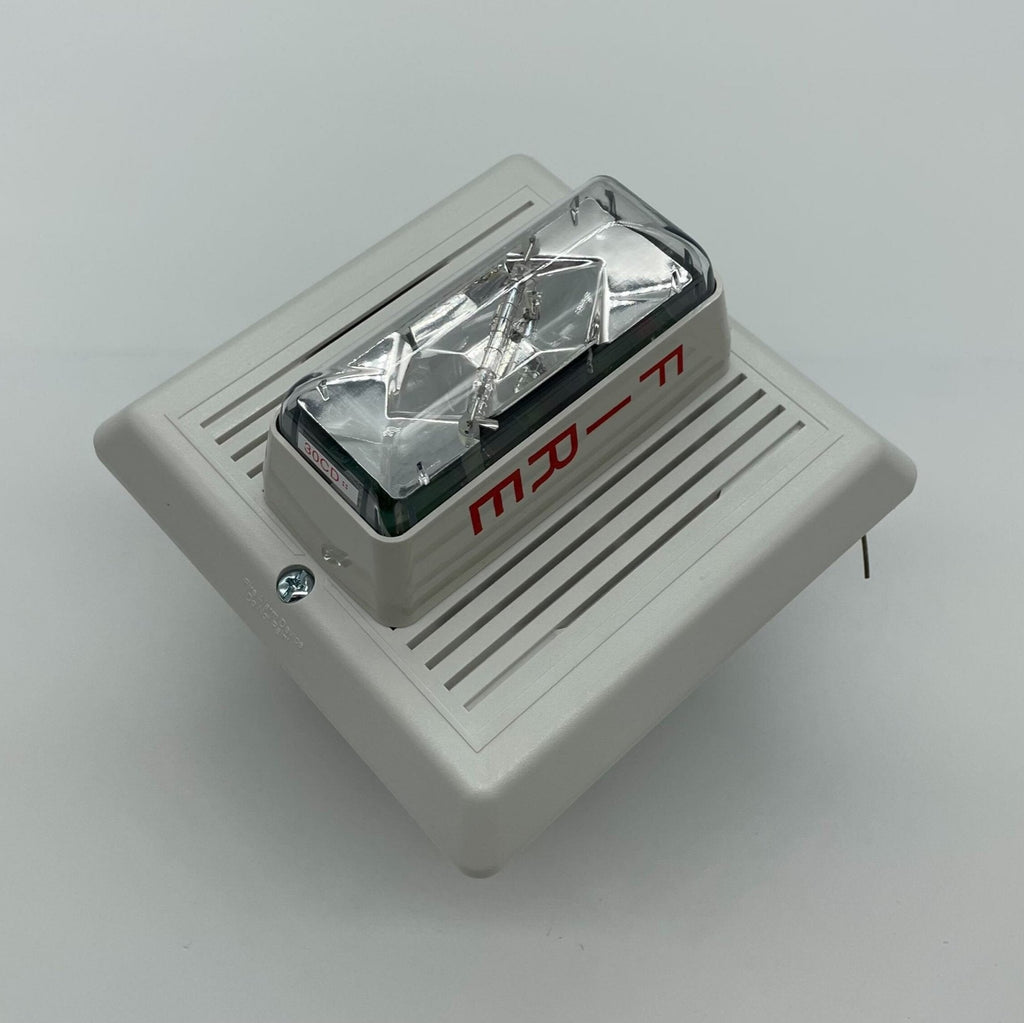

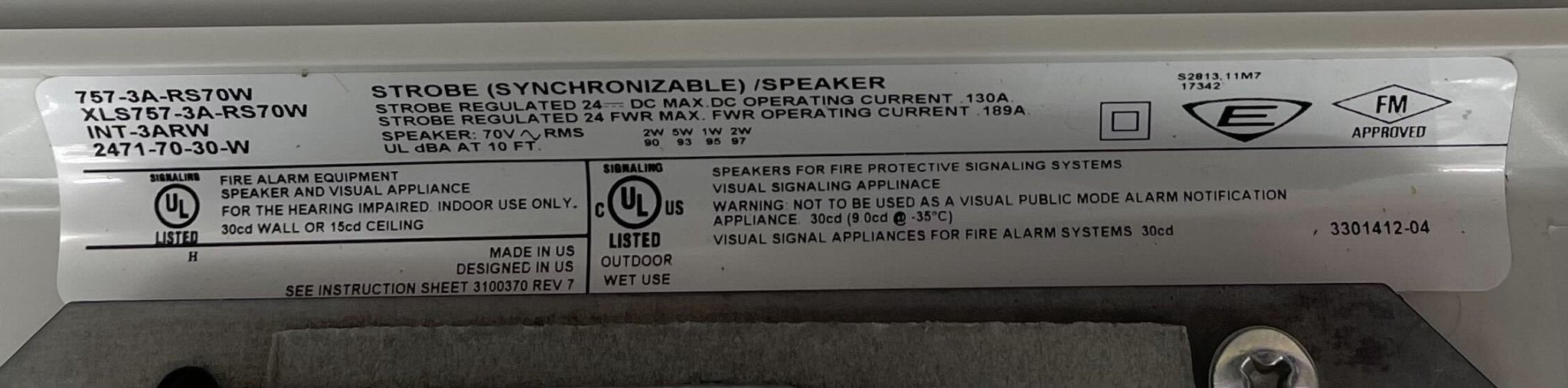

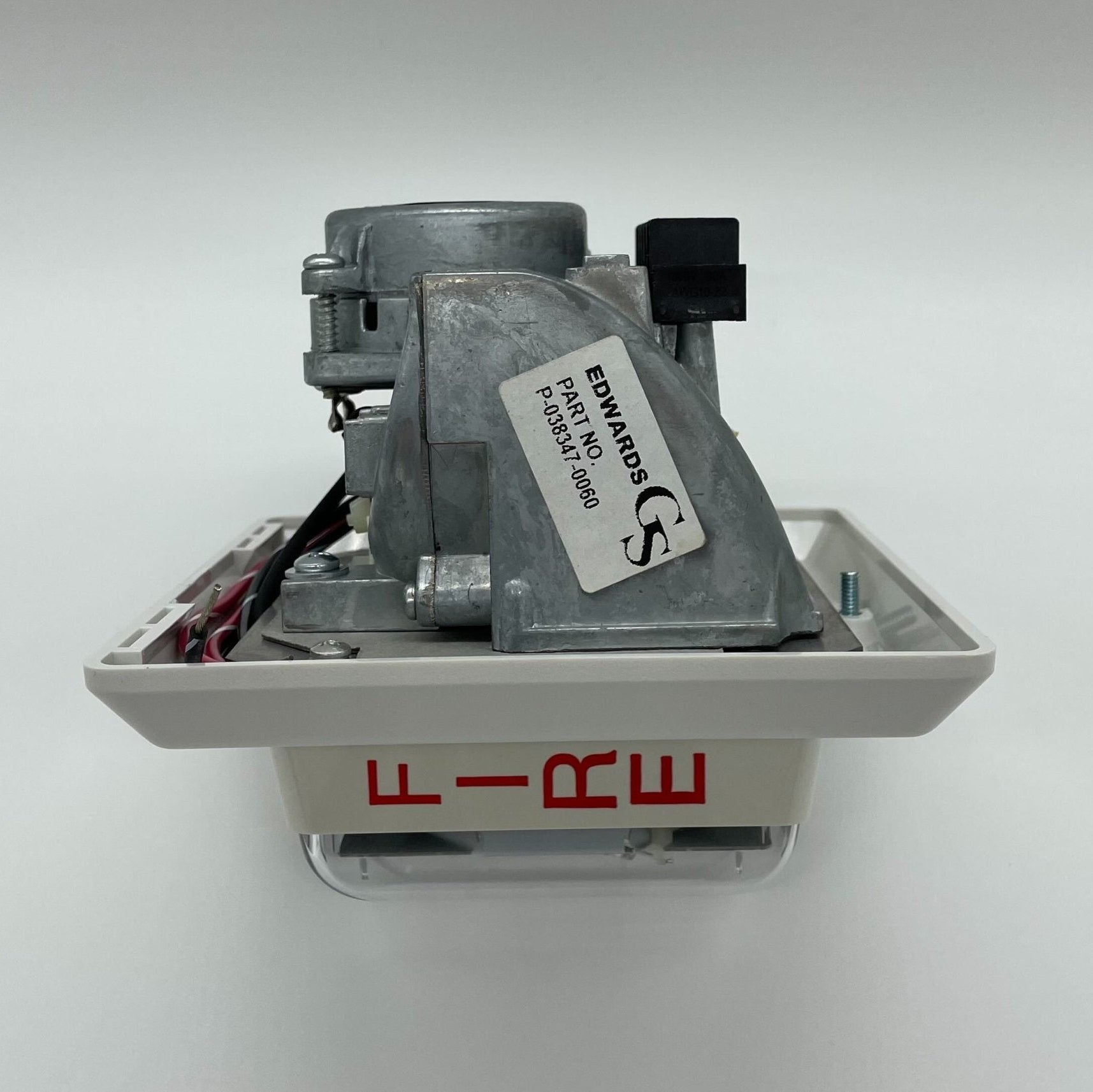

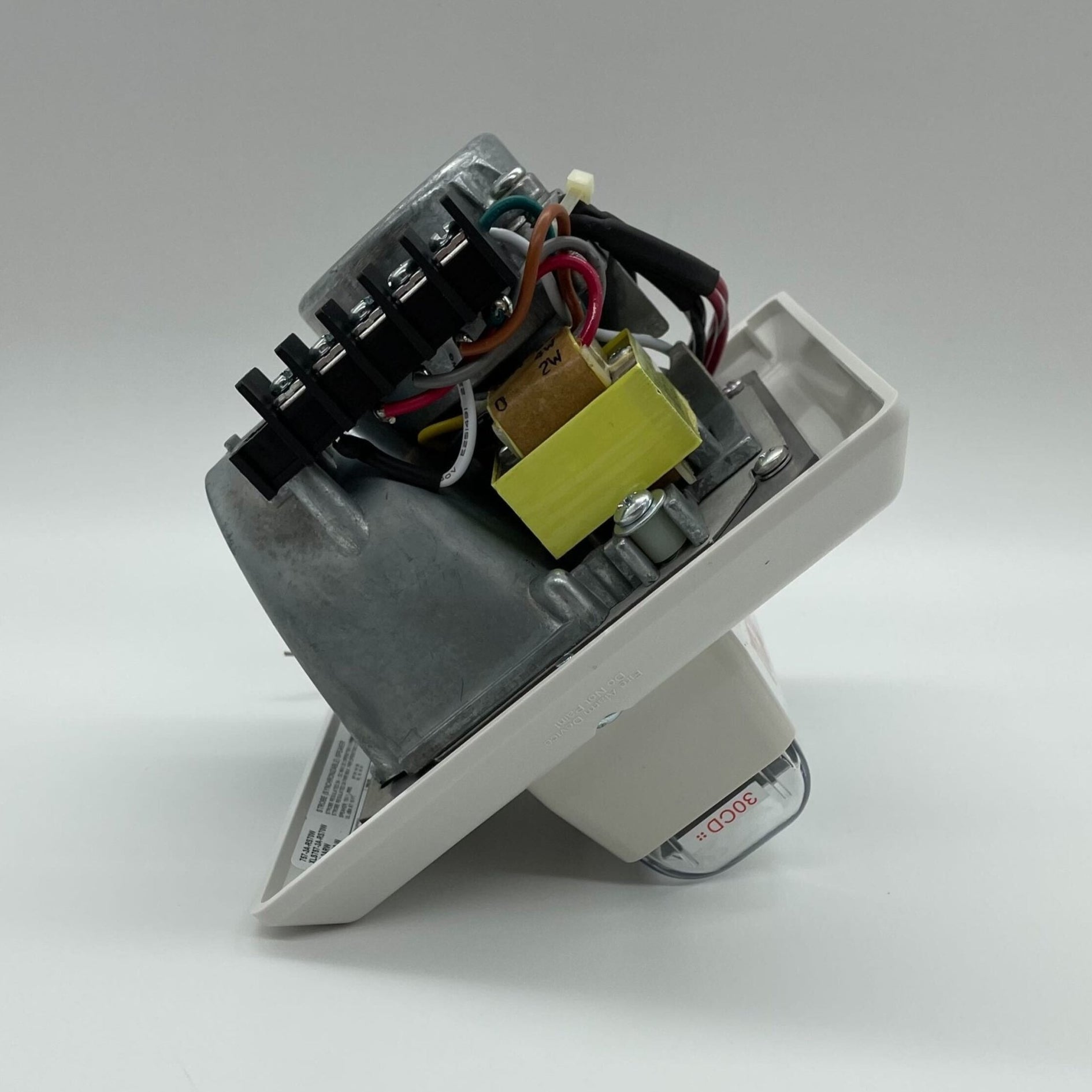

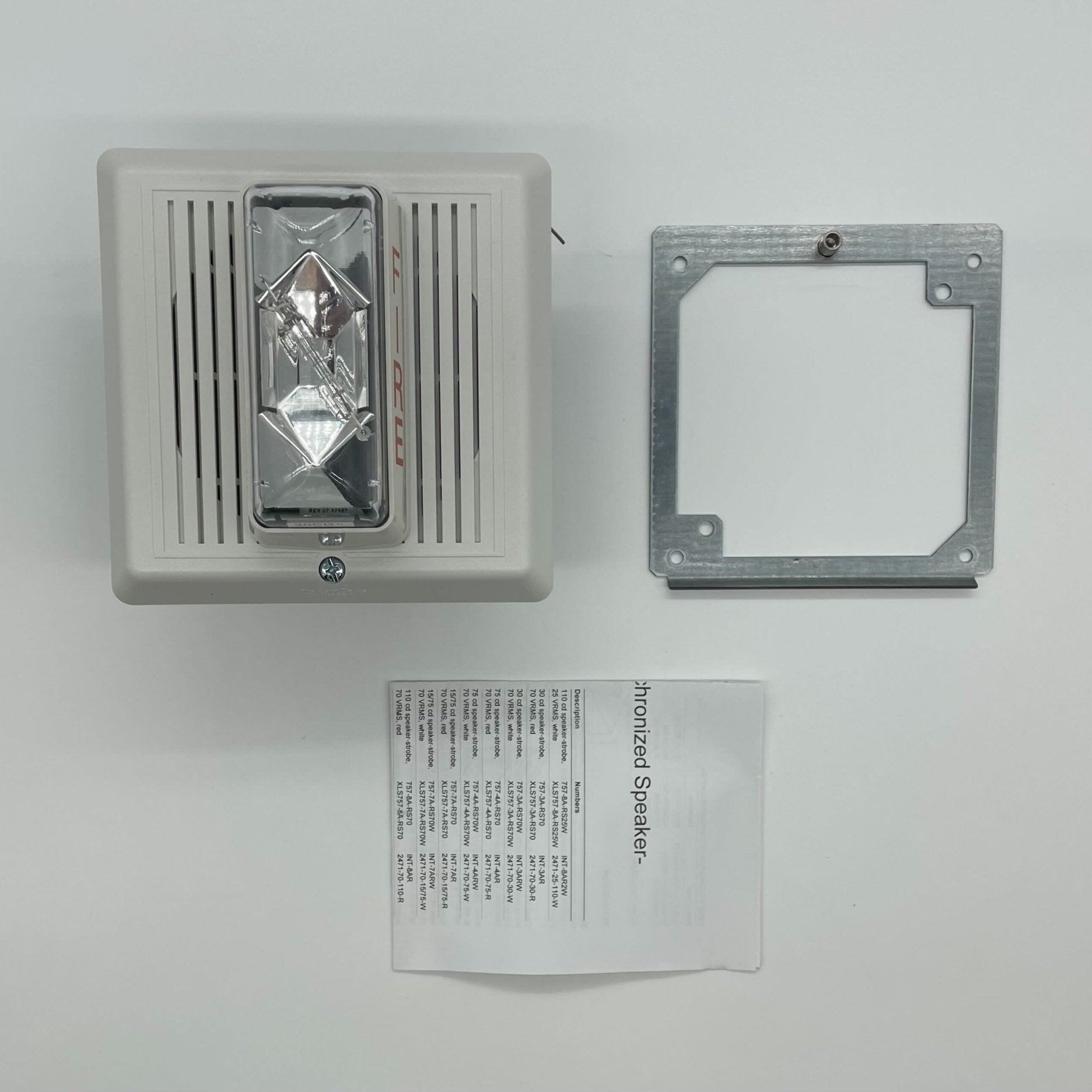

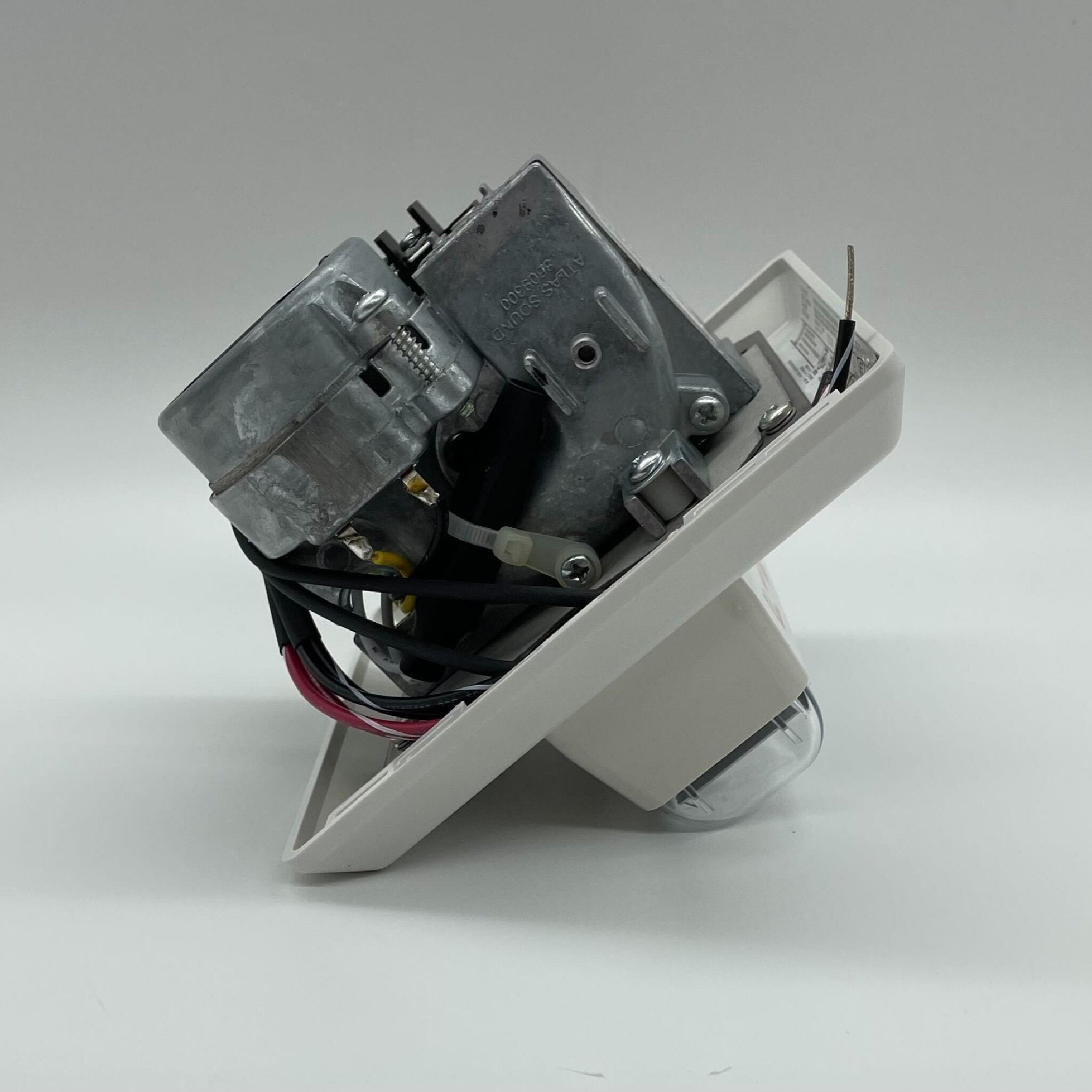

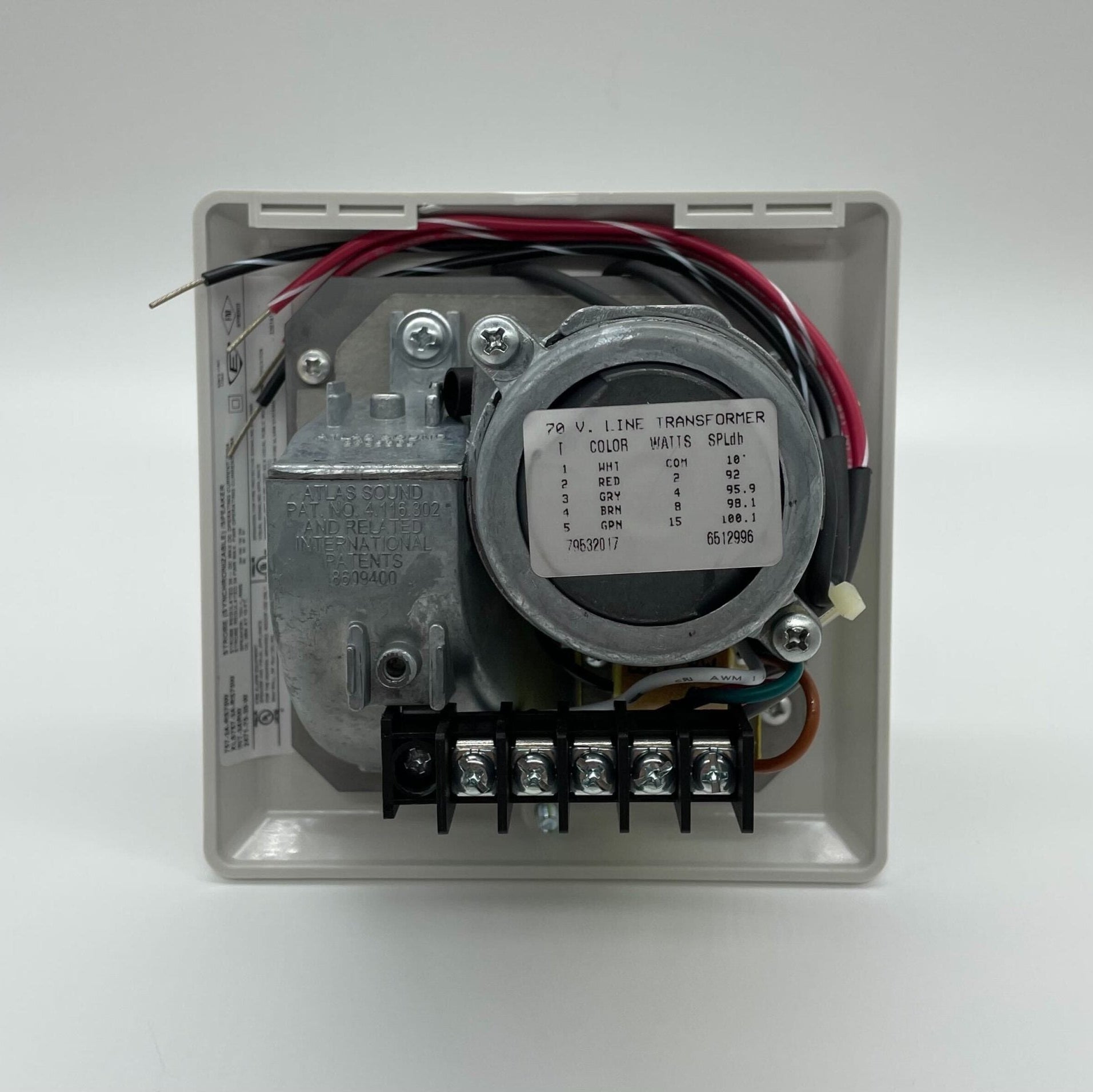

Edwards 757-3A-RS70W 30 Cd Re-Entrant Speaker Strobe - 70V, White
Strobe: Ul 1971 Certified 30 Cd, Inchfire Inch Wall Orientation
Key Features
- UL 1971-certified synchronizing strobe Integrity strobes synchronize to the latest UL 1971 require-ments when used with a synchronization source
- Genesis-compatible All Genesis and Integrity strobes on the same circuit meet UL 1971 synchronization requirements when used with an external control module
- ECS/MNS models available
- Listed for public and private mode applications UL 1971-certified as signaling devices for the hearing impaired and UL 1638-certified as protective visual signaling appliances
- 98 dBA Output High efficency driver produces a loud 98 dBA at 15 watts
- Multiple Output Taps, 25 or 70 Volt Models Easy to select for 2, 4, 8, and 15 watt operation. Integrity speakers are supplied with a DC Blocking Capacitor for audio circuit supervision
- Outdoor rated Durable red or white Noryl front plate is ideal for outdoor, indus-trial or harsh environments
- Field changeable field markings Lens language or standard “FIRE” marking is easily changed with optional LKW (wall orientation) and LKC (ceiling orienta-tion) lens kits
