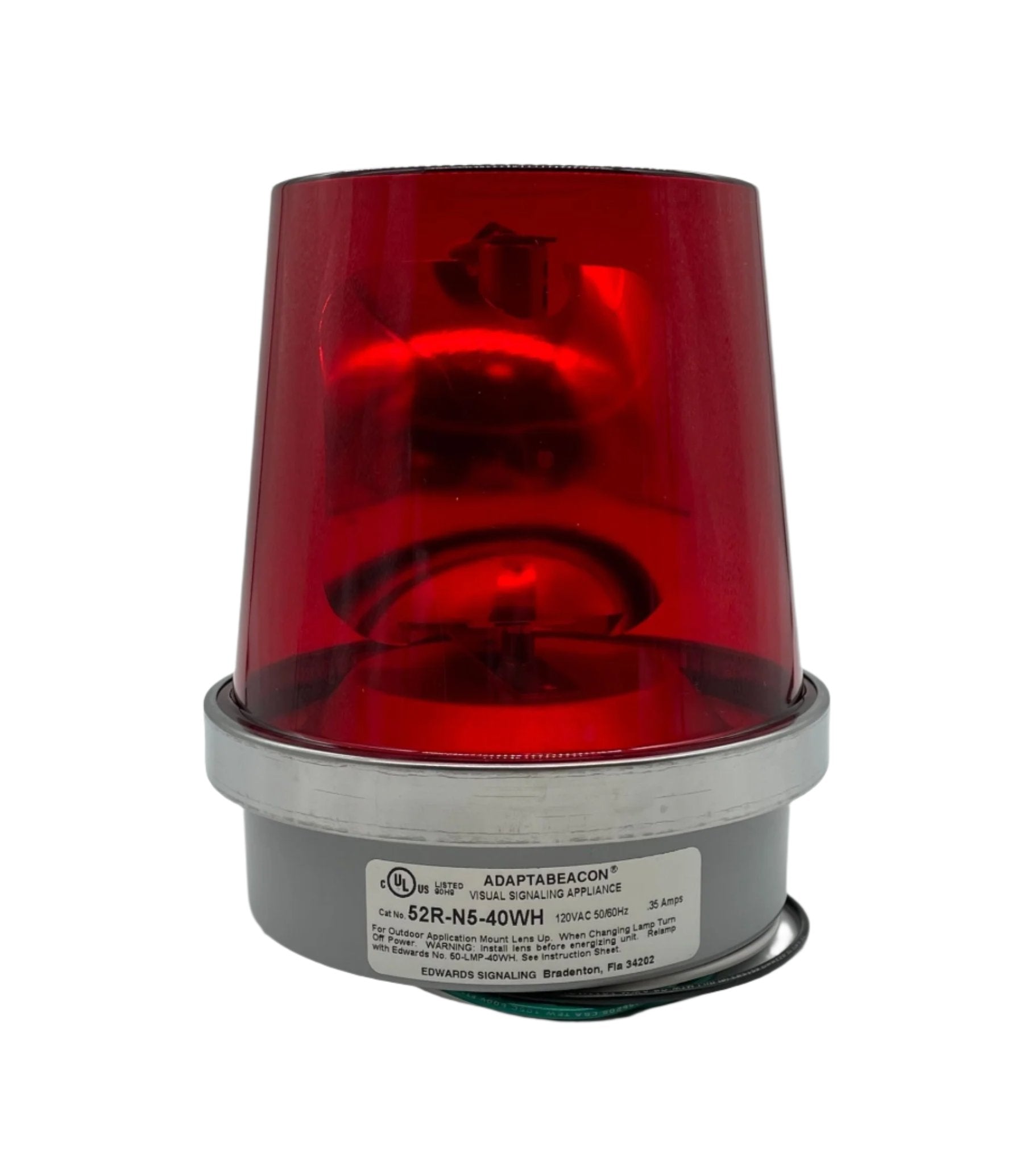

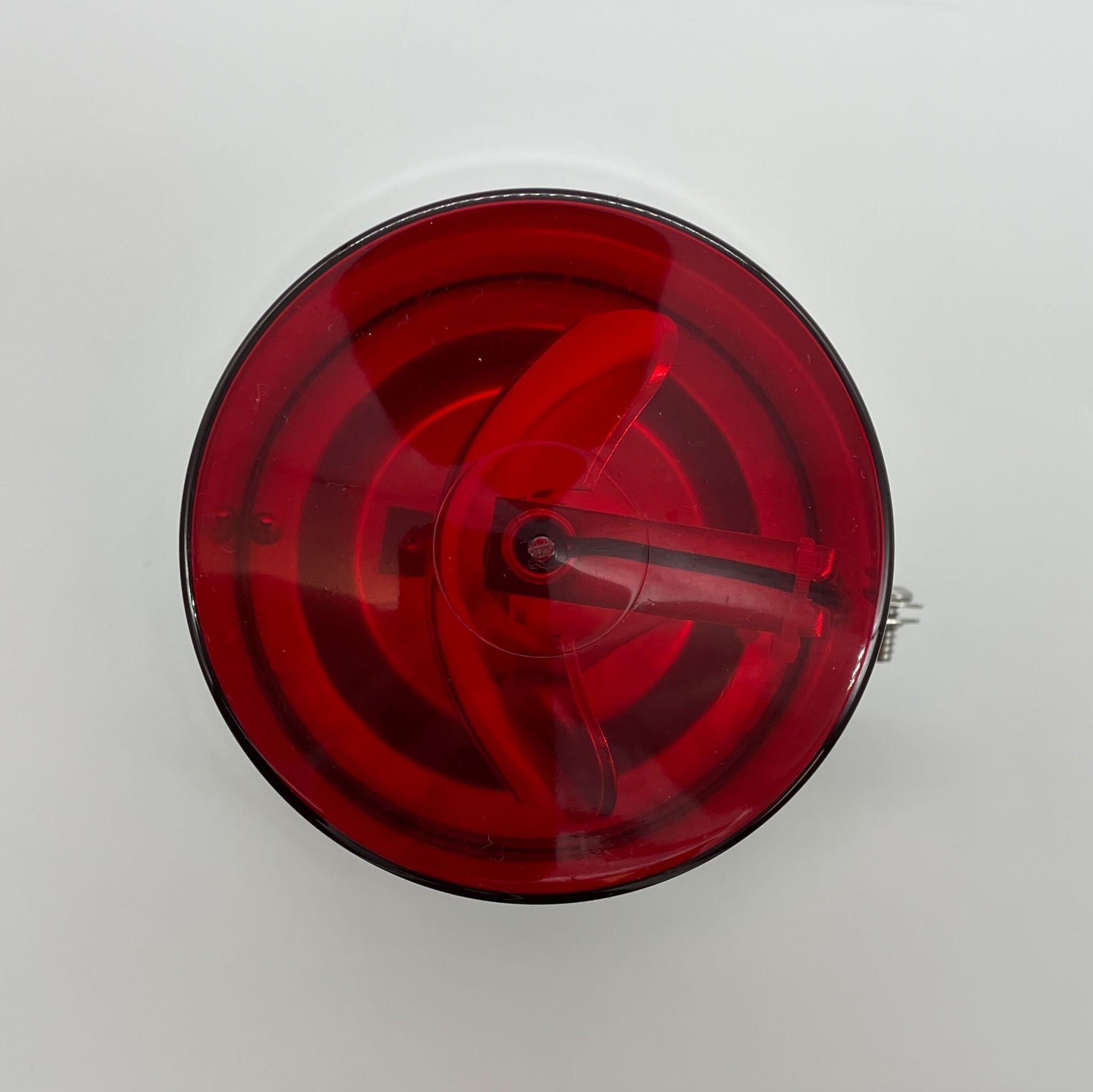

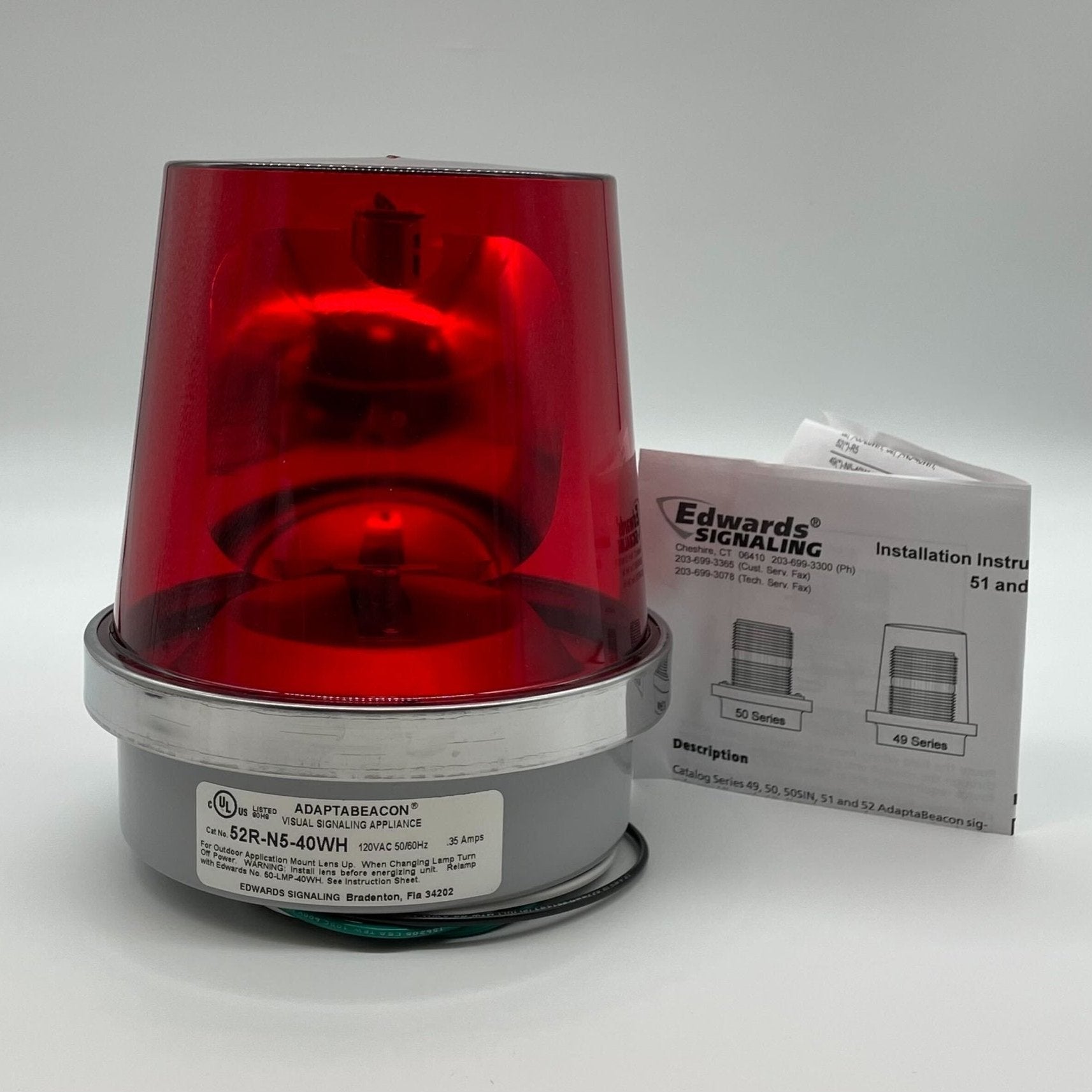

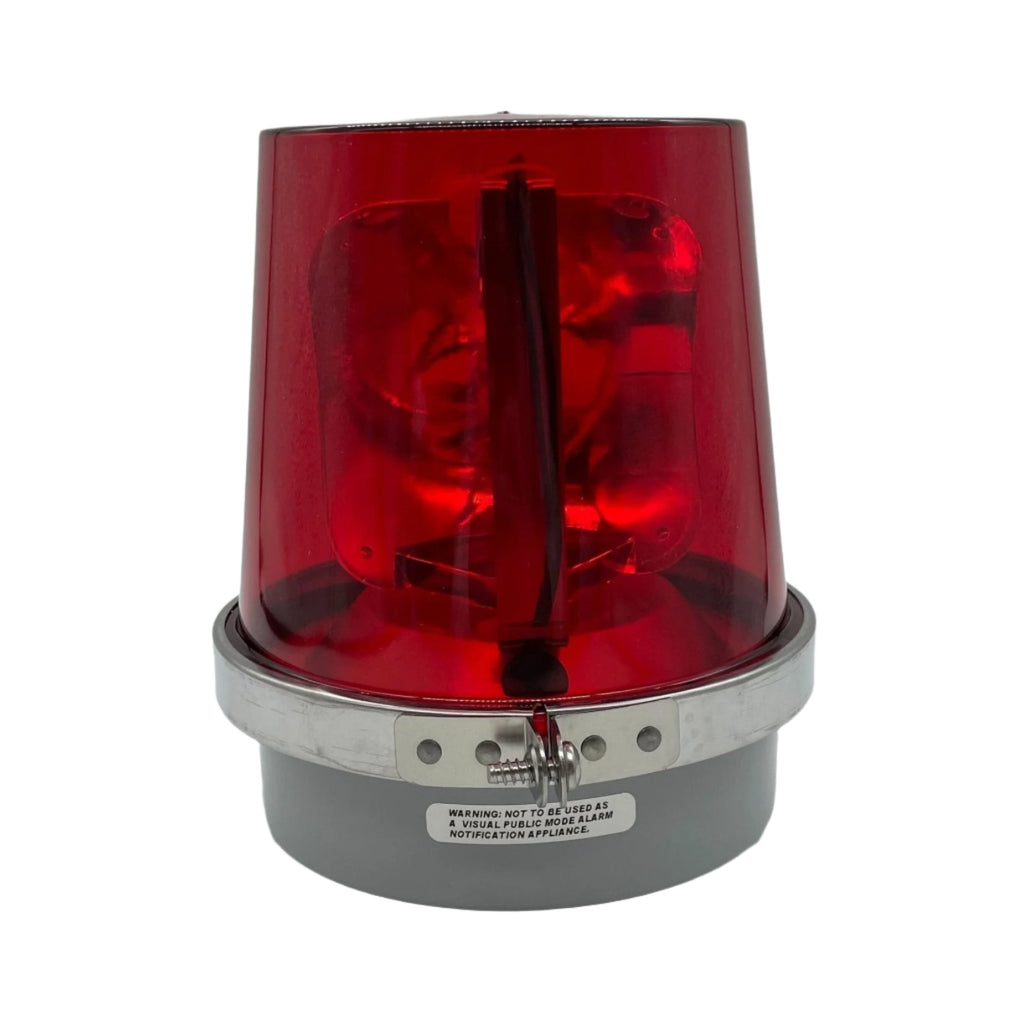

Edwards 52R-N5-40WH is a 52 Series rotating beacon with a red lens and a 40 W halogen lamp, for 120 VAC 50/60 Hz at 0.35 A. It is a visual signal for indoor or outdoor use, with a light intensifying reflector and a bayonet lamp socket for easy lamp replacement.

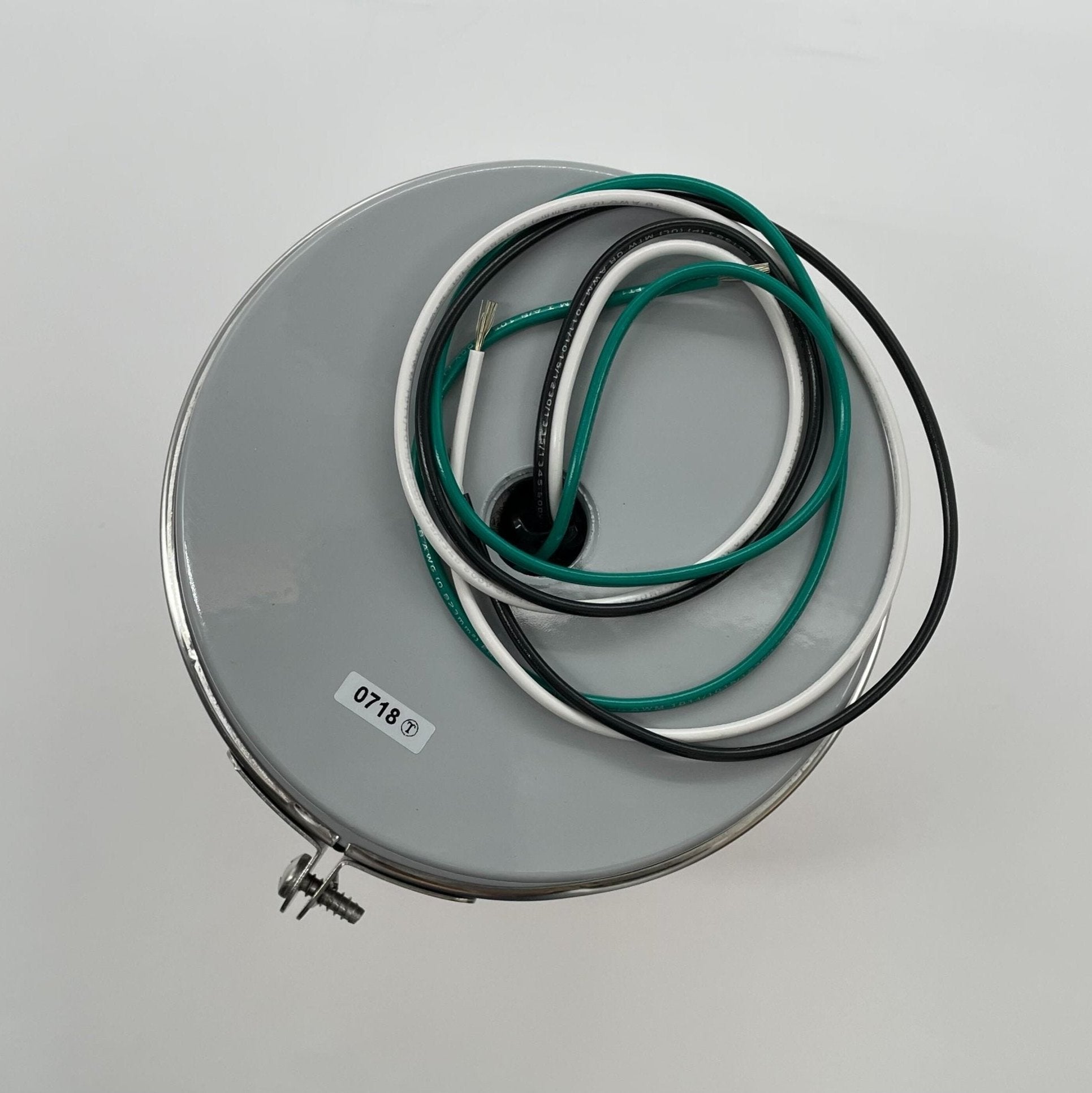

The cast base can serve as a junction box, and the beacon mounts on 1/2 in. NPT conduit or on a surface; it is designed for 4-inch octagonal box mounting. Indoors the lens may point up or down. Outdoors the lens should face up and the 52 Series must be conduit mounted.
Specifications
| Light source |
40 W halogen, 265 lumens, 3,328 cp |
| Lamp life |
25,000 hours (at 65 fpm, 50% duty cycle) |
| Voltage / current |
120 VAC 50/60 Hz, 0.35 A |
| Rotation |
75 rpm |
| Lens |
Red; replacement lens 52-LR |
| Replacement lamp |
50LMP-40WH |
| Mounting |
1/2 in. NPT conduit or surface; 4 in. octagonal box |
| Operating temperature |
-31°F to 150°F (-35°C to 66°C) |
Installation notes
- Outdoors, mount with the lens facing up and use conduit mounting
- Indoors, the lens may point up or down
- The cast base can be used as a junction box
Related models
- 52A-N5-40WH, 52B-N5-40WH, 52C-N5-40WH, 52G-N5-40WH, 52M-N5-40WH: amber, blue, clear, green and magenta lens versions
- 52R-G5-20WH: red, 24 VAC halogen version
Documents
FAQ
What lamp does the 52R-N5-40WH use and how long does it last?
A 40 W halogen lamp (replacement 50LMP-40WH) rated 265 lumens and 3,328 cp, with a projected life of 25,000 hours at 65 fpm and 50% duty cycle.
How fast does it rotate?
75 rpm.
Can it be mounted outdoors?
Yes. Outdoors the lens should face up and the 52 Series must be conduit mounted. Indoors it can be mounted with the lens up or down. It is designed for 4-inch octagonal box mounting.
What is the replacement red lens?
The 52-LR. Operating temperature is -31°F to 150°F (-35°C to 66°C).
