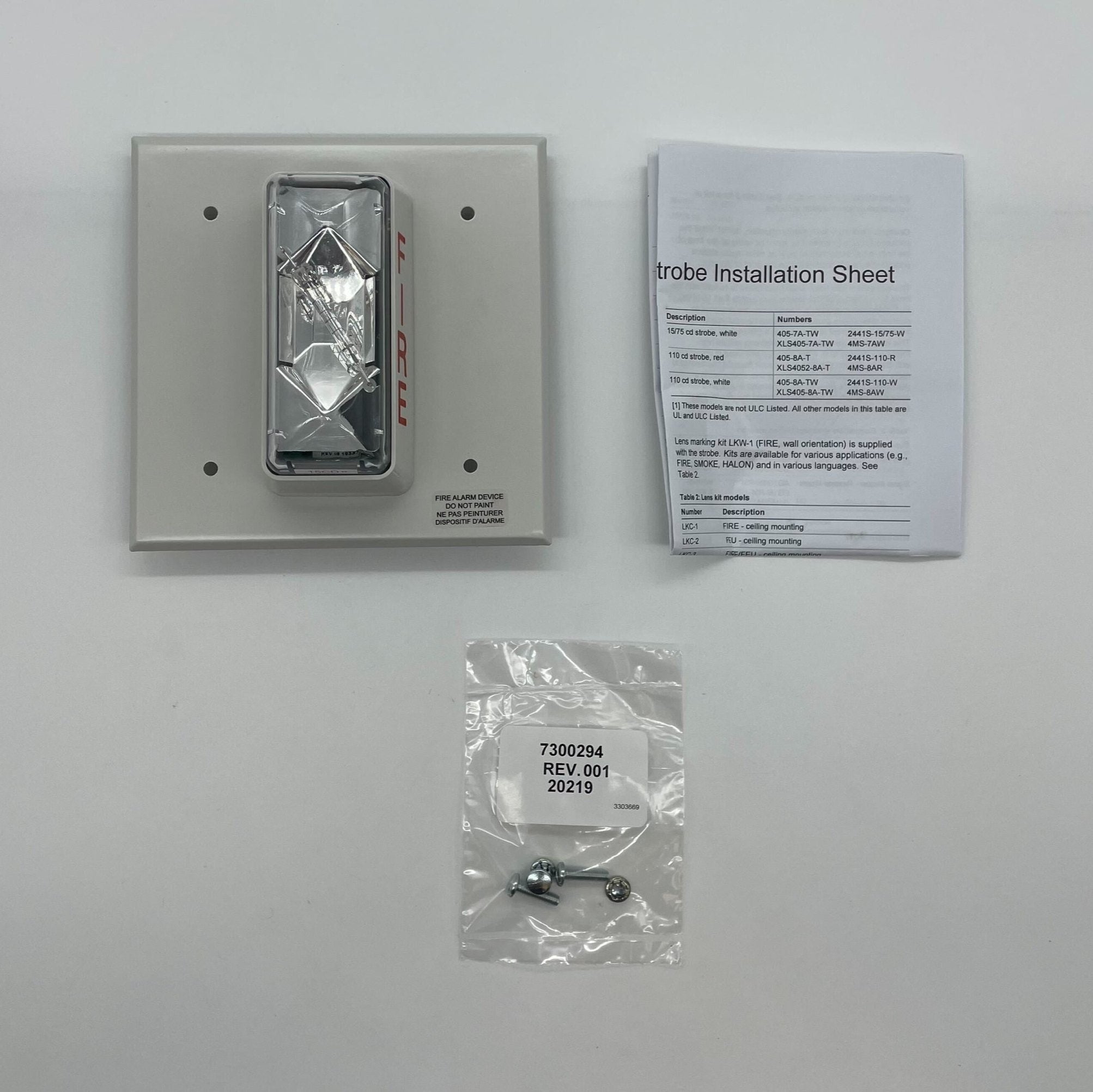

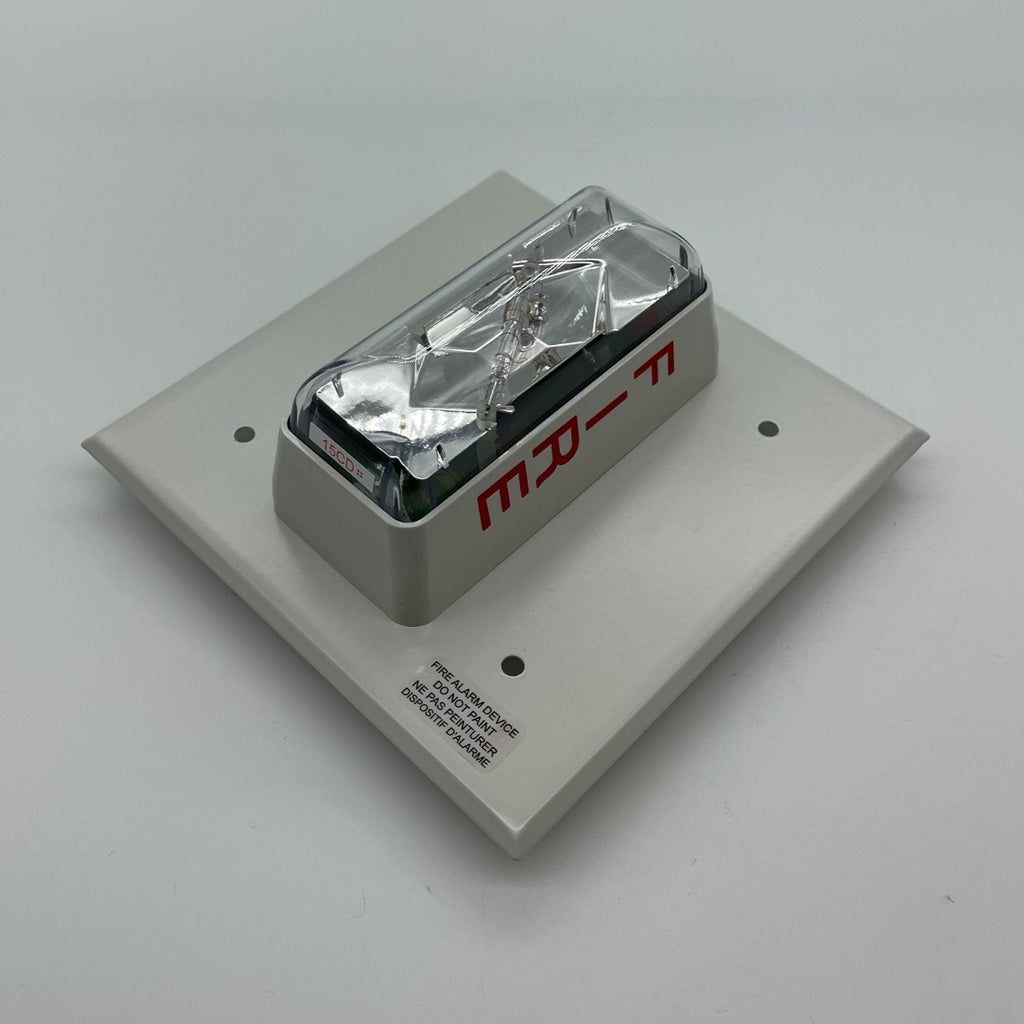

Edwards 405-5A-TW is a 15 cd white synchronized strobe from the Edwards 405 Series, which uses a rugged steel front plate and fits a standard 4-inch square electrical box. Strobes in the series are for use with compatible fire alarm control and signaling equipment.
Specifications
| Strobe output |
15 cd (UL 1971 wall rating) |
| Operating voltage |
16 to 33 Vdc or 16 to 33 Vfwr, constant (not pulsed) |
| Flash rate |
One flash per second |
| Front plate |
Steel, 5.5 in (140 mm) square, baked epoxy powder coat |

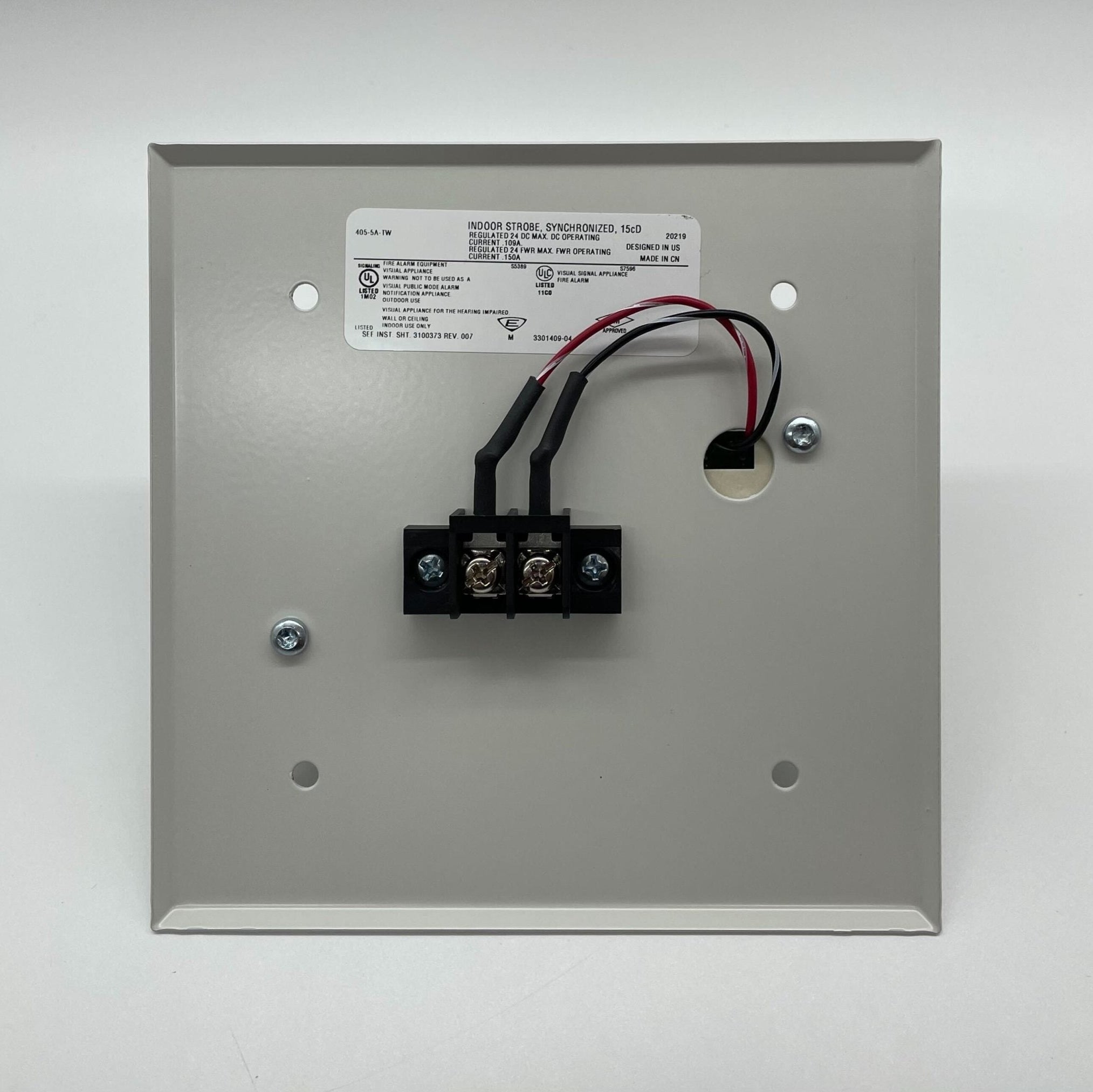

| Wire terminals |
#12 AWG maximum, polarized |
| Mounting |
North American 4 in square box |
| Indoor temperature |
32 to 120 F (0 to 49 C) |
| Lens marking |
FIRE, wall orientation (LKW-1) |
Features
- Synchronizes to UL 1971 requirements when used with a separate synchronization module or a suitably enabled power supply.
- Compatible with Genesis signals on the same circuit.
- Optional LKW and LKC lens kits change the marking or ceiling orientation.
- A diode allows full supervision of the signal circuit.
Installers use it as a retrofit strobe where an existing 4-inch square box is in place.
