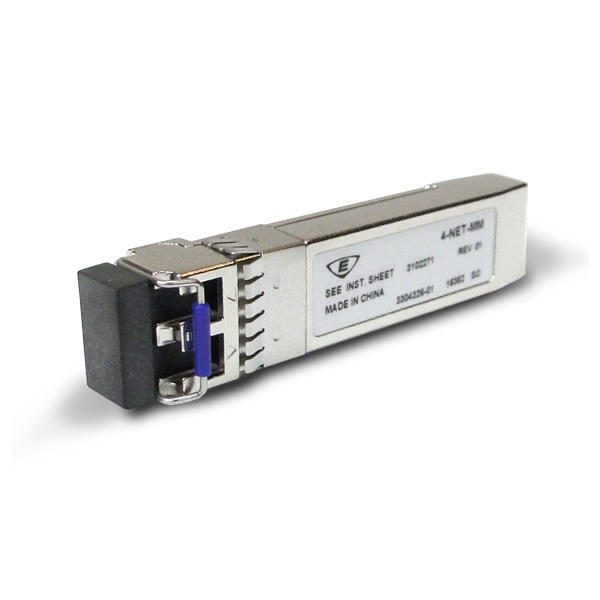

Edwards 4-NET-MM — EST4 SFP network controller, multimode, dual-fiber, 100Base-FX, 1310 nm.
EST4 panels and annunciators connect over the EST4 network, and a single network cable carries all panel-to-panel services: data, voice audio and firefighter telephone. The network controller is chosen to match the installed cable, and the 4-NET-MM is the plug-in SFP for multimode fiber links. Copper, single-mode and multimode links can be combined on the same network.
Specifications
| Fiber type |
Multimode OM1 (62.5 µm) or OM2 (50 µm), dual fiber |
| Standard |
100Base-FX, 1310 nm |
| Cable distance |
Up to 1.24 miles (2 km) |
| Modal bandwidth |
500 MHz/km |
| Transmit power |
-20 to -14 dBm |
| Receive power |
-31 to -14 dBm |
| Max channel insertion loss |
10 dB on 62.5/125 µm OM1; 5 dB on 50/125 µm OM2 |
| Weight |
0.248 lb (0.112 kg) |
Installation notes
- Select the network controller that matches the fiber installed between panels.
- For longer links, the single-mode SFPs reach 6.2 to 24.8 miles (10 to 40 km), depending on model.
Related models
-
4-NET-SM — single-mode, dual fiber, 100Base-LX10, up to 14 km.
-
4-NET-SMH — single-mode, up to 40 km.
-
4-NET-SMU and 4-NET-SMD — single-mode, single-fiber pair, up to 10 km.
