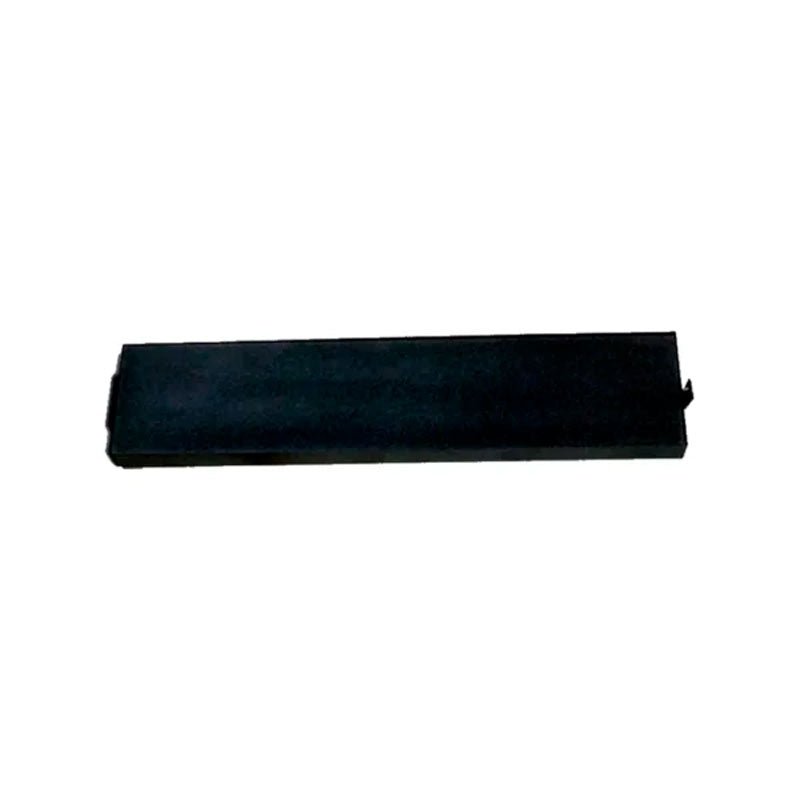

Edwards 4-FIL — a blank filler plate that closes an unused control display module position on an EST4 inner door.
An EST4 cabinet inner door carries a row of module positions. Where a job does not use every one, Edwards lists the 4-FIL so the opening is covered and the door presents a finished face. It is a plate and nothing more: no indicators, no switches, no electronics, so it draws no current and takes no address. The Technical Specifications table gives each display module a column and the 4-FIL none.
- Edwards wording: order separately when no LED or LED/Switch module is installed on the inner door
- Listed in the Ordering Information of E85014-0006 and E85014-0017
- Shipping weight 0.1 lb
- The modules it stands in for mount on the 4-CAB8D, 4-CAB16D, 4-CAB24D, 4-CAB24DL, 4-4ANND and 4-6ANND doors
- No agency listing is claimed here; the Agency Listings block is scoped to the control display modules
The live cards it stands in for are the 4-24L with 24 indicators and the 4-24L12S, 4-24L18S and 4-24L24S, adding 12, 18 and 24 control buttons at 0.65 lb each. Those have EN54 -E variants; the 4-FIL has none.
